WP Worm Gear Gearbox WPS80 Solid Shaft Mounted Speed Reducers
- Category: >>>
- Supplier: Hangzhou Wanxing Reducer Co. Ltd.
Share on (60274832476):
Product Overview
Description

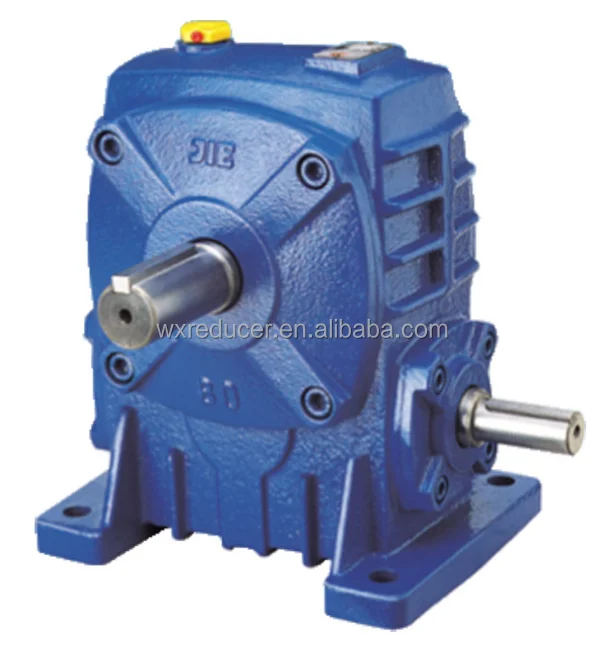

WP Worm Gear Gearbox WPS80 Solid Shaft Mounted Speed Reducers
Product Description
item name: | WPDS |
size number: | 40,50,60,70,80,100,120,135,147,155,175,200,250 |
ratio: | 1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60 |
color: | green,blue,silver,black and other customize color |
material: | housing is made of HT200 worm wheel is made of aluminium bronze |
packing: | Inner pack: use pp bag a Inner pack: use plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request |
bearing: | NSK & Homemade bearing |
seal: | SKF NAK |
input power: | 0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw |
shaft direction: | A,B,C,D,E |
input form: | IEC flange for mounting motor,solid |
output form: | solid shaft,hollow shaft |
weight: | 4-360KGS |
application: | In industrial machine:food stuff,ceramics,chemical, packing,printing,dyeing,woodworking,glass and plastics |
warranty: | 1 year |
Model description

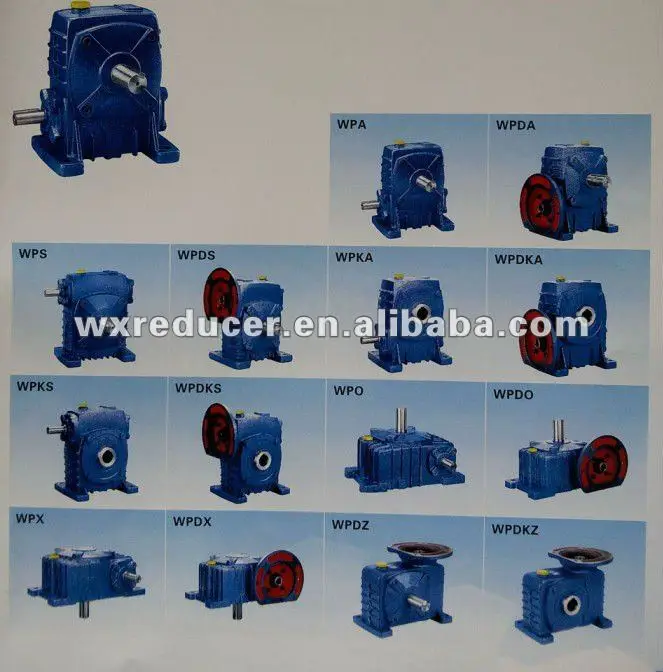

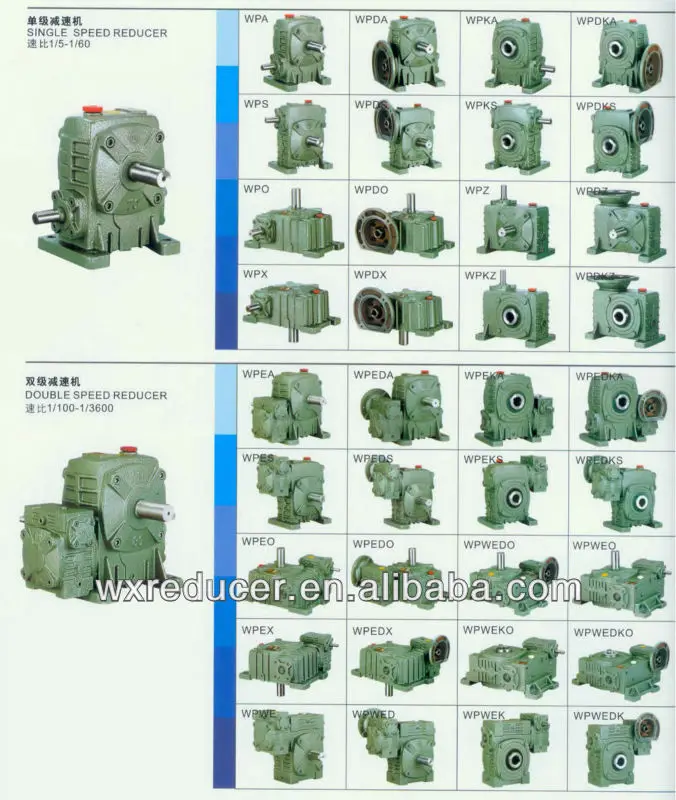

Total 60 families and more than 20,000types with different models, ratios, connections and installations can be selected to meet requirements of customers.
Company Information
Hangzhou Wanxing reducer Co.,Ltd is established in 1999 and is a professional manufacturer and supplier of NMRV,VF,WP,PLANETARY gearbox/reducer. It is located in Hangzhou City of China,with easy access to air port and sea port.
Our company now opeartes with more than 100pieces of equipment and pass the ISO9001:2000 certification. In order to improve our products,we’ve established a research and development department with experienced technicians. We also take part in some exhibitions such as the Cantan fair,the Hannover Mess.
Packaging & Shipping
Inner packing: carton
Outer packing: Wooden case
Shipment:20days after received the deposit
Our Services
As a result, we can provise both standard and non-standard NMRV gearboxed to meet customer's requirements.
1.High quality product----Our tenet is "quality first".Good material,precise manufacturing processes
and strict quality control can create excellent quality.
2.Competitive price----We have our own factory,scientific producing,direct-selling.So we can save the cost and supply low price.
3.Professional----Our professional engineer can answer technical questions,help you solve technical problems and help you choose the most suitable product according to your requirements.
4.Delivery fast----We are near port,and we have professional forwarder.Goods can be sent out within 1 to 10 working days based on order quantity.
5.Best service----Answering e-mails or solving questions timely.Delivery and update information on time.
FAQ
1, Q: What's your business type?
A: Manufacturer
2, Q: What's your main products?
A: Power transmission gearboxes and gears.
Such as: industrial HB gearbox, worm/helical/bevel/planetary gearbox, customed gears, etc.
3, Q: What about your warranty?
A:12 to 18 months warranty according to different products and lifetime service.
4, Q: What's your MOQ?
A: 1 piece for different gearboxes.
5, Q: Can you supply customized gearboxes or gears?
A: Yes, we can. Mostly depend on your requirements.
6, Q: What information should be given, if I want to buy gearbox?
A: Gearbox ratio, type, input speed, rated power, Mounting position, More details, better!
If you have any queries ,Pls Contact with me :
SKYPE:sarah19891202 Tel: 86-571-82164567
Welcome to contact us for more detail information and inquiry.
Please leave a message or inquiry below.
We will reply within 24 hours*7days*12monthes. Thanks for your cooperation !
Welcome standard-product inquiry, Welcome OEM inquiry.
