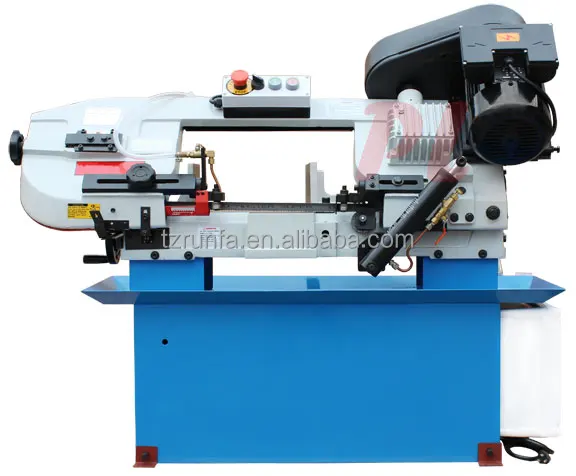

Double Column Horizontal Hydraulic Band Sawing Machine for Cutting Metal Band SAWING MACHINE GT4228
- Category: >>>
- Supplier: Tengzhou,Runfa,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
ABC15-E 1.5 Ton Excavator
This Mini Excavator delivers power and performance in a compact size to help you work in the tightest applications. Its ability to fit through a narrow doorway makes it an excellent machine for indoor demolition work.
FEATURES AT A GLANCE
1. Double column horizontal band sawing machine mainly used for all kinds of large-scale material sawing with high efficiency and
high precision save material saving energy etc.
2. Double column structure vertical lifting high stability.
3. The hydraulic pressure controls the speed of saw stepless speed regulation.
4. The clamping of workpieces adopts hydraulic control, easy and smiple. Can make 3 hydraulic tension saw blades per request.
high precision save material saving energy etc.
2. Double column structure vertical lifting high stability.
3. The hydraulic pressure controls the speed of saw stepless speed regulation.
4. The clamping of workpieces adopts hydraulic control, easy and smiple. Can make 3 hydraulic tension saw blades per request.
Right side
Left Side
Front Side
PRODUCT SPECIFICATIONS
Specifications | GT4220 | GT4228 | GT4235 | GT4240 | GT4250 | ||||||||||
Max Cutting Diameter(mm) | ●200■200WX200H | ●280■280WX280H | ●350■350WX 350H | ●400■400WX400H | ●500■500WX500H | ||||||||||
Saw Blade | Size | 2650*27*0.9mm | 3505*34*1.1mm | 4115*34*1.1mm | 5000*41*1.3mm | 5800*41*1.3mm | |||||||||
Speed | 27,45,69m/min | ||||||||||||||
Guides | Carbide and bearing blade guides | ||||||||||||||
Cleaning | Power wire brush & flood coolant | ||||||||||||||
Tension | Manual | ||||||||||||||
Blade Feed type | Hydraulic | ||||||||||||||
Feed Type | manual | ||||||||||||||
Motor power | Blade | 2.2kw | 3kw | 4kw | 4kw | 5.5kw | |||||||||
Hydraulic | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | ||||||||||
Coolant | 0.04kw | 0.04kw | 0.04kw | 0.125kw | 0.125kw | ||||||||||
Clamping Vice | Hydraulic | ||||||||||||||
Main Transmission structure | Worm gear | ||||||||||||||
Machine Size(mm) | 1300*800*1100 | 1860*1000*1400 | 2000*1100*1500 | 2500*1300*1600 | 2800*1300*2000 | ||||||||||
PRODUCT CONFIGURATION
Copper motor
Hydraulic clamp and best blade pulley
High stable and rigidity hanged arm
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in England
SIMILAR PRODUCTS
FAQ
1. What to do when you don’t know which model need to buy?
You only need to tell us your workpiece size,such as round steel diameter
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma
invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us
directly.
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for
free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not
included) under warranty period.
6. Do you have optional hammer die for choose?
YES.
We have some kinds of optional hammer for customer choose according their work need.
You only need to tell us your workpiece size,such as round steel diameter
Or square steel size,if convenient,you can send us your product photos.
We could provide you best model and suggestions on your requirement.
2. How to place order?
You can place order via alibaba trade system,of course,you can also place order directly to us,we would provide you proforma
invoice with all the machine detail and your information on the invoice.You can transfer the deposit by the invoice to us
directly.
3. What’s your MOQ?
We don’t have limit of your first order as example for testing and trial our machine.You can buy one set or more upon your
require.
4. Do you have warranty of your product?
YES.
The product is under our firm’s warranty for 12 months after it is delivered. Any defect caused by human error,
mishandling,foreseeable conditions will not be covered by this warranty.For oversea customer, we only provide the accessory for
free within warranty period.
5. Do you have After-sale Serivce?
YES.
We provide free parts and parts delivery, when manufacture defects has been detected during normal operation (vulnerable parts not
included) under warranty period.
6. Do you have optional hammer die for choose?
YES.
We have some kinds of optional hammer for customer choose according their work need.
