vmc850 machine price

Product Overview

Description



VMC machine price



MAIN PARAMETER

PARAMETER		VMC850
Table	X travel	850 mm
	Y travel	500 mm
	Z travel	550 mm
	table size	500X1000 mm
	table load weight	450 kg
	T-slot	3-18-90mm
distance from spindle end to table		110-610 mm
distance from spindle center to column		560 mm
X,Y,Z rapid movement		20x20x20 m/min
cutting feed		1-5000 mm/min
spindle	spindle speed	8000 rpm
	spindle taper	BT40
ATC	tool changer type	funnel type
	tool change quantity	16 piece
	the biggest tool diameter	80/130 mm
	the biggest tool length	300 mm
	the biggest tool weight	6 kg
main motor power		5.5 /7.5kw
overall size		2700x2150x2700 mm
weight		5000 kg

 Standard configuration(VMC machine price)

ITEM	BRAND
CNC controller	FANUC Oi-mate MD
ATC(funnel,16 piece)(optional :disc,24 piece)	DETA, made in Taiwan
Spindle BT40	POSA ,made in Taiwan
Box guide way (optional: linear guide way)	(HIWIN,made in Taiwan)
ball screw	PMI,made in Taiwan
bearing	NSK, made in Japan

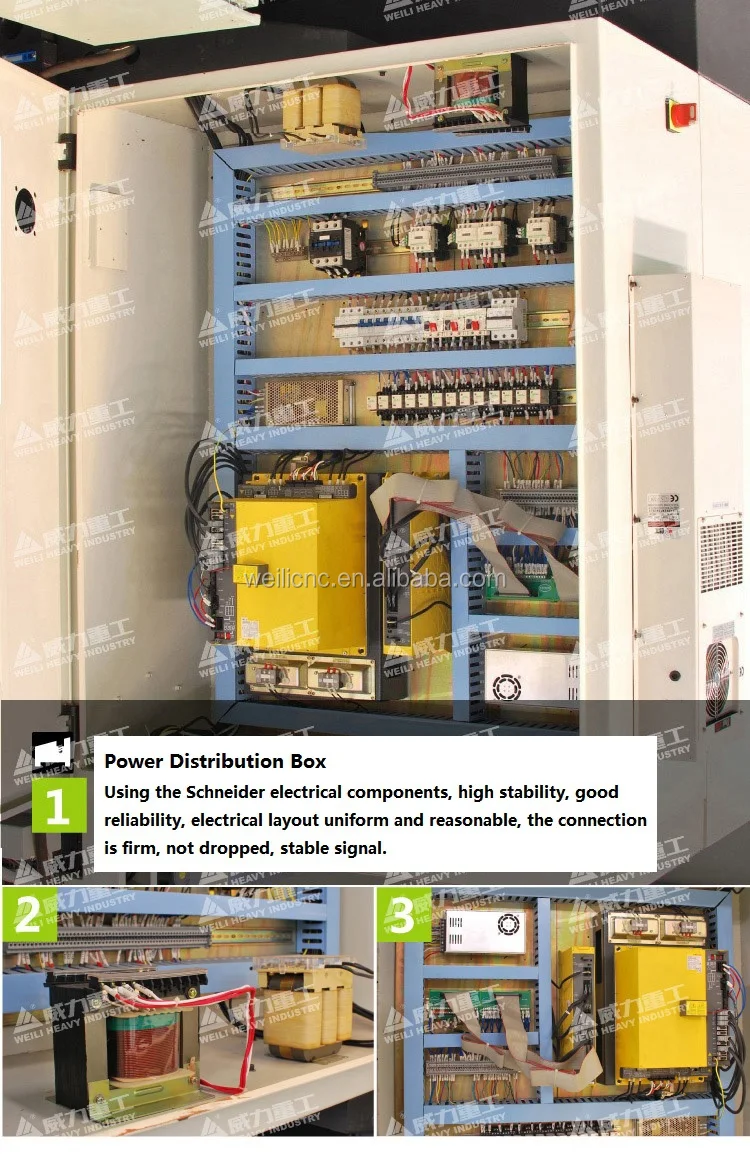

electrical part	Schneider or Siemens
spindle center blow
high pressure water cooling
air cool
manual chip
three color alarm



 Quality Inspection



  The outstanding machine performance relies on precision parts. To ensure each part achieves the highest accuracy and



dependability, our Q.C department conducts 100% parts inspection.  The combines with the use of a full series sophisticated inspection instrument to ensure only best quality parts fitted on all machines.



 1-----Each spindle motor is subject to dynamic balance calibration before it been assembled to machine.With this process applied minimum spindle motor chattering maximum machining accuracy can be achieved.



2-----Renishaw Laser calibration system ensure machine accuracy.



3-----Renishaw Ball bar system,circular test ensures machine geometry

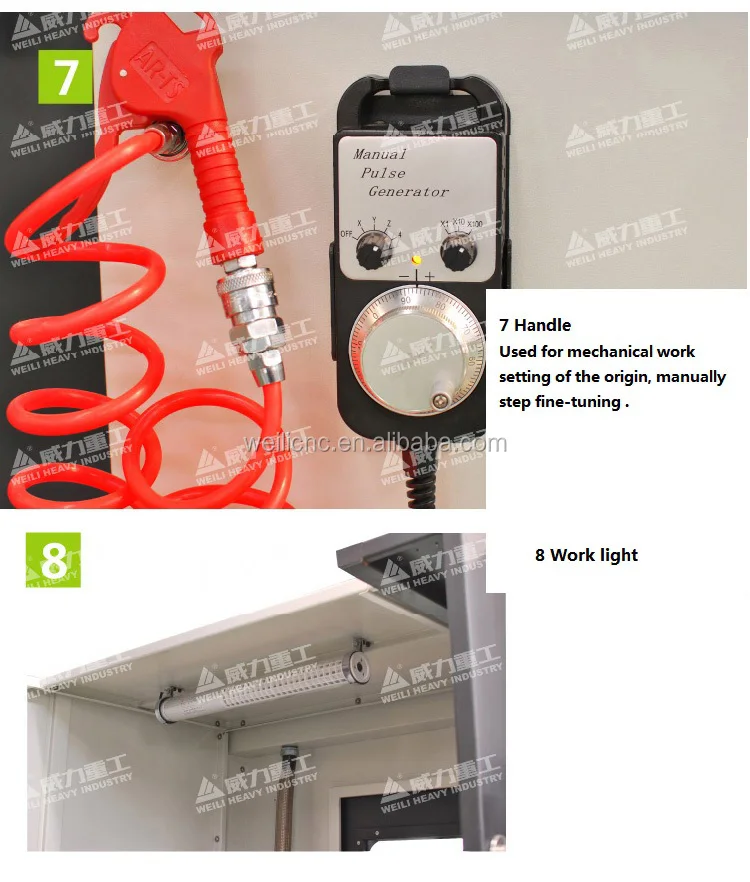

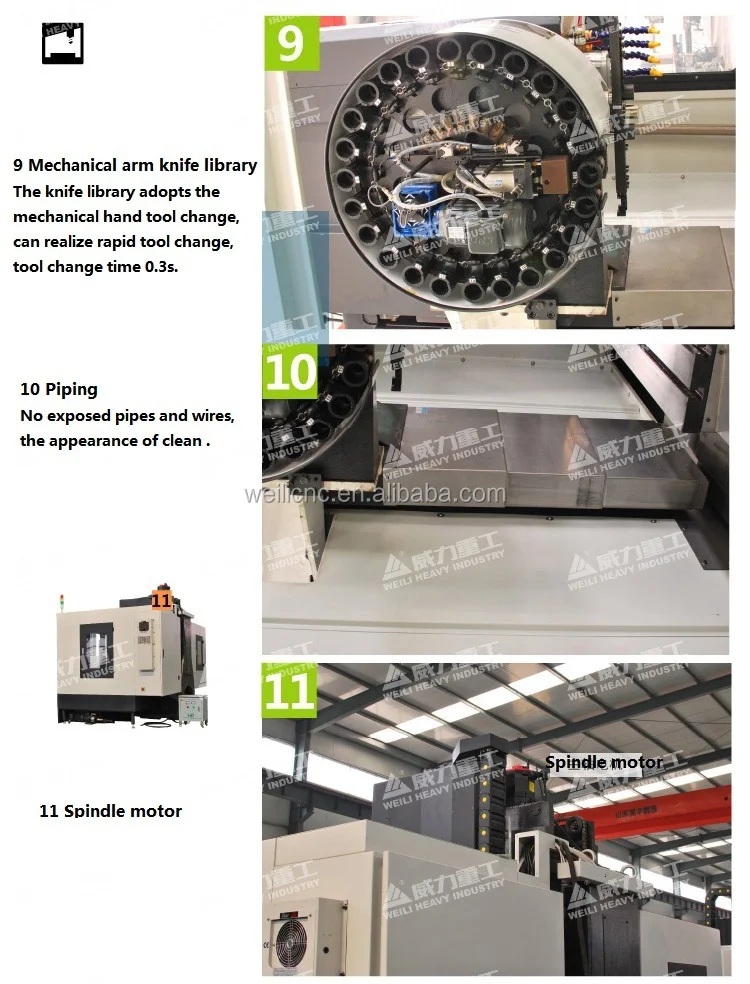

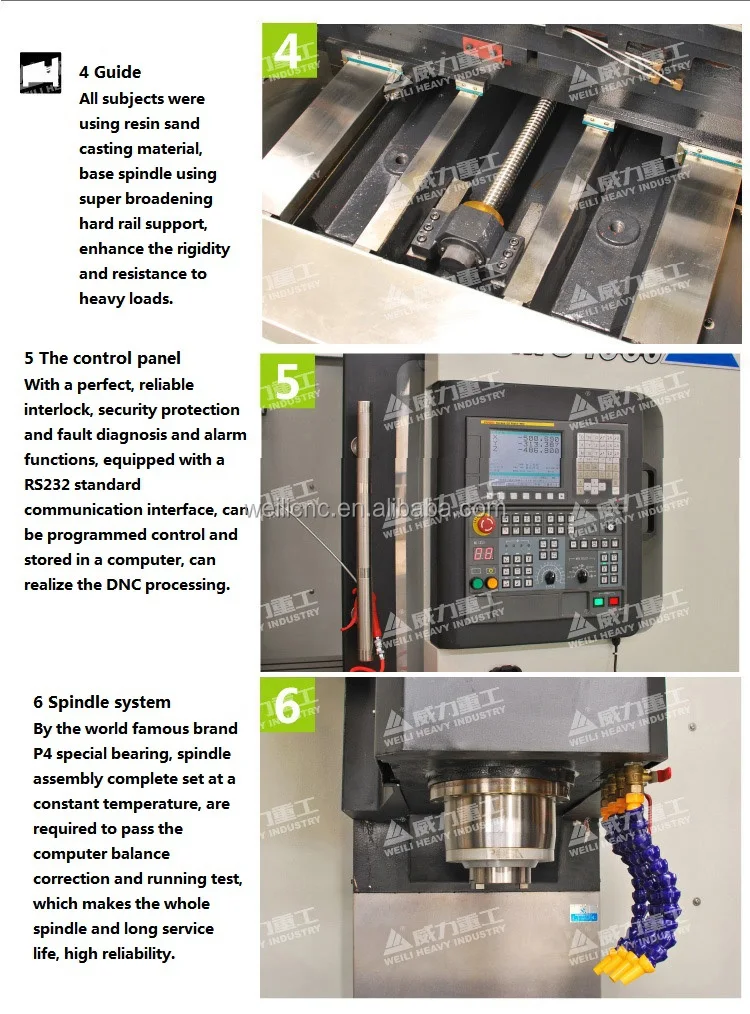

Detailed part

Our workshop



Main products:3 axes vertical CNC milling machining center,Vertical CNC Machine Center, CNC High Speed Vertical Machining Center, CNC High Speed Vertical Machining Center, High Speed Die and Mold CNC Machining Center,



CNC Milling Machine, Machining Centers, Machining Tools  ,CNC Machine Machine tool CNC machining CNC milling Conventional milling Universal milling CNC machine CNC machine center, CNC machine, CNC Machine Tools CNC VMC Series milling machine.



VMC550,VMC650,VMC850,VMC1060,VMC1270,VMC1370,VMC1580



Model	Guideways	Travels(mm)	Table size	Spindle Taper
VMC430	Linear	430*300*450	700*300	BT30
VMC550	Box	500*400*455	620*380	BT30

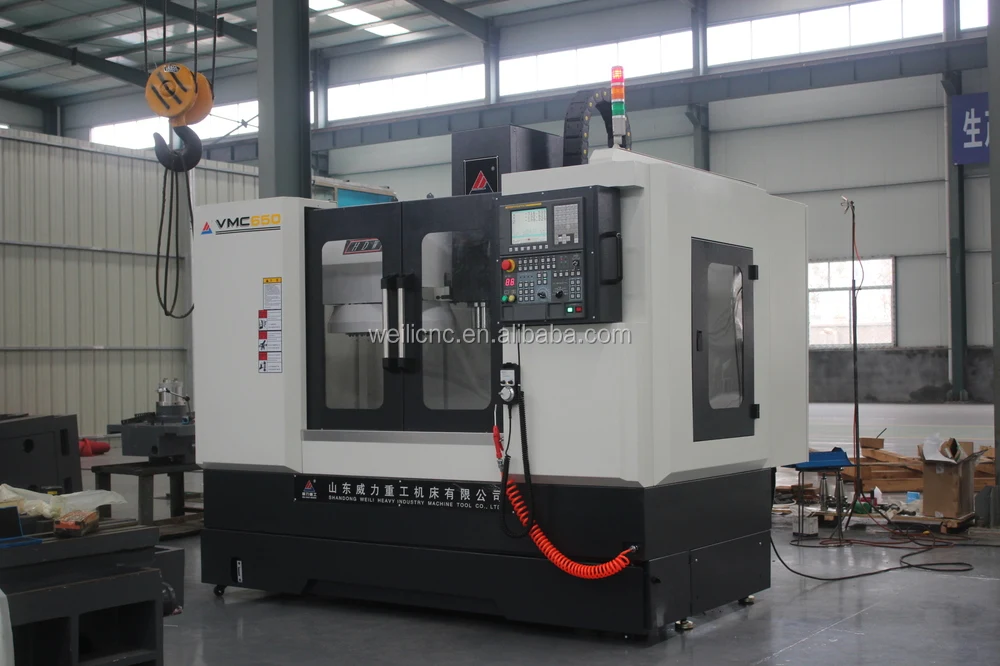

VMC650	Box	650*400*480	800*420	BT40
VMC850L2	X,Y Linear	850*500*550	1050*500	BT40
VMC850L3	Linear	850*500*550	1050*500	BT40
VMC1060	Box	1000*600*700	1300*600	BT40
VMC1060L2	X,Y Linear	1000*500*550	1200*510	BT40
VMC1270	Box	1200*700*600	1360*700	BT50
VMC1270L2	X,Y Linear	1200*700*700	1300*610	BT50
VMC1370	Box	1300*700*650	1400*710	BT50
VMC1580	Box	1500*800*700	1700*800	BT50
VMC1690	Box	1600*900*680	1800*900	BT50
VMC1890	Box	1800*900*800	2000*900	BT50







About us

Shandong Weili Heavy Industry Machine Tools Company have a hard-earned reputation for durability and reliability, and are built to last. From the start, our mission has been focused on offering our clients affordable, heavy-duty machine tools, without sacrificing quality and performance.   And with a nationwide dealer network, we are committed to providing our clients with the highest level of responsive service and support.

If you have some doubt for above machine, plz contact me. I will be very glad. W E L C O M E    T O    I N Q U I R Y,    M Y    F R I E N D.
