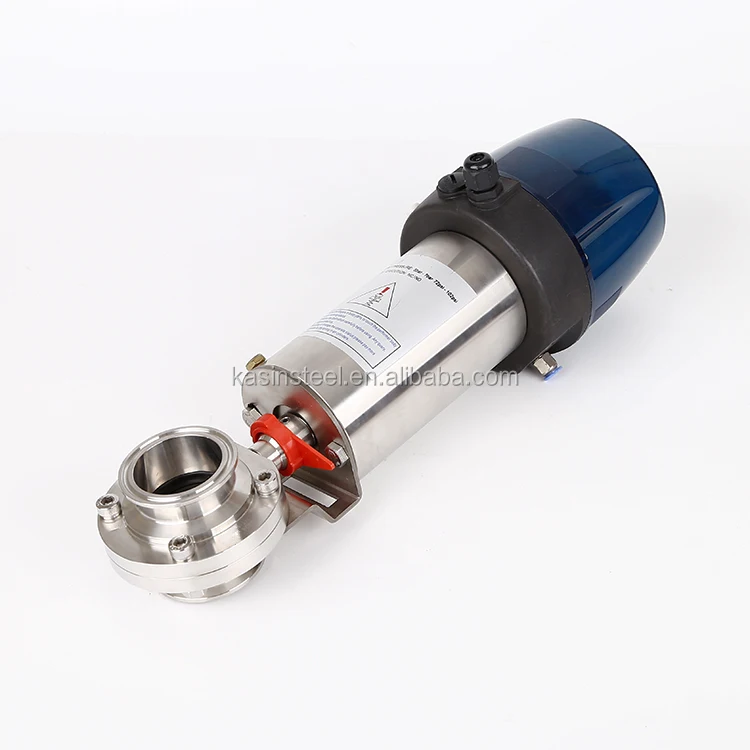

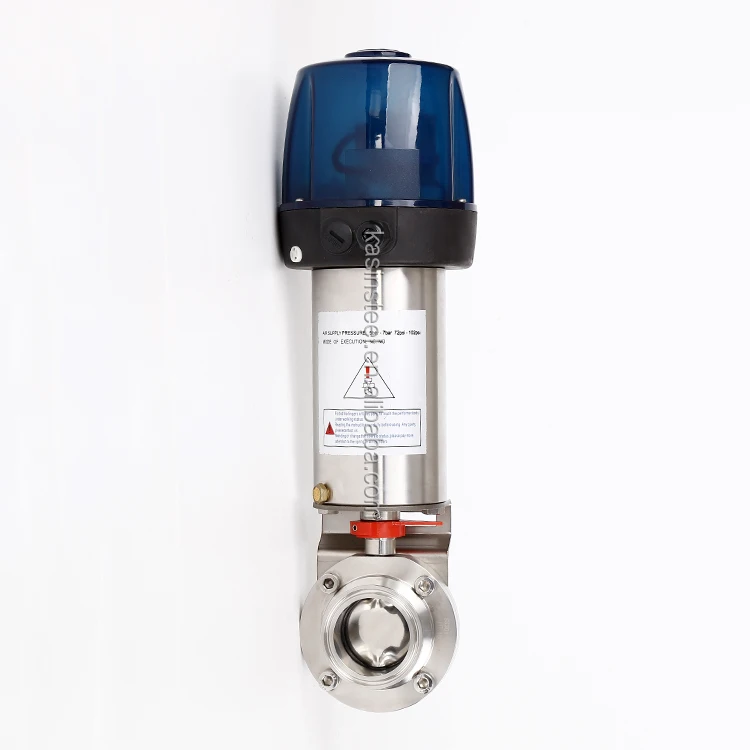

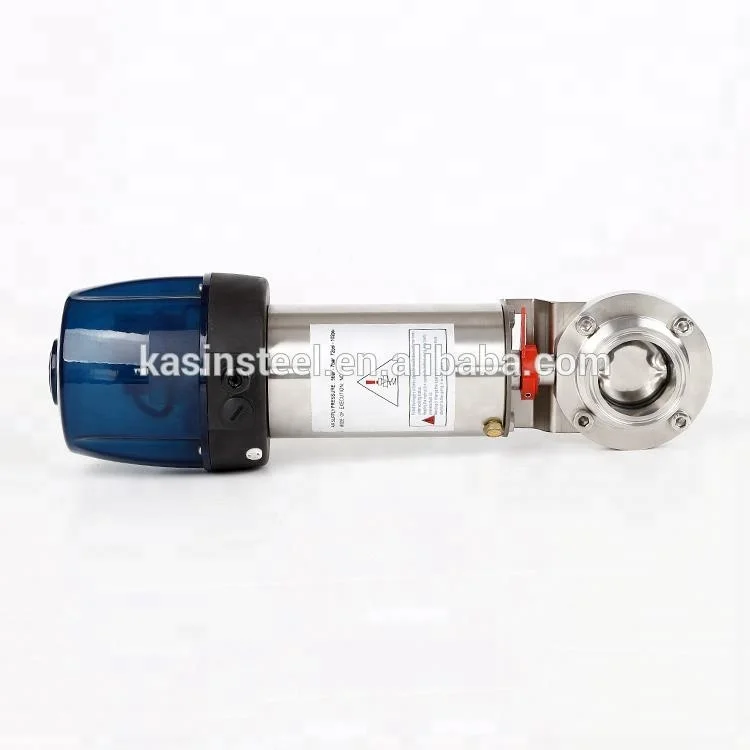

Sanitary Stainless Steel NC NO Intelligent Pneumatic Butterfly Valve With SS Actuator
- Category: Butterfly Valves >>>
- Supplier: Wenzhou Kasin Valve Pipe Fitting Co. Ltd.
Share on (60275577074):
Product Overview
Description
Sanitary Stainless Steel NC NO Intelligent Pneumatic Butterfly Valve With SS Actuator
Product Properties
Product name | Sanitary Stainless Steel NC NO Intelligent Pneumatic Butterfly Valve With SS Actuator |
Application | |
| Butterfly valve is a type of flow control device,used to make a fluid start or stop flowing through a section of pipe .It is well applied to stainless steel pipe systems for food,beverage.dairy,brewing,phamaceuatical,bio-pharmaceuatical and chemical industries. | |
| Materials | |
| · Body Materials: | AISI-304 or AISI-316L |
| · Gasket Material | Silicon,EPDM,NBR |
| Standard Design | |
| · Standard Avaliable: | DIN,SMS,ISO /IDF,BS /RJT,and ASME /BPE. |
| · Available in sizes from DN25 to DN150,1''-6'' | |
| · End connection: | Butt-weld,Clamp,Male.Nut,Liner or Flange or other supon request. |
| · Handle: | Plastic pull handle (2-4 positions) or plastic/stainless steel squezee handle (13 positions) |
| · Actuator. | pneumatic stainless steel actuator (vertical type).pneumatic aluminum actuator (horizontal type).electric actuator. |
| · Control: | Position sensor,C-top controller,C-top C ontroller (AS-) Manual handle,pneumatic actuator and electic actuator are interchangeable. |
| Technical specification | |
| · Max pressure : | 10bar (145psi) DN25~ 100,8bar (120ps) DN125~ 150 |
| · Temperature range: | 14~ 248^F (-10~ 120*C),EPDM |
| · Surface treatment: | Ra16~32uin(0.4~0.8um) |
| · Supply pressure for air actuator.70~ 115psi | |
Product Show
Company Application
Company Profile
EXHIBITION
FAQ
1. Design & Engineering
A.Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.
B. We look forward to delivering exceptional designs and advice for your project.
2. How to buy your ideal products?
A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
3. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
4. What is the delivery time?
A: It depends on order quantity.Generally, the delivery time will be within 15 to 30 days.
5. Package information?
A:For inner box and master carton are made as per international standards,and we can make special designed for you if need.And if necessary,will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box,about 1000kg per pallet.
6.How long to make a sample?Is it free?
A:Generally we have stock for general sizes, so we always can send it within 1-3 days. Generally the buyer pay the sample fee and freight fee.
7.How to cantact us?
A:Send your inquiry details in the below,Click “send” now!
