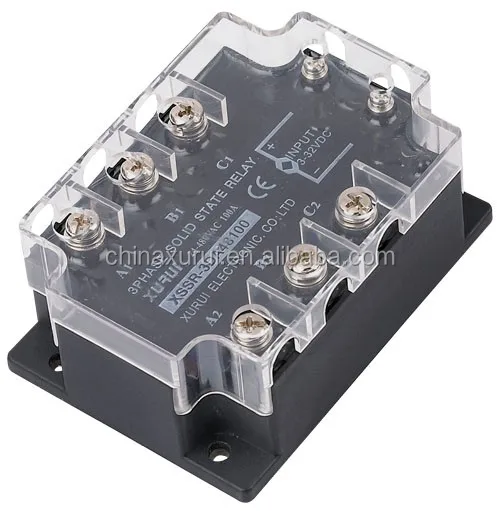

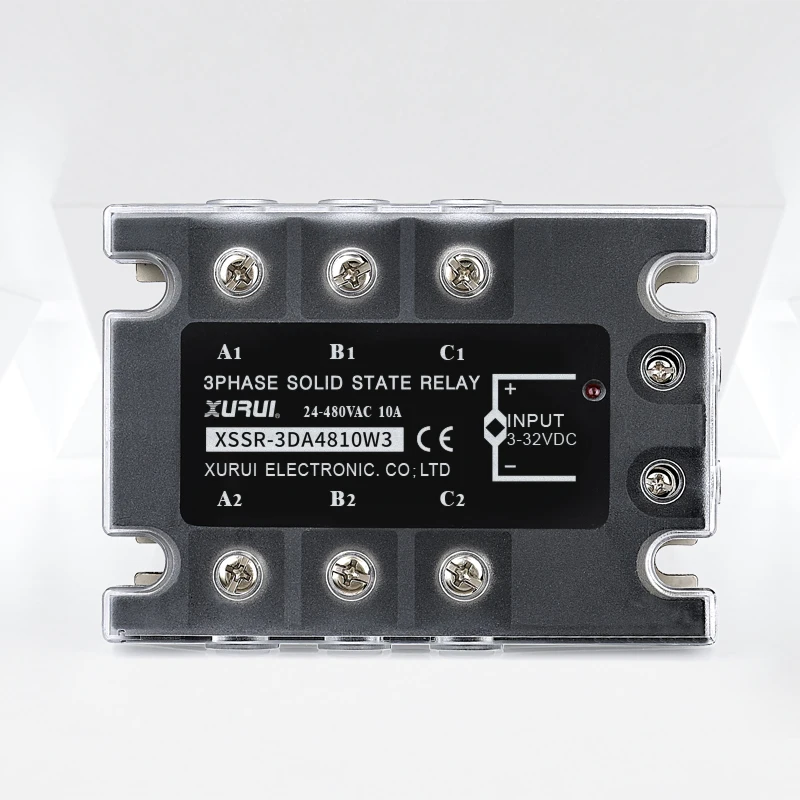

three phase solid state contactor 100A/200A/300A/400A Factory Supply
- Category: >>>
- Supplier: Zhejiang Xurui Electronic Co. Ltd.
Share on (60275834721):
Product Overview
Description
Features:
1.Bolt Installation-Horizontal type three phase AC solid state relay;
2.One-way SCR chip antiparallel NO output;
3.DC-AC DC signal control AC load / AC-AC AC Signal control AC load;
4.Optoelectronic devices Isolation;
5.Zero crossing / Random Trigger Form;
6.Built-in RC absorbing circuit;
7.LED Status Indicator.
Technical Data:
| Control Voltage | 3-32VDC / 80-250VAC |
| Load Voltage | 75-480VAC |
| Load max current | 10A-200A |
| Load mini current | 0.1A |
| Breakover voltage | ≤2VAC |
| Output leakage current | ≤8mA |
| Medium withstand voltage | ≥2500VAC |
| Insulating resistance | ≥100MΩ |
| Switching time | ≤10mS |
| Frequency range | 50-60HZ |
| Operating temperature | -20-70C |
| Load current safey factor | resistive load 50-60% |
| inductive load 30-40% |

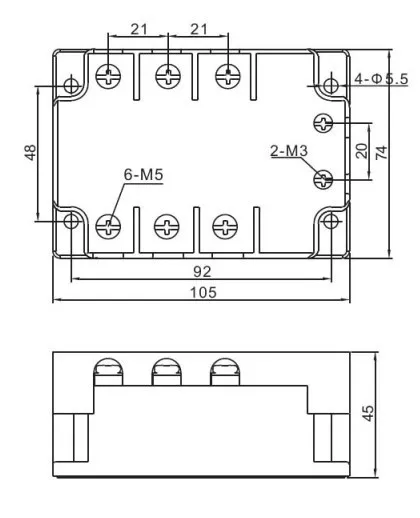

Three Phase Solid State Relay Outshape dimensions & connection diagram:
Characteristic Curve:
Terminal Connection Diagram:

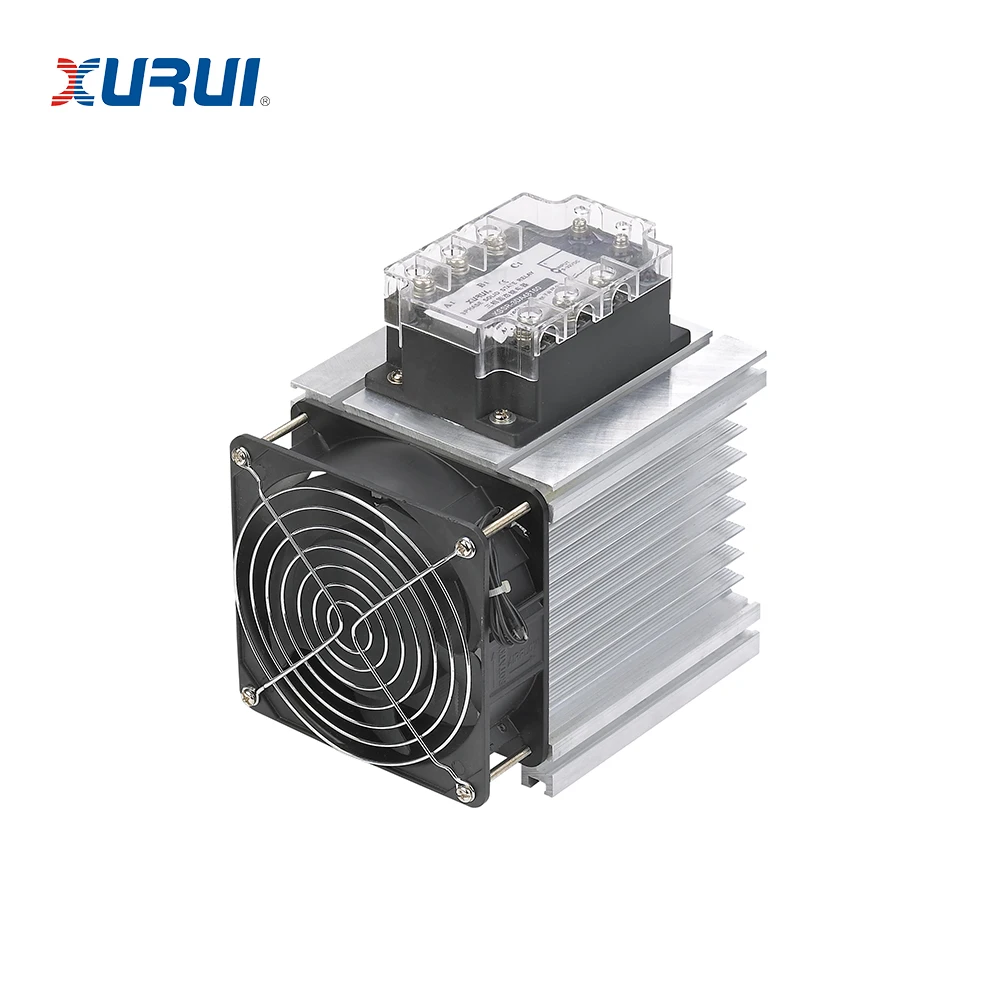

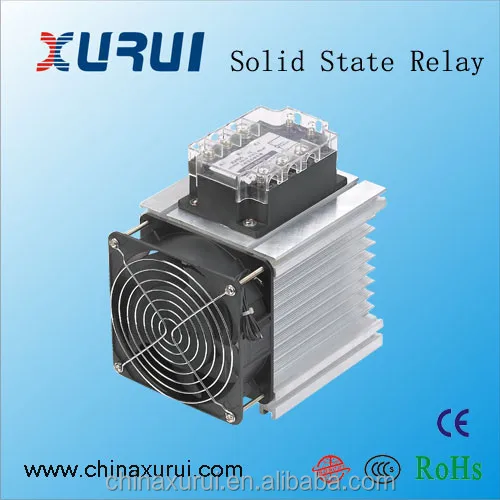

SSR with heat sink and fan Outshape & Connections:
You may interest our solid state relay other models:
Solid State Relay Certifictions:
Our solid state relay testing rooms:
