Portable IEEE 802.11b/g/n 100Mbps Mini WIFI Router 4G Hotspot USB Dongle
4g WIFI dongle
pocket wi fi router
4g usb wifi dongle
How yo use it?
;

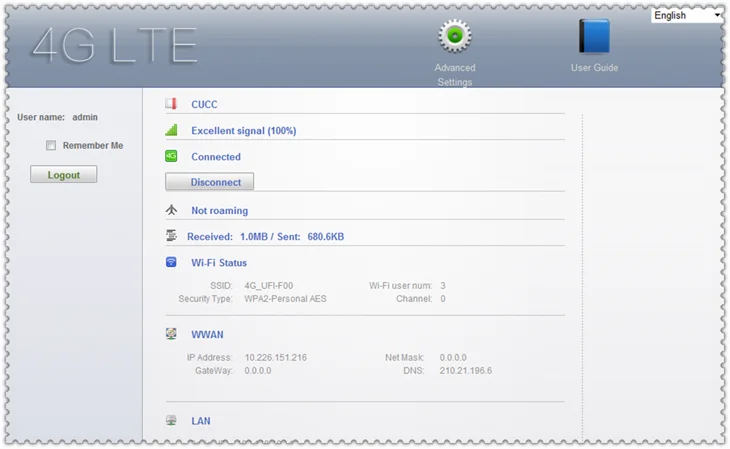

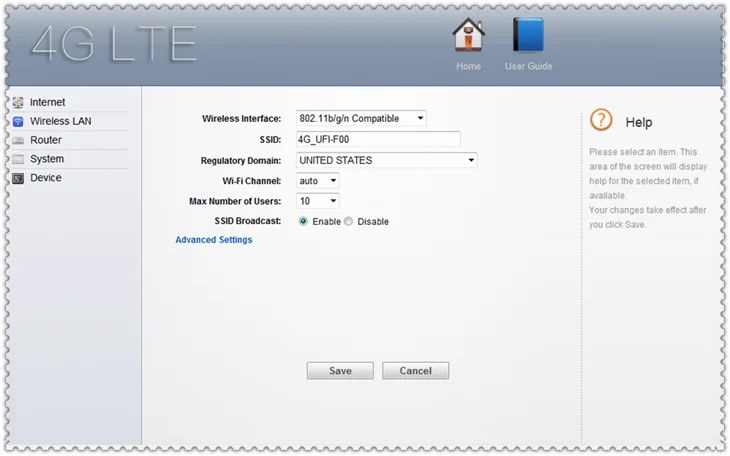

log on 192.168.199.1
Product Description
1. Specification
LTE USB Wi-Fi Modem Specifications
Item
Discription
Product Name
LTE USB Wi-Fi MODEM
Fasion and handiness, this device offers mobile high speed LTE network access service, meets high speed network demands. Free CD antomatic installation brings convenience to users.
Technical specification
LTE-FDD
3GPP Release8, DL 100Mbps, UL 50Mbps@20M bandwidth
DC-HSPA+
3GPP Release8, category 24,download speed up to 42 Mbps
HSPA+
3GPP Release7,category 14,download speed up to;21.6Mbps
UMTS
3GPP Release4,download/upoad speed up to384 Kbps
EDGE
3GPP Release4,class 12, download speed up to 237 Kbps
GPRS
3GPP Release4, class 10,download speed up to 85.6 Kbps
Frequency
GSM/GPRS/EDGE
850/900/1800/1900 MHz
UMTS
900/1900/2100MHz
LTE-FDD
(B1 B3 B5 B20 )(optional)
LTE-TDD
B38 B40
EV-DO;
BC0
Power
WCDMA
Power Class 3
GSM/EDGE: 850/900/1800/1900
Power Class 4/Power Class E2
External Port
Main antenna
supported, internal antenna
Diversity Antenna
all frequency supported, internal, bracket antenna, nornal antenna with high frequency
MIMO
all frequency supported, internal, bracket antenna, nornal antenna with high frequency
USB type
standard USB2.0
USB speed
high speed USB 2.0

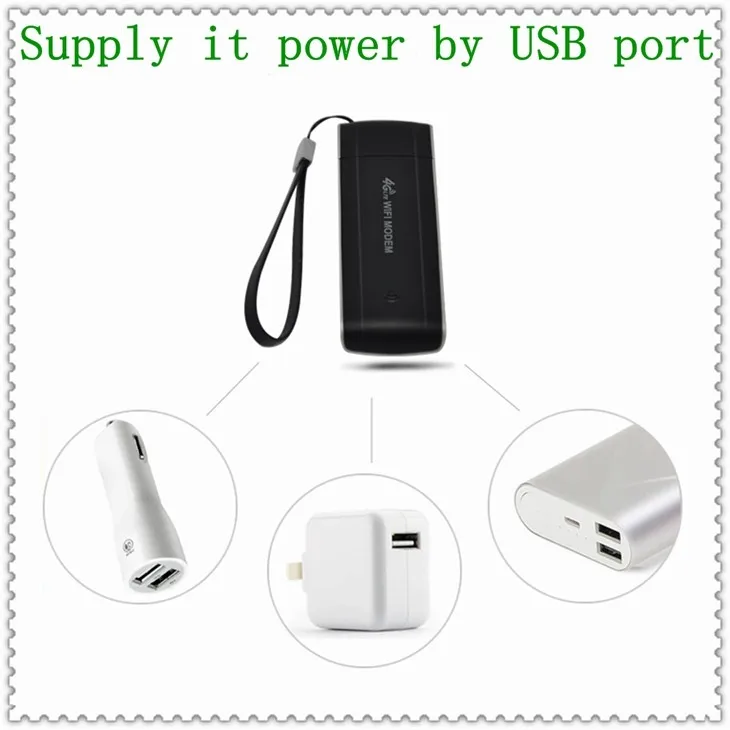

Power supply
USB

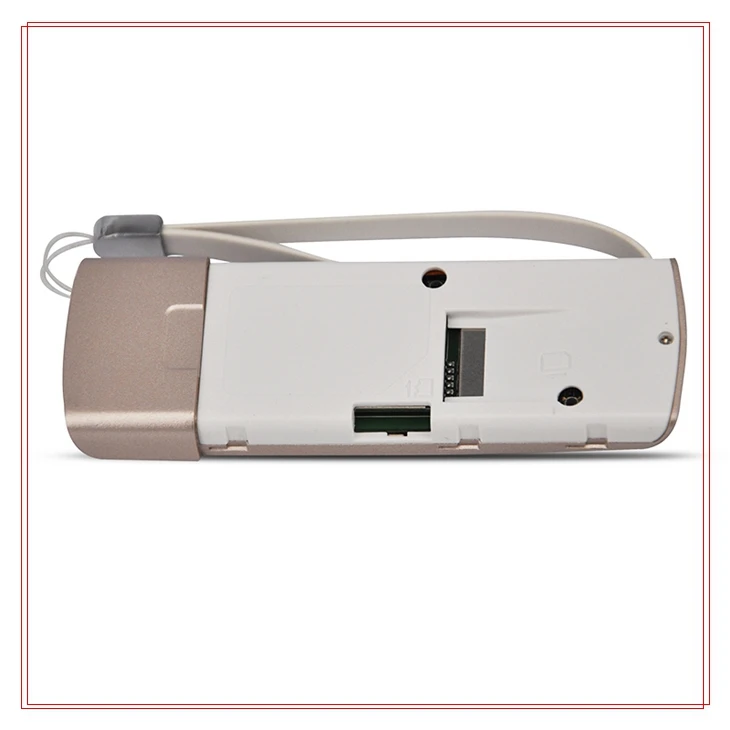

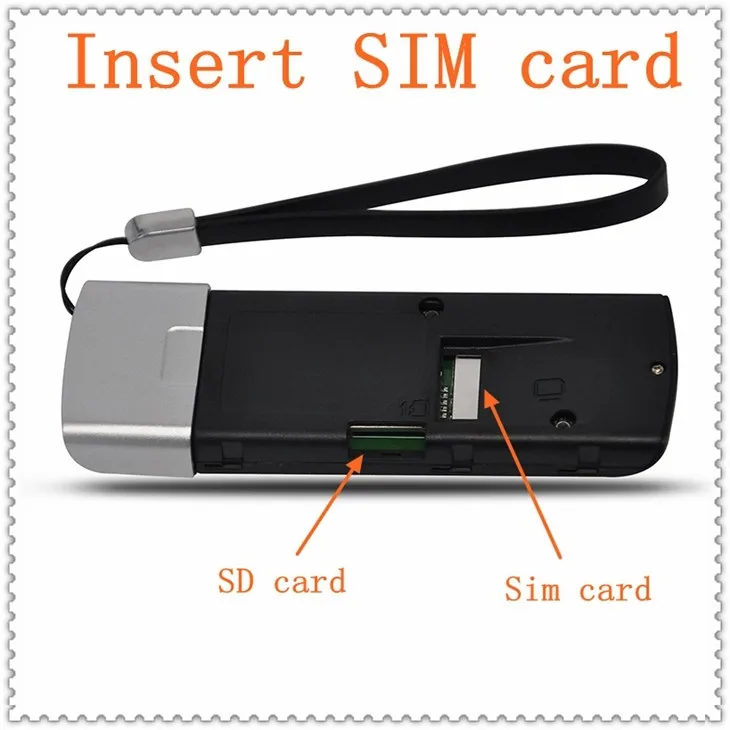

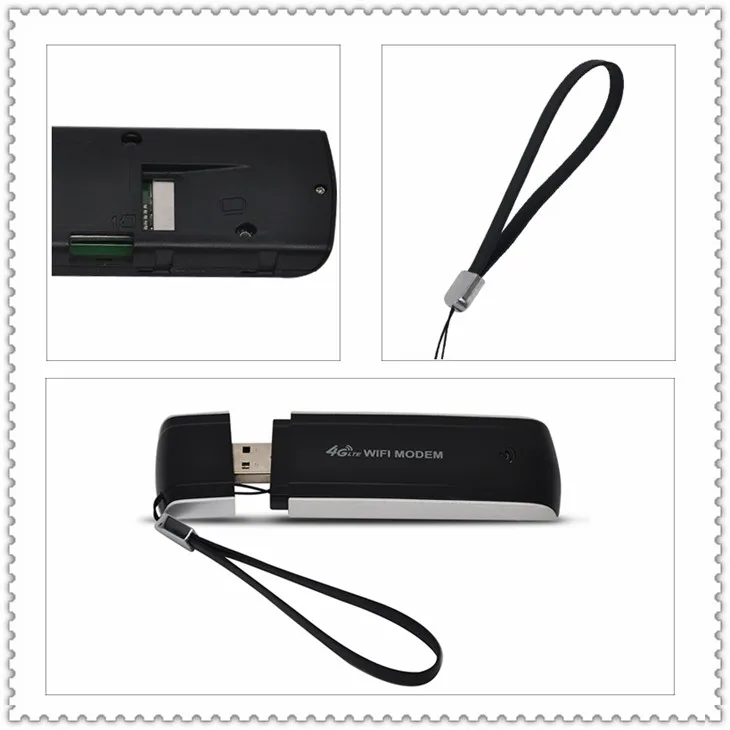

Micro-SD slot
2 in 1 port
SIM
SIM/USIM
Standard SIM port,compatiable with 3GPP 32.101 and 32.102,1.8V/2.85V
AT Command port
Support 3GPP TS 27.005 and 3GPP TS27.007
LED status indicator
Colour Flashing Cycle: Searching Network
Red Slow Flashing: Abnormal of (U)SIM card or no network
Luminous continuously: Data transmission
Green:LTE
Blue :HSPA /HSPA+(14.4M/21M/42M)
Purple:UMTS/ EVDO
Yellow:EDGE/GPRS
Languages supported
English/Chinese, more languages can be customized
Free CD auto Installation mode
supported
OS supported
Windows XP(SP2)/ VISTA / WINDOWS7(32bit/64bit) WINDOWS 8 8.1
Mac OS X 10.5 or higher 10.7
Ubuntu 10.04 or above
RAM
NandFlash 1G
hardware platform
Qualcomm MDM9200/MDM9600
WIFI
Antenna
Built-in 4G/3G/2G & WIFI antenna
WIFI Antenna Gain: -1dbi
WIFI Antenna Sensitivity:
72M:-68dBm PER<8%
54M:-68dBm PER<8%
Power
Power Consumption
Input Voltage: 5V/1A
Max Power consumption:<2W
WiFi Standard;
802.11b/g/n, speed up to 72Mbps
WiFi Frequency
2412MHz-2472MHz
WiFi user max
10
WiFi Security Mode
Open, WPA-PSK, WPA2-PSK
Working; Temperature
-20 to 70°C
Working Humidity
10%-85% RH
Storage Temperature
-40 to 85°C
Storage Humidity
5%-90% RH
Additional function
Micro-SD card
supported, up to 32GByte
Certification
ROHS
Approved
Microsoft WHQL
Approved
others
customization available
Standard package
LTE USB WIFI MODEM
1

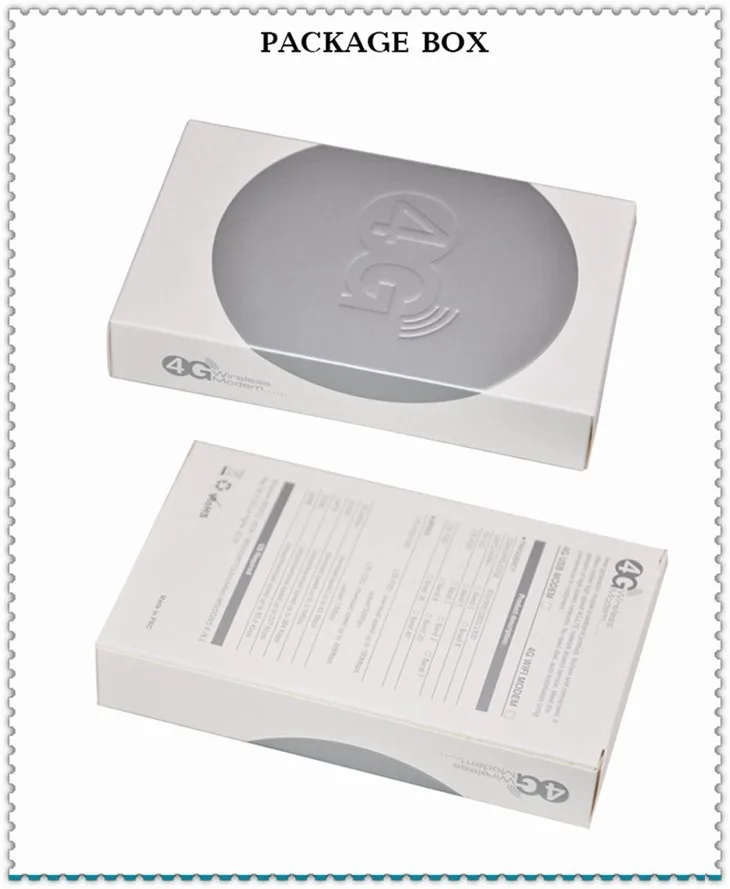

packing box
1
user manual
1
Notes
2. Strengths
1. NDIS technology 2.The Qualcomm 9th series Chipsets.
3. Moden and wifi at the same time. 4.Seprated antennas,hierarchical reception.
5. FDD and TDD, multiple bands could be customized.

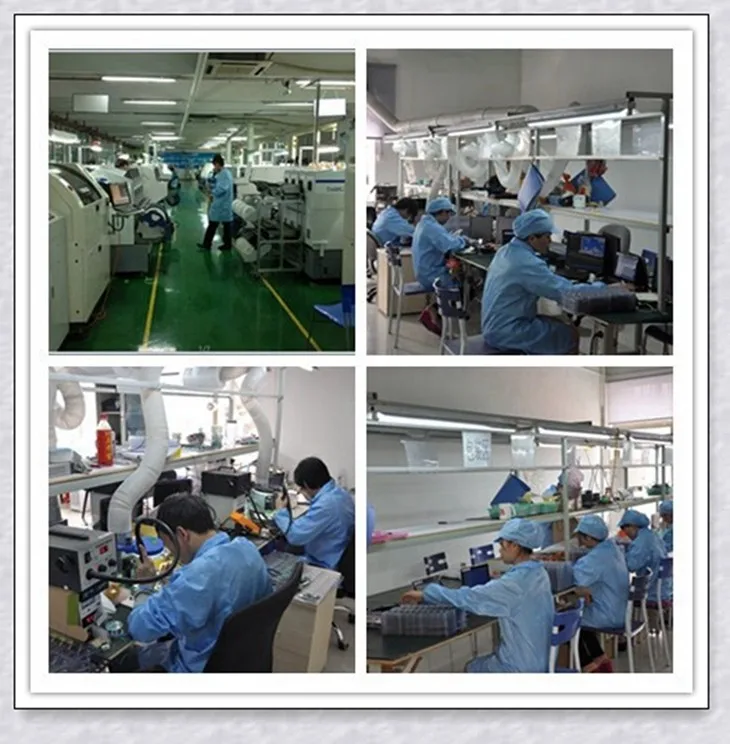

6.Since we are the true manufacture, so the quality,the quantity, the delivering time and the after-sale services can be assured. 7.Best OEM services(the housing, the software and the package high levelcustomization).
8.13 months warranty.
3.Delivery time
Can be as short as possible and shorter than most other companies base on the same situation,cause we are the real manufacture.
