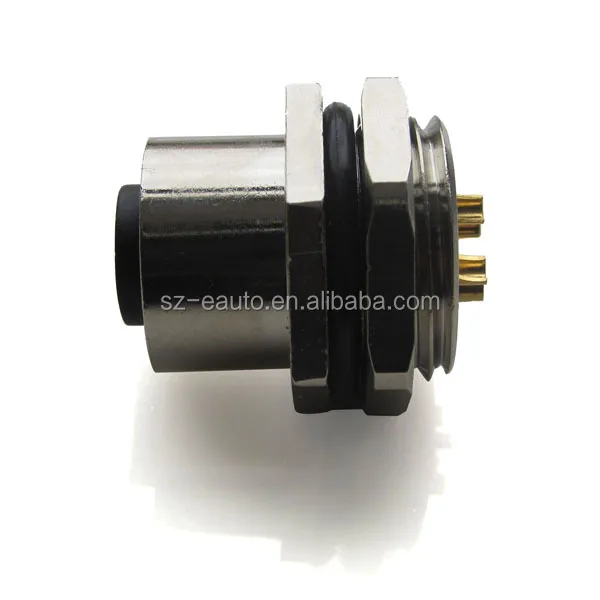

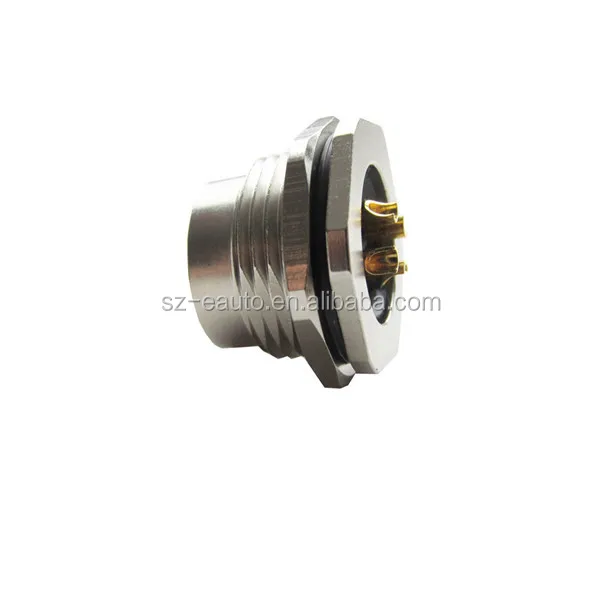

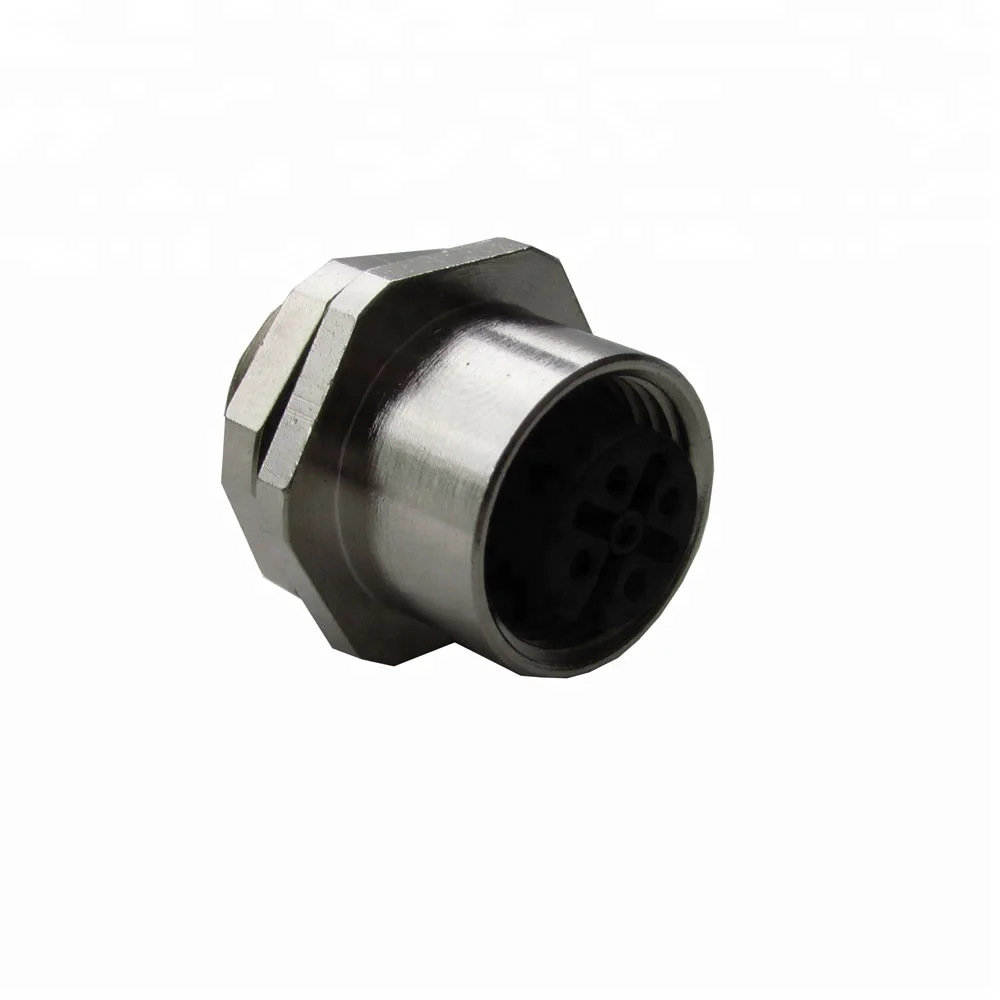

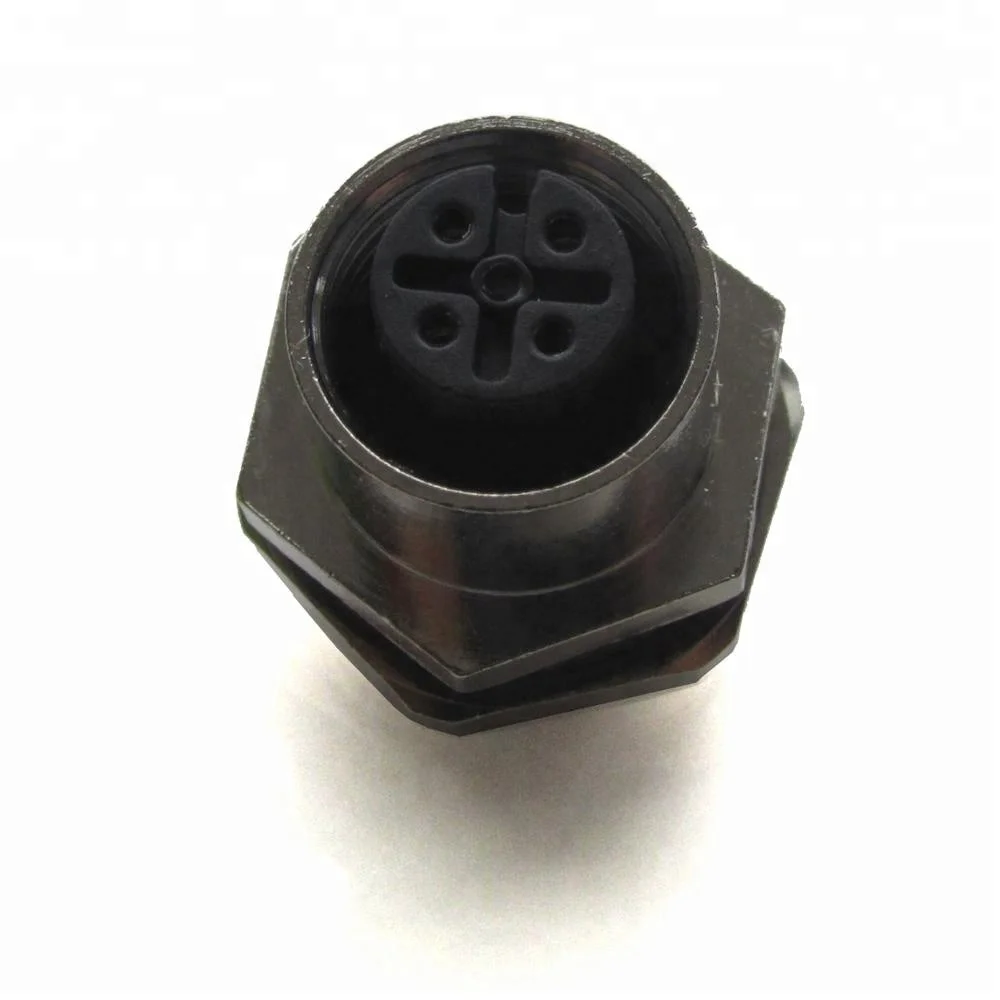

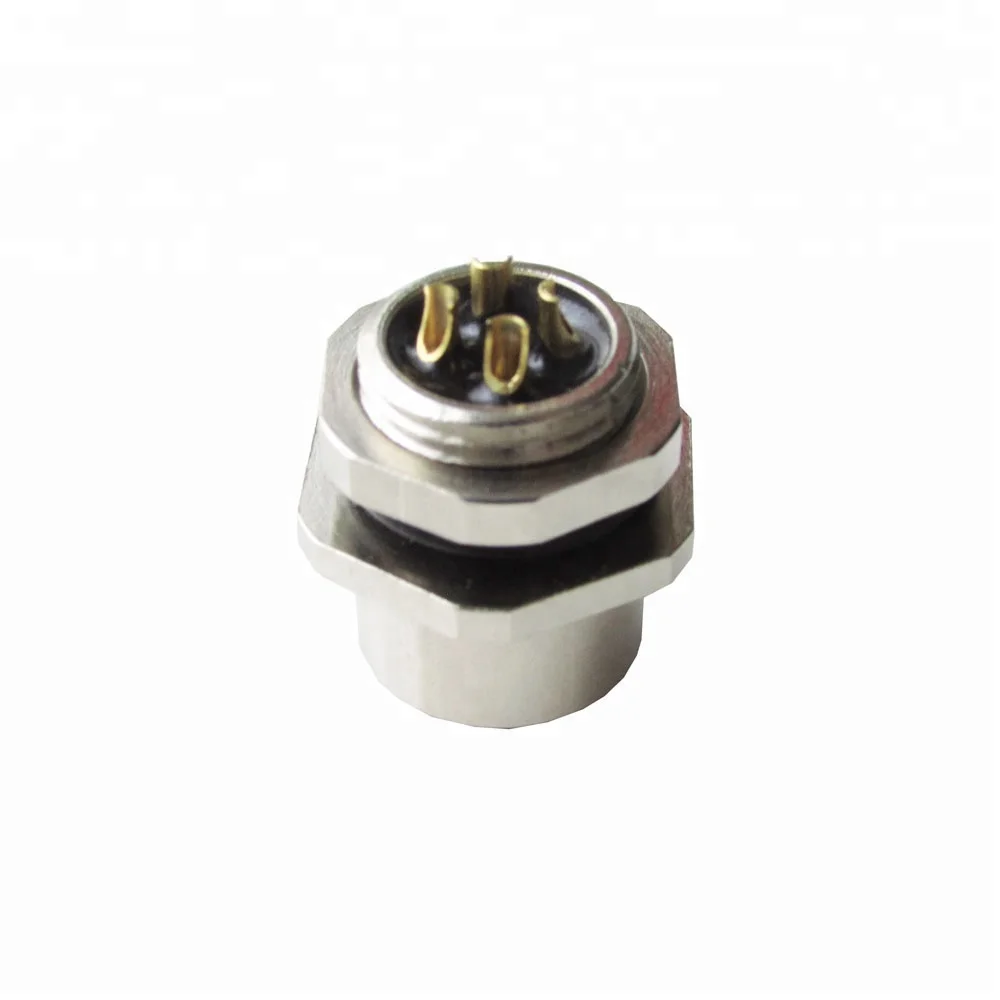

bulkhead connector 4 pin waterproof panel mont receptacles pg9 m16 thread
- Category: >>>
- Supplier: Shenzhen Element Automation Co. Ltd.
Share on (60276112965):
Product Overview
Description
Product Description
Connector Detail
| Item name | bulkhead connector 4 pin waterproof panel mont receptacles | ||||
| Number of contacts | 3 | 4 | 5 | 8 | 12 |
| Connector locking system | screw | ||||
| Termination | solder | ||||
| Degree of protection | IP67 | ||||
| Mechanical operation | >100 mating cycles | ||||
| Upper temperature | ~+80℃ | ||||
| Lower temperature | ~-25℃ | ||||
| Rated voltage | 250V | 250V | 125V | 60V | 30V |
| Rated impulse voltage | 2500V | 2500V | 1500V | 800V | 500V |
| Pollution degree | 3 | ||||
| Overvoltage categorie | Ⅱ | ||||
| Material group | I | ||||
| Rated current(40℃) | 4A | 4A | 4A | 2A | 1.5A |
| Contact resistance | ≤3mΩ | ||||
| Material of contact | Brass | ||||
| Contact plating | Gold | ||||
| Material of contact body | PA | ||||
| Material of housing | Brass nickel plated | ||||
Application
Outdoor lightbox | Building machinery | Electronic device | Mining equipment | Ships |
Cars device | Automation device | Sensor | Meter etc.
Brief summary-m12
Automation M12 A-Coded Connectors
Euro-style sensor connectors with M12 locking for factory automation, process control, industrial instrumentation, and commercial electronics. The Series offers many different cable connectors, panel-mounted receptacles, and accessories. Connectors have industry-standard A-coding .
- Plastic, metal or stainless steel shells
- 360° shielding and IP 67 protection
- 3 to 12 contacts per connector
- Contacts with solder, screw, or cage clamp termination
Sensor M12 B-Coded Connectors
The Series features B-coding, which ensures that B-coded connectors do not mate with standard A-coded connectors.
- B-coding
- Metal housings shielded and IP 67
- 4 or 5 contacts per connector
- Contacts with screw termination
Sensor M12 D-Coded Connectors
The Series metal-shell connectors are for industrial networks and harsh commercial environments. They have industry-standard D-coding for Ethernet and Fieldbus use. The IP67 field-attachable connectors offer spring cage or screw termination, both aimed at providing quick and easy installations.
FAQ
Can't find the items which you are looking for?
The goods' details are still required?
How much is it?
What is the shipping cost?
Pls kindly contact us.
Packaging & Shipping

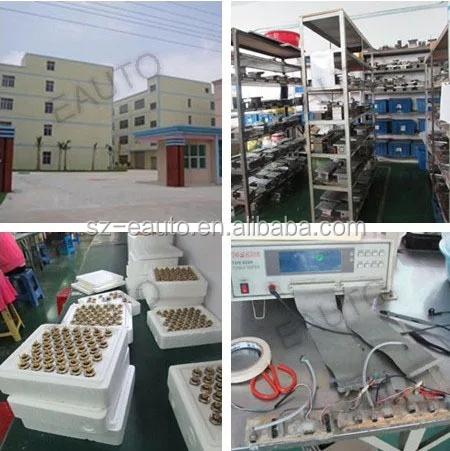

Company Information
