Hot selling small GSM GPRS SIM800C module
- Category: >>>
- Supplier: High Cloud Electroics S&T Co. Ltd.
Share on (60276250305):
Product Overview
Description
Product Description

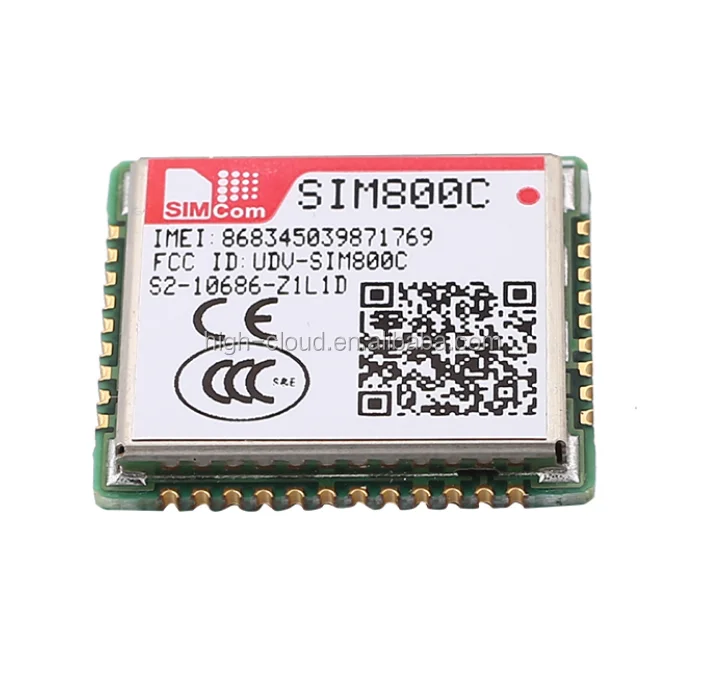

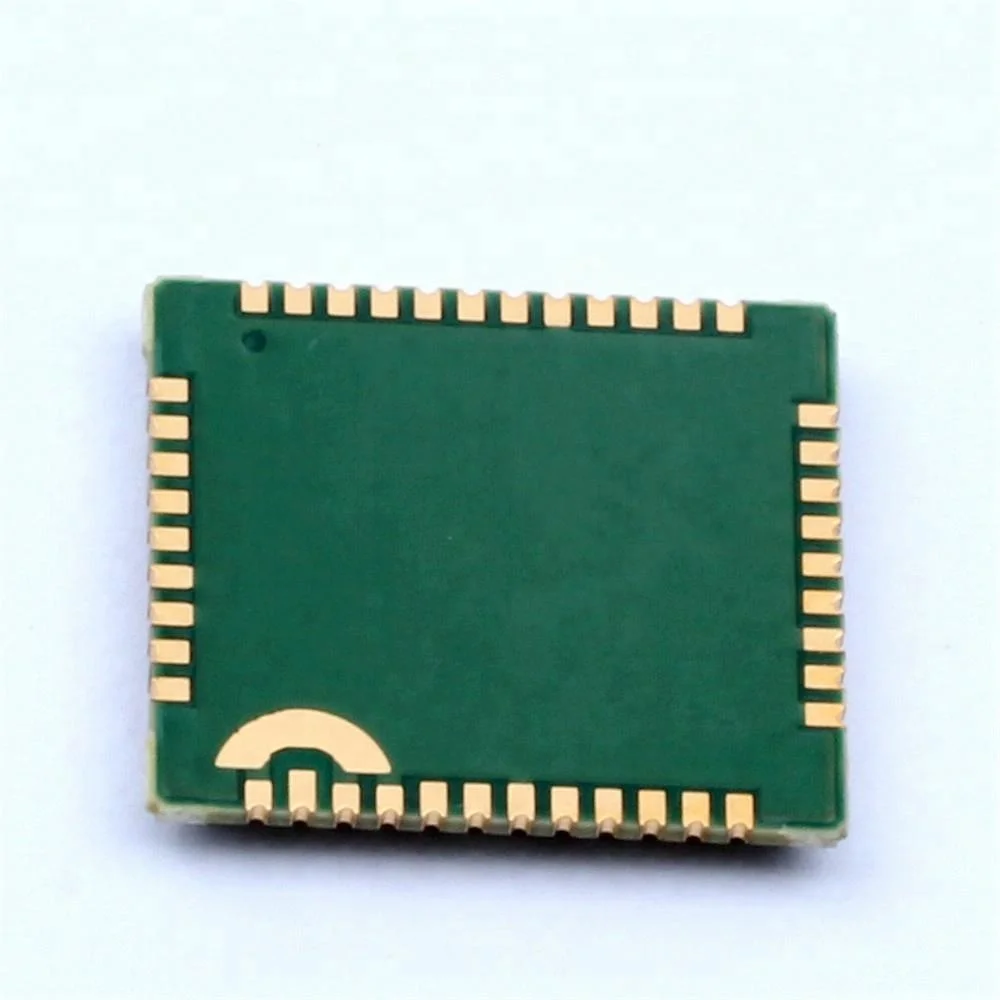

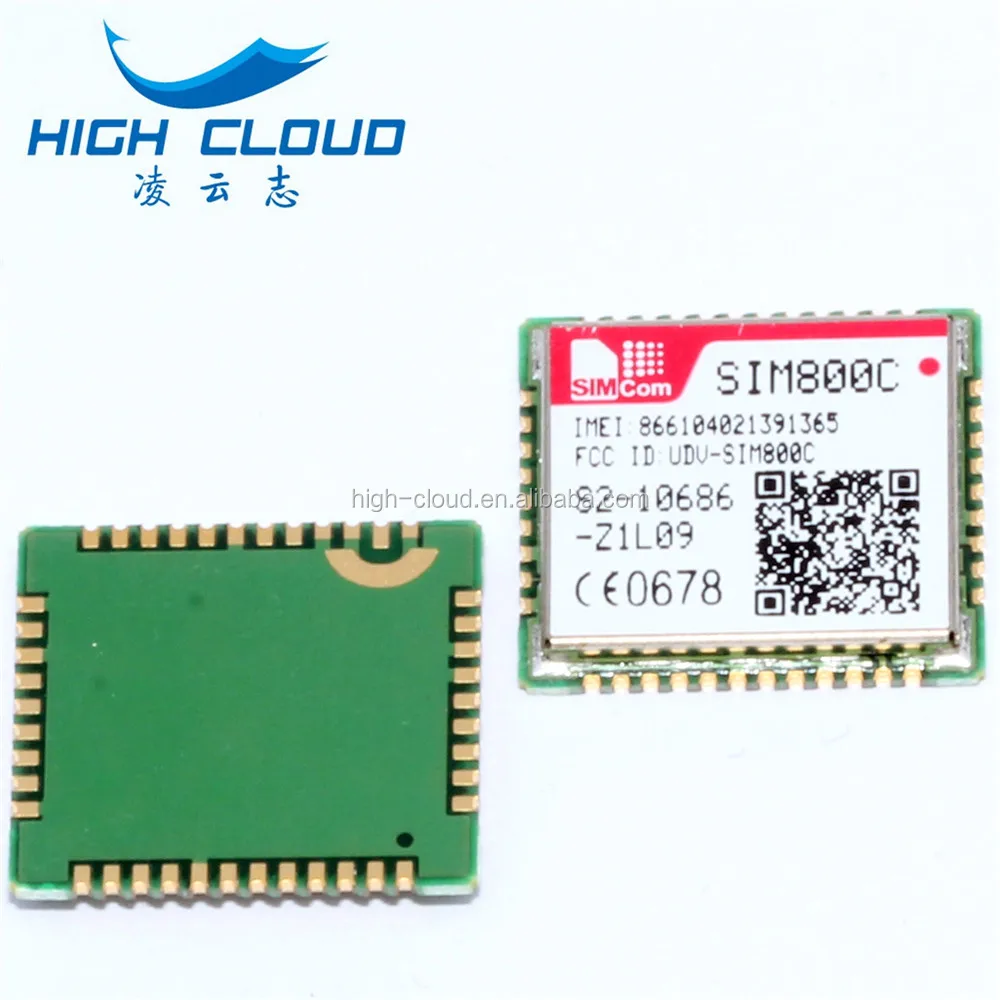

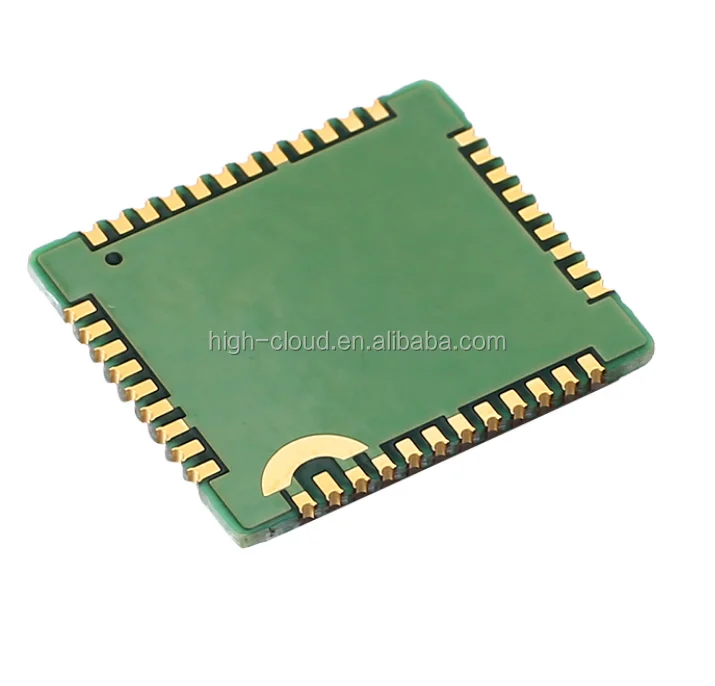

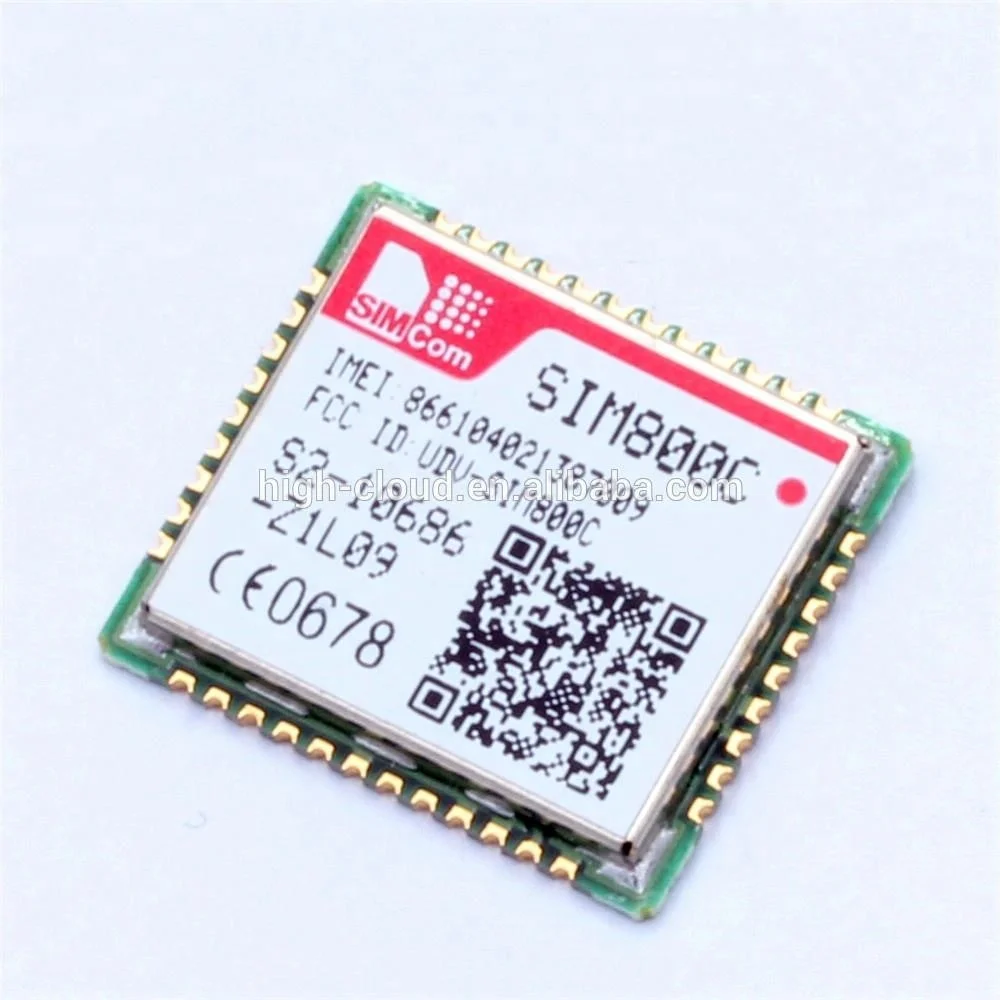

SIMCOM SIM800C GSM GPRS Modules
SIM800C is a complete Quad-band GSM/GPRS solution in a SMT type which can be embedded in the customer applications. SIM800C support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 15.8*17.8*2.4 mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth, FM and Embedded AT, it allows total cost savings and fast time-to-market for customer application.
General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W 850/900 MHz)
– Class 1 (1 W 1800/1900MHz)
•Bluetooth: compliant with 3.0+EDR
•Dimensions: 17.6*15.7*.3 mm
•Weight: 1.3g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40°C~85°C
Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD
Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode
Software feature
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•SSL
•DTMF
•Jamming Detection
•Audio Record
•Bluetooth(optional)
Specifications for voice
•Tricodec – Half rate (HR) – Full rate (FR) – Enhanced Full rate (EFR)
•AMR – Half rate (HR) – Full rate (FR)
•Hands-free operation (Echo suppression)
Interface
42 SMT pins including:
•Analog audio interface
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
Compatibility
•AT cellular command
Packaging & Shipping
Our Services
Company Information
Established on 2005, High Cloud Electronics Ltd. is specialized in wireless modules and supporting accessories. We focused on domestic trading and services at first. With two years of development, we have become one of the best M2M product distributors in China. Now, we are expending our business to worldwide markets. High Cloud Electronics has extended the product line, and built our own antenna factory (GSM/3G/4G/GPS/WiFi/ Bluetooth/ISM band antennas). Therefore, we can provide a total solution of antenna designs for our customers, and can provide various RF connectors with good quality and competitive prices. Due to our excellent products and considerate services, we have established good relationships with many international companies in Europe, South and North America, Southeast Asia, and other countries and regions. We can provide one station purchase service to our valued customers, from soul devices of GSM/GPRS modules to supporting accessories like RF jumper wires, GSM antennas, GPS antennas, module connectors, and more. As per customers' requirements, we have established a small antenna factory in Guangzhou, providing various types of communication antennas for our customers. We will try our best to lower the cost of our products in order to supply competitive prices for our clients. "Best Quality, Competitive Price, Best Credit, On-Time Delivery" is our management policy. We have built nice reputation and business relations with customers all over the world. We are looking forward to cooperating with you.
