Metrology Software Shadowgraph Image Test Instrument
- Category: >>>
- Supplier: Dongguan,Yihui,Optoelectronics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

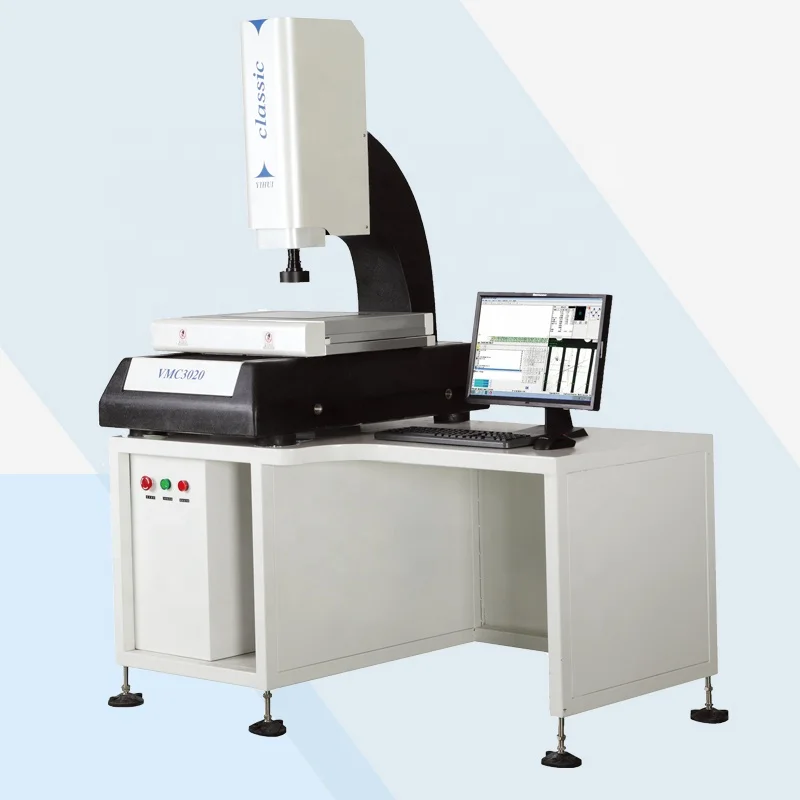

VMC Series Vision Measuring System
I. Usage
VMC Series is the high precision type CNC video measuring system developed by Yihui.
It has been widely applied in machinery, electronics, mould and other industries for precision automatic measurement.
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting and universal 3D Model file for professional design software like Solidwork, UG&Pro-E.
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1)Machinery: sheet, mould & die, gear, turning parts like bearings ,shaft.
2)Electronics: phone& tablet sheet, PCB, watch parts, etc.
3)Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
II. Features
1. Adopt Germany double closed-loop motion control, motor with precise positioning performance in high-speed movement.
2. Using servo motor, not only increasing motor speed, but also simplifies the instrument and the PC-interface. The PC and
instrument is connected through USB line and S-video cable.
3. With 00 JINANQING granite base, goose-neck column and aviation aluminum worktable, its has high stability and elegant appearance.
4. Surface light is formed by 40 groups independent LED light source, and each group is constant current source drived and 200-step continuously adjustable.
5. With specialized CNC measuring software, high working efficiency on measurement.
It has been widely applied in machinery, electronics, mould and other industries for precision automatic measurement.
Designed for rapid precision measurement & batch test in machinery, electronics, mould, etc
1. To measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function with clear observation.
2. Coordinate measurement, translation and coordinates straighten out.
3. Make measurement data directly into AutoCAD drafting and universal 3D Model file for professional design software like Solidwork, UG&Pro-E.
4. Record user program, editing and execute command.
5. In metrology terms, the machine can test width, length, height, thickness, straightness,flatness, perpendicularity, circular degree, coaxiality, etc.
6. The machine can test products as below:
1)Machinery: sheet, mould & die, gear, turning parts like bearings ,shaft.
2)Electronics: phone& tablet sheet, PCB, watch parts, etc.
3)Plastics: mobile phone camera plate, cover, front bezel, slide plate, etc.
II. Features
1. Adopt Germany double closed-loop motion control, motor with precise positioning performance in high-speed movement.
2. Using servo motor, not only increasing motor speed, but also simplifies the instrument and the PC-interface. The PC and
instrument is connected through USB line and S-video cable.
3. With 00 JINANQING granite base, goose-neck column and aviation aluminum worktable, its has high stability and elegant appearance.
4. Surface light is formed by 40 groups independent LED light source, and each group is constant current source drived and 200-step continuously adjustable.
5. With specialized CNC measuring software, high working efficiency on measurement.
Specification
Model | VMC3020 | VMC4030 | VMC5030 | ||||||||||||||
Worktable | Worktable Size(mm) | 600*390 | 700*490 | 800*490 | |||||||||||||
Glass Table Size(mm) | 350*250 | 450*350 | 550*350 | ||||||||||||||
X,Y Stroke(mm) | 300*200 | 400*300 | 500*300 | ||||||||||||||
Load Capacity | approx. 20 kg | approx. 30 kg | approx. 35 kg | ||||||||||||||
Resolution | 1μm | 1μm | 1μm | ||||||||||||||
Accuracy E1* | Ex, y ≤ (2.8+L/200) μm | ||||||||||||||||
Accuracy E2* | Exy ≤ (3.3+L/200) μm | ||||||||||||||||
Z-axis Stroke (mm) | 200(Focus) | 200(Focus) | 200(Focus) | ||||||||||||||
Instrument Weight (kg) | 330 | 450 | 500 | ||||||||||||||
Dimension (mm) | 620*840*1020 | 720*1040*1020 | 800*1040*1020 | ||||||||||||||
Motor | Three-axis Max. Velocity | X,Y: 400mm/s Z: 200mm/s | |||||||||||||||
Three-Axis Positioning Accuracy | 0.001mm | ||||||||||||||||
Imaging System | Camera | TEO™ Color 1 / 2 "CCD Camera | |||||||||||||||
Zoom Lens | Pomeas™ manual zoom lens | ||||||||||||||||
Zoom Lens Magnification | 0.7-4.5X | ||||||||||||||||
Video Magnification | 20-128X | ||||||||||||||||
FOV | 11.1-1.7mm | ||||||||||||||||
Power Consumption | 600W | ||||||||||||||||

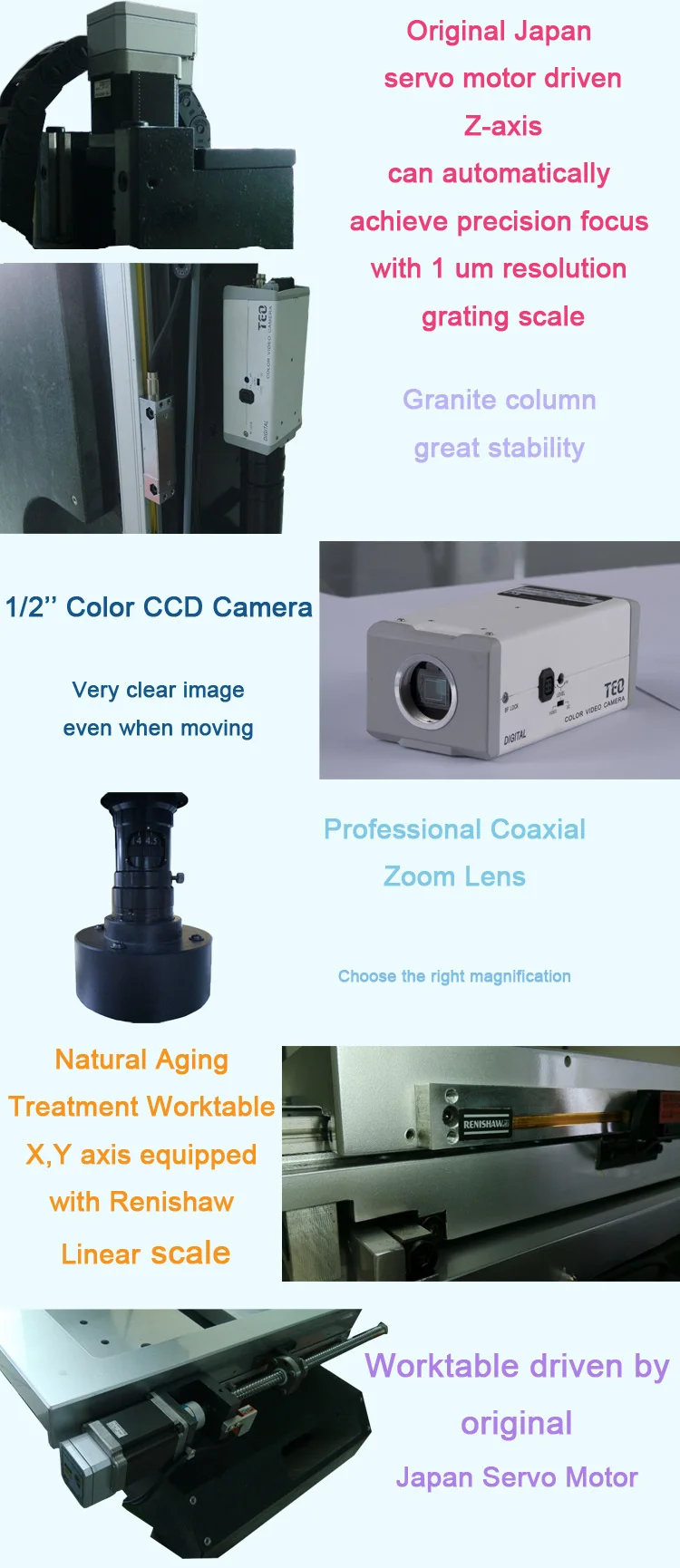

Structure
Packing & Delivery
Company Profile
Dongguan Yihui Optoelectronics Technology Co., Ltd.
Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.
Established in 2003, has 18-year experience in manufacturing optical instrument and 13-year experience in trading overseas. It is a high-tech enterprise with the precision detection equipment R&D, production and sales. Our main products are: video measurement system, measurement profile projector, CMM, tool microscope, grating sensor, tensile testing machine, environmental testing machine ect. It is including 100 kinds of testing instrument. They are widely used in electronics, plastics, mold, machinery,hardware, clocks, connectors, mobile and other industries.
Until 2022, our products have been exporting to 54 countries over the world, and we have formal distributors in TAIWAN, KOREA,IRAN, GERMANY and MALAYSIA.Customers from all over the world have been satisfied with our low cost, high efficiency, high quality metrology solutions.
Welcome to contact us for cooperation.
