Sintered Ni Cd prismatic marine battery manufacturer KPX100 24V(1.2V 20pcs) 100Ah
- Category: Storage Batteries >>>
- Supplier: Henan Hengming Fengyun Power Source Co. Ltd. [Henan China]Henan
Share on (60276420841):
Product Overview
Description
Aircraft & boats Ni-Cd Rechargeable Battery GNC20Ah
- Cell type:GNC100=KPX100 (Ultra high dicharge rate )
- Rated capacity:100Ah
- Nominal voltage:1.2V
- Container material: ABS
- Charge time:8h
- Delivery with dry battery. electrolyte(KOH+LIOH+DISTILLED WATER)
- Nominal operating temperatur: 20°C±5°C
- Operating temperature range : from –20°Cto 45°C
- Float charging voltage() :1.38V
- According to IEC cycle time is more than 500times,float charging life is more than 15 years.
| KPX =GNC(Ultra High Rate Type) Sintered-Sintered | |||||||||
| Cell Type | Nominal Voltage (V) | Rated Capacity (Ah) | Dimension (mm) | Weight (filled)(kg) | Electrolyte Volume(L) | Container Material | Pole | ||
| L | W | H | |||||||
| GNC5 | 1.2 | 5 | 81 | 26 | 163 | 0.51 | 0.031 | MBS | M8 |
| GNC10 | 1.2 | 10 | 81 | 26 | 163 | 0.62 | 0.06 | MBS | M8 |
| GNC20 | 1.2 | 20 | 81 | 34 | 245 | 1.25 | 0.12 | MBS | M10 |
| GNC20-(4) | 1.2 | 20 | 81 | 34 | 245 | 1.25 | 0.12 | MBS | M10 |
| GNC30 | 1.2 | 30 | 81 | 43 | 266 | 1.75 | 0.21 | MBS | M10 |
| GNC40 | 1.2 | 40 | 81 | 43 | 266 | 1.85 | 0.2 | MBS | M10 |
| GNC40 | 1.2 | 40 | 80 | 35 | 235 | 1.5 | 0.16 | Nylon | M5 |
Ni-Cd ultra high rate sintered type battery has the properties of rigid construction, small internal resistance,long service life,resistant to overcharge and discharge,wide operation temperature(-40°C—+50°C ),high reliablity, ultra high discharge rate, they are widely used in the fields of military, aviation,railway vehicle, AGV, electric power system, boat, internal-combustion engine,etc.
Recommended charging voltage:
Ni-Cd alkaline storage batteries usually charge with constant current and charge 8 hours with 0.2C5A.Floating charge also can be used, and the floating charge voltage of different series as follow:
Series | Floating charge voltages(V/pc) | Equalizing charge voltage(V/pc) |
KPX | 1.38~1.40 | 1.46~1.48 |
KPH | 1.42~1.45 | 1.55~1.60 |
KPM | 1.42~1.45 | 1.55~1.60 |
KPL | 1.48~1.50 | 1.55~1.60 |

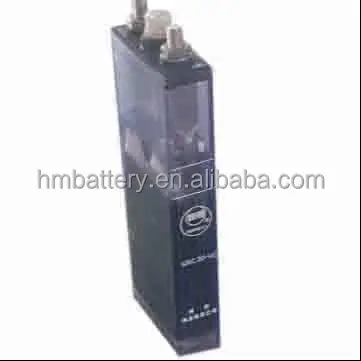

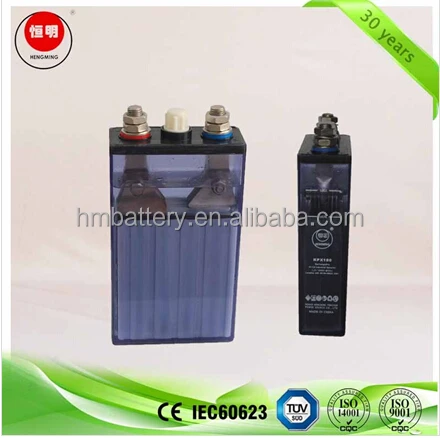

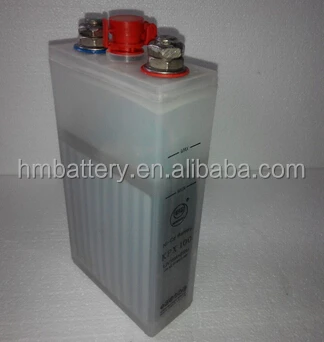

Pictures for your reference:
