tds to conductivity, ec ppm meter, conductivity ppm meter

Product Overview

Description

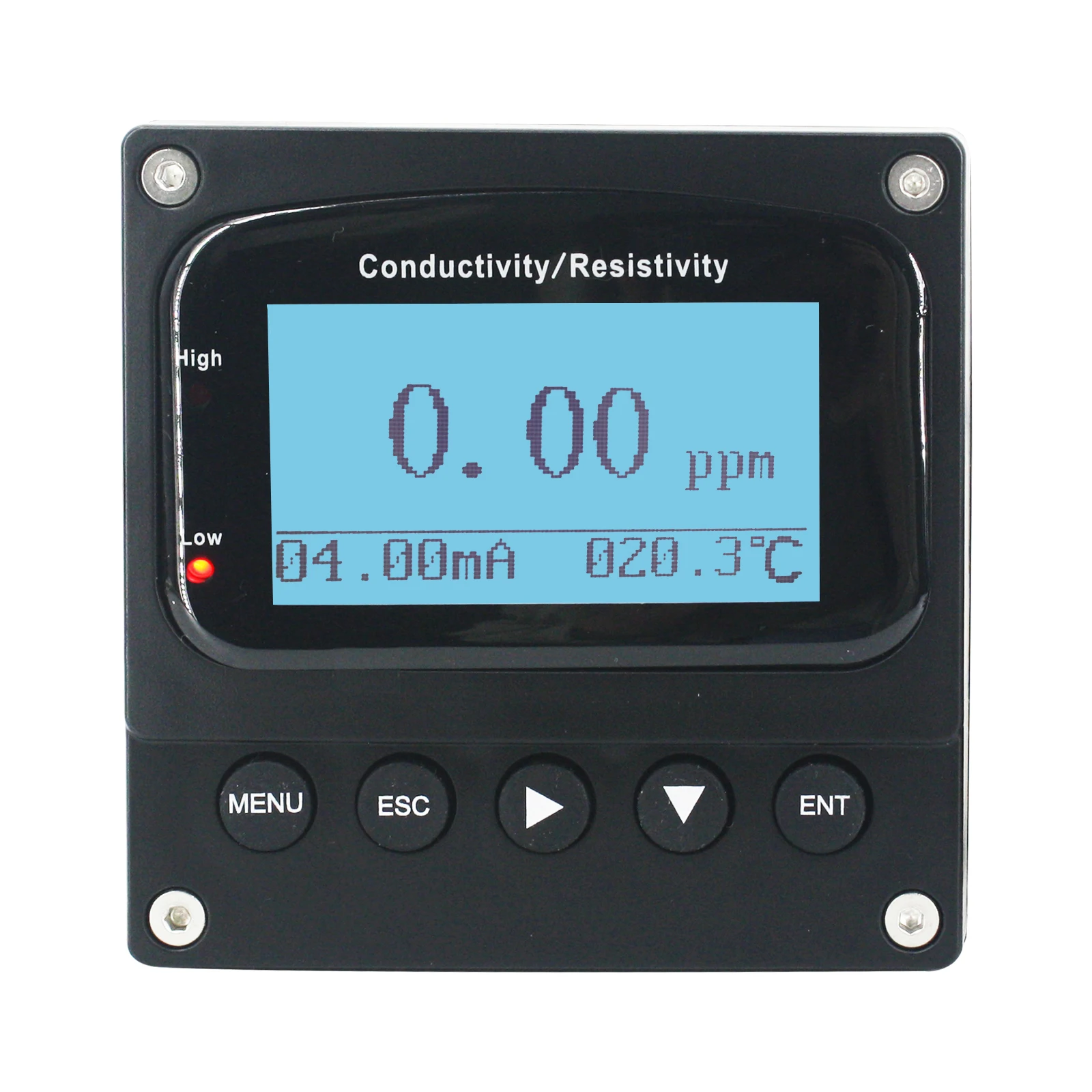

       TDS to conductivity, ec ppm meter, conductivity ppm meter



 Online TDS to conductivity, ec ppm meter, conductivity ppm meter with 1.0cm^-1 electrode

1. Code: EC-6850


2. Measuring Range:  0-20uS, 0-200uS, 0-2000uS, 0-20mS, 0-20/200/2000ppm.

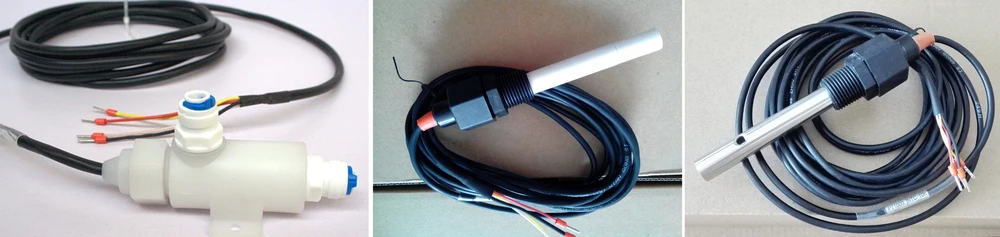

3. Matched electrode: 1.0cm-1 constant


4. Displaying Mode: 3½-digit apheliotropic LCD,


5. Accuracy: 1.5%(FS),


6. Sability:±2×10-3(FS)/24h,


7. Working pressure: 0-0.5MPa,


8. Medium’s temperature:  Normal Temp.:0~50℃, High Temp.:70~100℃


9. Temperature compensation:    Normal Temp.: The 25℃ basis, automatic temperature compensation    High Temp.: The 90℃ basis, automatic temperature compensation


10. Output current:: insulated current output 4~20mA(≤300Ω)


11. Control output: maximum and minimum (constantly open and constantly close) contact point output


12. Capacity of contact points: 7A/AC250V (with resistant loads)


13. Environmental conditions: temperature: 0 - 50℃; humidity: ≤85%RH


14. Power supply:  AC 220V±10% 50/60Hz , AC 110V±10% 50/60Hz

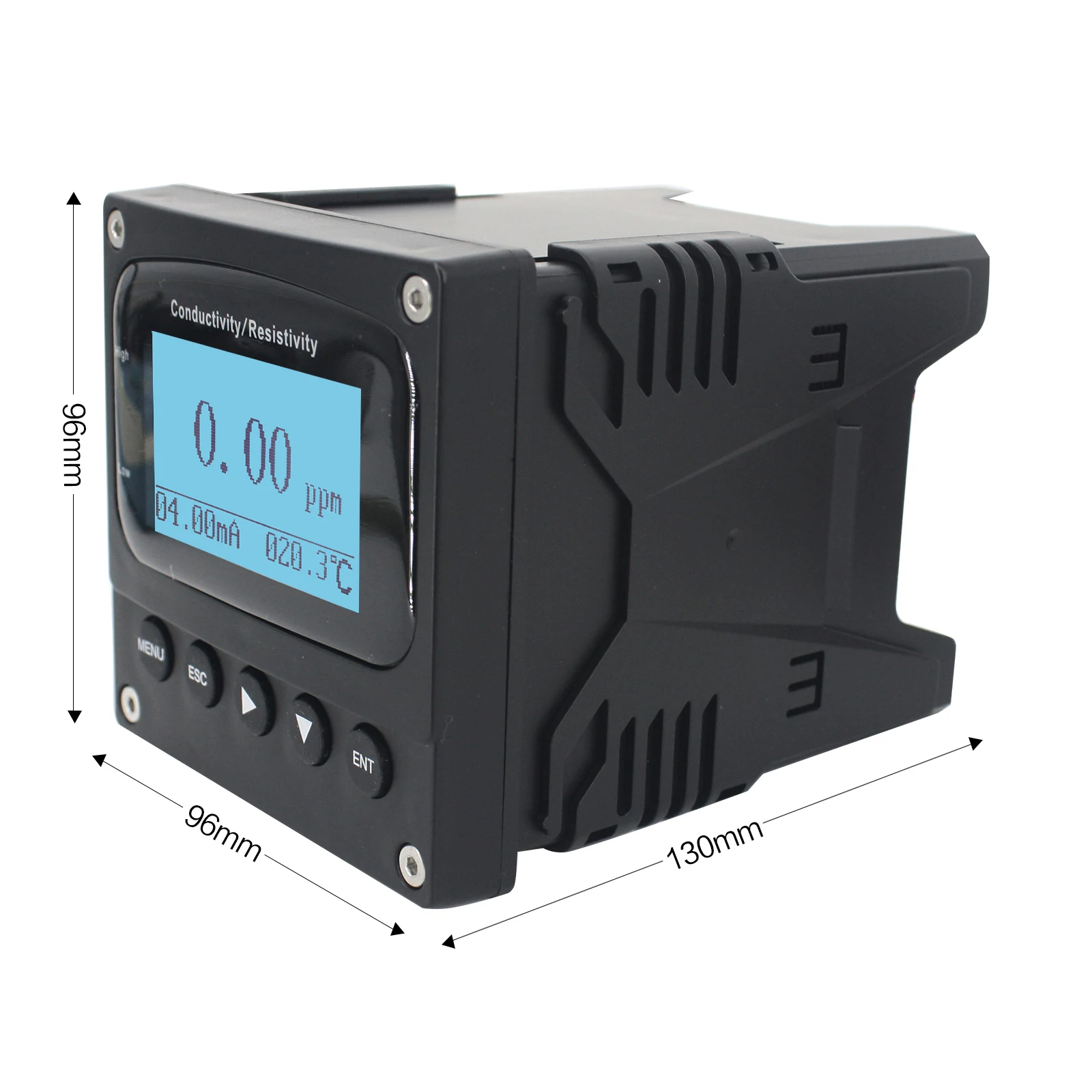

15. External dimensions: 96×96×130mm (height×width×depth)



16. Hole size: 92x92mm

















Function                                                                  Model	EC-5631 PPM meter, conductivity controller
Range	0~20/200/2000 μS/cm;0~20/200/2000 ppm;0~20 mS/cm
Accuracy	1.5%(FS)
Temp. Comp.	Normal Temp.: The 25℃ basis, automatic temperature compensation
	High Temp.:The 90℃ basis, automatic temperature compensation
Operation Temp.	Normal Temp.:0~50℃
	High Temp.::70~100℃
Sensor	1.0cm-1
Display	3½ Bit LCD
Current output signal	Isolation 4~20mA
Control output sinal	ON/OFF High limit relay
Power	AC 110/220V±10%, 50/60Hz
Working environment	Ambient Temp. 0~50℃, Relative Humidity ≤85%
Overall dimensions	96×96×130mm (H X W X D)
Hole dimensions	92×92mm (H X W)
Installation Mode	Panel Mounted (Embedded)





 Conductivity controllers are packed into strong carton which is suitable for long distance transport, color label

 is available as per request on the carton.







     1.    PPM meter will be transported by Express DHL, TNT, EMS, etc as per request, which will take 3-5days.

     2.    By air transport for the bulky order, it will  it will take 5-7days for different area,

     3.    By sea transport for the not urgent bulky order.









1.  Business term: FOB, C&F, CIF, DDU,DDP are acceptable.


2. We accept Western Union, T/T, L/C,Paypal etc term of payment.

    If you want to know more detailed info. about our PPM meter and our company ,



    pls see our website: www.watequipment.com

    or E-mail me: info at watequipment.com.

    or add me on skype: sunnylee301

    or QQ: 544432716
