YSD 12480 Portable Rechargeable 12V 4800mah li ion battery for WIFI Booster CCTV Camera
- Category: >>>
- Supplier: Shenzhen Zande Electronics Co. Ltd.
Share on (60276671245):
Product Overview
Description
YSD-12480 Portable Rechargeable 12V 4800mah li-ion battery for WIFI Booster CCTV Camera
Specification:
1) Input voltage: 12.6V DC
2) Out voltage: 12.6V~10.8V DC
3) Battery capacity: 4800mAh
4) Battery Size: 98*60*22mm
5) Battery Weight: 210g
6) One Kit Package weight:320g.
Model | YSD-12480 |
Product Type | Lithium ion batteries |
Nominal voltage | 11.1V |
Capacity | Custom |
Input | 12.6V |
Dimension | Custom |
Output | 12.6-10.8V |
Max continuous charge/discharge current | 2.5A(Adjustable) |
Battery cells | A grade batetry cells |
PCM | 12V A grade PCM,over-charge/discharge protection, over-heat protection |
LED Indicator | Available |
ON/OFF Switch | Available |
Connectors | 5.5*2.1mm DC jack+5.5*2.1mm DC plug |
Recharge cycle | More than 500 times |
Battery Charger | 12.6V US/EU/UK plug |
Charging full time | Around 5 hours |
Operating temperature | -20 °C to 60 °C |
Charge temperature | -0 °C to 45 °C |
Storage temperature | -20 °C to 45 °C |
Operating humidity | 5% to 90%,non-condensing |
12V lithium ion battery application:
- LED strip/panel,Camera/IP Camera
- Car camera recorder
- Router/Switch
- POS machine
- Solar energy storage
- Speaker and so on
Payment:
- T/T, paypal, and Western Union,Money gram.

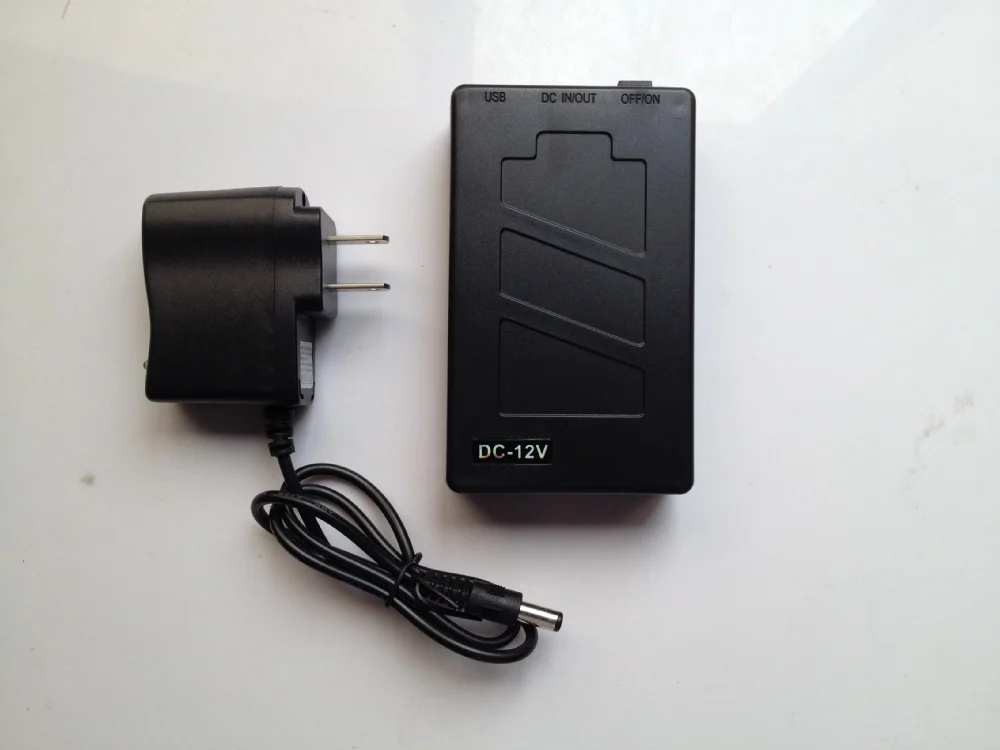

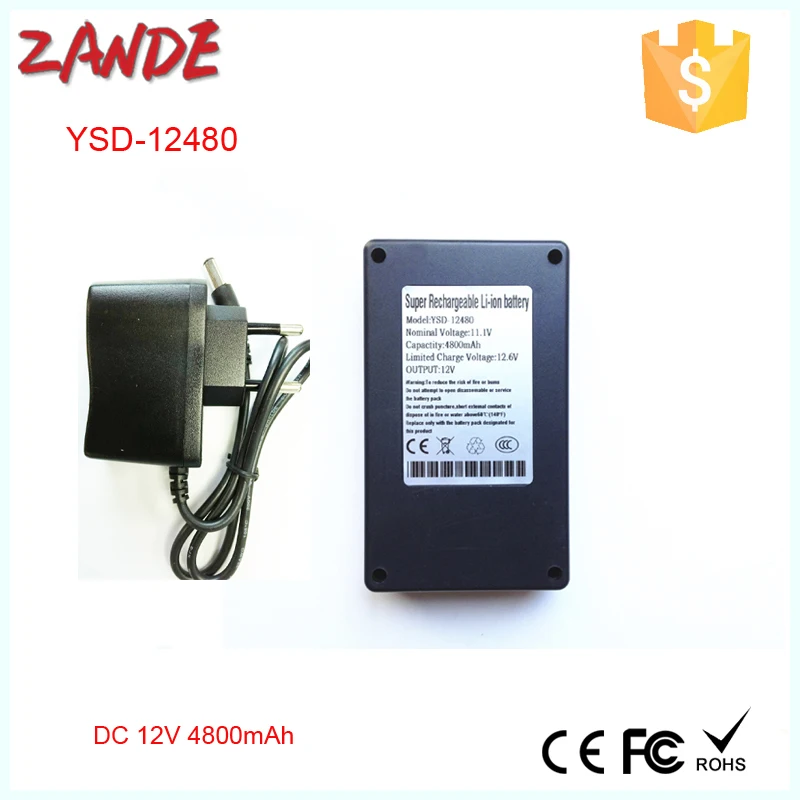

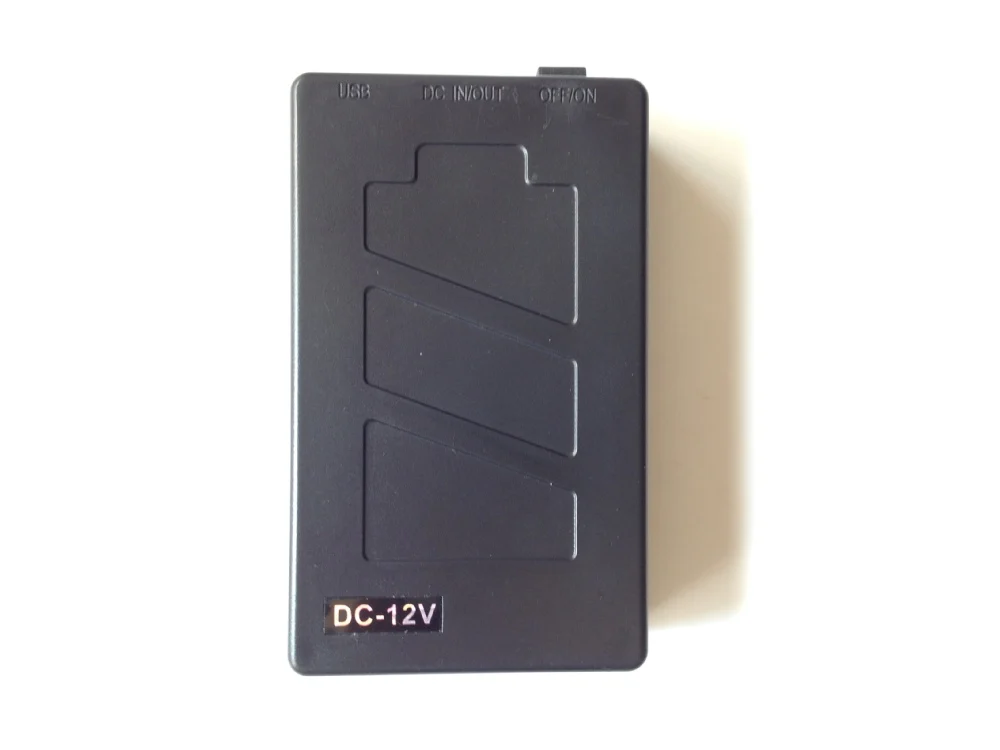

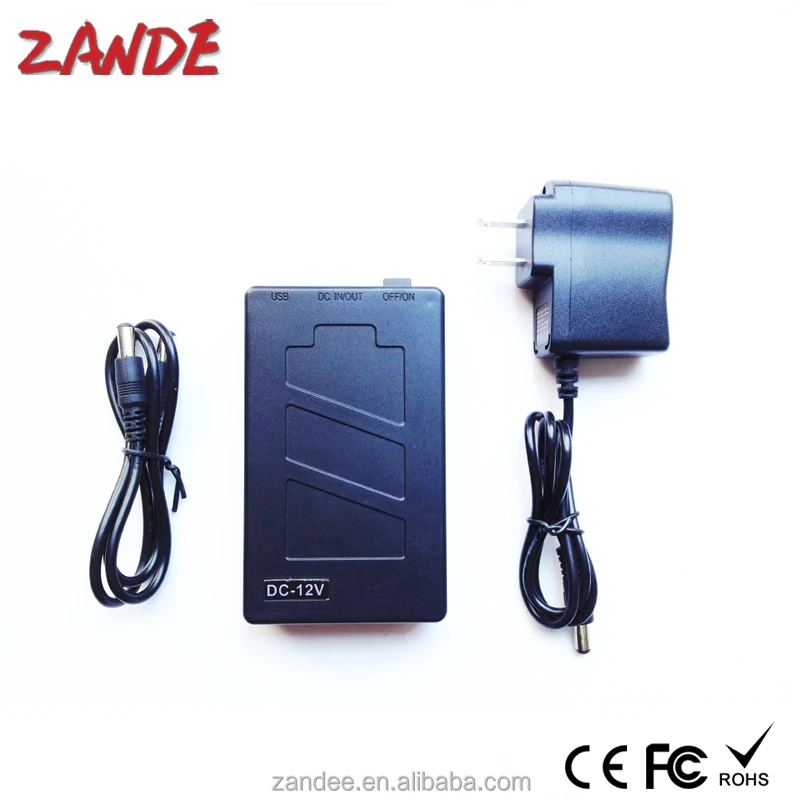

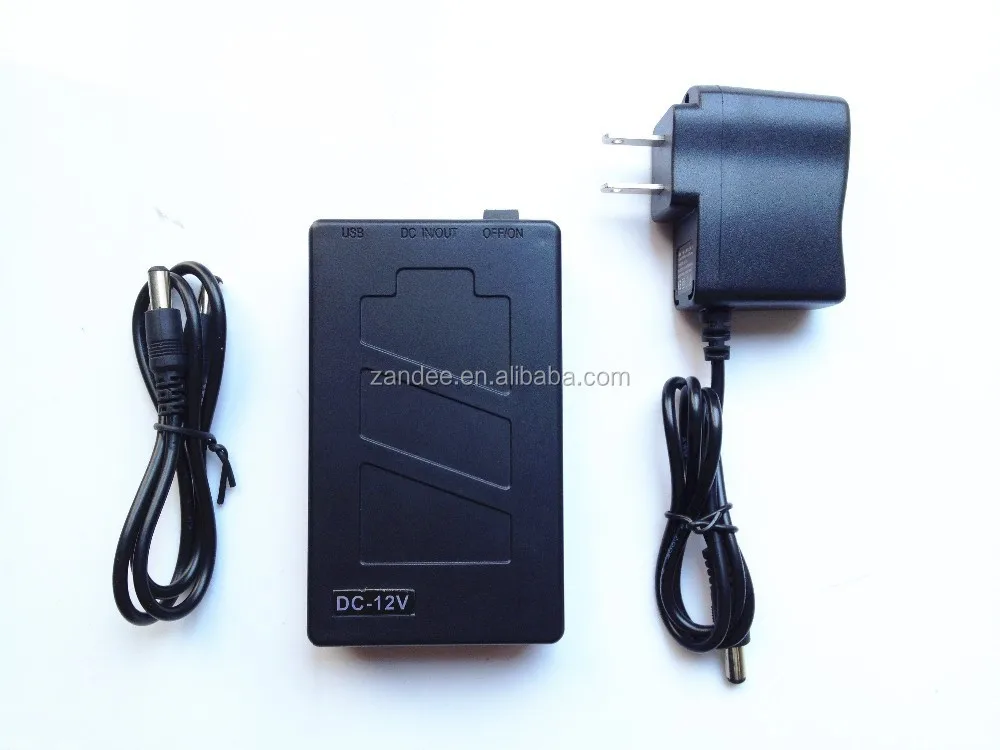

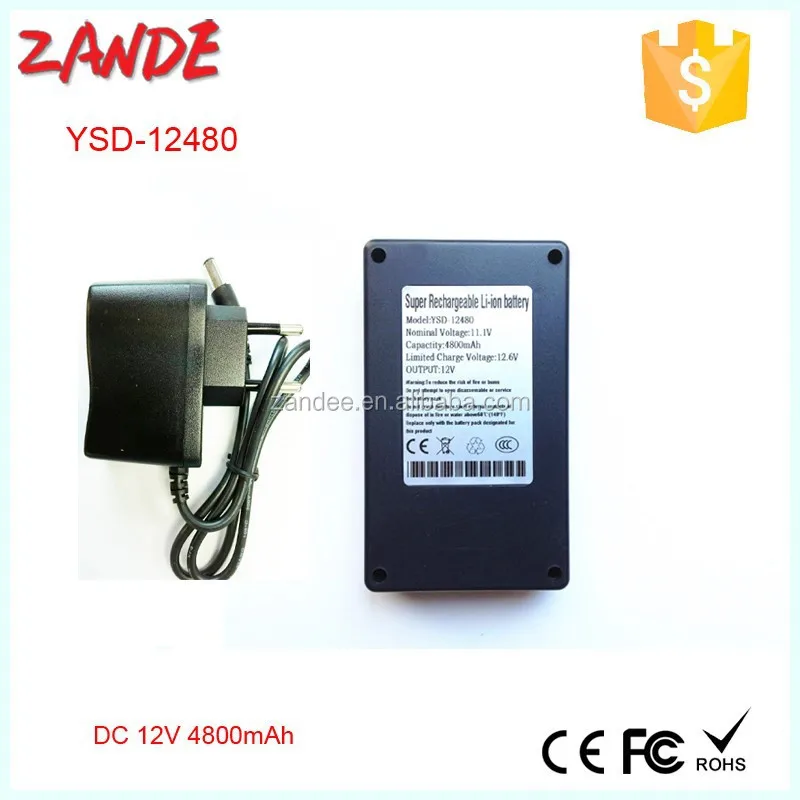

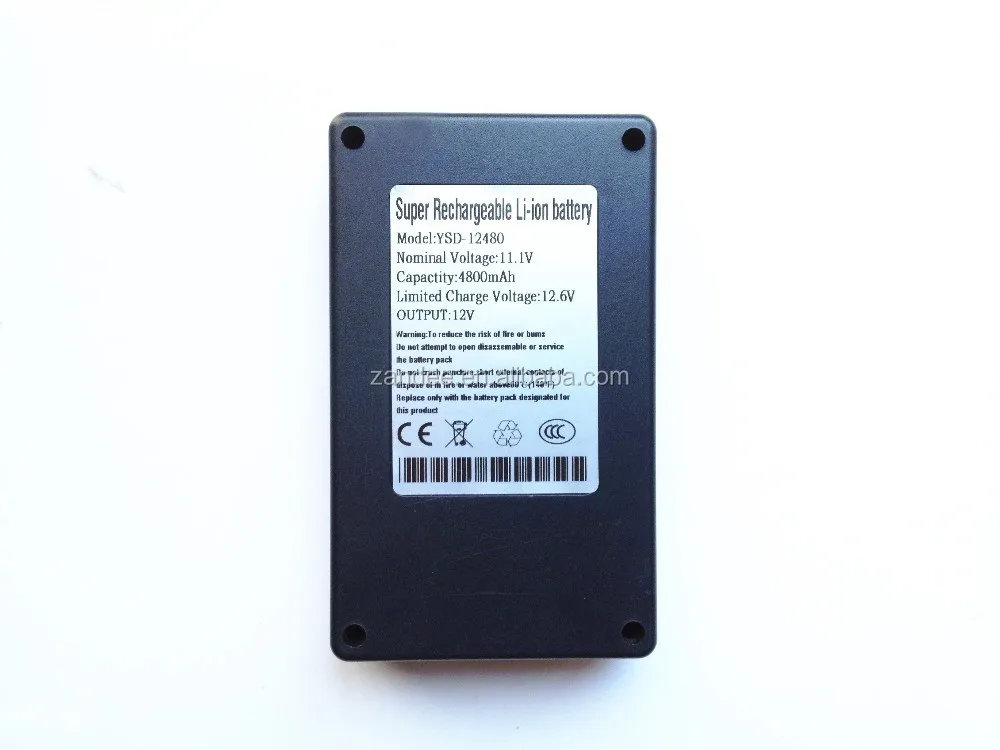

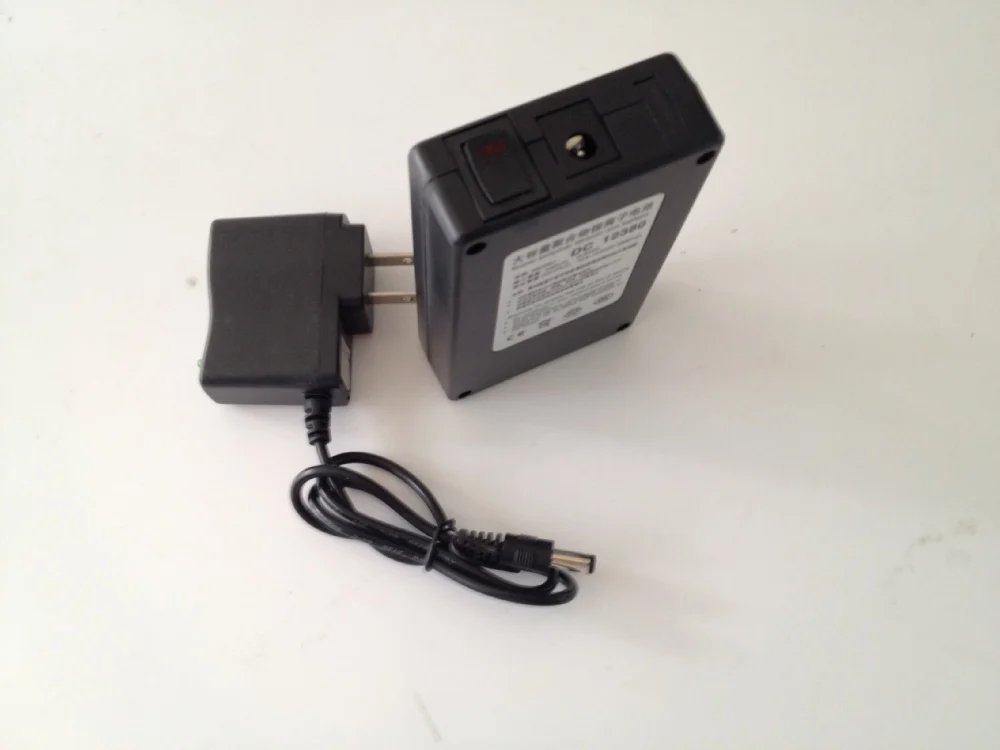

12V lithium ion battery photos show:
Gift box:
Type of Packing: Color Box
Package Includes: Travel Charger
We will send the correct Plug Adapter that suitable for the Country in the shipping address:
Europe Plug Adapter (2 Pin Round Pin):
| |
USA Plug Adapter (2 Pin Flat Pin):
| |
Australia/New Zealand 2 Pin Plug Adapter:
| |
UK Plug Adapter (3 Pin Flat Pin):
|
Pacakge Includes:
1 x 12V Super Rechargeable Li-ion Battery
1 x Charger (EU/US Plug,option)
Warning:
To reduce the risk of fire or burns.
<1>. Do not attempt to open,disassemable,or service the battery pack
<2>. Do not crush,puncture,short external contacts of dispose of in fire or water above 60 Degree
Instruction:
1.turn on the switch on the battery,the red indicator on the battery will be on.
2.The charger adapter has a indicator on the charger.when you connect the charger with AC power,and the battery connect with the battery,the red indicator will be on on the charger adapter.
In a word.AC Power connect with DC the charger,the Charger connect with the battery,turn on the switch on the battery.then it start to charge for your battery.
4.when the red indicator of the charger adapter turn to green,then the battery is fully charged.
it only need 6-8 hours to charge fully.
5.the indicator on the battery,it will always red.when the power of the battery use out,it will turn dark,though it has nearly 5% power,the red indicator will still on.
To charge
Switch on the adapter and the red light would be on ,press the switch of the battery to “ON”and the indicator would be on.
Connect the point of the adapter to “DC In/Out”of the battery and the green light would be on,which indicates it starts to charge,the box does not finish charging unit the green light is off.(the charging times lasts at least 8 hours)
To supply
Connect one point of the power wire to “DC In/out”of the battery and press the switch to “ON” and the other point of the power wire to any kinds of household appliances with the special technology,the inner circuit cut off
Automatically in case of incorrectly use,resulting in no output.but you can renew its output so long as to recharging battery.
Caution
Do use the specialized accessory to recharge.the input voltage of any appliance must be in the range of the output of the battery,otherwise it can do harm to appliance.
To avoid the descending capacity, the battery must not be put away over 1 year.
Away from high temperature,and kept in cool dry place.
