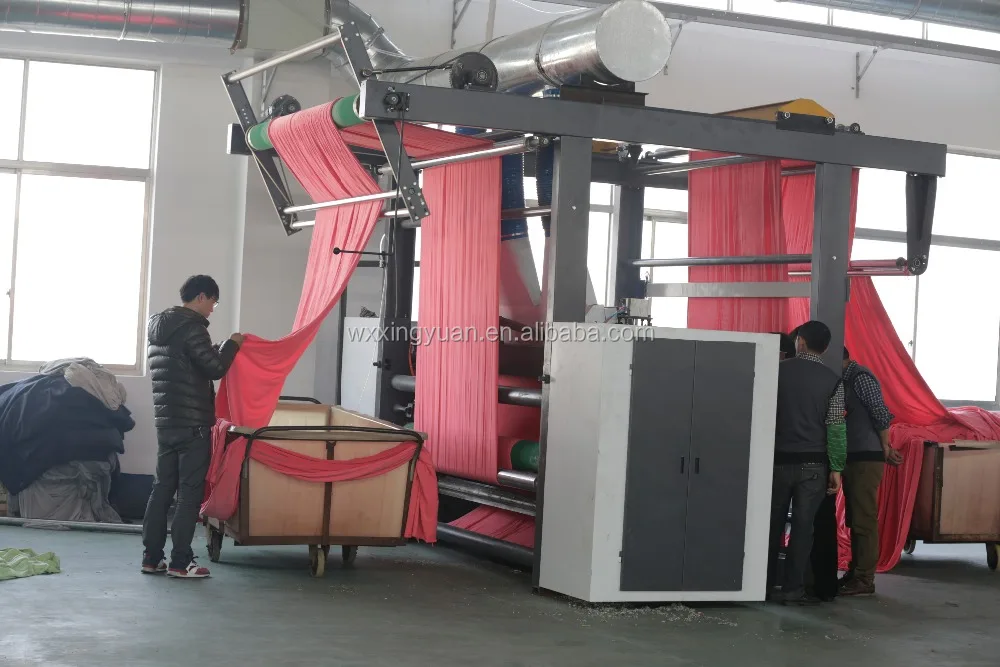

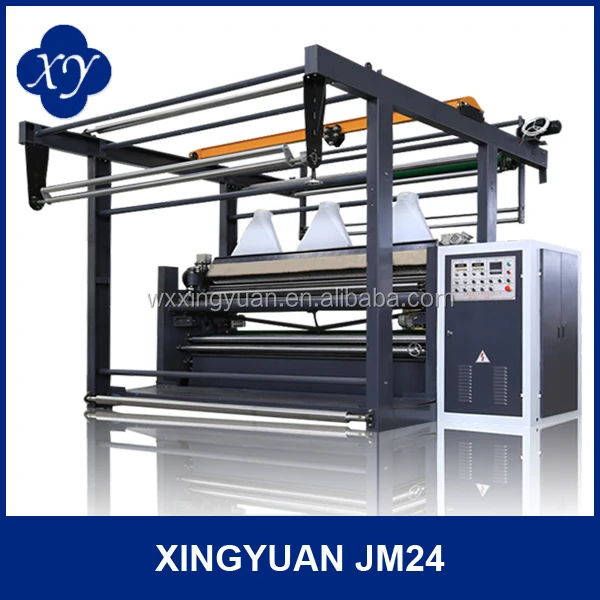

XINGYUAN TEXTILE FABRIC SHEARING MACHINE IN TEXTILE FINISHING MACHINE FOR VELVET FABRIC
- Category: Textile Finishing Machines >>>
- Supplier: Wuxi City Xingyuan Machinery Manufacture Co. Ltd.
Share on (60276708481):
Product Overview
Description
Product Description
Fabric shearing (cutting) machine is suitable for cutting the fleece, loop on the surface of velvet, blanket, fur
Feature
1.AC motor drive system drives fabric input roller, fore guiding roller, rear guiding roller and fabric output roller, four-axis linkages controlled by PLC.
2.Adopted multi axis PID algorithm to realize constant tension control, it makes the original open-loop of fabric guiding process into a closed-loop process control which improves the stability and reliability of the system.
3.The changeable fabric table is an independent innovation and the knife-edge has been improved, a complanate contact with fabric which is suitable for the shearing of thin fabric.
TECHNICAL DATA | |
INSTALL POWER | 14.68kw |
MAXIMUM PRODUCTION SPEED | 45m/min |
SHEARS INSTALLED | 24 |

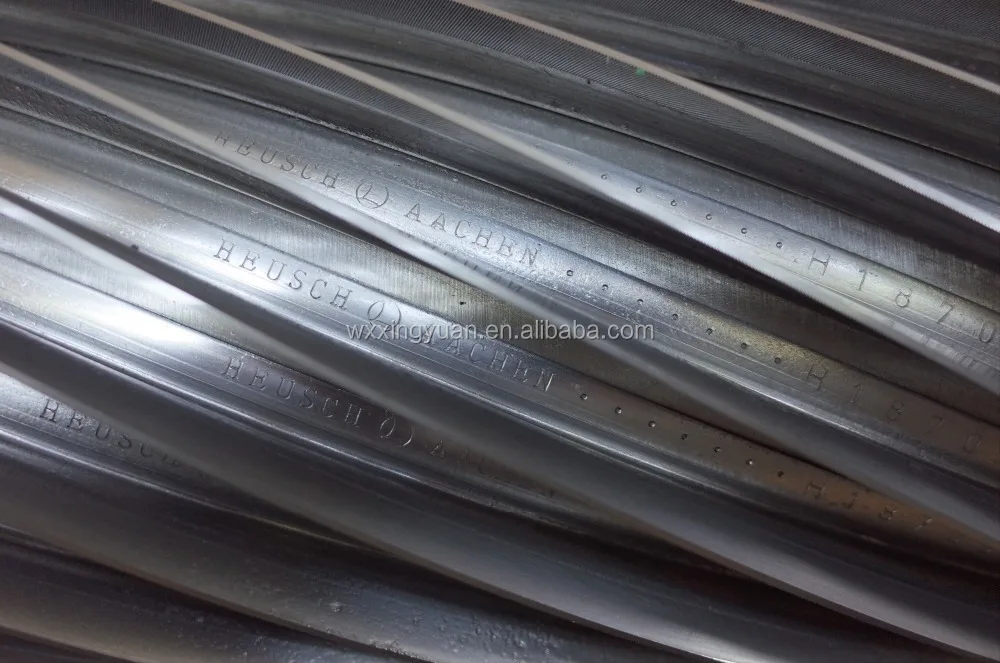

DIAMETER OF SHEARING CYLINDER | Φ183mm |
WORKING SPEED | 900rpm |
DIAMETER OF DRIVING ROLLER | Φ169mm |
ROTATION DIRACTION | CLOCKWISE |
MACHINE WEIGHT | 3000kg |
OVERALL DIMENSION-2200mm | 4380x4310x3150mm |
OVERALL DIMENSION-2500mm | 4680x4310x3150mm |
