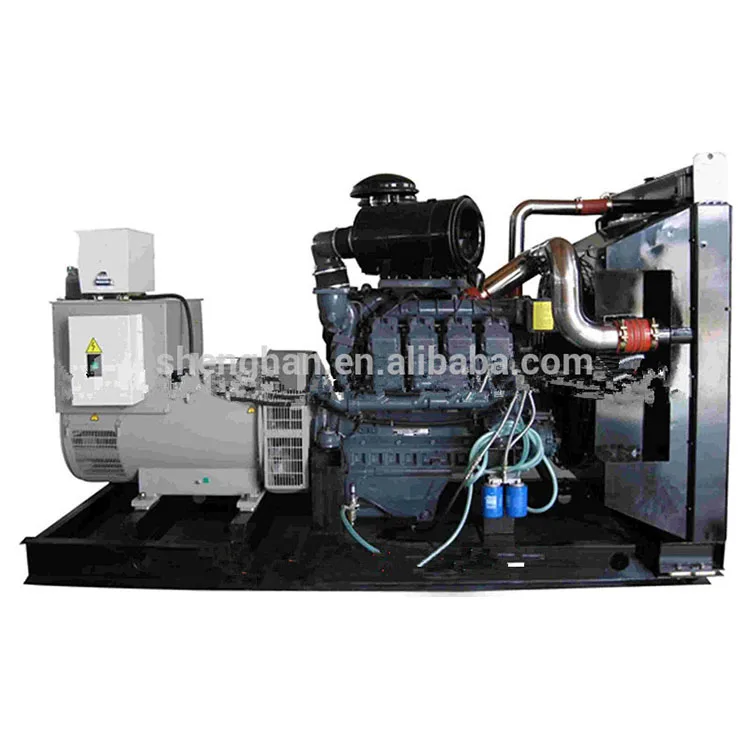

2015 hot sale! Weichai German Deutz 500kva diesel generator with Stamford alternator
- Category: >>>
- Supplier: Shandong Xujiujiu Power Technology Co. Ltd.
Share on (60276740799):
Product Overview
Description
Main Technical Parameters:
| rated power(kw/kva) | 400/500 |
| rated current(A) | 720 |
| rated voltage(V) | 400/230 |
| rated frequent(Hz) | 50 |
| rated speed(r/min) | 1500 |
| rated speed factor | 0.8LAG |
| phase arrangement | 3P4W |
| dimensions(mm)(L*W*H) | 4170*1320*2015 |
| net weight(kg) | 5300 |
| control unit type | integral type control box(split type can be chosen) |
| low fuel consumption(L/kwh) | 78 |
| good starting performance | electrical starting DC24V |
| speed mode | electrical |
Deutz Engine
| type | BF8M1015C-LAG2 |
| rated power(kva) | 550 |
| standby power output (kva) | 605 |
| cylinder quantity | 8 |
| cylinder diameter | 132 |
| piston stroke | 145 |
| displacement(L) | 15.874 |
Stamford Alternator
| type | HCI544C |
| excitation mode | pure copper brushless with AVR(brush mode can be chosen) |
| insulation class | H(temperature rise limit:125K) |
| protection class | IP22 |
