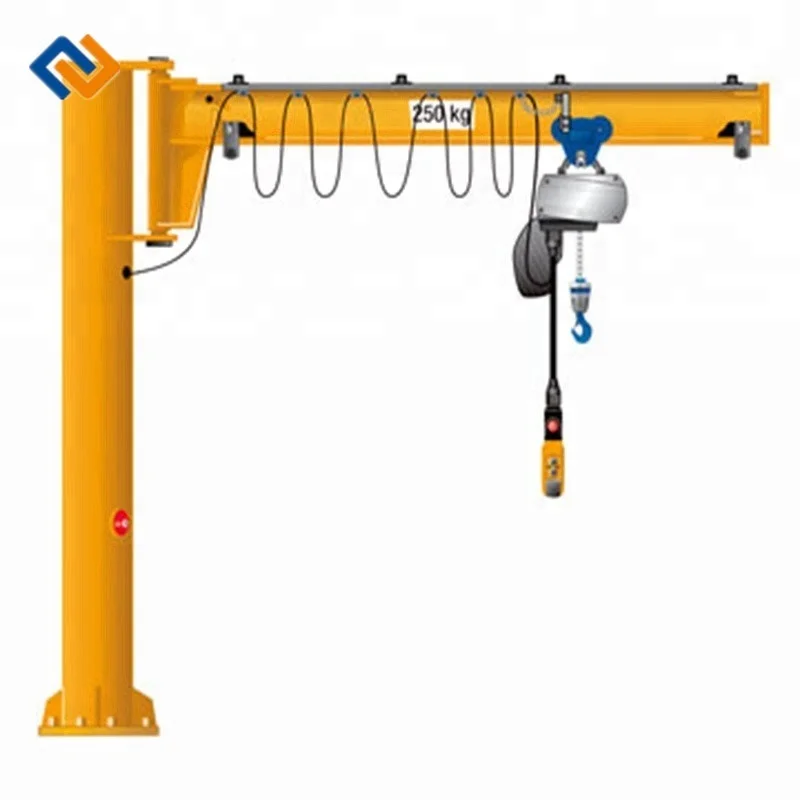

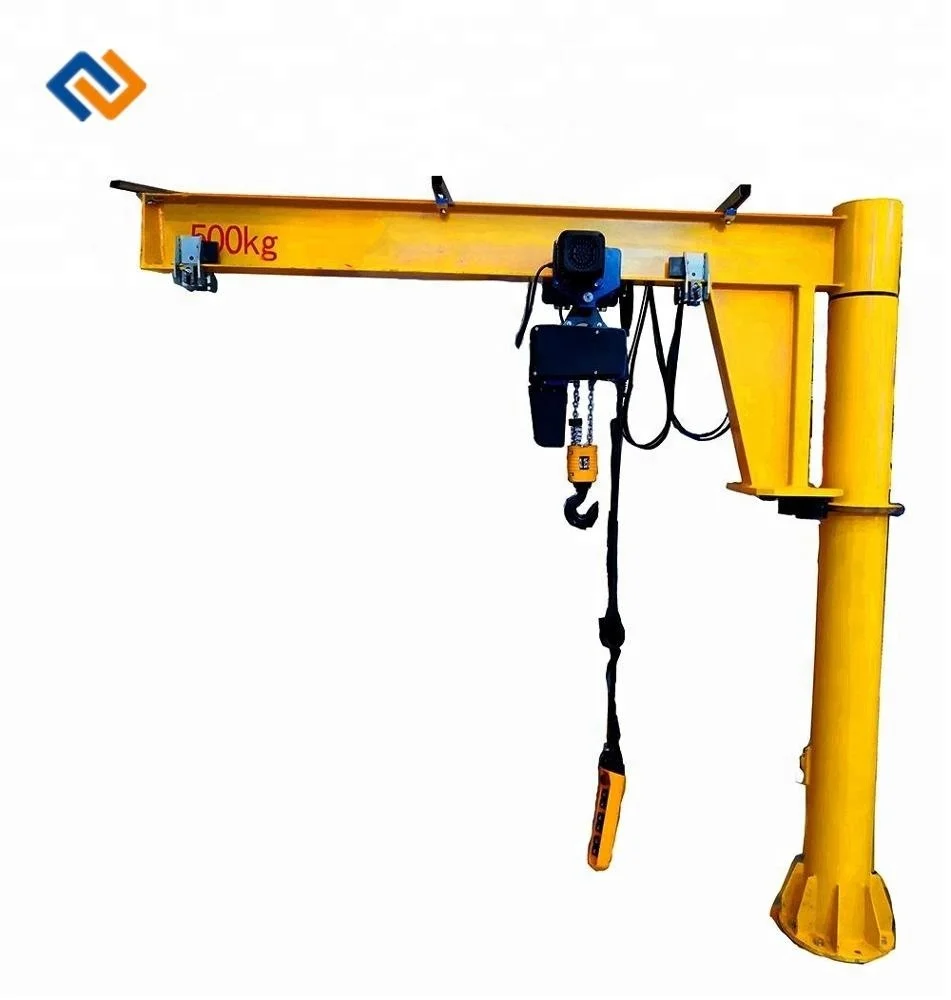

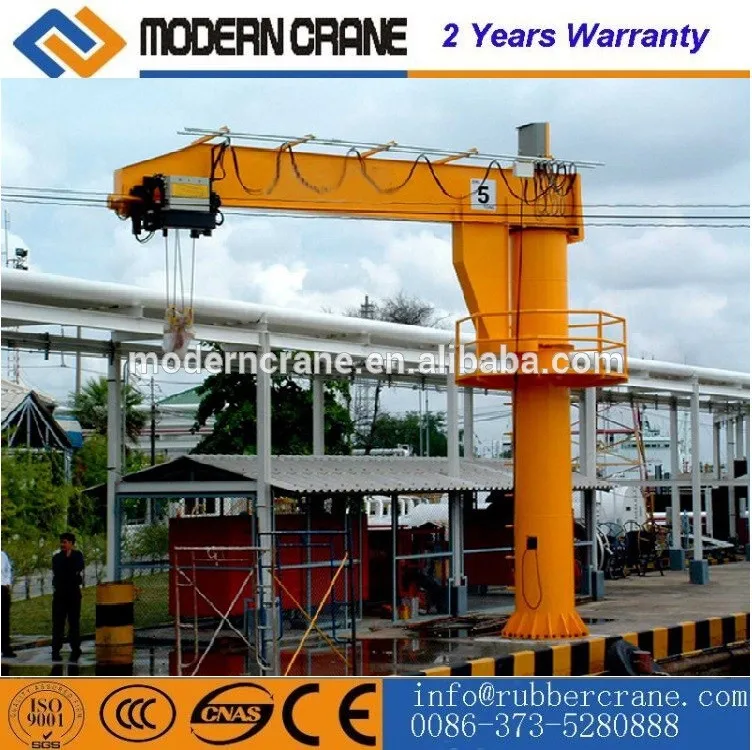

Factory price High quality 270 degree rotate floor mounted Cantilever crane

Model:BZ,BZD

Capacity:0.2t,0.5t,1t,2t,3t,5t,10t

Lifting height:3~6m

Introduction:

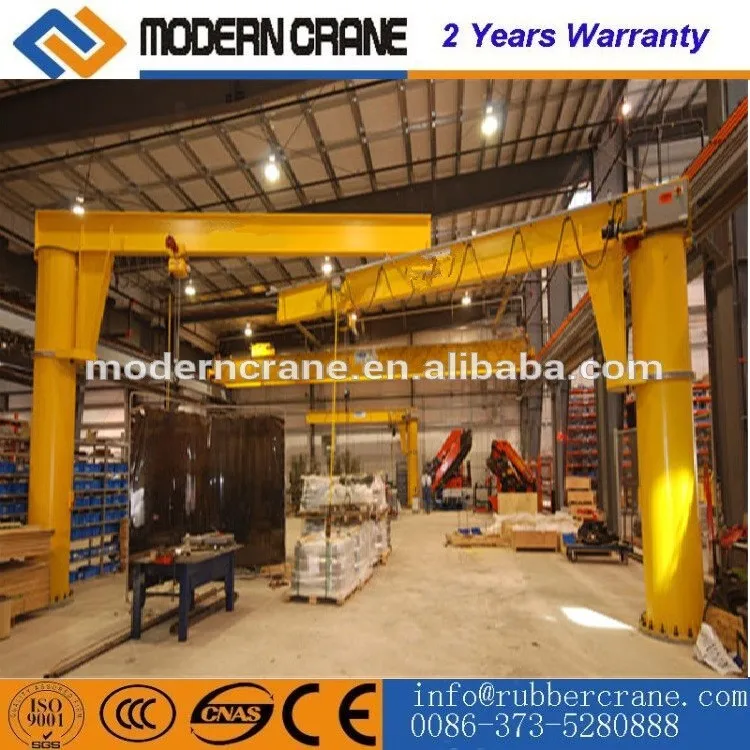

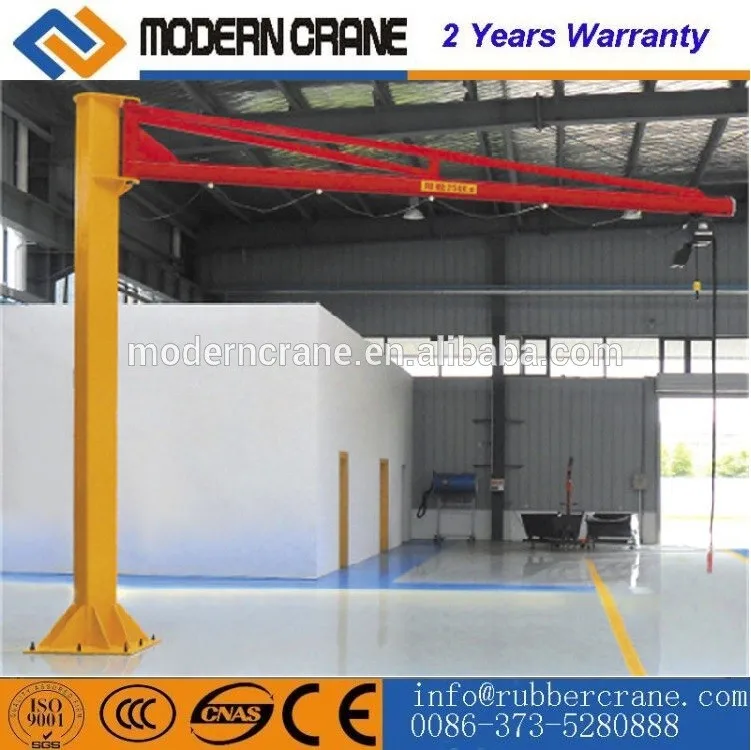

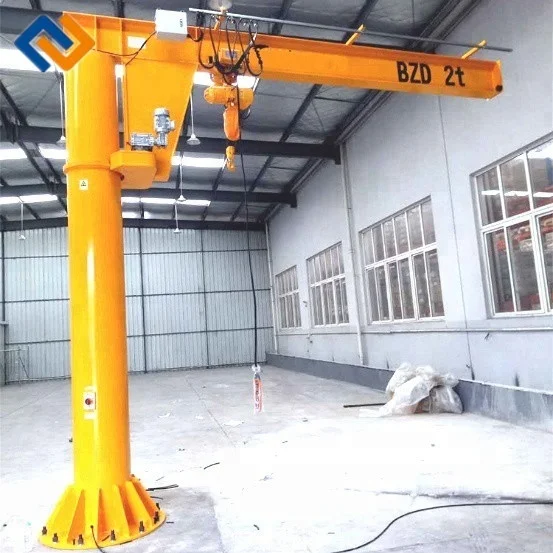

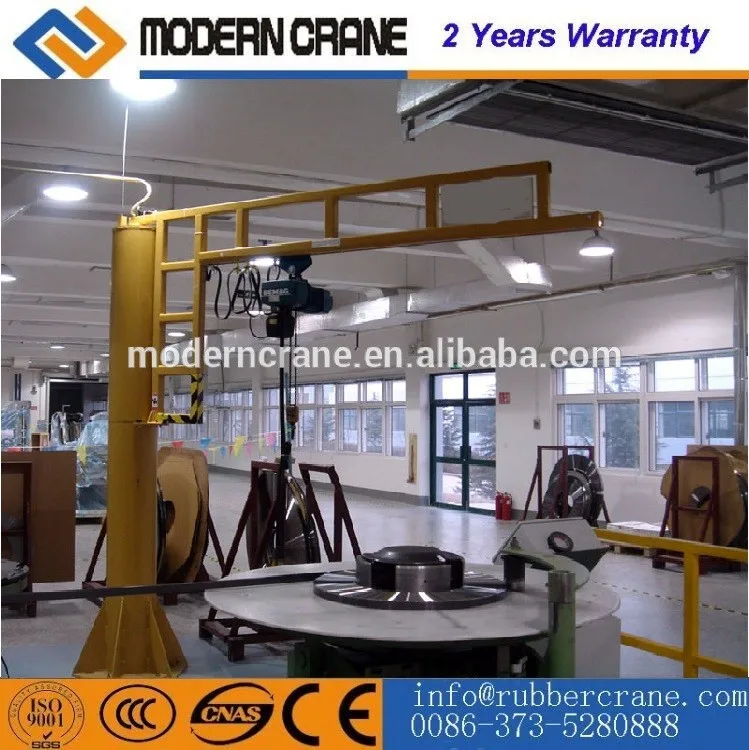

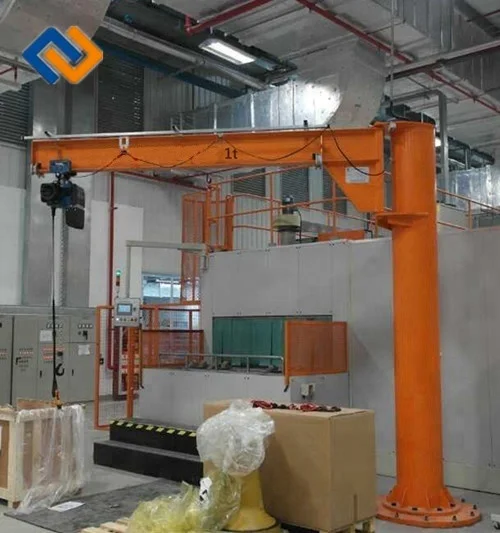

BZD Jib Crane is a kind of small and medium-sized lifting equipment with the recent development. Its unique structure, safe and reliable. With high efficiency, energy conservation, the provincial time, effort, and flexible and so on. And it can operate freely in 3D space, and it can show its superiority more especially when its working in the short-range and intensive lifting occasions. Widely used in workshops, warehouses, docks and other fixed place.

Reasonable design, strong rigidity

Adjusting speed with converter function, steady travelling

Choosing according to different needs

Mechanical Feature of mounted jib crane

Material Q235B or Q345B

Rectangular tube legs or welded by superior steel plates

10.9 class High tension bolts mounting between girder and legs

Trinity-drive system or traditional drive by motor and reducer

Smoothly moving, effectively braking, long service life

Choosing according to different needs

Electrical System of mounted jib crane

Trolley conductor or angle steel conductor power supply

All hoist and crane movements are independent and can be run simultaneously.

Electric hoist mobile power supply is constituted by flate cables or special cables, galvanized slippery course and small cable pulley

Safety Protection of mounted jib crane

Rain cover for outside hoist, driving units, electrical cubicle

Warning indicator: anti-collusion device and flashing lights and warning sound.

Modern Crane co.Ltd., focuses on lifting resolutions for customers .We provide design ,production and service of different lifting equipment ,which covers electric wire rope hoist ,china hoist ,jib crane ,bridge crane ,gantry crane ,port crane etc.

Under principle CUSTOMER FIRST ,MODERN CRANE people always provide customers with first class products and excellent service. MODERN CRANE people follow a strict QUALITY CONTROL system which ensure perfection of each lifting equipment .Our products have completely passed ISO9001 ,CE ,GS and other quality system certificates .Thanks to our high quality products and outstanding customers service ,MODERN CRANE has earned a reputation customers and gained a global sales network reaching Brazil , India ,Philippine ,Ukraine ,Argentina ,Spanish ,Malaysia and other 30 countries .

With the commitment of customer satisfaction ,we are expecting to widen and deepen the cooperation and communication with all friends all over the world .

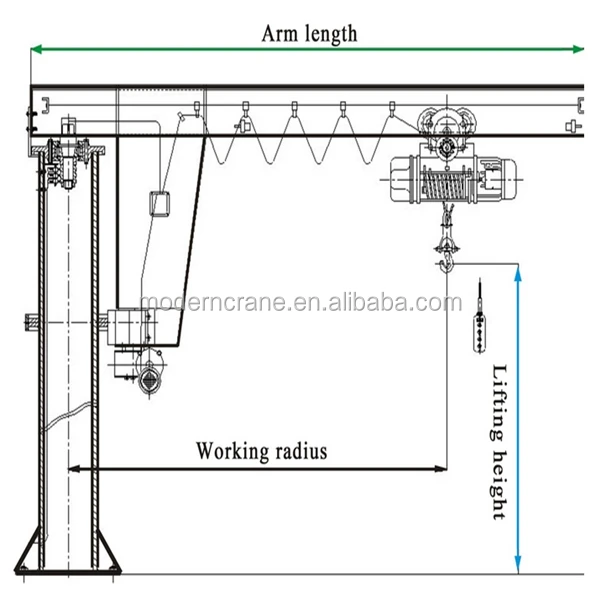

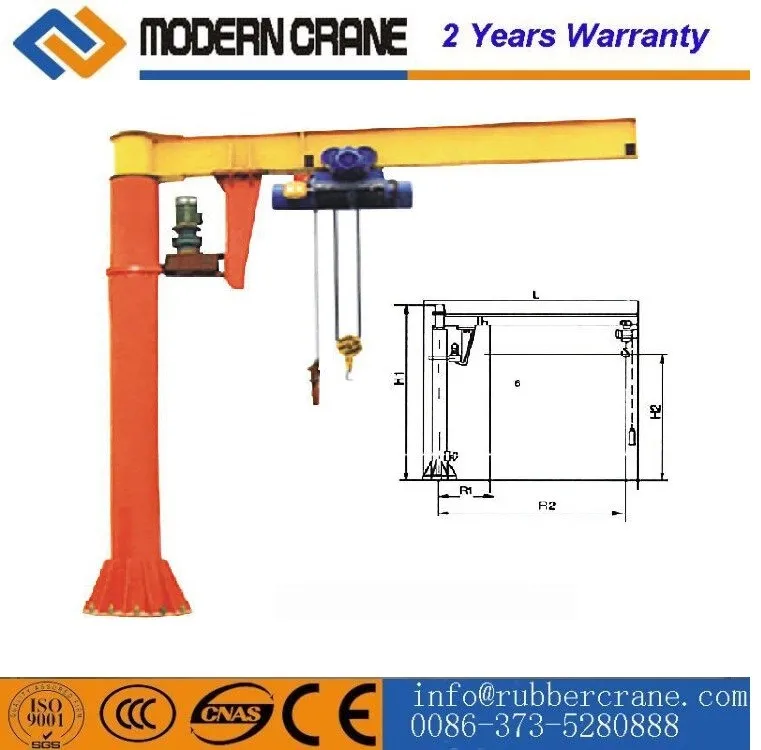

         a) Capacity: Max. lifting load.( Electric or manual )

         b) Outreach: Arm length.

         c) Expected lifting height: Distance between hook center and ground.

         d) Rotating degree: 180/270/360

         e) Local industrial voltage: AC 3/380V/50Hz in China.

         f ) Slewing Method : Electric or manual

Please send your inquiry in the textbox below!
