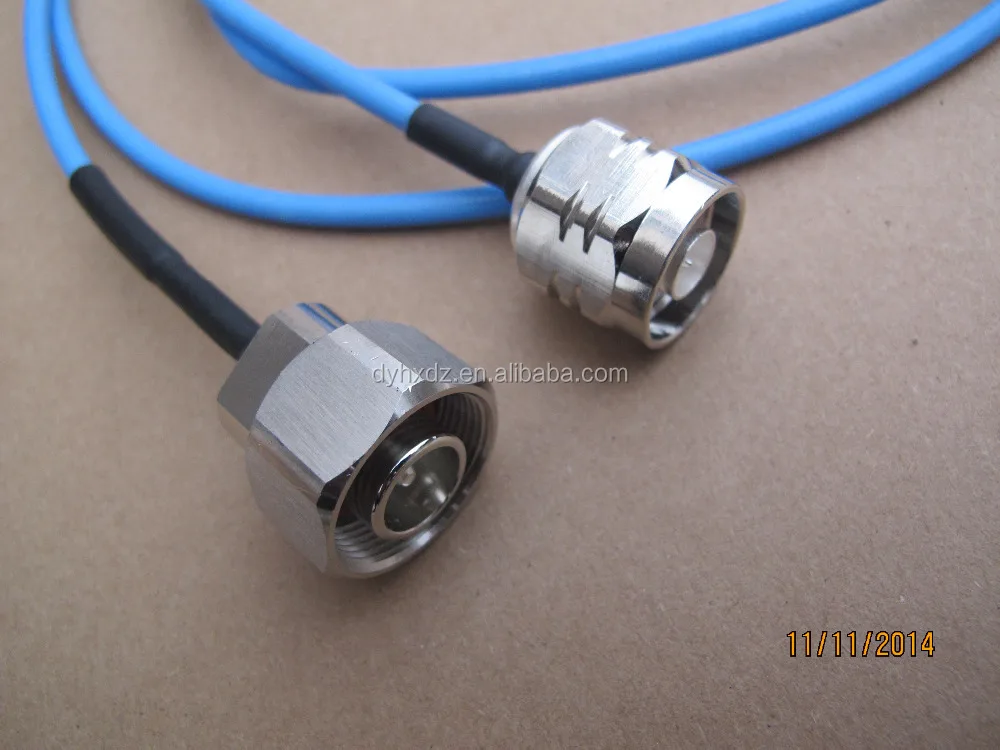

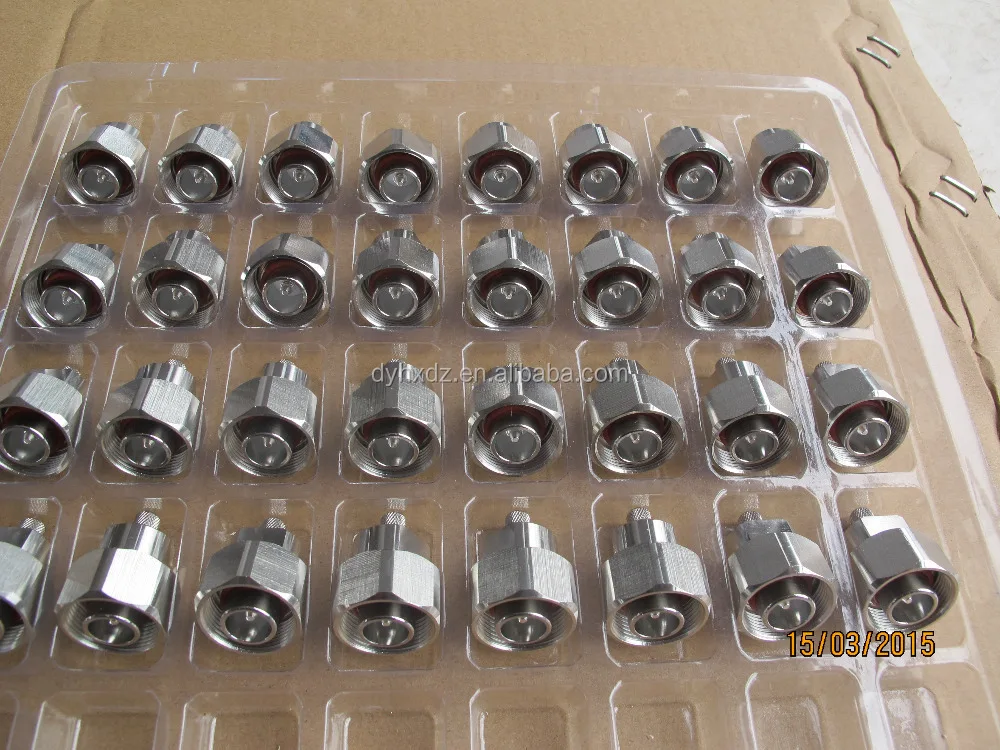

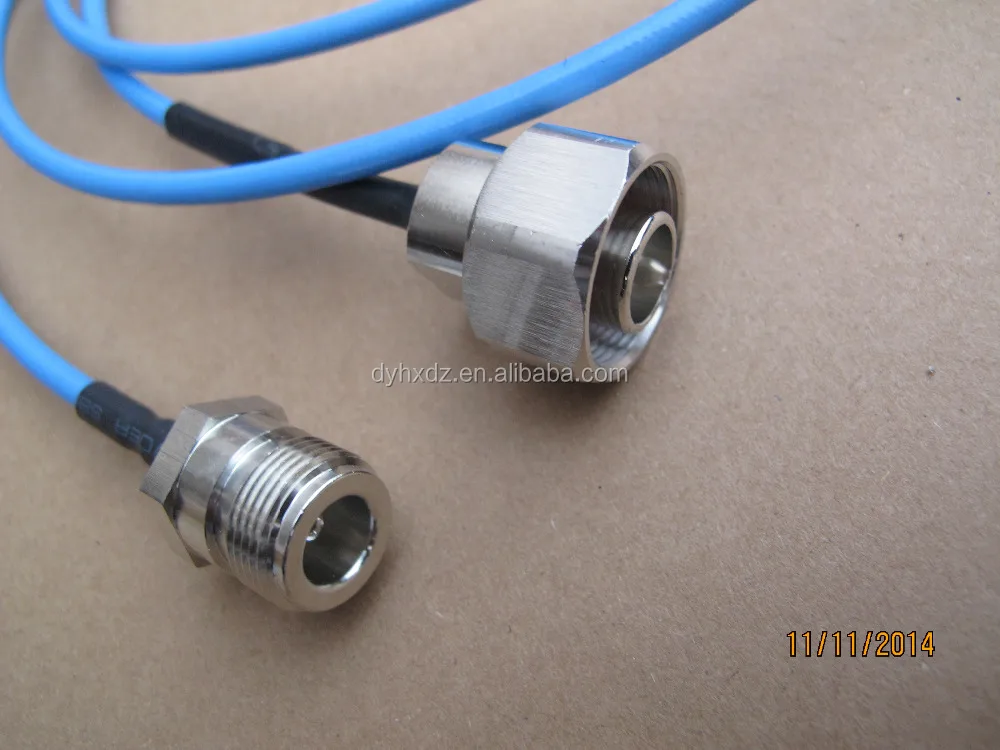

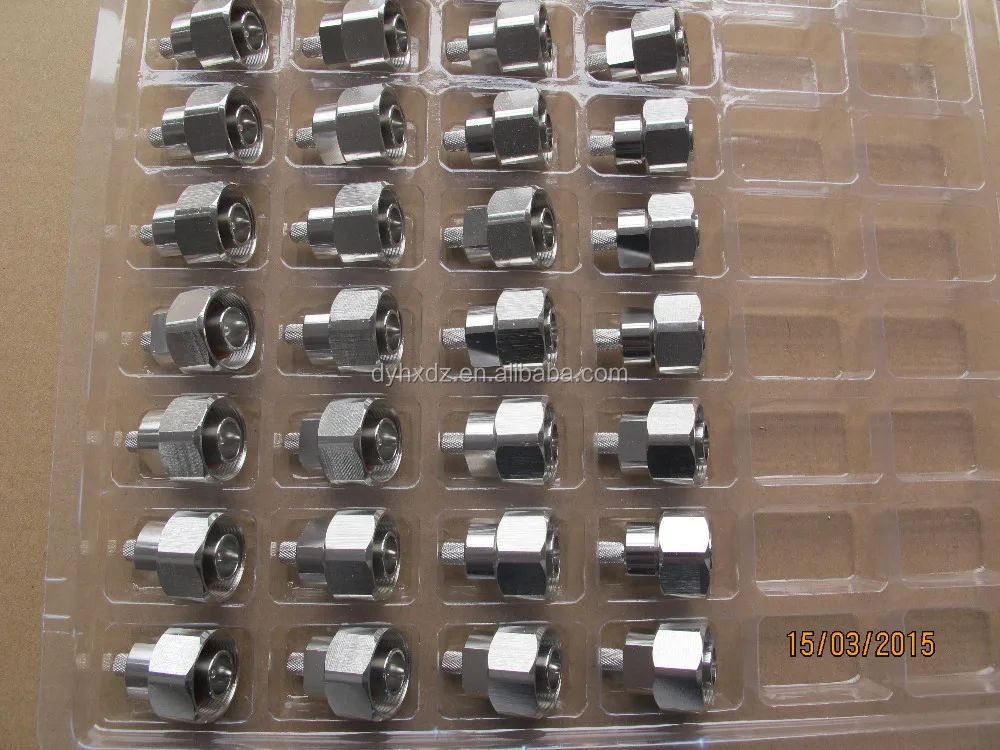

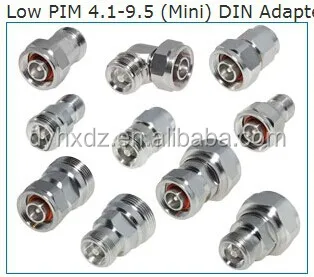

RF connector Mini din (4.1/9.5 type ) male plug for 1/2 superflex cable

1.reasonable price

2.manufacturer factory

3.We are able to supply various types of connector according to clients’ requirement

4.Samples can be supplied for testing (for free)

5.Tried order is available

6.in stock





RF connector Mini din (4.1/9.5 type ) male plug for 1/2 superflex cable

1 Characteristic Impedance50ohm
2     Frequency RangeDC-6GHz
3VSWR1.15
4Insertion loss(3G)≤ 0.15dB
5Dielectric Resistance≥5000MΩ
6Contact ResistanceOuter contact≤1.5mΩ ;Center Contact≤0.4mΩ
7PIM≤-150dBc(2*20W)

Mechanical

1Durability      Mating cycles ≥500

Material and plating



Description

MaterialPlating
1  BodyBrassTri-alloy
2InsulatorPTFE–
3Center conductorBrassAg

Environmental

1Temperature Range-40℃~+85℃
2WatertightnessIP67
3Rosh-complianceFull ROHS compliance



Interface
  IEC 60169-16;MIL-C-39012;CECC-22210
Electrical

Characteristic Impedance
50ohm
Frequency Range
   DC-11GHz
VSWR
   ≤1.15@DC-3000MHz
Insertion Losss
≤0.24dB(6GHz)
3rd Order IM (PIM3)
—
Working Vlotage
1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage
≥2500V RMS,50Hz,at sea level
Dielectric Resistance
 ≥5000MΩ
Contact Resistance
 Center Contact ≤1mΩ
  Outer Contact ≤0.25 mΩ
Mating
—
Mechanical

Durability
 Mating cycles  ≥500
Material and Plating


Parts Name
Material
Plating
Body
Brass
Tri-Metal(CuZnSn)or Ni
Insulator
PTFE
—
Inner Conductor
Phosphor Bronze
Au
Coupling Nut
Brass
Ni
Gasket
 Silicone Rubber
—
Cable Clamp
Brass
Ag
Ferrule
—
—
Environmental


Operating Temperature
45 ℃-85  ℃
Weatherproof Rate
IP67
RoHs (2002/95/EC)
Compliant  by exemption
Suitable Cable Family
LMR400/RG213/RG8/CNT400 cable
