Tablet pill sugar coating machine wide output range industrial commercial

Product Overview

Description

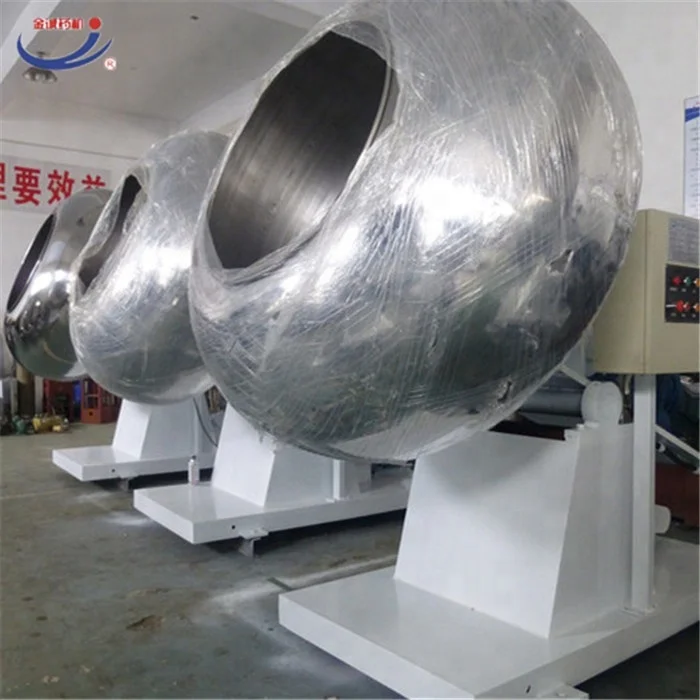

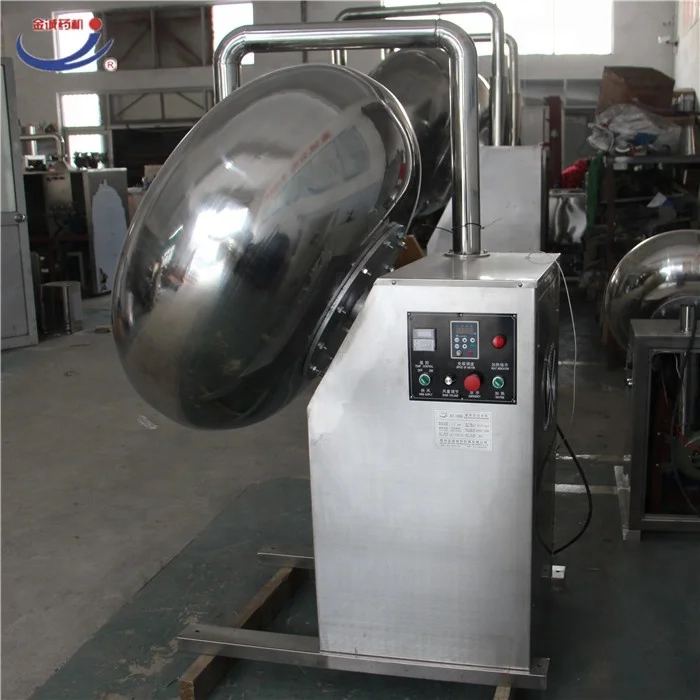

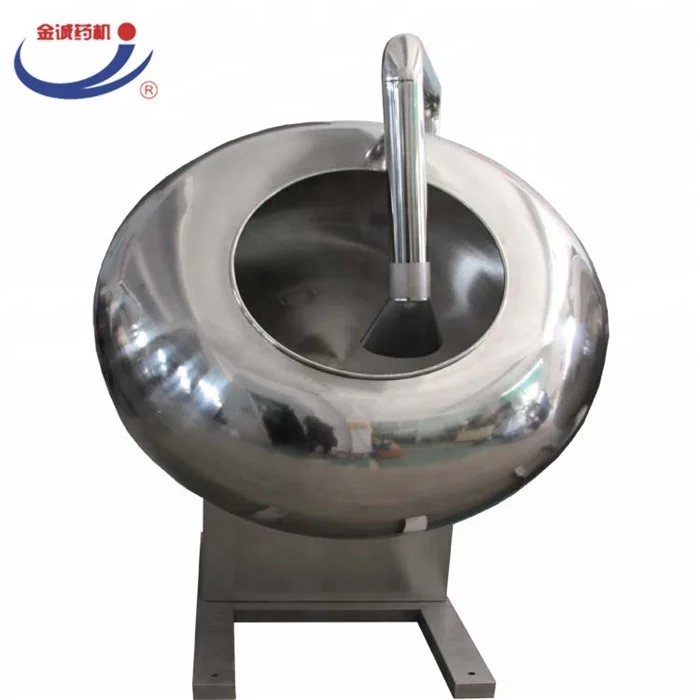

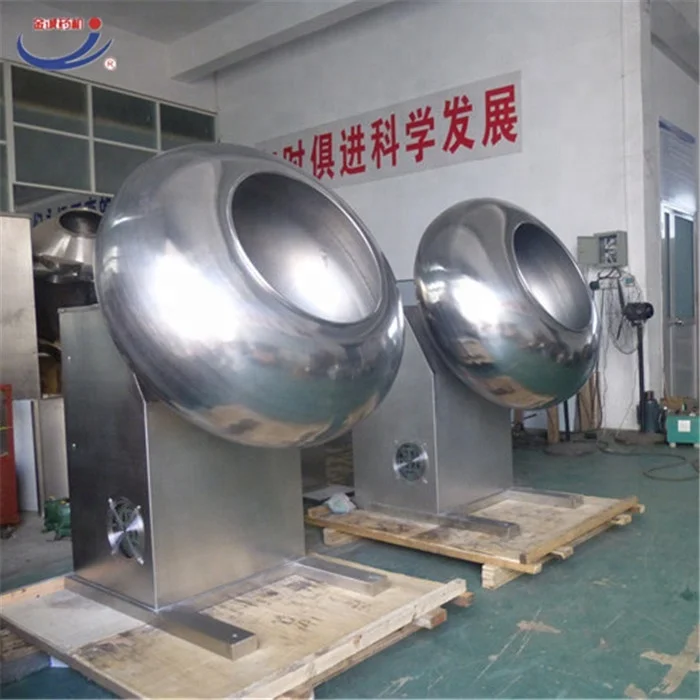

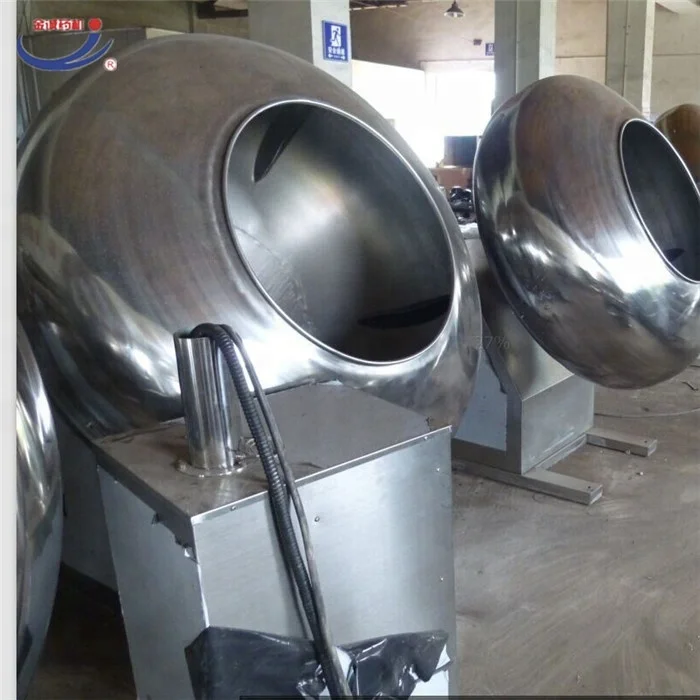

 sugar coating machine







Coating Machine ideal for film and sugar coating. The machine is available with 304 stainless steel coating pan. The machine is designed with fabricated structure fitted with SS enclosure and drive unit of motor and reduction gear box. Machine has variable speed drive to achieve 8 to 60 R/MIN by variable speed pulley. The machine is mounted on dynamounts which avoids foundation and vibration.

Application of       Nuts/ chocolate sugar coating machine     :



1.This   Nuts / chocolate sugar coating machine   used to coating the tablets and pills for pharmaceutical and food industry.

2.   Small nuts/chocolate coating machine  is used for rolling and heating beans and edible nuts or seeds.

3.   Small nuts/chocolate coating machine  can be used to polish chocolates and nuts of various shapes such as cylinders, oblatenesses to make their surfaces well lustrous and colored.



Features of Sugar Chocolate Coating Machine /      Small chocolate coating machine
1.      Small chocolate coating machine   is designed for the coating of pills,medecine,nuts, dried fruits, cakes and other products by sugar, chocolate, vitamins and fruit shell.
2.Infinitely variable speed control software and coating drum provide high performance, ease of management, ease of use.
3.Nuts sugar Coating drums are equipped with a special system of blowing hot air.
4.The drums have a reliable and sealed lubrication system. Drum is made of stainless steel, the body is painted with white enamel. The drum is equipped with rubber pads which protect against vibration. Comfortable and easy to maintain and operate.
5. Automatic discharging type is available.

Sugar coating machine Laboratory Series

Lab. Series Technical parameters

Model	Diameter of Coating Pan(mm)	Production Capacity(kg/h)	Coating Pan Inclination Angle(degree)	Motor Power(W)	Machine Dim(mm)	Net Weight(kg)	Voltage

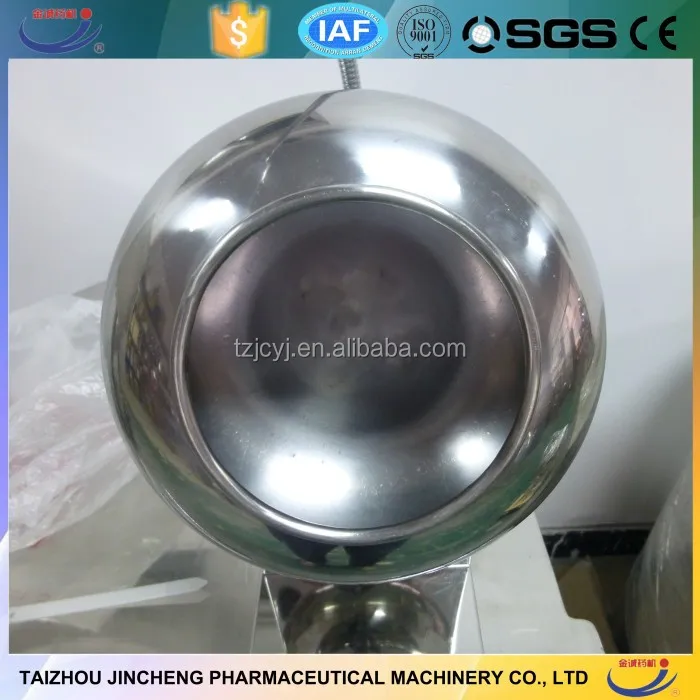

BY200	200	0.5	0-60(Adjustable)	25	200×300×450	6.5	110~220(Selectable)
BY300	300	2-3	0-60(Adjustable)	125	550×400×850	30	110~220(Selectable)

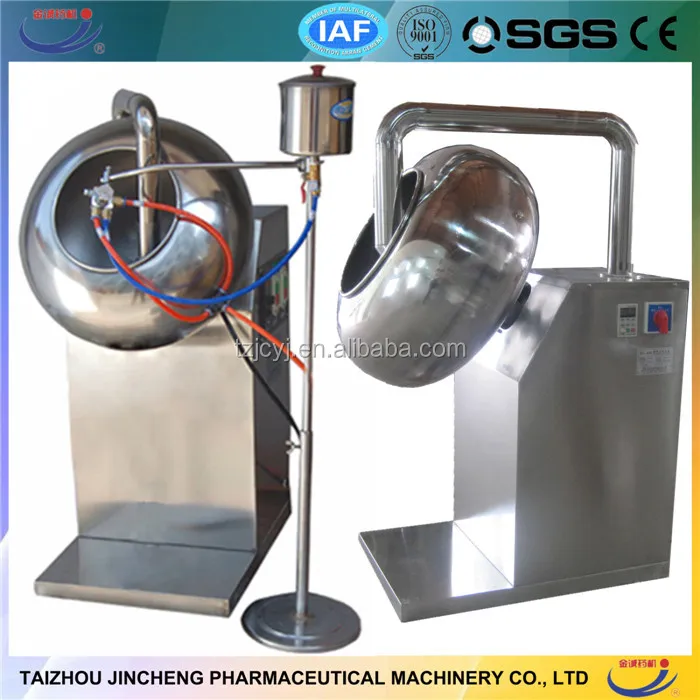

BY400	400	3-5	0-60(Adjustable)	125	550×400×850	31	110~220(Selectable)
BY600	600	8-15	46(Adjustable)	750	700×600×920	85	110~220(Selectable)







  Technical parameters



Model	Diameter of Coating Pan(mm)	Production Capacity(kg/h)	Coating Pan Inclination Angle(degree)	Motor Power(W)	Machine Dim(mm)	Net Weight(kg)	Voltage
BY600	600	8-15	46	0.75	700×600×920	85	220

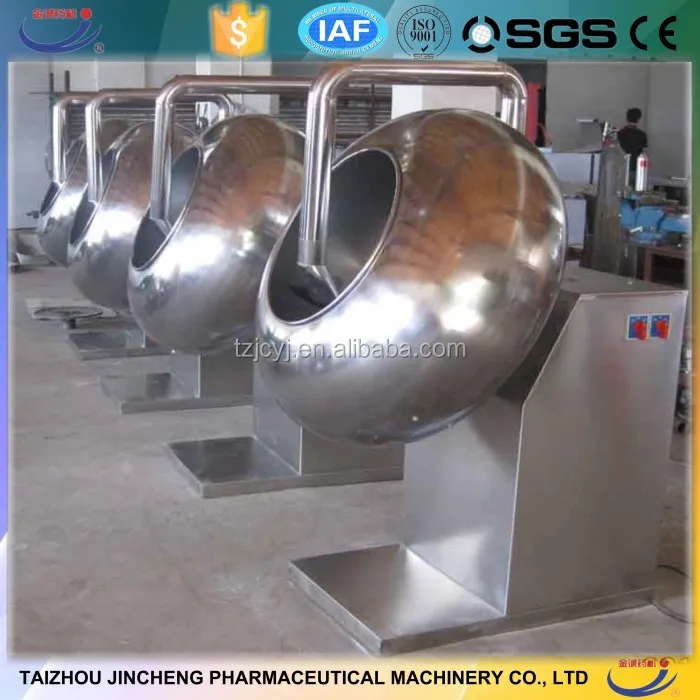

BY800	800	30-50	32	1.1	900×800×1400	205	380
BY1000	1000	50-70	32	1.5	900×1000×1500	220	380

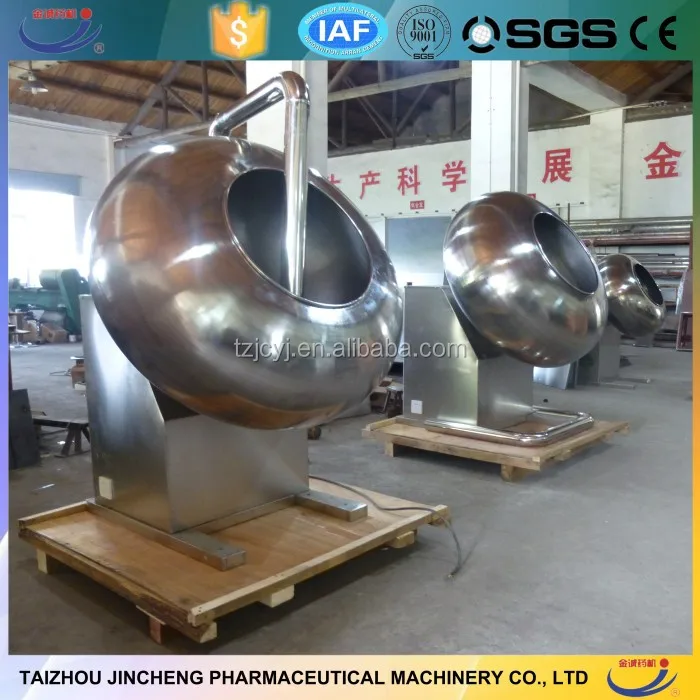

BY1250	1250	70-150	32	2.2	1200×1250×1600	300	380
BY1500	1500	100-350	24	5.5	1650×1500×1800	350	380
BY2000	2000	150-500	20	7.5	1700×2000×1900	450	380

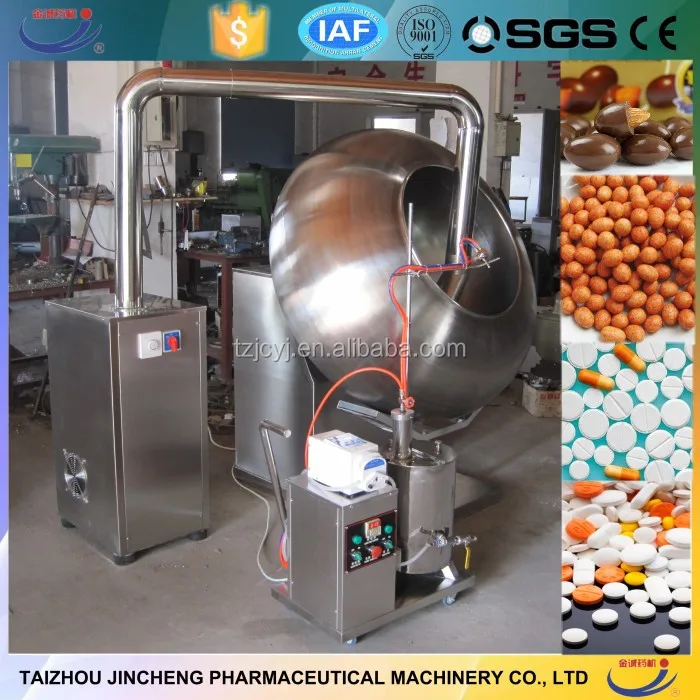

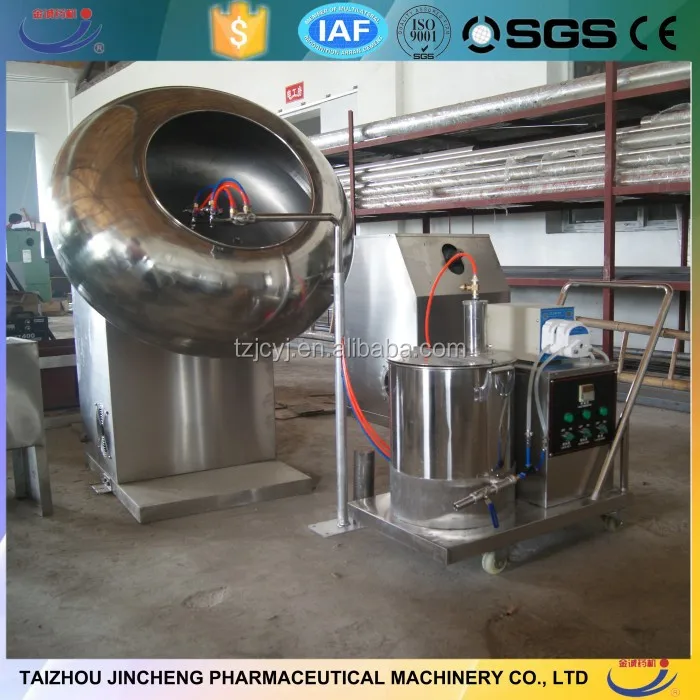

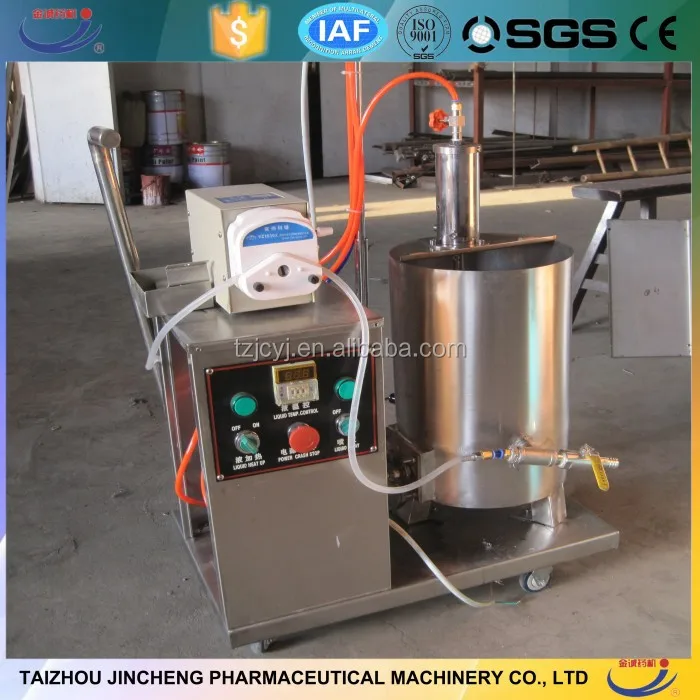

Spary System

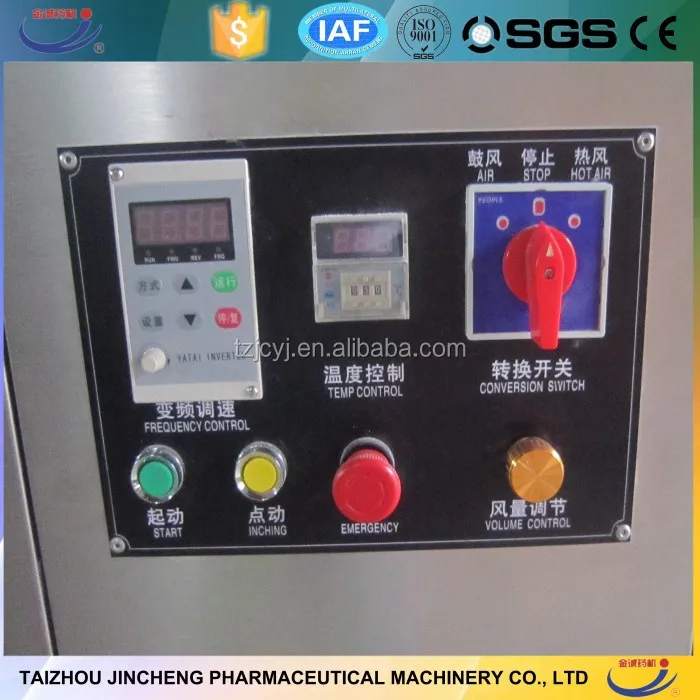

 Control Panel

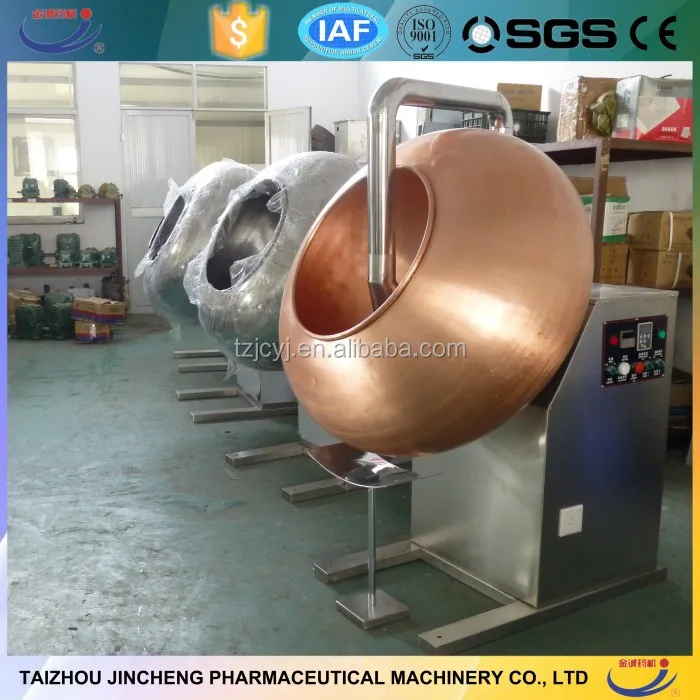

 Copper Coating Pan









Taizhou Jincheng Pharmaceutical Machinery Co.,Ltd is a member of China Association for Pharmaceutical Equipment. Our factory is located in Taizhou, Jiangsu Province, near by the China Medecine City on the verge of Yangtze River



We adhere to "People-Oriented" "Scientific Management" principles and actively engaged in the research and development of new products since founded. After years of experience, we have successfully developed many kinds’ pharmaceutical machines, such as Universal Grinder, Rotary Granulators, Groove mixer, Dimensional Mixer, V-Type Mixer, Hot Air Circulation Oven, Rotating Tablet Pressing Machine, Single Punch Tablet Pressing Machine, Pill Making Machine, Sugar Coating Machine, High Efficiency Coating Machine, which are wildly used in Pharmaceutical, Chemical, Food, and Scientific Research.  We won the trust and high praise from our customers due to our outstanding quality and perfect service.



"Quality best, Customers first" is our principle, "Honest and Innovation" is our goal, we wholeheartedly service for every customer from home and abroad with high-quality and efficient products and would like to cooperate with you to create a better future.







1. How about your quality?
(1) We have been specialized in pharmaceutical machines for more than 5 years. We are young but we  Professional
(2) We have strict quality inspection department to inspect 12 hours' working status of all machines before delivery so as to make sure of the quality.
(3) We have after-sale service system with quick response to solve clients' problems within 48 hours.

2, How about your after-sale service and warranty period?

(1) We provide overseas installation.

All fees including visa, transportation, accommodation will be afforded by buyer, and 80 USD per day installation fee should also be paid by buyer.

(2) Warranty period: 12 months after delivery

(3) We provide the replacement parts for free due to quality problems under proper operation within warranty period.

(4) After warranty period, we will charge the replacement parts at cost price.

(5) We provide lifetime technical support for all the machines.

3. What are your main markets?

After more than 5 years' development, our pharmaceutical machine have been exported to over 100 countries worldwide, such as Russia, Ukraine, Uzbekistan, America, India, Spain, Egypt, Poland, Indonesia, Thailand, Bangladesh, Estonia, Armenia, Belgium, etc.
