ECMT 100 PLC large output produce line Continuous Foaming Machine/latex foam machine
- Category: >>>
- Supplier: Dongguan Elitecore Trading Co. ltd
Share on (60277254727):
Product Overview
Description
mattress making machine
Parameters:
Max.Output Capacity: | 200~350kg/min(Continuous Type) |
Mixer Total Power: | 37kw |
Max.Mixing Speed: | 2500~6000r/min |
Foaming Type: | Trough & Sprayer |
Save Formular Q.T.Y.: |
13 Groups. |
Foaming Size: | W2300mm*H1300mm(Width Adjustable) |
Control System: | PLC Digital Touch Screen(Made In TaiWan) Or Electirc Control System. |
PPG Tank: | 6Ton*1Set. |
POP Tank: | 5Ton*1Set. |
TDI Tank: | 4Ton*1Set. |
MC Tank: | 2Ton*1Set. |
Silicone +Water Tanks: | 100L*2Sets(With Mixing System) |
T-9+Amine+Color +Caco3 Tanks: | 50L*4Sets |
Side Wall Size: | L16m*H1200mm |
Fallplate: | L8.5m*W0.98~2.4m(Adjustable) |
Foaming Platform: | L2000mm*W3000mm*H700mm |
Conveyor Line: | L16.9m |
Side/Bottom Paper Feed & Rewind System: | 2Sets. |
Walkway: | W500mm*L15m |
Air Valves | Euro Standard |
Chiller(Both Cooling & Heating System): |
1Set*1.5HP(Made In TaiWan) |
Side Film Lifting System: |
1Set. |
Foaming Density Range: |
8~70kg/Cubicmeter. |
Match With Block Cutter: | 1Set. |
Total Motor Power: | Approx 125kw. |
Machine N.W.: |
Approx 60Ton |
Floor Space Required: | L45m*W5m*H4.5m. |
Process: All the P.U. chemicals are first mixed together in a mixing chamber & then taken into a metal trough where the initial reaction takes place. The rising foam then passes from the top of the trough on to a variable width fall plate, which then leads the expanding foam block along a metal slat conveyor for further expansion.
Outputs: The machine is delivers a maximum of 350kg per minute.

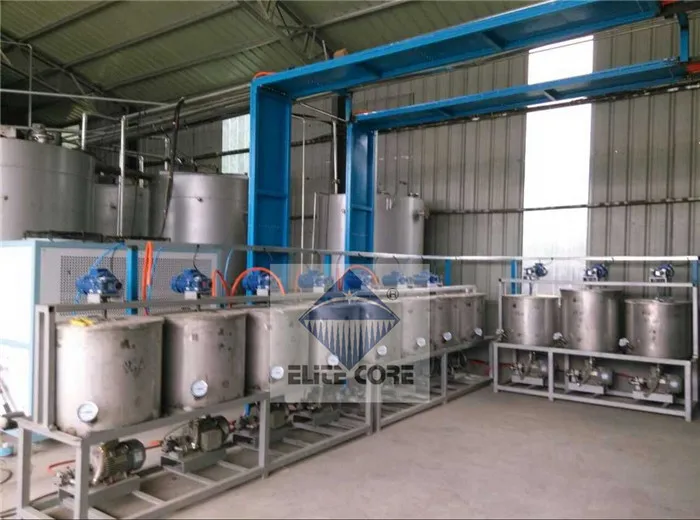

Metering System: There are seven metering systems in all. All metering system are equipped with world class AC motors, AC variable speed drives, Viking, U.S.A made internal gear pumps (for very low slippage), pressure gauges & Recirculation network to ensure high class quality product.

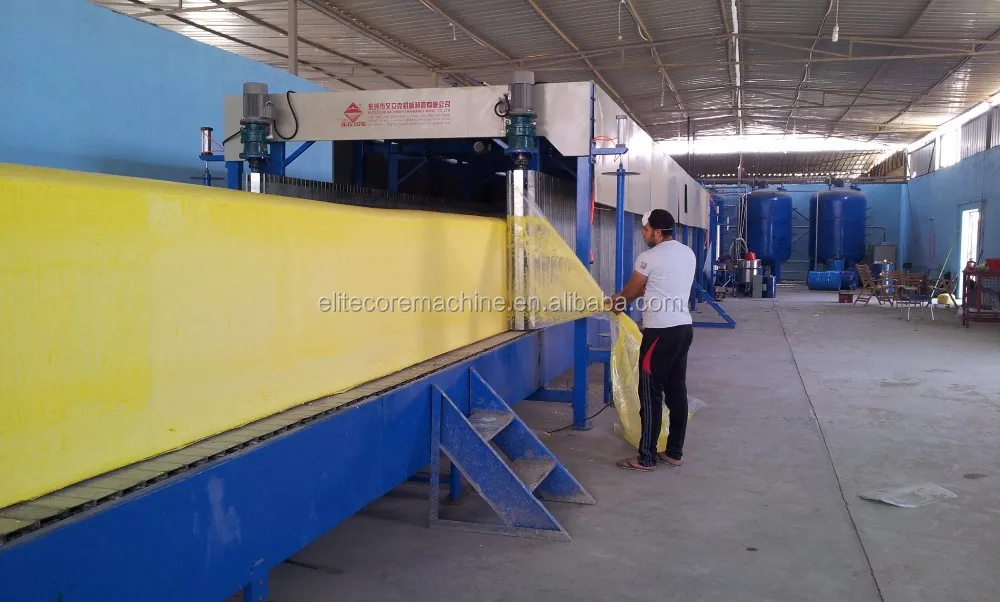

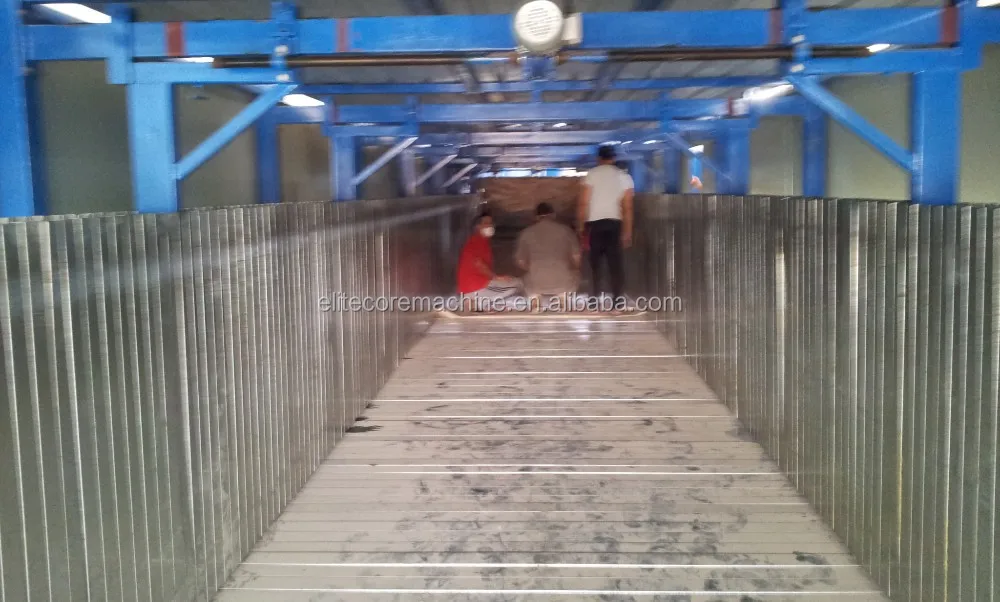

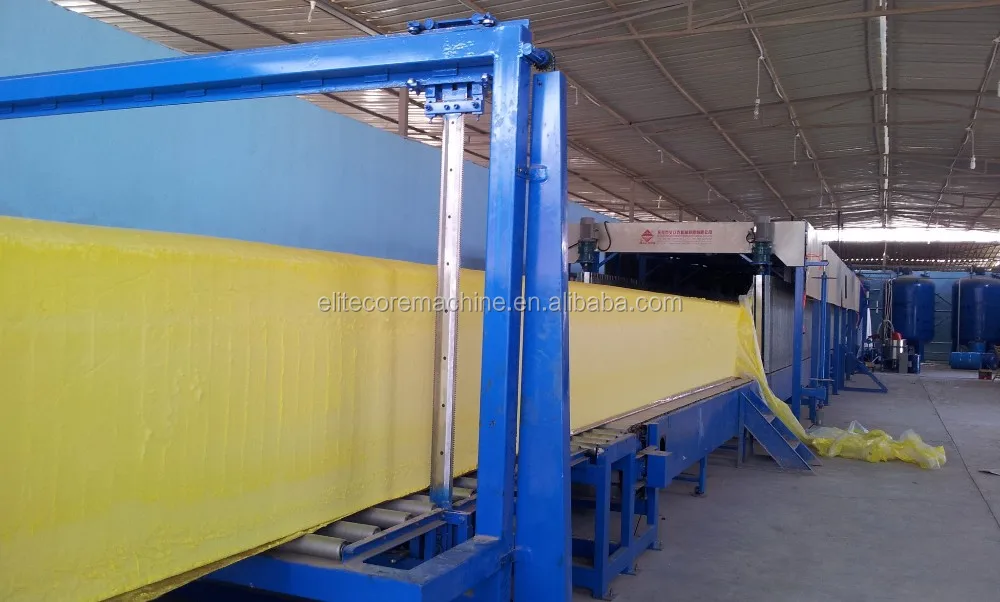

Foaming Tunnel & Conveyor: The tunnel construction forms a complete enclosure around the foam slab with top plates, side walls & conveyor slats. The conveyor motor is also equipped with AC speed drive. Side walls can be adjusted from 0.98m2.4 m. The length of the conveyor is 16.9 meters.

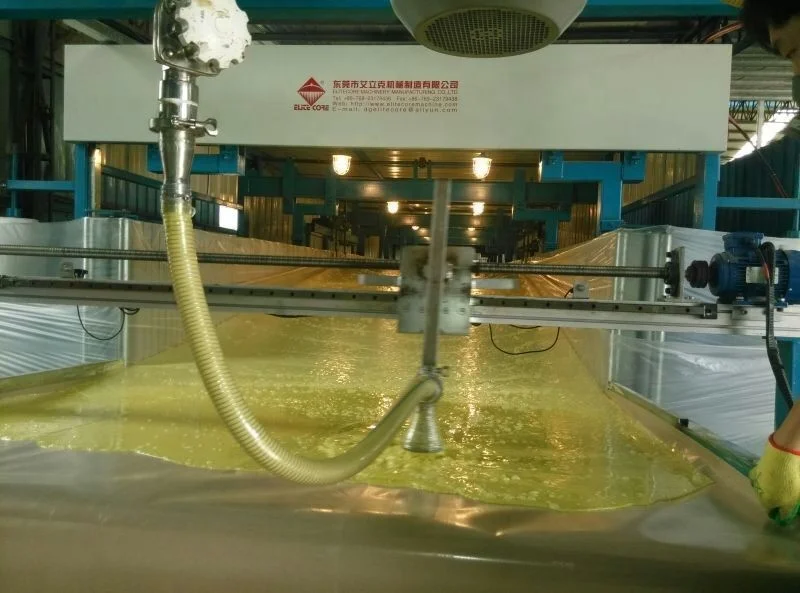

Trough & Fall Plate: The Trough & fall plate section can be adjusted height wise at various levels to ensure more flattop blocks & is equipped with required motors & gearboxes.
Paper Feed & Rewind : This is a 2-paper system. The bottom paper feed reel is mounted in front of the foaming platform & is equipped with unwinding motor for automatic operation. Rewinding of the side papers is at the other end of the tunnel & the rewinding speed is self adjustable to synchronize with the conveyor speed.
Control Panels: This is attached at a convenient position on the foaming platform, It is equipped with necessary electronics, flow meters, pressure gauges & AC variable speed drives.
Foam Cutting Machine,Foam Cutting Machines,Foam Cutting Machinery.Pu Foam Cutting Machines,Foaming Machine,Foaming Machines,Polyurethane Foam Cutting Machine,Polyurethane Making Machine,Sponge Cutting Machine,Sponge Foaming Machines.Foam,Sponge.CNC Foam Contour Cutting Machinery,CNC Sponge Cutting Machines.CNC Foam Contour Cutting Machine.
Application :
Foam industry ;sponge industry ;furniture industry ;sofe factory ;furniture factory.shoes factory .

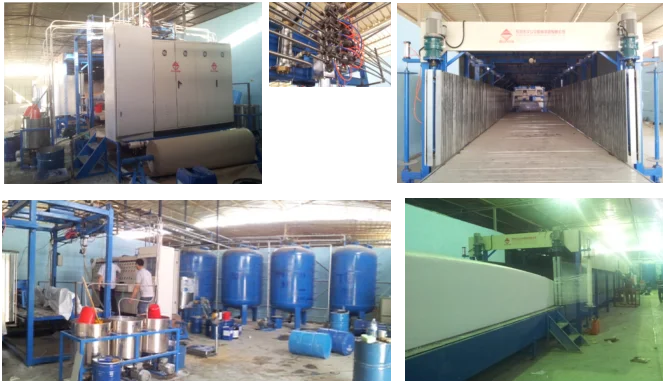

Images :
Packaging & Shipping
Package: Wooden Box & Hard Paper Film Packing
Shiping: by sea & by air &by express(DHL,UPS,EMS,Fedex etc)
Our Services
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced employers to answer all your questions
3. Protection of your sales area, ideas of design and all your private information.
Company Information
EliteCore Machinery Manufacturing Co.Ltd is one of professimal manufacturers with design,manufacture and sales polyurathane foam machinery. Our products are exported to more than one hundred countries such as: America ,Europe and Southeast Asia, especially we sold dozens of Fully Automatic Continuous Foaming Machine to Romania, Argentina, Croatia, UAE, Jordan,Nigeria,Turkey,Egypt,Zambia,Dubai,Greece,Saudi Arabia, Brazil, Uzbekistan,
India, Korea, South Africa etc !
Our Mission is to Deliver the Right Product at the Right Price at the Right Time,With Our Genuinely Service to Get Your Money’s Worth.
Customers:
Exhibition :
other products:

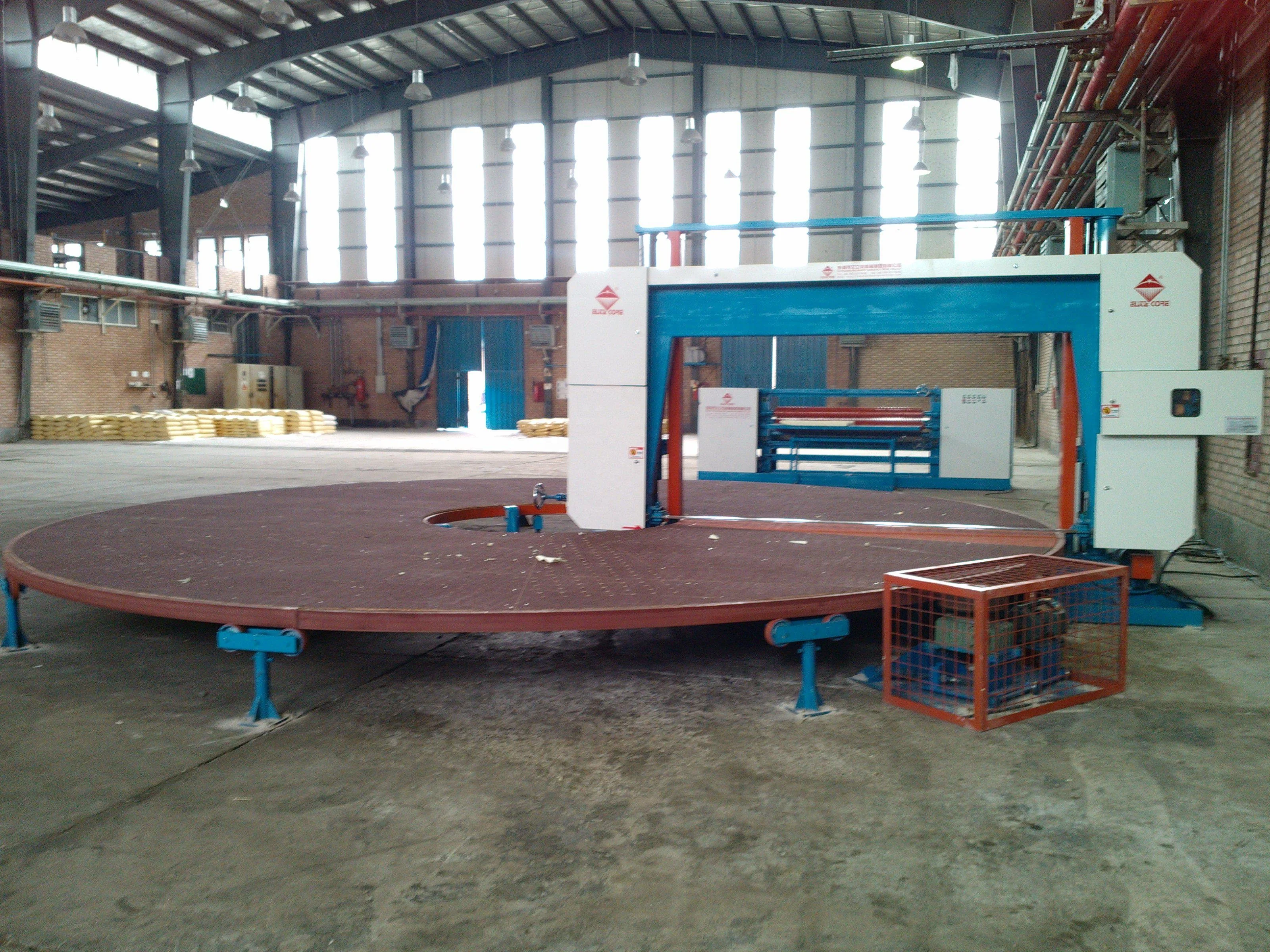

Automatic Circular Foam Cutting Machine :

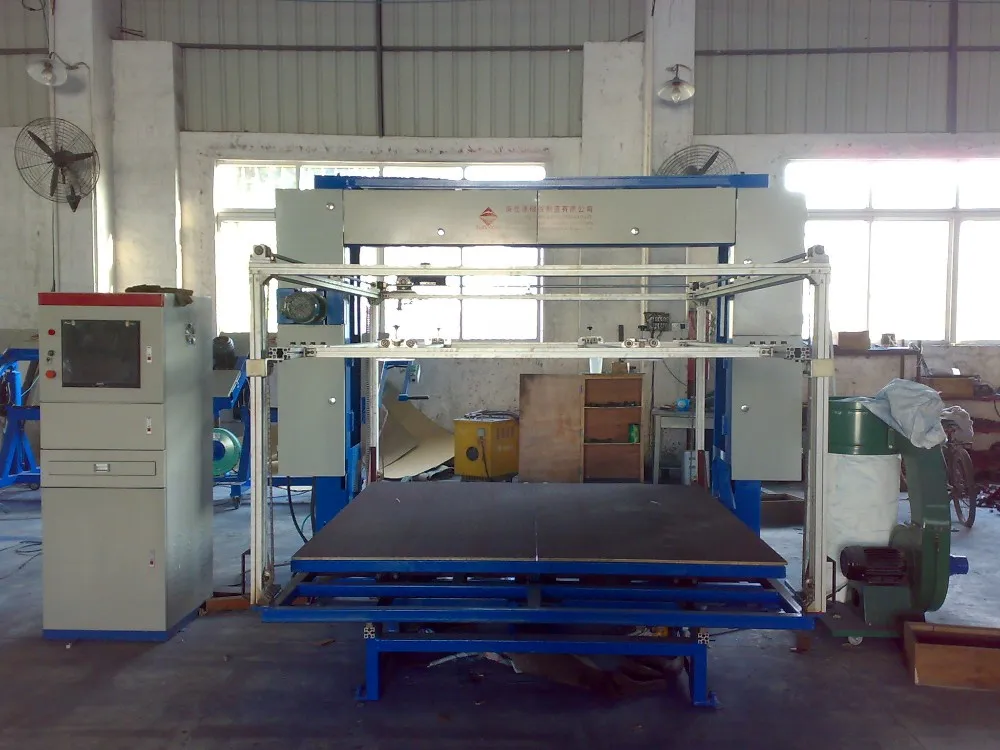

CNC Contour Cutting Machine(Wire Type):
FAQ
Q: Does your machine have CE certification?
A: Yes,our machine with CE certification.
Q: How about payment terms?
A: 30% TT deposit + 70% TT before shipment,50% TT deposit + 50% LC balance, Flexible payment can be
negotiated.
Q: Do you offer turn-key solutions?
A: Yes, we provide consultancy service and turn-key solutions.
Q: Installation and commissioning?
A: We will send our engineer for installation and commissioning, but relevant cost will be paid by you.
Q: Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
