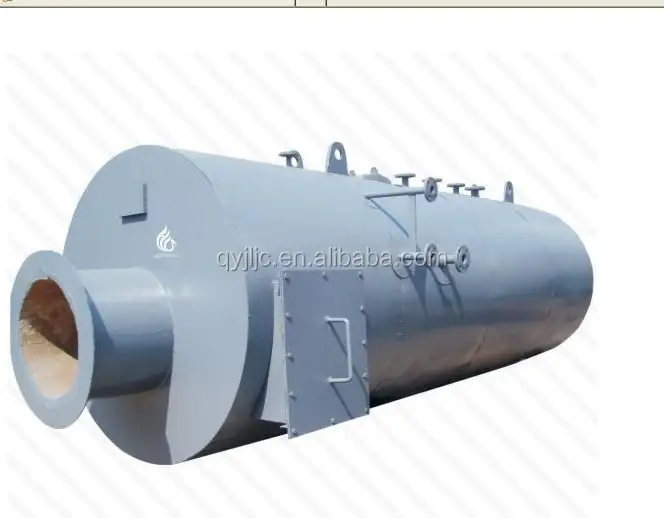

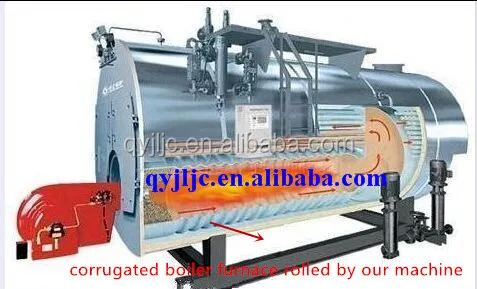

thermal oil boiler making machine, furnace for petrochemical industry

Product Overview

Description

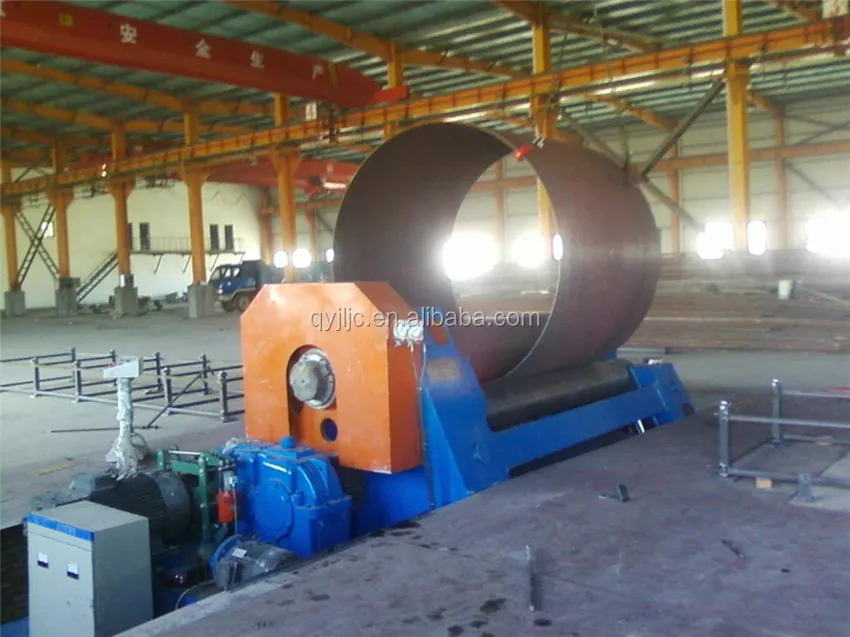

Plate rolling machine with 4 roll- W12NC serial
Model&spec.	Max.   rolling width (mm)	Max.   rolling thickness (mm)	Pre-rolling   thickness (mm)	Rolling   speed (m/min)	Min. rolling diameter of full loading (mm)	Yield   limit of plate (MPa)	Top   roll diameter (mm)	Lower   roll diameter (mm)	Side   roll diameter (mm)	Main   electric motor (kw)
W12NC-12×2000	2000	12	8	4.5	600	245	240	220	180	22
W12NC-12×4000	4000	12	8	4.5	800	245	380	340	280	22
W12NC-20×2500	2500	20	16	4.5	800	245	380	340	280	30
W12NC-25×2500	2500	25	20	4.5	800	245	430	380	320	30
W12NC-40×2500	2500	40	32	4.5	1200	245	550	530	380	37
W12NC-40×3200	3200	40	32	4.5	1200	245	650	580	480	45
W12NC-50×2500	2500	50	42	4.5	1600	245	580	520	400	45
W12NC-50×3200	3200	50	42	4	1800	245	680	650	520	45
W12NC-60×2500	2500	60	50	4	1800	245	640	600	480	75
W12NC-60×3200	3200	60	50	3.5	2000	245	700	680	550	75
W12NC-70×3000	3000	70	60	3.5	2000	245	750	720	600	125
W12NC-80×3200	3200	80	70	3	2200	245	800	780	620	132
W12NC-90×4000	4000	90	80	3	2500	245	900	880	700	180









2. The main characteristics of the  thermal oil boiler making machine

2.01. This thermal oil boiler making machine are controlled by microcomputer, which could complete plate end pre-bending and bending to cylinder once load the metal plate on machine, do not need u-turn plate.
2.02. The four working rollers of thermal oil boiler making machine  adopt steel 42CrMo, after forging, quenching and tempering, hardness is HB240~280, have advantages of good mechanical properties, high strength, strong wear resistance, suitable for high load operation, long service life.
2.03. The working roller bearing of thermal oil boiler making machine adopts rolling bearing, small friction coefficient, reducing the loss of reactive power, saving energy.



2.04. Lower roller and side rollers up and down were driven by hydraulic transmission, lifting displacement is controlled by computer, automatic leveling, screen digital display, and the synchronization accuracy is ± 0.1mm. Rolling is high precision, convenient operation.



2.05. Upper roller rotation is installed encoder; operator can identify roller rotary position, to find the seam of pipe.



2.06. The plate rolling machine is provided with a movable operation panel, more convenient for operation personnel, touch screen displays the three rollers position, and enables the operator to stick out a mile.



2.07. Electrical control system applies smart high-speed PLC programmable controller from Japan OMRON company, which has protection function of man-machine dialogue, fault self-diagnosis, fault operation smart identification, machine parts monitoring, logic processing, power off memory, etc; the system has advantages of strong anti-interference capability, long service life, anti-seismic, running stable,etc.



208. Sensor of the machine, lower and side rollers lifting displacement transducer adopt with high precision sensor, to ensure the position precision and realize the roller position monitoring.



 3.More products to choose









8. How to order our Product



1.Customers offer the bending materials’ type and parameters of machine.



2.Our designers will make accurate calculation and professional design according to your information.



3.After your confimation, we will do quote of our machine.



4.Note: you can have your own idea about machines’ color, so different colors are avaliable.





9.Why choose us?

Advantages we have:

1.experienced rolling and bending machine supplier.

2.Professional design team and sales department for your service.

3.Alibaba golden supplier, factory recognized by CE.

4.7/24 service for you, all question will be dealed within 24 hours.

Benefits you get:

1.stable quality---coming from good materials and technic.

2.Lower price---not cheapest but the lowest at the same quality.

3.Good service---satisfactory service before and after sale.

4.Delivery time---30-40 days for mass production.



Trade   Items of Product
MOQ	1   set
Package	According   to clients' demand
Delivery   Terms	FOB,   CIF
Delivery   Time	30   days after confirmation
Payment   Type	T/T,   L/C, Western Union
Supply   Ability	20   sets/Month
Ports	Qingdao, Lianyungang, Tianjin







Our company is the largest plate rolling machine manufacturer in China central plain area, have 10 years of production history. At present our company biggest capacity of plate rolling machine is W11NC-120*3000. Our product have worked for many big enterprises, like National no.9 metallurgical group company,



China Third Metallurgical Group Co.,ltd,



The.21st metallurgical construction co.,ltd,



Shaanxi Petrochemical Industry Construction Co.Ltd.



Sinohydro Engineering Bureau 3 Co., Ltd,



Sinohydro Bureau 8 Co.,Ltd,



Asia’s largest plate bending machine W11XNC-280*3200(Lanzhou Petrochemical is using it) and four rollers plate bending machine W12NC-250*3500 (Qilu Petrochemical is using it) were designed by our Chief engineer Mr.Zhao changjiang. Excellent product quality and best after-sales service won high reputation of our customer, welcome to visit our factory.
