Product Overview

Description

 2017 high quality  galvanized iron steel and sheet in coil



EI Lamination is made by the silicon steel strip.The model of EI lamination in standard sizes is from EI 28 to EI -240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360. the gap sizes of transformer lamination core can be customized.



Three -phase EI lamination is made by the silicon steel strip. the model of three-phase EI lamination is from three-phase (20) to three phase (100),and the hole size is from Φ4.5 to  Φ14, The gap sizes of transformer lamination core can be customized.

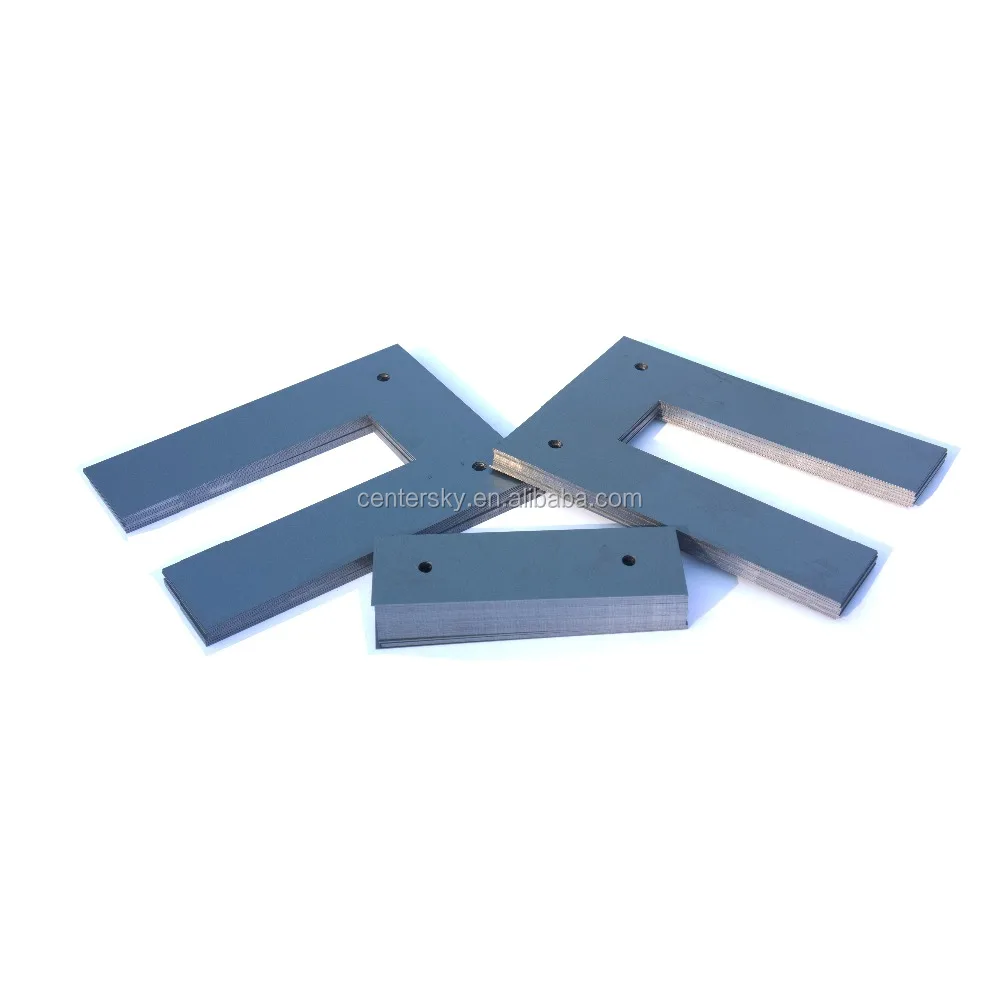

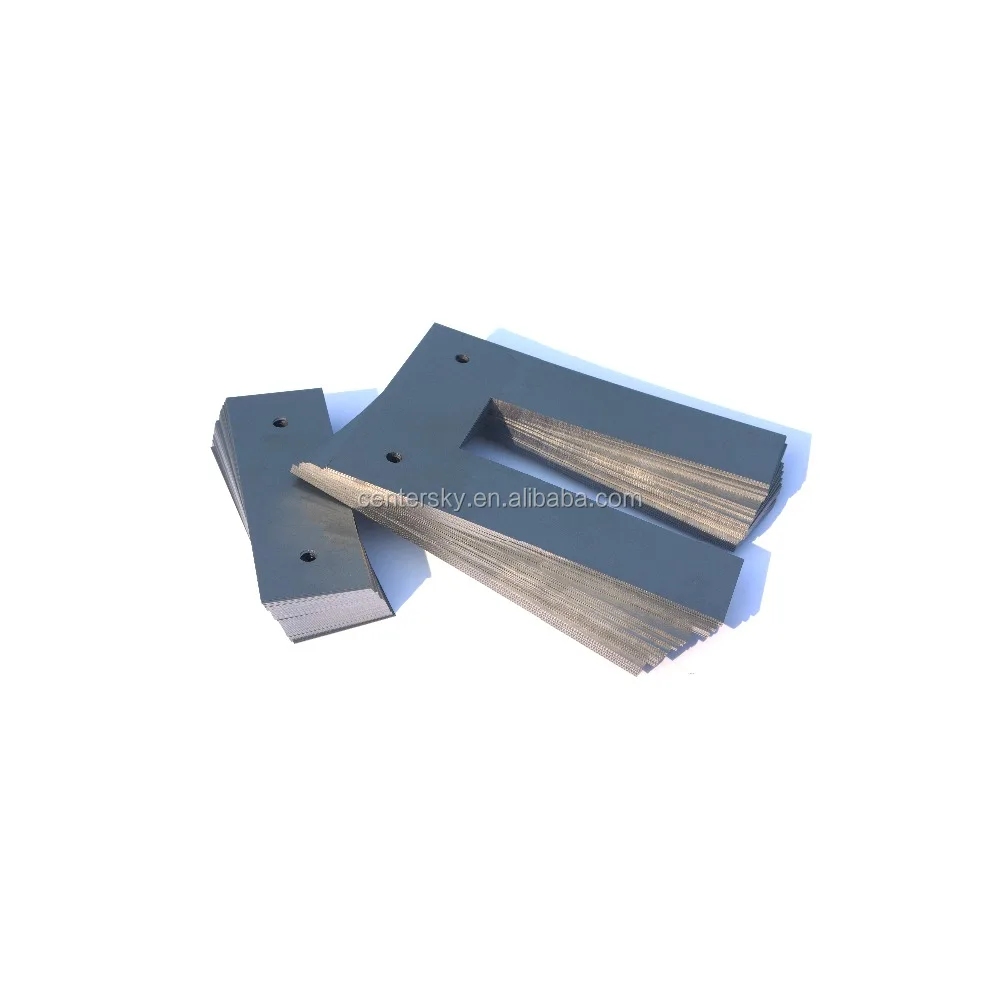

UI lamination is made by the silicon steel strip.the model of UI lamination is from UI-30 to UI-100,and the hole size is from Φ 8 to  Φ 14. the gap sizes of transformer lamination core can be customized.







Production Flow Chart of Jiangyin silicon steel transformer laminations :







Specification of Jiangyin silicon steel transformer laminations :





Type	a	b	c	d	e	holes	aperture(Φ)
UI20	60	20	20		60	4	6
UI22	66	22	22		66	4	6
UI25	75	25	25		75	4	6
UI27	81	27	27		81	4	6
UI28	84	28	28		84	4	8
UI30	90	30	30		90	4	8
UI32	96	32	32		96	4	8
UI35	105	35	35		105	4	8
UI38	114	38	38		114	4	8
UI40	120	40	40		120	4	10
UI44	132	44	44		132	4	10
UI45	135	45	45		135	4	10
UI50	150	50	50		150	4	10
UI60	180	60	60		180	4	10
UI80	240	80	80		240	4	14
UI90	270	90	90		270	4	14
UI100	300	100	100		300	4	16

































Application of Jiangyin silicon steel transformer laminations :







Certificates of Jiangyin silicon steel transformer laminations :









Quality control & Test instruments of Jiangyin silicon steel transformer laminations :







Production Line of Jiangyin silicon steel transformer laminations :









 1,Where are  your company main markets?
   We have a strong expoter markets Middle East,Southeast Asia,Africa and South America,etc.

2,How about the quality of products in your company?
      We have  high and best quality  products and our products get some good feedbacks from clients over the world. Once you got our peoducts with some questions under guartanee, we will provide helps at first time. at the usual time we keep our records about products complaints as low as 1% .

3,Are you a manufacturer?
      Yes ,we are a manufacturer,not agent. We have own factory,which is located Jiangyin,CHINA. We have a leading power in producing and exporting galvanized steel pipe etc.I promise that we are what you are looking for.and Welcome you to contact us!
