Product Overview

Description



Why Choose US ?









1. With more than 21 years' experience in manufacture, the quality of our products is always reliable.





2. Our products have been exported to many countries , enjoy a good reputation and wide popularity.





3. Every business is very vital to us, and we focus on providing our customers with best service.





4. Professional and energetic technical and sales team, aiming at providing a full suit of serices.








5. Advanced equipments, and a good , safe production environment.

















Product Description




This water pump float switch is widely used to control the liquid level. Our float switch quality is stable, safe, and pass CE approval.Flaot Switch's operation voltage is 220vac, and current can be up to 15A. Applies to branch water,sewage,aid-base solution and oil.
















1.Simple construction,reliable performance  of  magnetic electric water flow level controller float switch


The product can output stable and reliable switch control signal of "of making", breaking "without any fault action,so its eliability is very high and antiinter-ference is strong .


2. Sturdy and durable,need not maintain of electric water /liquid level switch/water pump float switch


The product can be used for a long time after it being installed.Almostno maintence and repairing problem would occur during its operation period.


3. Easy installation method,convenient adjustment method


The liquid level control scope can be adjusted at will with the locating piece moving up and down .Only one screw is needed to secure the signal cable finish installation.


4. Wide application scope,strong generality


The product applies to branch water,sewage acid-base solution of less than medium concentration,oils and situations requiring no pollution(for example food and drinks indusry),diesel oil gasification kitchen range,and automatic fuel feeding.


5. Simple circuit.economial and practical


Operation voltage is 200V,and current can be up to 10A.The applied circuit of the product is simple,so application costis very low .


6. Instructions for installation


May be used for direct level control.In accordance with product electrical specifications.In the case of approved products,the ground wire will always be included and the ground wire sheath will always be yellow/green.In this case ,this two remaining wires are suppied for "high closure"or,specifitic request,"low closure".


7. Installation of counterwelght


Use wires:"Black" and "Blue" with these contacts, the regulator closes when down/opens when up.The wire that is not used must be correctly insulated.


 Features of  cable float switch/water pump, tank  float switch


1.Insert the cable in the counterweight.From the conical part and rotate it .Thus causing the plastic ring inserted in the opening to become detached (if necessary this operation can be facilitated with the use of a screwdriver).The ring should then be positioned in the point where it is desired to book the counterweight.


2.Force the counterweight on the ring by rotating it,using a slight pressure.


.


THE COUNTER WEIGHT IS FURNISHED ONLY ON REQUEST.AVOID JOINTS IN THE LEVEL REGULATOR CABLE.NEVER IMMERGE POSSIBLE CABLE JOINTS IN THE WATER.





Technical Parameters of  magnetic electric water flow level controller float switch



  1. Microswitch: 10(8)A 250V~10(4)A 380V

  2. Switch currency:   +++ ≥50 000switch workings tested by VDE specialisation

  3. Protective connection:  T 70U

  4. Protection:  waterproof

  5. Max.temperature:   70°C

  6. Working pressure:   max.1bar

  7. Circuitbreaking capacity: Directly KW with 250V

  8. Standard Cable Length: 5m ~ 100mm  or Accorrding to customer’s request

  9. Float: Polypropylene

  10. Cable:polypropylene Jacket

  11. Counter Weight: Polypropylene Sealed Housing

  12. Cable Material: HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2)


     magnetic electric water flow level controller float switch




 Float Switch/Water Level Regulator/ Liquid Switch






  Liquid level switch /water pump float switch








 Float Switch/Water Level Regulator/ Liquid Switch












 Float Switch/Water Level Regulator/ Liquid Switch









 Float Switch/Water Level Regulator/ Liquid Switch

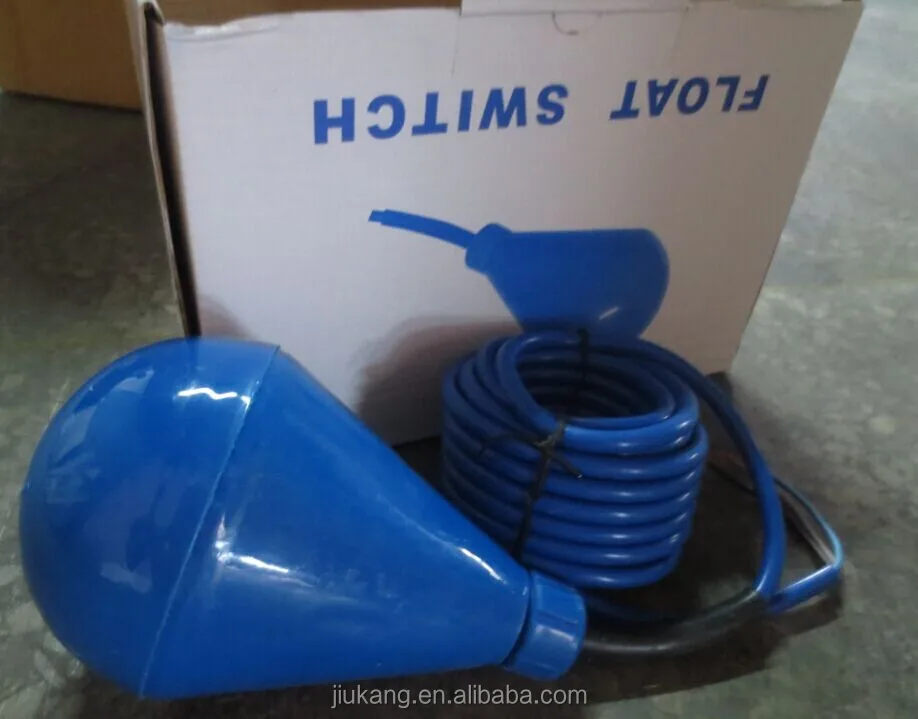

Packaging


Every product is well packed to ensure the safety !









float switch 2.JPG


float switch.JPG








Company Profile


Established in 1993, Zhejiang Jiukang Electric Co.,Ltd now occupied factory area 168000sq.m. Main products cover CBB60 series  Motor Running capacitor, CBB61 fan capacitor , CBB65 Air conditioner capacitor , Cd60 motor start capacitor, AC contactors , AC controller,  Float Switch , TBB series Power Factor Correction unit etc.  Our company has already passed the ISO9001 Quality Management System Certification, ISO 14000 Environment Management System etc.
