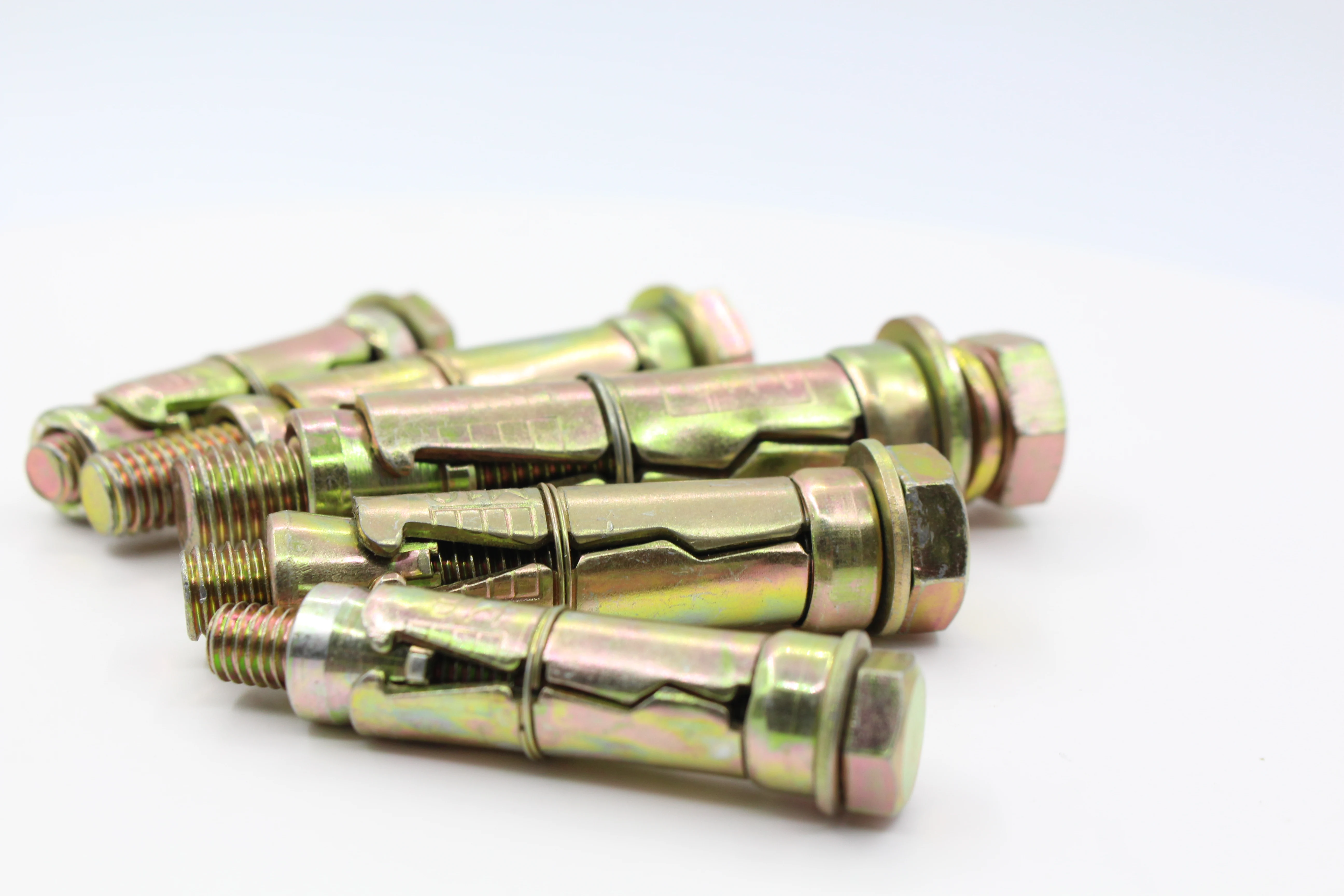

Крепежные 12 мм 3 шт. Роул Тип Якорь
- Category: >>>
- Supplier: Cixi Jingeng Fastener Co. Ltd.
Share on (60278395459):
Product Overview
Description

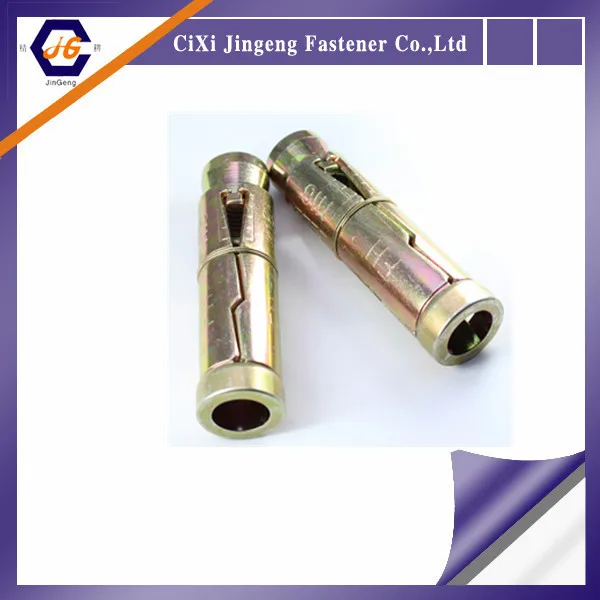

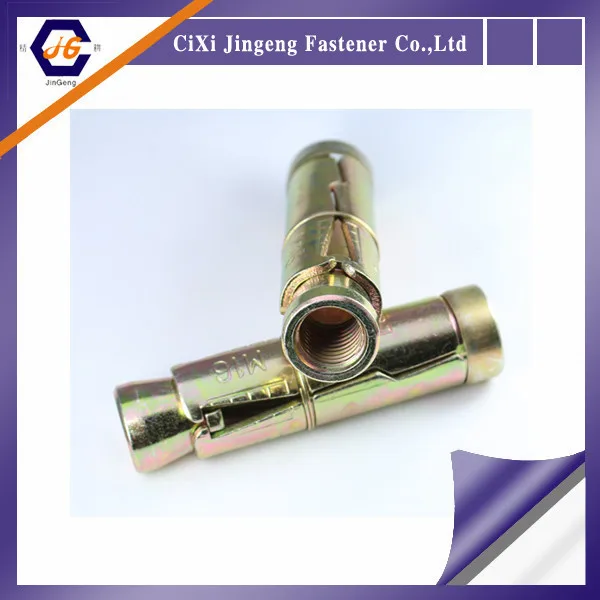

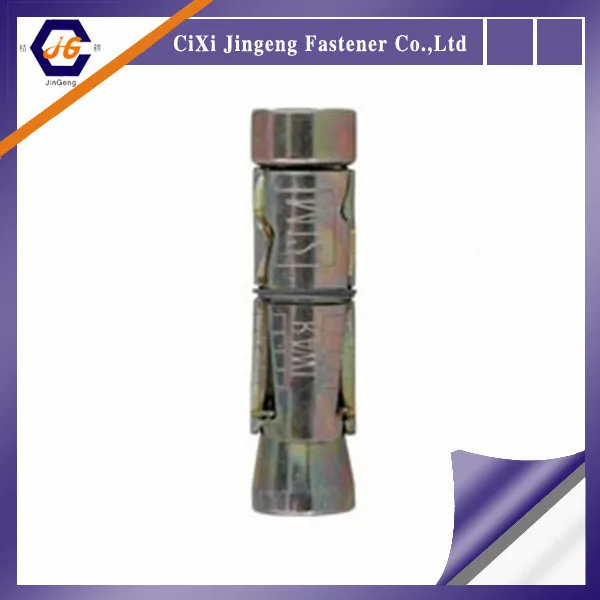

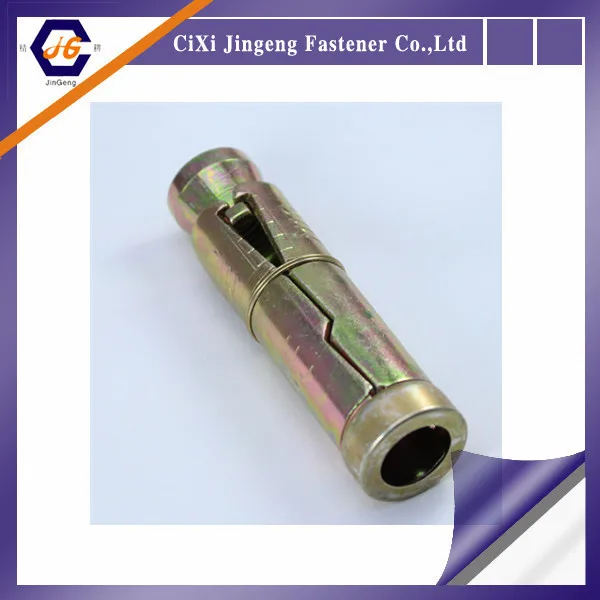

3pc shield anchor
Heavy Duty Shield Anchors
Heavy duty shield anchor 4 pcs / 3 pcs / 2 pcs shells used to dirt & moisture is appreciated.
High retaining power & can be removed easily.
When tightening the nut or screw the conical section is pulled into the anchor shells expanding it & wedging it inside the anchor base.
Product Description
1. Product name: 1pc heavy duty shield anchors, 1pc shield anchor
2. Material: carbon steel, stainless steel
3. Finish treatment: white zinc plated, yellow zinc plated.
4. Size: M6—M20
Application
Heavy-duty anchor is for pre-positioned installation and push-through installation. When the bolt or hexagon nut is tightened, the cone is pulled into the expansion sleeve and expands it against the whole wall. Special tamper-proof fixing as protection against theft.
Available with Body, Open Eye Hook, Thread Rod, Closed Eye Hook
Technical data
SIZE | Drill[mm] | Min. drill hole depth for pre-fixing [mm] | Anchor length [mm] | Thread [mm] |
M 6 | 10 | 65 | 49 | M 6 |
M 8 | 12 | 70 | 56 | M 8 |
M 10 | 15 | 90 | 69 | M 10 |
M 12 | 18 | 105 | 86 | M 12 |
Installation
1.Drill
2. Clean the hole
3. Anchor objects aligned holes, insert the anchor bolt
4. Rotating the nut clockwise
5. Do not stop until you cannot turn screw any more
Packaging & Shipping
White box (neutral packing) ---Craft paper carton---Free fumigation wood pallet or plywood pallet. We could also make packing as customer’s requirement.
Our Services
Our service purpose is” To gain your trust and support with our sincerity and excellent service, thus achieve mutual benefits and win-win business relations.
1. 24-hour Trademanager on line.
2. Professional and Patient introduction on products.
3. Quotation in time
4. fast and reliable delivery
5. sound after-service system
Company Information
Cixi JinGeng Fastener Co.,LTD. is located in Cixi city, zhejiang province, china. Being in the shore of the East China sea and the South of Hangzhou Bay Sea-spanning Bridge, this beautiful and affluent place is becoming the new hotbed for investment among China's Yangtze River Delta regions with its developed economy.
Cixi Jingeng Fastener Co.,LTD. is a private enterprise engaging in all kinds of fasteners--- expansion series fasteners, bolts, nuts and sorts of non-standard parts. We manage expansion series products including drop in anchors, wedge anchors, sleeve anchors, hollow wall anchors, and metal frame anchors,etc. Nuts like hexagonal nuts, hexagonal long nuts, flange nuts,cap nuts,nylon lock nuts...are still within our range. We also sell various bolts, such as hexagonal nuts, carriage bolts, flange bolts and so on. All these products are made in accordance with such standards as DIN,JIS,ANSI, ISO,BS,GB, avaliable with material from carbon steel, stainless steel, alloy steel to brass. At the same time, we could make a variety of non-standard parts based on customers’ drawings.
