800cc Buggy engine (Direct factory)

Share on:

Price:RUB 159,859.44
Price in USD:Details


Product Overview

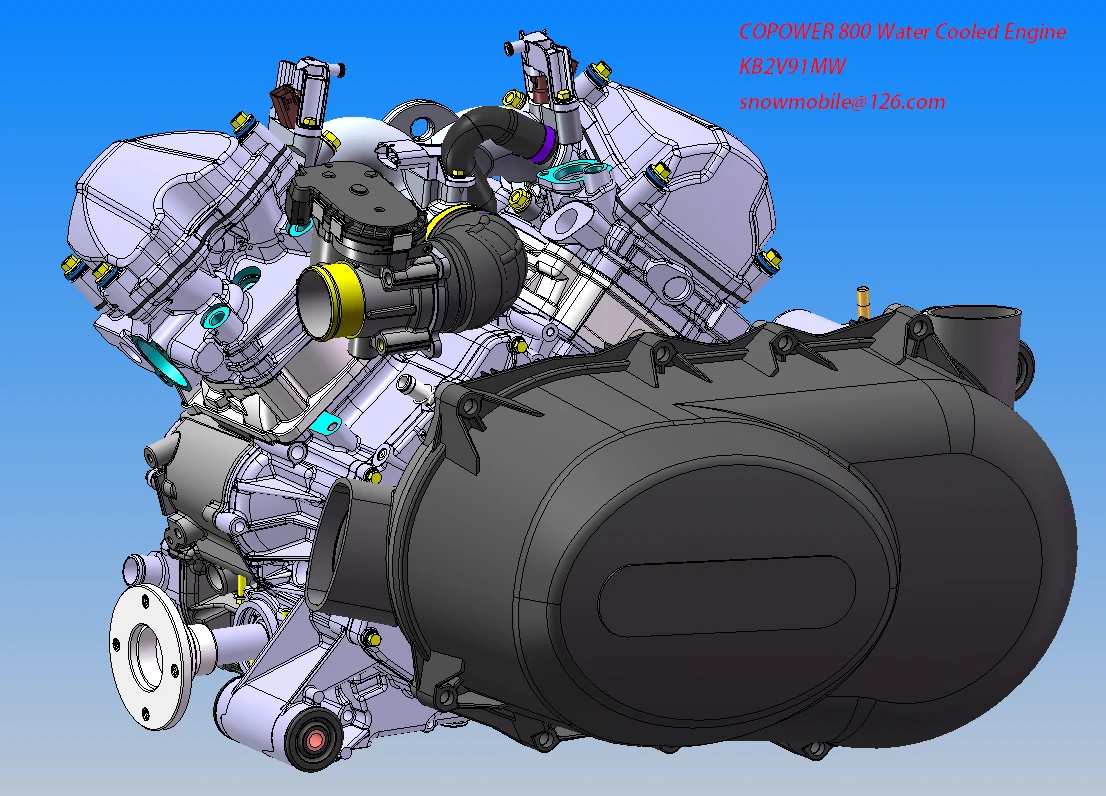

KB2V91-800CC ATV Engine 4X4 Water-cooled,EFI,CVT+ H-L-N-R-P (Direct factory).jpg

 KB2V91MW 800CC Engine:

gasoline engine, With Four stroke, V-shaped double cylinder 8 tire valve, Top mounted camshaft, Water-cooled engine. The machine has compact structure, smooth operation, reliable work, large torque, environmental protection and other advantages, AS the ideal power of snowmobile, ATV, UTV, Buggy,KARTING & motorboat etc.









1.Model name: KB2V91MW
2.Engine type:
4 stroke, 8 valve, EFI, 2V cylinder,Gas  Engine

3.Displacement: 799ml
4.Bore×stroke: 91×61.5mm
5.Compression ratio: 10.3:1
IDI (Inductive Discharge Ignition)

7.Fuel supply type: EFI

8.Cooling system: Liquid-cooled
9.Starting system: Electric
10.Max torque and rotate speed: 70N.m@5000r/min
11.Rated power and rotate speed: 42kw@6500r/min


 COPOWER 1000CVT.jpg


1 speed range: 2.7 ~ 0.73

2 dimensions: 557 x 268 x 230mm

3 net weight: About 10kg

 COPOWER 800 GearBox.jpg


1 transmission type: gear drive
2 high speed file transmission ratio (H): 2.886
3 low speed file transmission ratio (L): 5.292
4 reverse gear ratio (reverse): 5.451
5 other stalls: free parking stalls (N) (P)
6 dimensions: 349 x 310 x 304mm
7 net weight: About 15kg
