HF 2N~500KN Digital Hand Push Pull Force Gauge Calibration

Product Overview

Description

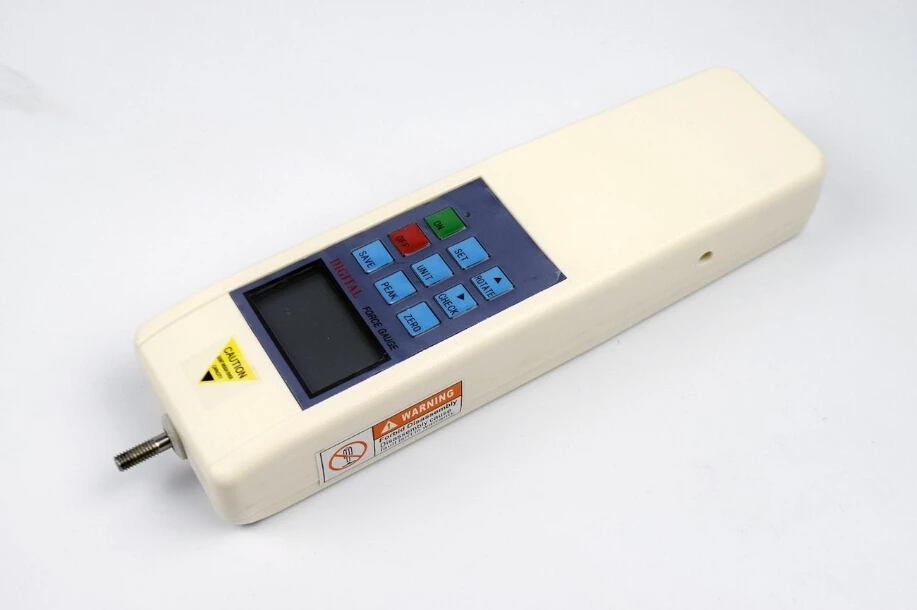

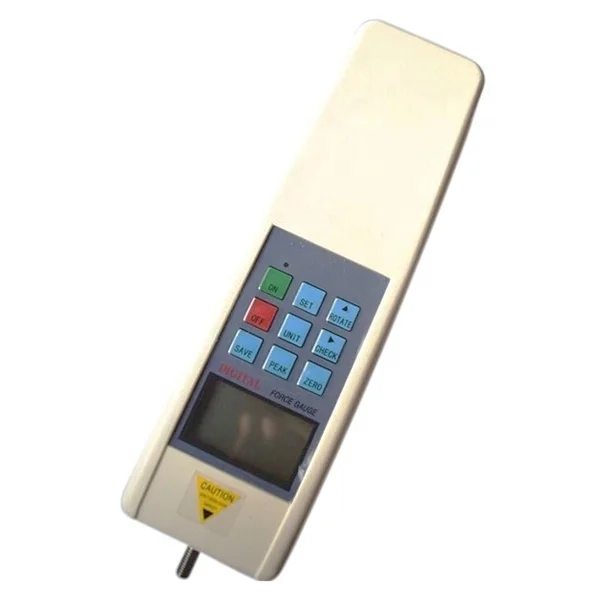

Digital  Push Pull Force Gauge



HF series digital force gauge is a small portable meter.parts, lighter, architecture and industries etc.



Feature:

·High precision and high resolution



·Five testing mode, three display methods



·Kg,Lb,N three measure units are available



·Acceleration of gravity function



·Keeping the peak figure till all data were deleted.



·Can auto-keeping the peak figure in 2 seconds



·Can analyse peak/minimum values, the buzzer will alert when the value is exceed.



·Can store 128 testing values.


·Output data to the computer by the data wire. Then analyses data.


·Can auto turn off after 10 minutes in case of no testing.



·Resistant voltage: 100V~240V. Protection functions of short circuit, leakage, overload.



·2set install size for customer installs instrument to the shelf.

·Six digitals in screen.


Parameters:

Type	HF-2	HF-5	HF-10	HF-20	HF-50	HF-100	HF-200	HF-500	HF-1000
Max. Load N kg lb	2	5	10	20	50	100	200	500	1000
	0.2	0.5	1	2	5	10	20	50	100
	0.44	1.1	2.2	4.4	11	22	44	110	220
Load Scale N kg lb	0.001	0.001	0.01	0.01	0.01	0.1	0.1	0.1	1
	0.0001	0.0001	0.001	0.001	0.001	0.01	0.01	0.01	0.1
	0.0001	0.0001	0.001	0.001	0.001	0.01	0.01	0.01	0.1



Type	HF-2000	HF-5000	HF-10k	HF-20k	HF-50k	HF-100k	HF-200k	HF-500k
Max. Load N	2K	5K	10K	20K	50K	100K	200K	500K
Load Scale N kg lb	1N	1N	0.01KN	0.01KN	0.01KN	0.1KN	0.1KN	0.1KN
	0.1kg	0.1 kg	0.001Mg	0.001Mg	0.001Mg	0.01Mg	0.01Mg	0.01Mg
	0.1 lb	0.1 lb	0.001 lb	0.001 lb	0.001 lb	0.01 lb	0.01 lb	0.01 lb
Sensor	Type S High precision sensor
Size	230 × 66 × 36mm





Applications:

It is mainly used for testing tension, pressure, plug power, breaking force, crack force, bending force, pull force, tensile strength, peel off force, elongation force, hardness, switch contacts, etc.
