Product Overview

Description

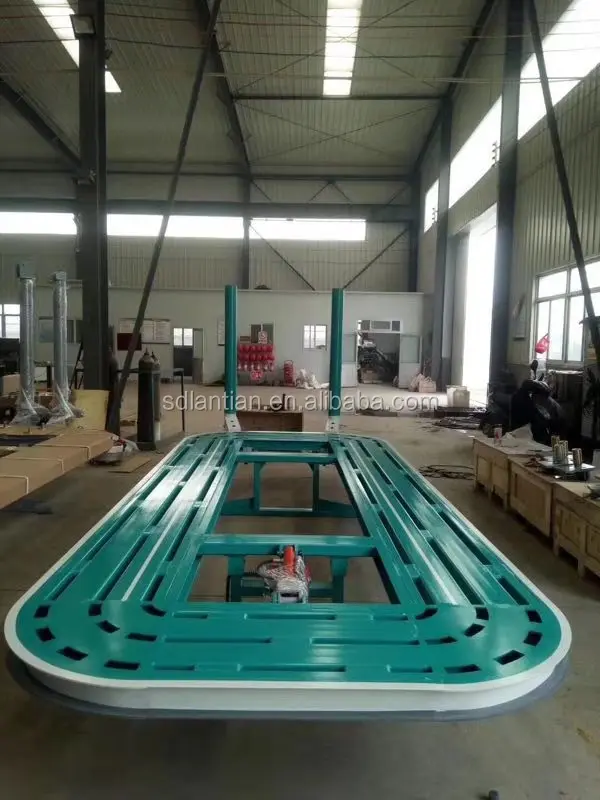

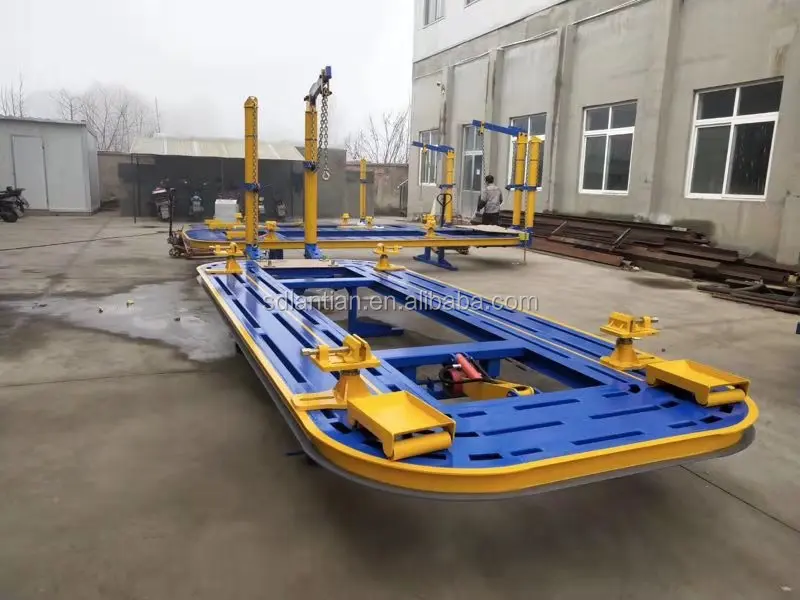

 FM2000 Frame machine

_20190909091153

Parameters

FM2000  (Slope steel tube)

A

B

C

Working platform length

17'/5.2m

18'/5.5m

19'/5.8m

Working platform width

7'/2.1m

7'/2.1m

7'/2.1m

Working platform height

22"/560 mm

22"/560 mm

22"/560 mm

Max working pressure of hydraulic

70MPa(10000psi)

70MPa(10000psi)

70MPa(10000psi)

Max lifting force of tower cylinder

95KN

95KN

95KN

Pulling range of the tower

360°

360°

360°

The pressure of the air source

0.8MPa

0.8MPa

0.8MPa

Max lifting weight

3500kg

3500kg

3500kg

Equipment gross weight

2100kg

2200kg

2300kg





 Features:

No notice for changed physical object and parameters,etc.

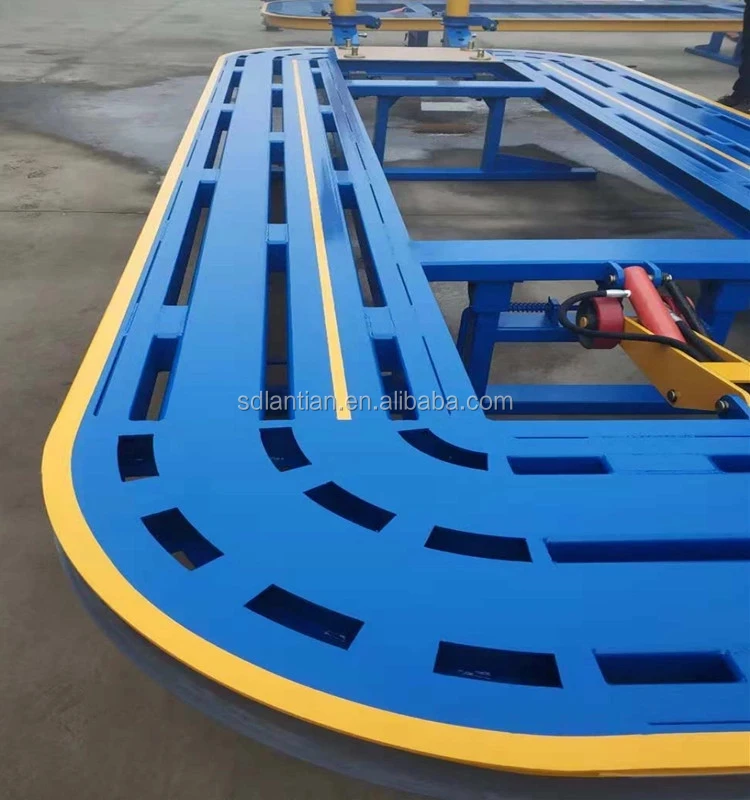

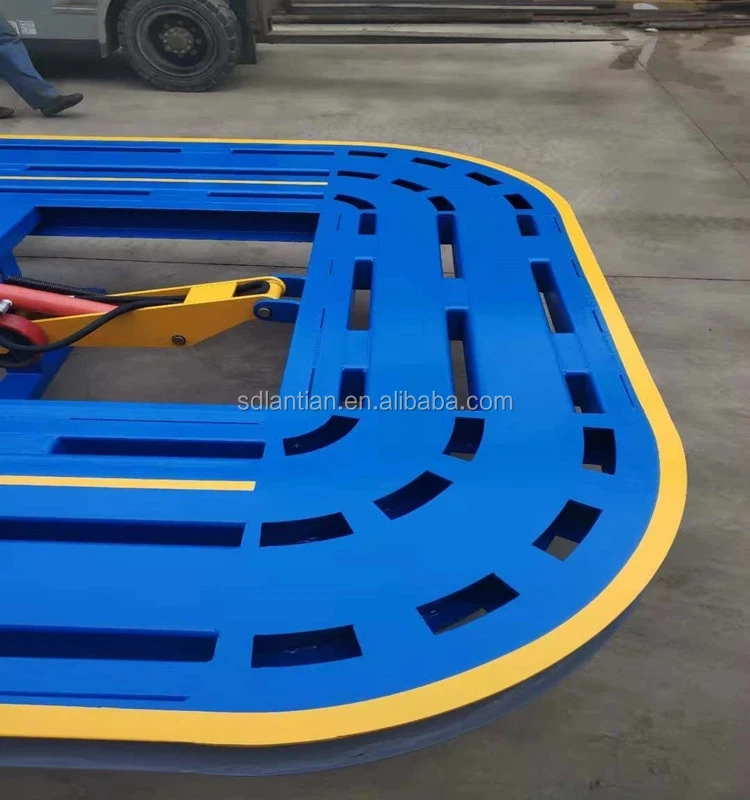

1. The platform is with high strength and good quality since it is spliced with rectangular steel tube and

high quality steel plate through carbon dioxide welding, and all materials are national standard products.

2. All parts are treated with shot blasting to eliminate welding stress and increase surface strength, which

 improves the painting adhesion.

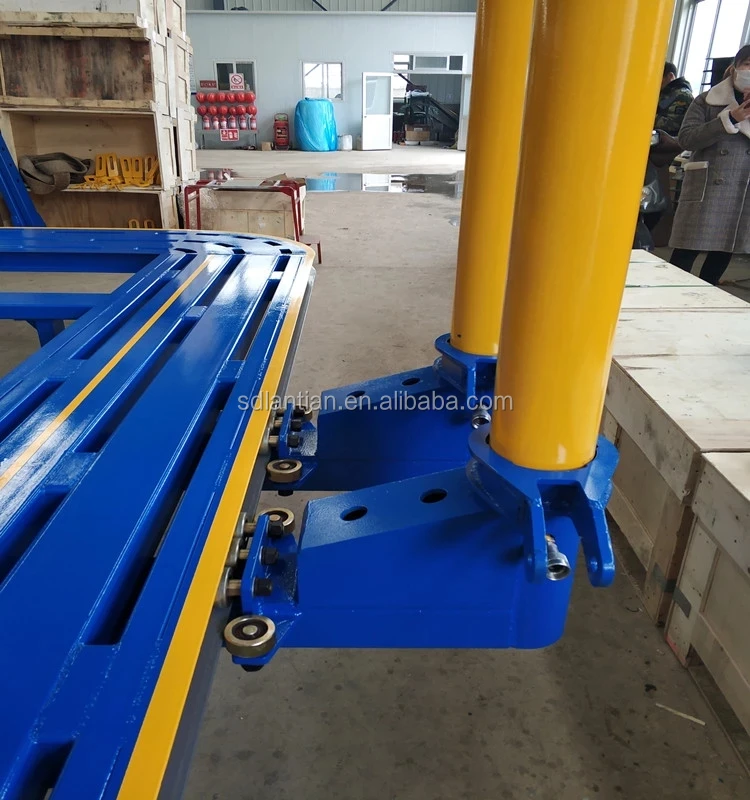

3. The towers are 360movable,freely and flexibly,the cylinder works vertically without any components

forces consumption,powerful and accurate tensile force.

4. Hydraulic system with good design is powerful and gives it a long useful life and low failture rate.

5. Portable measuring system is easier for workers,3D mechanical measuring system optional.

6. High quality chain (T8) and forged sheet metal tools (45#) are easy and convenient to operate with

long service life.

7. Strength needed parts like tower guiding ring, main clamp support and tower rear coverplate adopt

inblock cast to ensure high strength and deformation resistance.

8. The principal clamp can fix position and clamp the cars rapidly,accurately and firmly. Many clamps

such as ABB optional.

9. Appropriate for operating maintenance of medium or small cars.

_20190909090945QQ20160415222133_20200617200912

Payment

1.T/T 30% prepay, 70% balance before shipping.

2. Western Union,

3.Money Gram  ,

4.Alibaba Trade Assurance

5.other

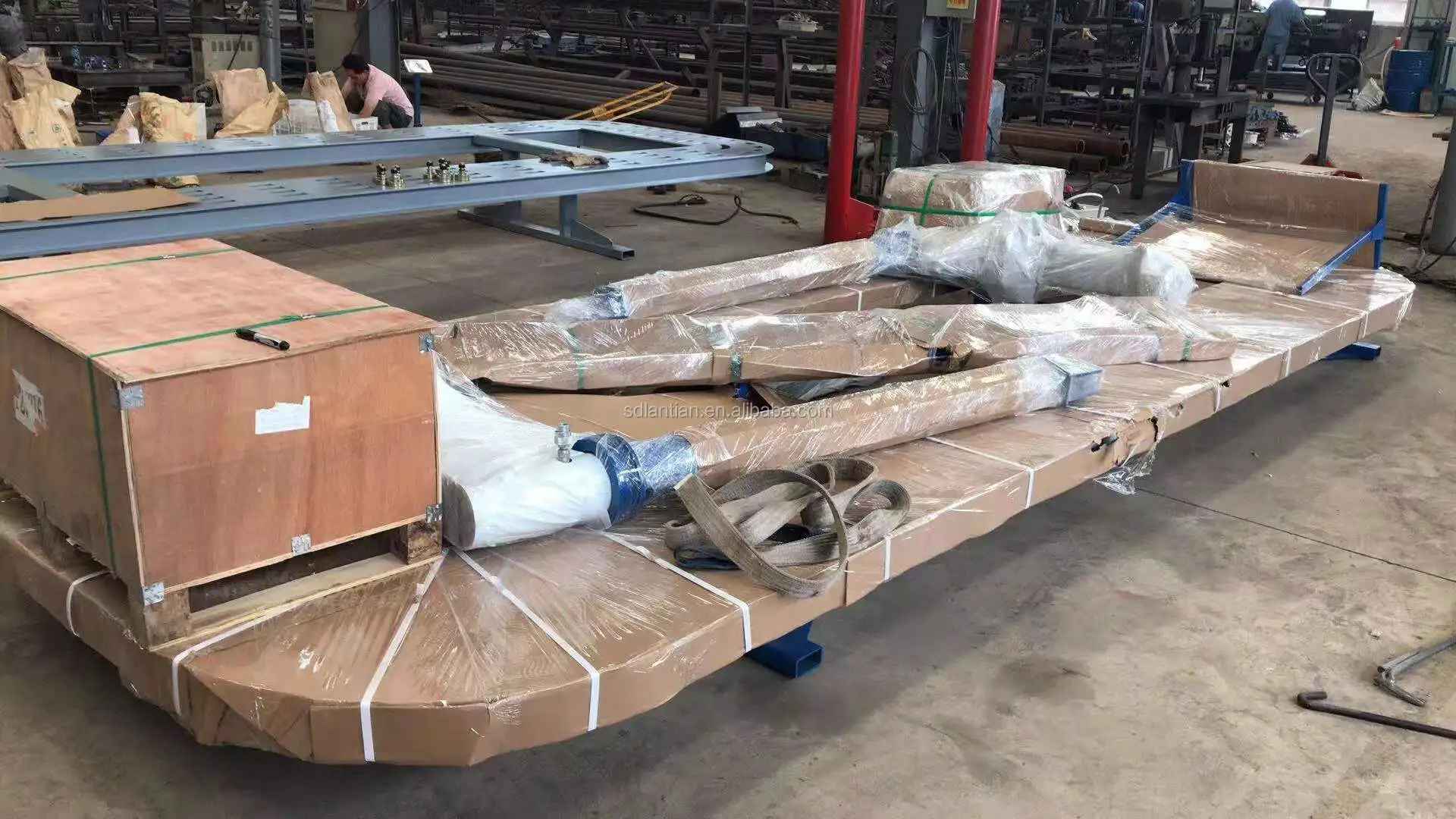

Packing
  _20190909091428_20190909091354_20190909091433
Services



1.OEM ODM service



2. Customized service: The color and size of the product can be customized.



3. One Year Quality warrant service, during the period spare part supplied free if you pay for shipping.



4.Professional team supply service for life long time.
