electrical conductivity measurement cm 230

Product Overview

Description

                           Electrical conductivity measurement cm-230

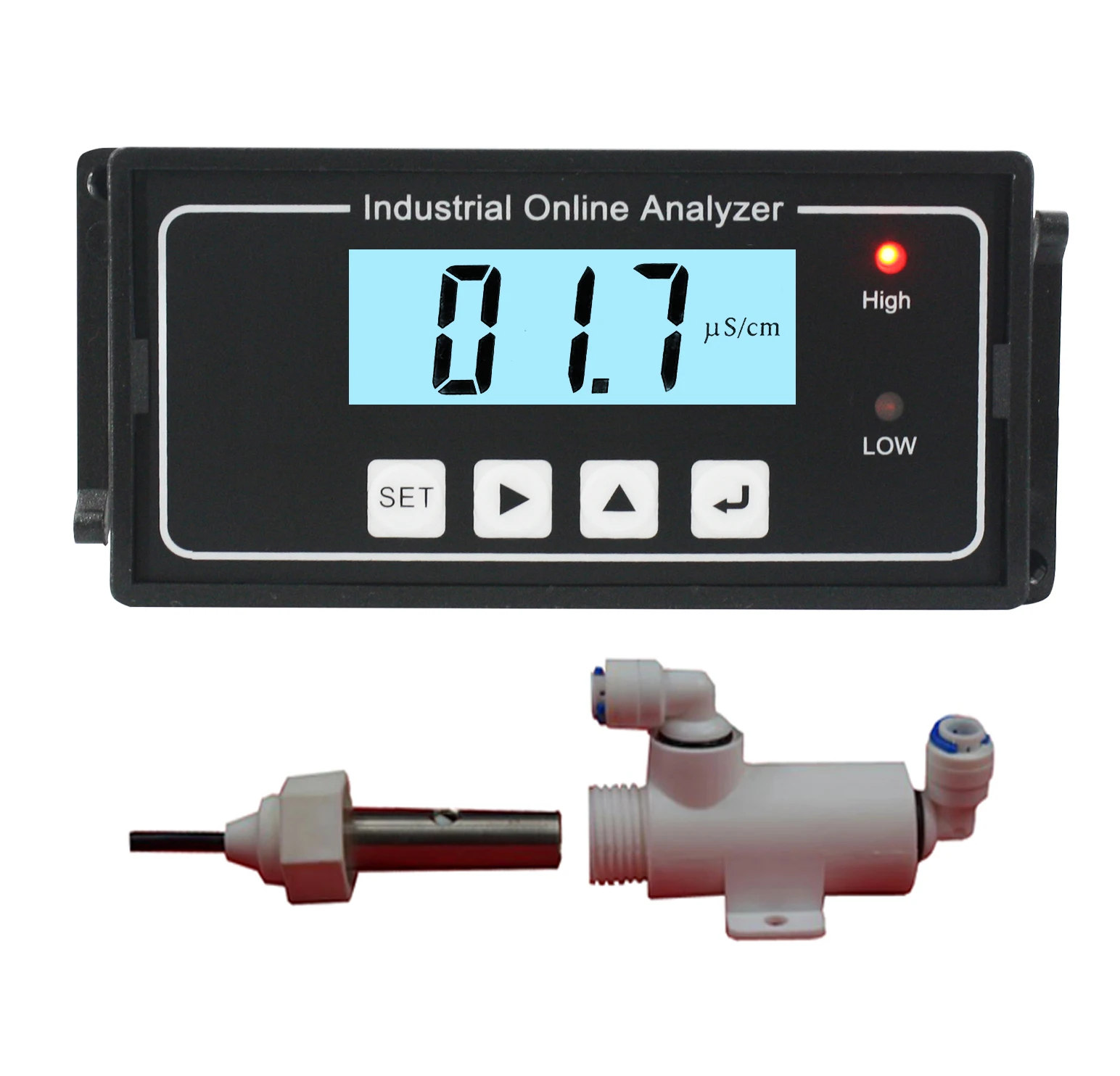

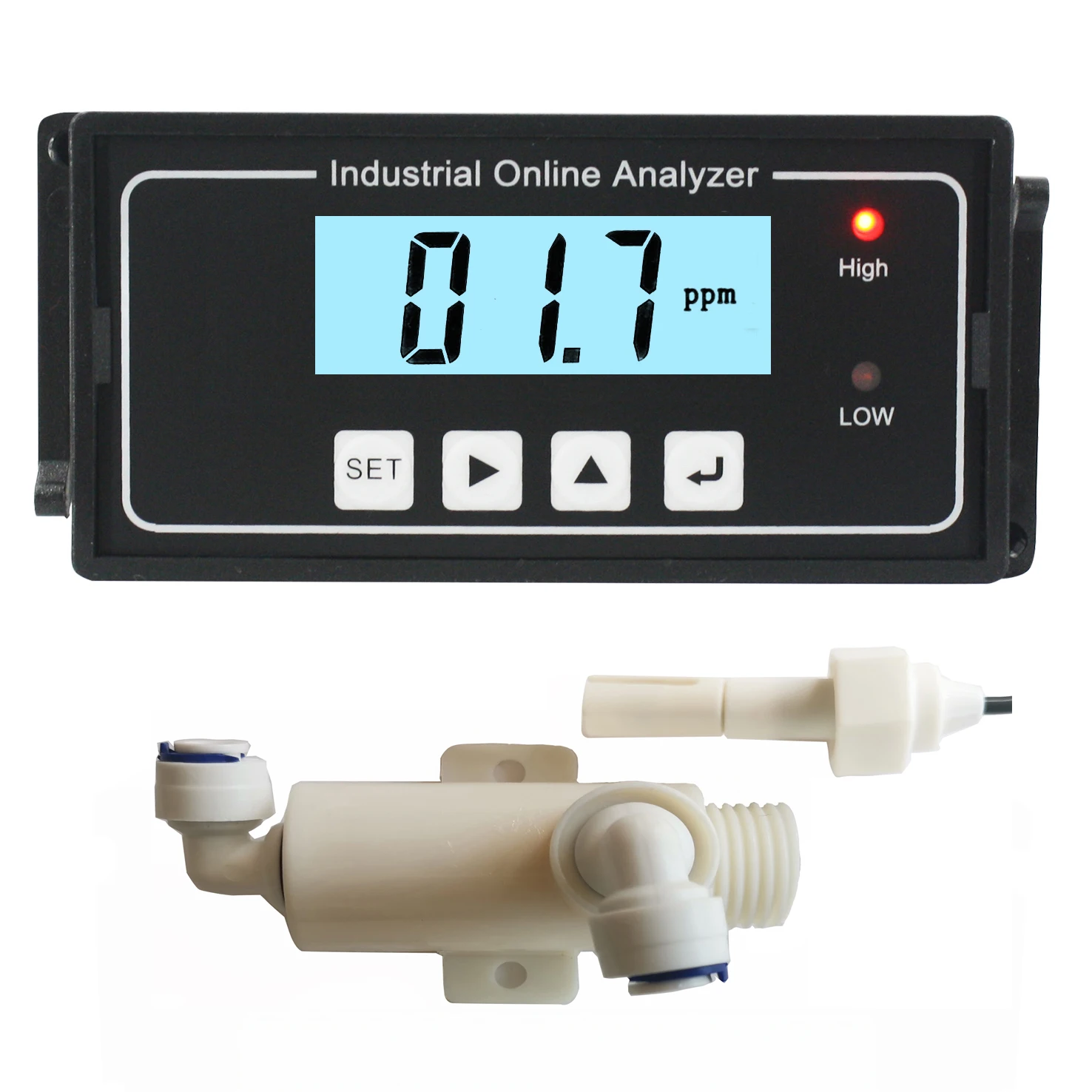

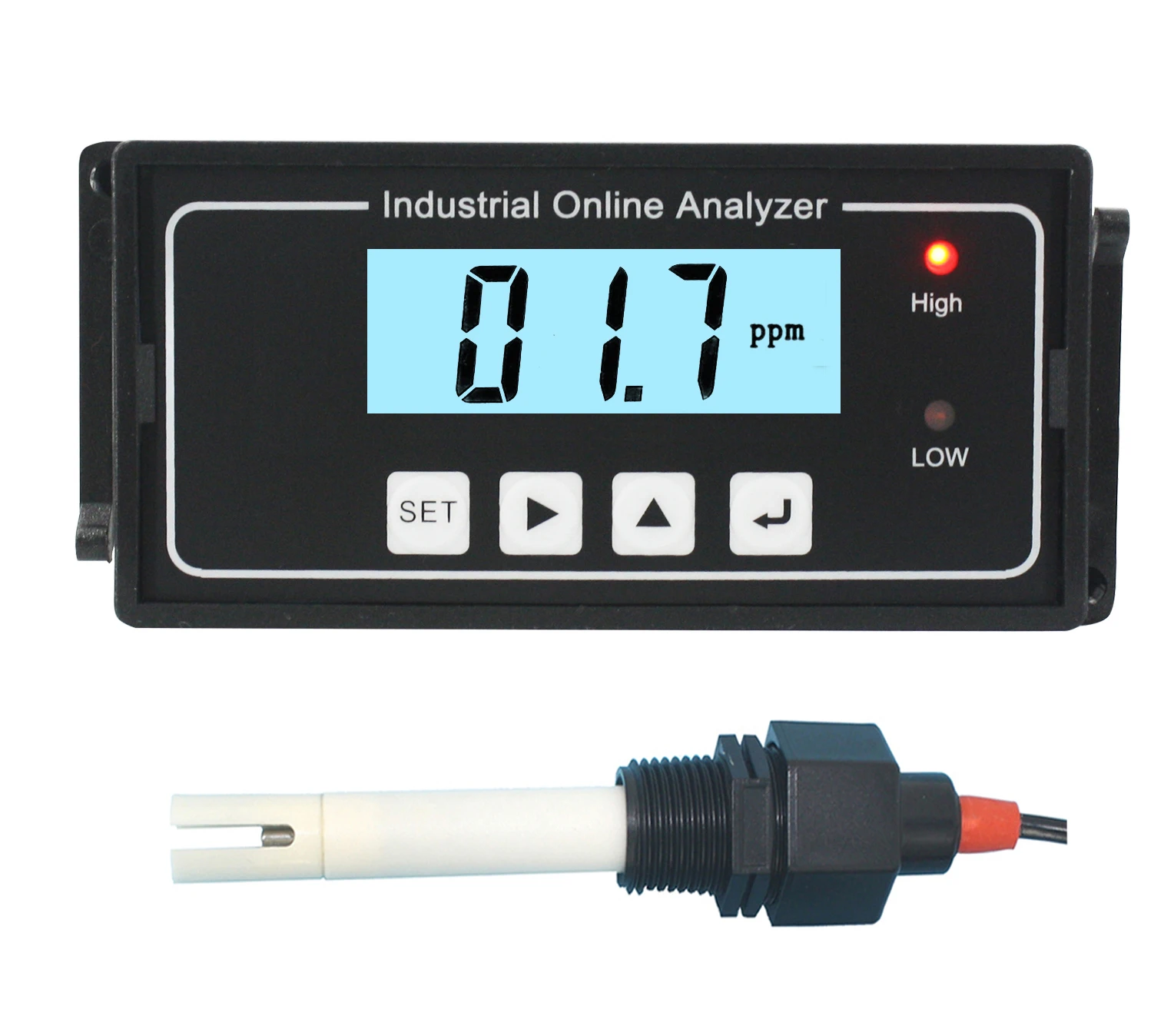

Online Conductivity meter CM-230 with 1.0cm^-1electrode is a panel mounted instrument for on-line monitoring of water conductivity, which has the character of low price, stable performance, high quality and long life service.



1. Code: CM-230


2. Measuring Range:  0-20uS, 0-200uS, 0-2000uS, 0-20mS

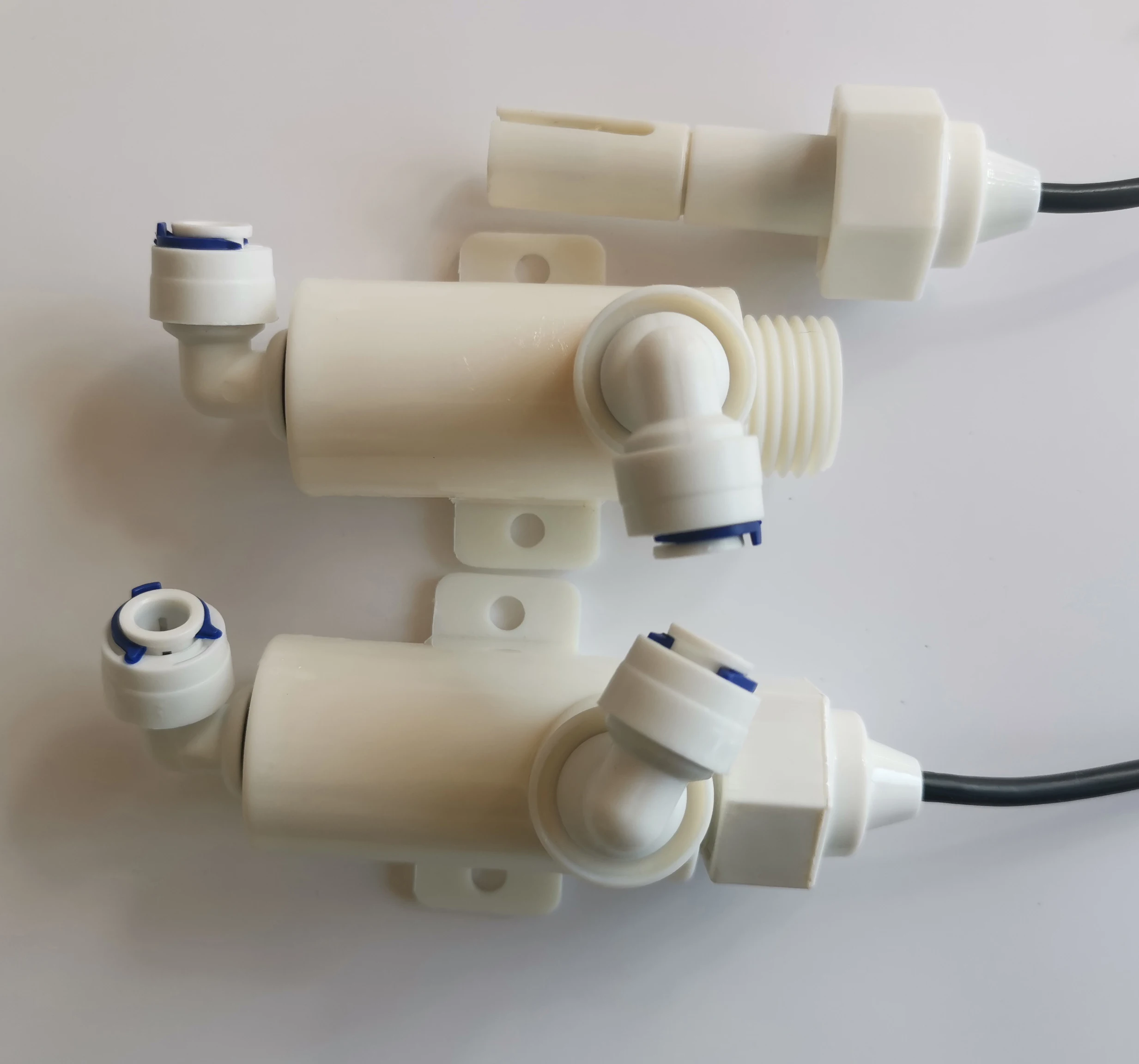

3. Matched electrode: 1.0cm-1 constant


4. Displaying Mode: 3½-digit apheliotropic LCD,


5. Accuracy: 1.5%(FS),


6. Sability:±2×10-3(FS)/24h,


7. Working pressure: 0-0.5MPa,


8. Medium’s temperature:   0~50℃


9. Temperature compensation:    Normal Temp.: The 25℃ basis, automatic temperature compensation


10. Environmental conditions: temperature: 0 - 50℃; humidity: ≤85%RH


11. Power supply:  AC 220V±10% 50/60Hz , AC 110V±10% 50/60Hz


12. External dimensions: 48×96×100mm (height×width×depth)



13. Hole size: 45×91mm

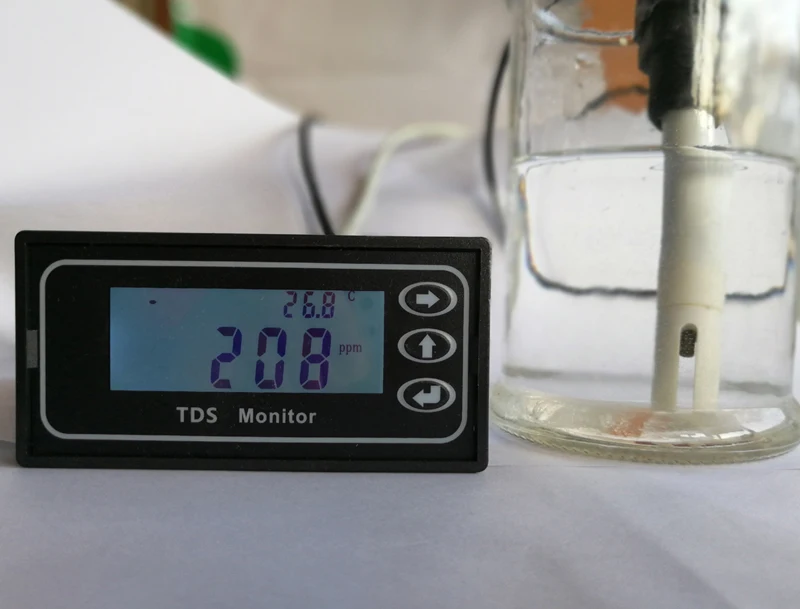

Function                                                    Model	CM-230 Conductivity meter	TDS-230 TDS meter
Range	0~20/200/2000 μS/cm; 0~20 mS/cm	0~20/200/2000 ppm
Accuracy	1.5%(FS)
Temp. Comp.	The 25℃ basis, automatic temperature compensation
Operation Temp.	0~50℃
Sensor	1.0cm-1
Display	3½ Bit LCD
Current output signal	— — —
Control output signal	— — —
Power	AC 110/220V±10%, 50/60Hz
Working environment	Ambient Temp. 0~50℃, Relative Humidity ≤85%
Overall dimensions	48×96×100mm (H X W X D)
Hole dimensions	45×92mm (H X W)
Installation Mode	Panel Mounted (Embedded)







  Conductivity meters are packed into strong carton which is suitable for long distance transport, color label

   is available as per request on the carton.







     1.    Conductivity meters will be transported by Express DHL, TNT, EMS, UPS, Fedex as per request, which will take 3-5days.

     2.    By air transport for the bulky order, it will  it will take 5-7days for different area,

     3.    By sea transport for the not urgent bulky order.









1.  Business term: FOB, C&F, CIF, DDU,DDP are acceptable.


2. We accept Western Union, T/T, L/C,Paypal etc term of payment.
