FeO2 ferrum dioxide magnetic separator for ferrous oxide
- Category: Magnetic Separator >>>
- Supplier: Jiaozuo Zhoufeng Machinery Co. Ltd. [Henan China]Jiaozuo
Share on (60278954969):
Product Overview
Description

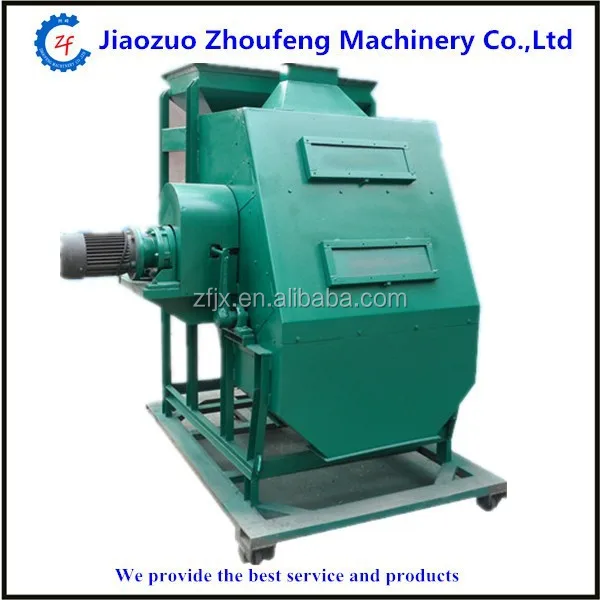

FeO2 ferrum dioxide magnetic separator for ferrous oxide
The dry induced roller high-intensity electromagnetic separators have distinct effect on
purifying the non-magnetic minerals.This machine adopt rare earth magnetic materials
(Neodymium iron), the surface magnetic induction intensity is up to 5000-18000GS.
Widely used to seperate manganese steel,ferrum dioxide,silicon dioxide and other magnetic
material.
Model | ZFCX1-60AA | ZFCX2-60AA | ZFCX2-80AA |
Upper roller magnetic strength(GS) |
| 5000 | 5000 |
Bottom roller magnetic strength(GS) | 11000-18000 | 11000-18000 | 11000-18000 |
Roller length(mm) | 600 | 600 | 600 |
Roller diameter(mm) | 100 | 100/320 | 100/320 |
Roller quantity(pcs) | 1 | 2 | 2 |
Speed(r/min) | 50 | 50 | 50 |
Capacity(t/h) | 1.0-1.8 | 1.0-1.8 | 1.0-1.8 |
Particles size (mm) | 0.1-20 | 0.1-20 | 0.1-20 |
Reducer model/power(KW) | MB07-0.75KW-C | WD80-5-1.5KW | WD80-5-1.5KW |
Dimension(mm) | 1320*880*1270 | 1530*910*1600 | 1530*1100*1730 |
Weight(KG) | 210 | 380 | 420 |
vibrator feeder motor | 150W | 150W | 150W |
