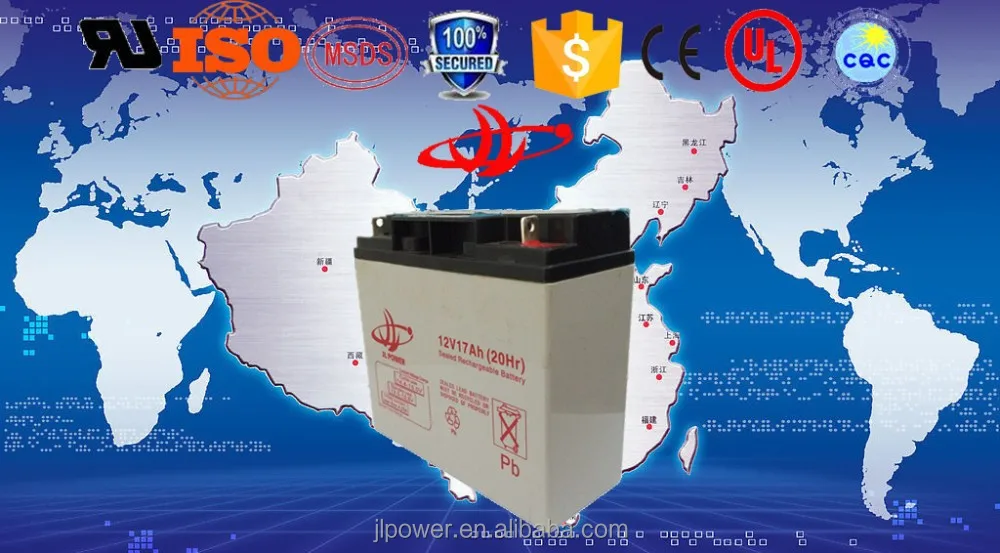

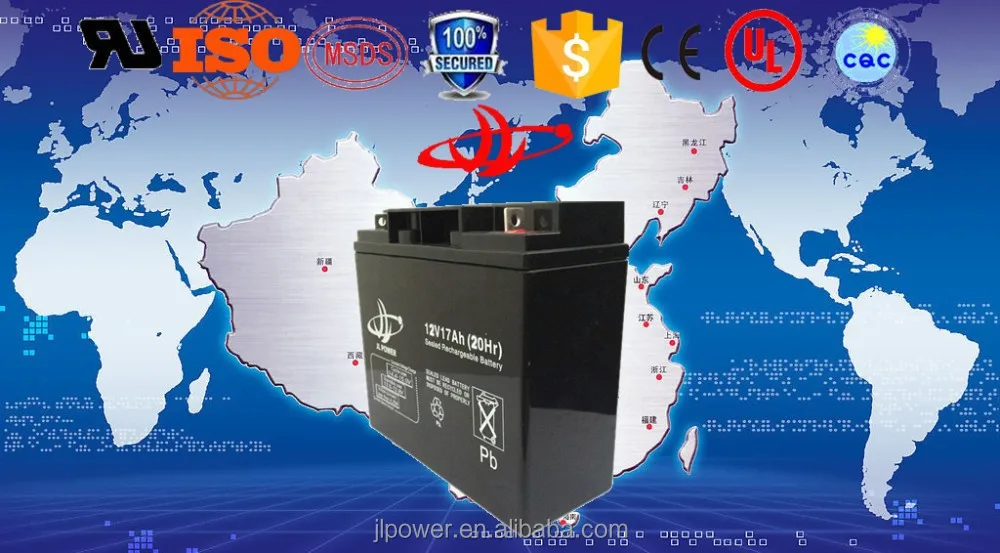

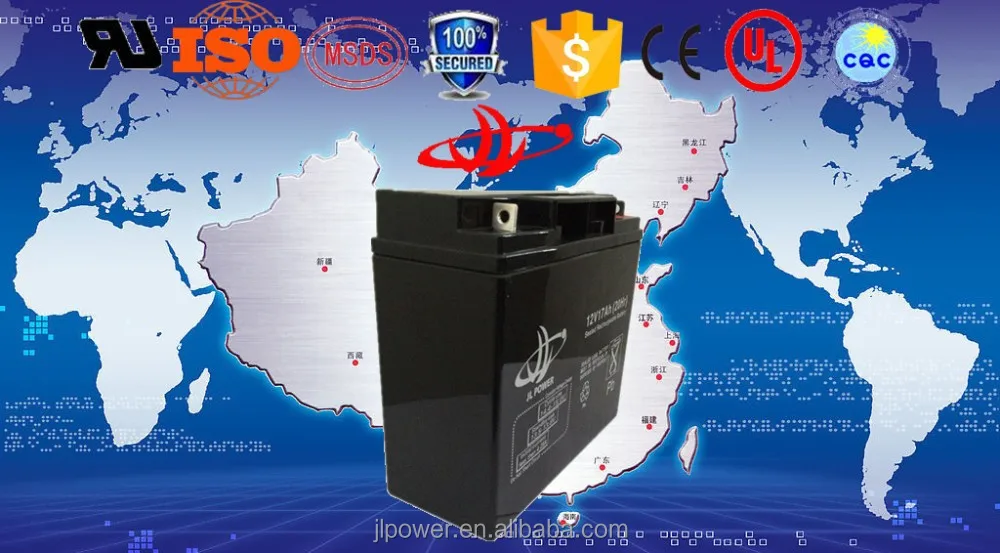

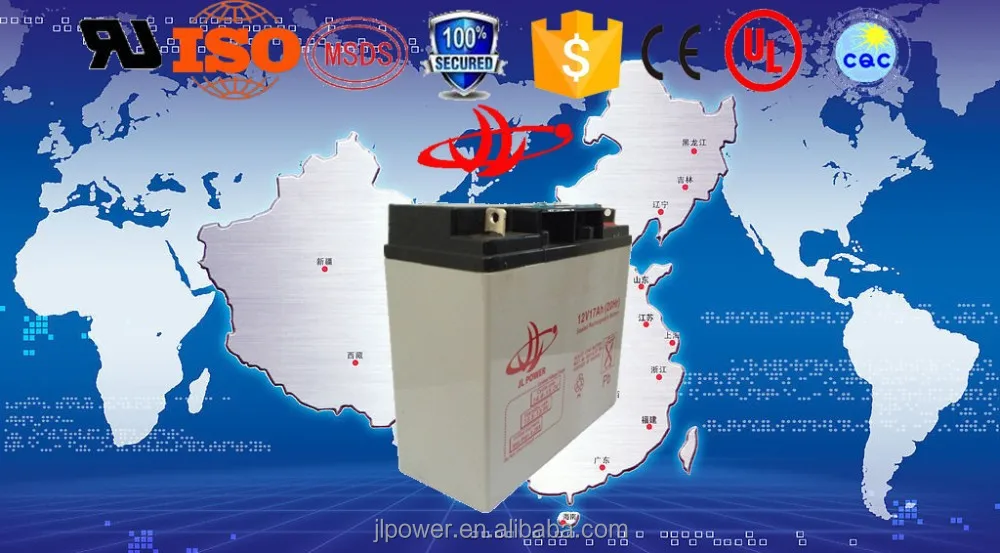

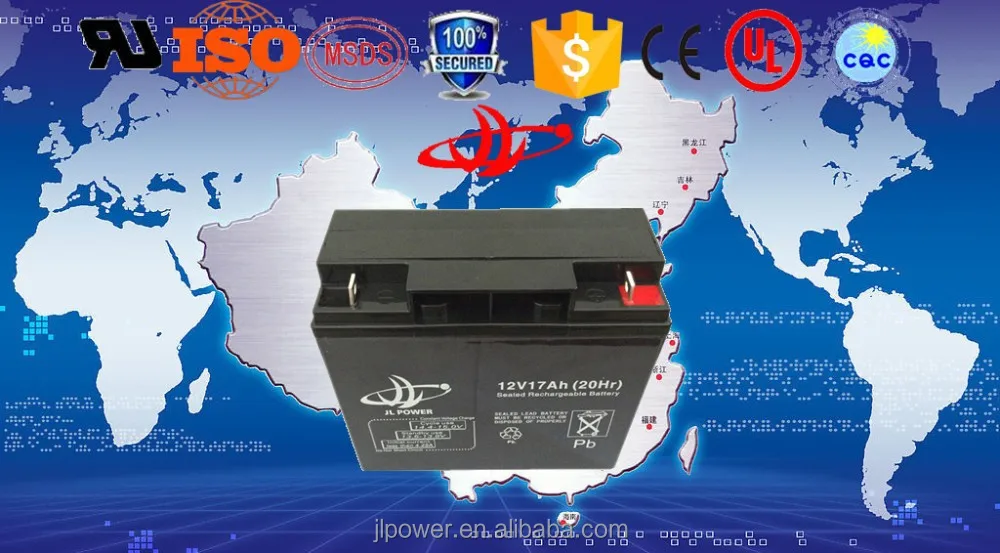

12v 17ah solar battery 12v 17ah agm battery/gel battery

Product Overview

Description

→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→

Applied Scope :

1)Communication Systems:Switch,Microwave Stations,Mobile Base Stations,Data Centers,Radio and Broadcasting Stations.

2)Motivity Field:Robots,Electric Toys,Electric Tools&Portable Vacuum Cleaners.

3)Solar&Wind Power Generation Systems

4)EPS&UPS Systems

→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→

Main Characteristic :

♦ maintenance-Free Operation

Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance.During the expected float service life of Prostar batteries,no need to check the specific gravity of the electrolyte or add water.

♦ Good Discharging Ability

Tight assembly technology ensures an excellent high-rate discharge performance.

♦ Long Service Life

A unique corrosion-resistant grid alloy ensures Prostar batteries have long service life.

♦ Low Self Discharge

Using high purity raw materials ensures Prostar batteries have less self-discharge.

♦ Environmental & Non-polluting

Gas Recombination technology ensures the battery high seal reacting rate,which can prevent the acid fog from separating out.

→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→→

Technical Specification :

Nominal Voltage			12V
Nominal Capacity (20 hour rate)			17Ah
Capacity 25oC (77°F)		10 hour rate (1.62A)	16.2Ah
		5 hour rate (3.03A)	15.2Ah
		1 hour rate (11.2A)	11.2Ah
Internal Resistance		Full Charged Battery 25oC	≤12mΩ
Capacity affected by Temperature  (10 hour )		40oC (104°F)	102%
		25oC (77°F)	100%
		0oC (32°F)	85%
		-15oC (5°F)	65%
Self-Discharge 25oC (77°F) Capacity		after 3 month storage	90%
		after 6 month storage	80%
		after 12 month storage	62%
Charge (Constant Voltage) 25oC (77°F)	Float	Initial Charging Current Less than 5.1A Voltage 13.6-13.8V
	Cycle	Initial Charging Current Less than 5.1A Voltage 14.4-15.0V

Battery Dimensions	Length	181mm
	Width	77mm
	Height	167mm
	Total Height	167mm
Box Dimensions	Length	325mm
	Width	195mm
	Height	185mm
Quantity Per Box		4 pcs per box
Net weight Per Cell		4.5kg±150g
Net weight Per Box		18.0kg
Gross Weight		18.5kg
