HSY25 25bar manual water pressure test pump / testing pump
- Category: >>>
- Supplier: Hangzhou Tiger King Pipe Machinery Import & Export Co. Ltd.
Share on (60279573753):
Product Overview
Description
Featuring
1.For quick and exact compression testing
2.For testing of leaks in installations, especially for use in heating, compressed air, refrigeration systems,oil installations, sprinkler systems and other small bore pipe applications
Specification
| HSY25 Testing pump Testing range: 0-25bar( 350psi,2.5Mpa ) Tank capacity: 5L Flow:13ml stroke:35mm Connections: 1/2" BSPP |

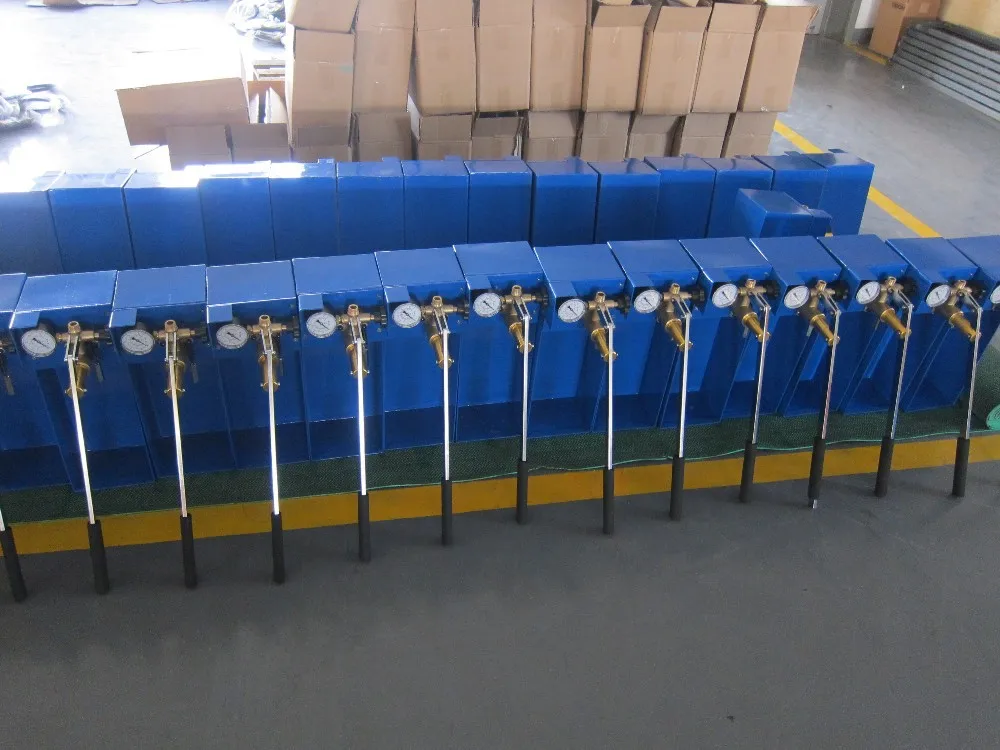

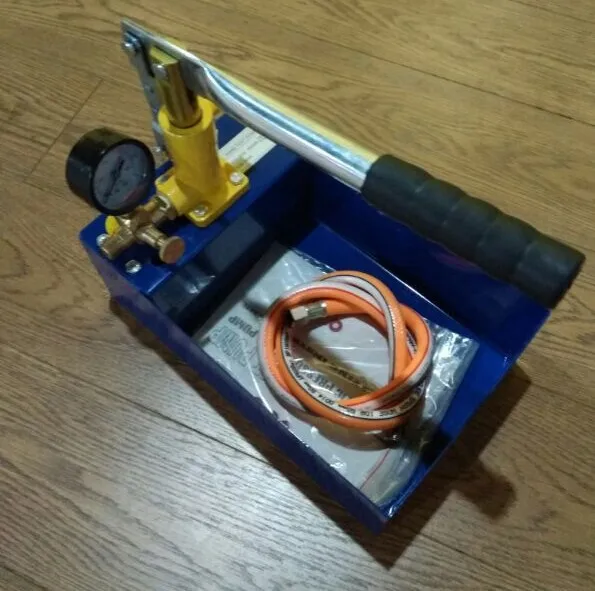

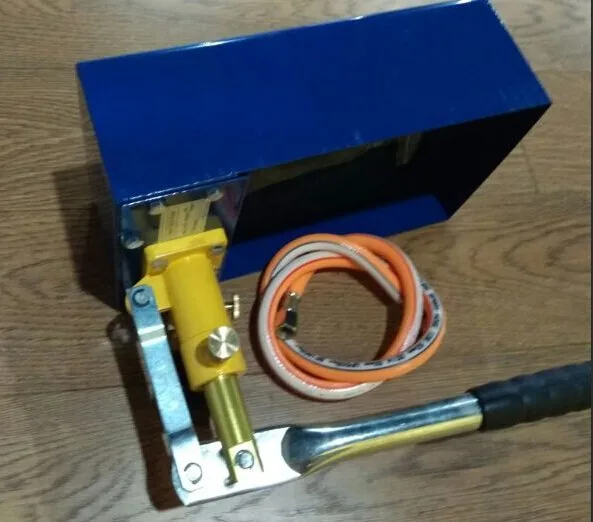

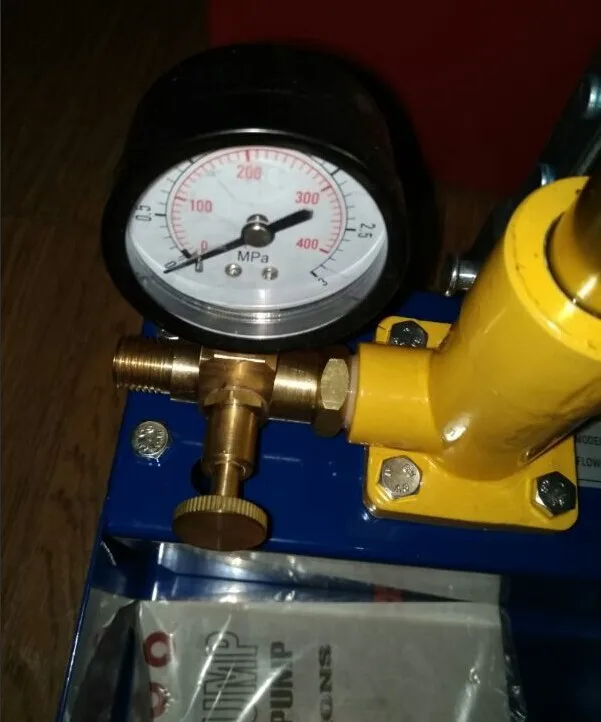

Detailed pictures
Plastic / steel tank according to customers' demand |
Aluminum / brass pump also have short type, medium-sized, long type pumps for choices.
|
 |
Packing detail
| model | weight | L | W | H |
| HSY25 | 3.5/3KG | 32CM | 31CM | 20CM |
More models
 |
RP50 Testing range: 0-60bar( 860psi,6Mpa )
|
 | HSY30-5
Testing range: 0-60bar( 860psi,6Mpa )
|
HSY40
Testing range: 0-40bar( 600psi,4Mpa ) | |
Electric test pump
DSY-60 Testing range: 0-60bar( 860psi,6Mpa ) Water flow: 2.9L/min Connections: 1/2" BSPP Power: 250w induction type
|  |
