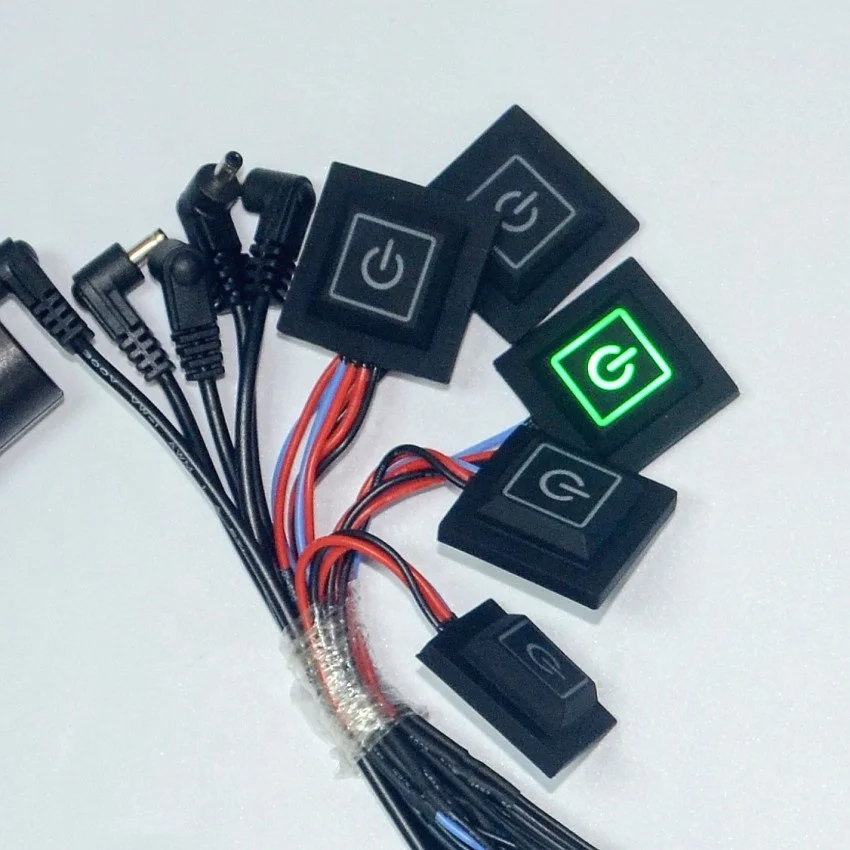

3.3v~16.8v LED Silicone Heated Vest Switch Button for Heated Clothes
- Category: >>>
- Supplier: Shenzhen Lixiang Energy Co. Ltd.
Share on (60279877623):
Product Overview
Description
3.3v~16.8v LED Silicone Heated Vest Switch Button for Heated Clothes
Welcome OEM/ODM!
3 temperature settings
3.3v~16.8v input voltage
0A~3A current range
OEM/ODM service available
Application
Application
heated jacket/ heated vest/ heated gloves/ heated stadimum seat cushion
Product Parameter
Product Parameter
1. Model: L X-TPC01
2. Input Voltage: 3.3-16.8V
3. Output current: 0-3A
4. Operating Efficiency: ≥99%
5. Standby Current: ≤300μA
6. PCB Internal Impedance: <20mΩ
7. Work Temperature: -20℃~ +60℃

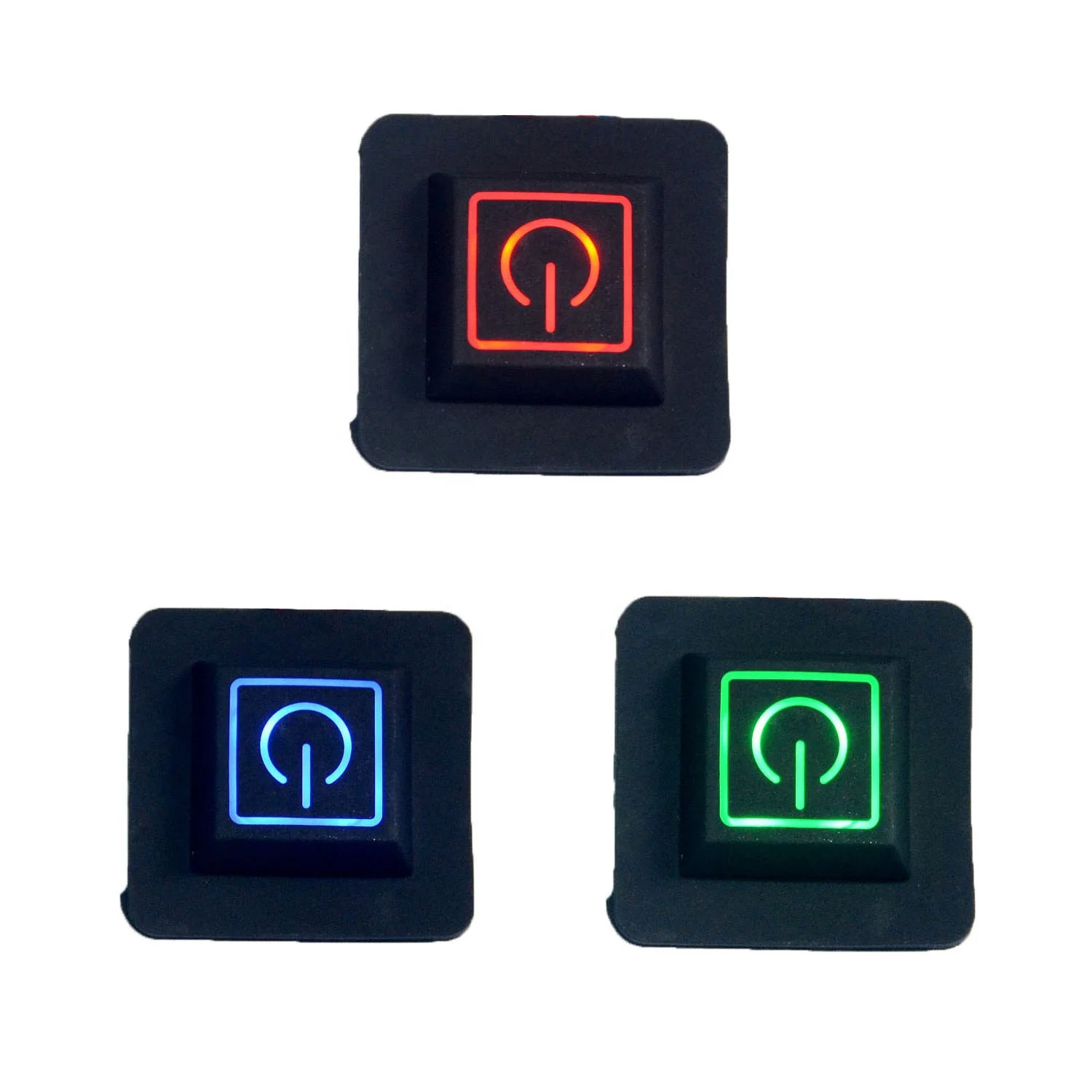

8. Three temperature adjustable: red-98%, blue-75%, green-50%.
How to operate
How to operate
(With loading & connect to battery pack)
1. Press & hold the button for 2 seconds to switch power on, set to 5-minute pre-heat mode at 100% output (during pre-heat mode, also can press button to change heat levels), then go down to medium heat level automatically.
2. Press button to change output heat levels

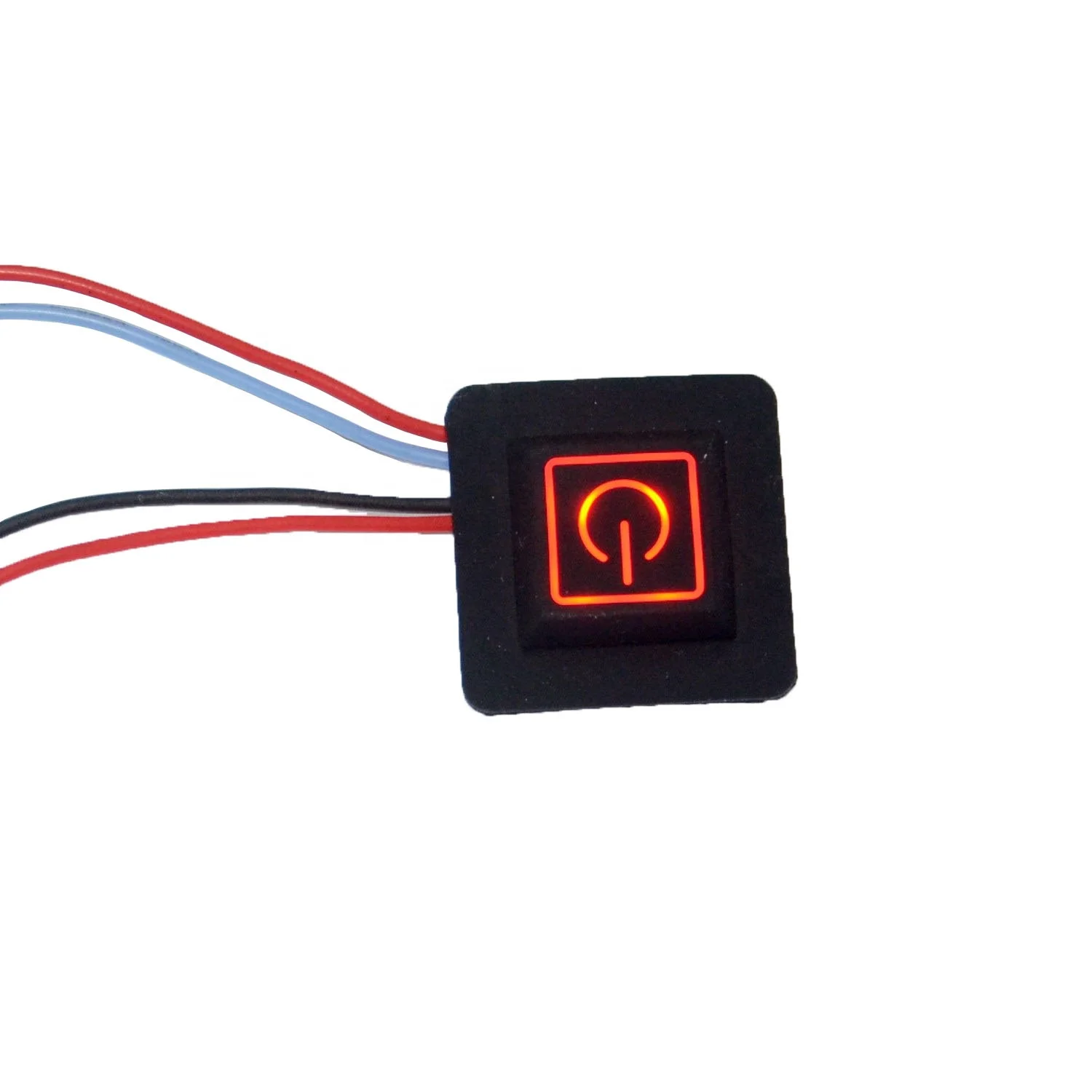

Red - 98% output
Blue - 75% output

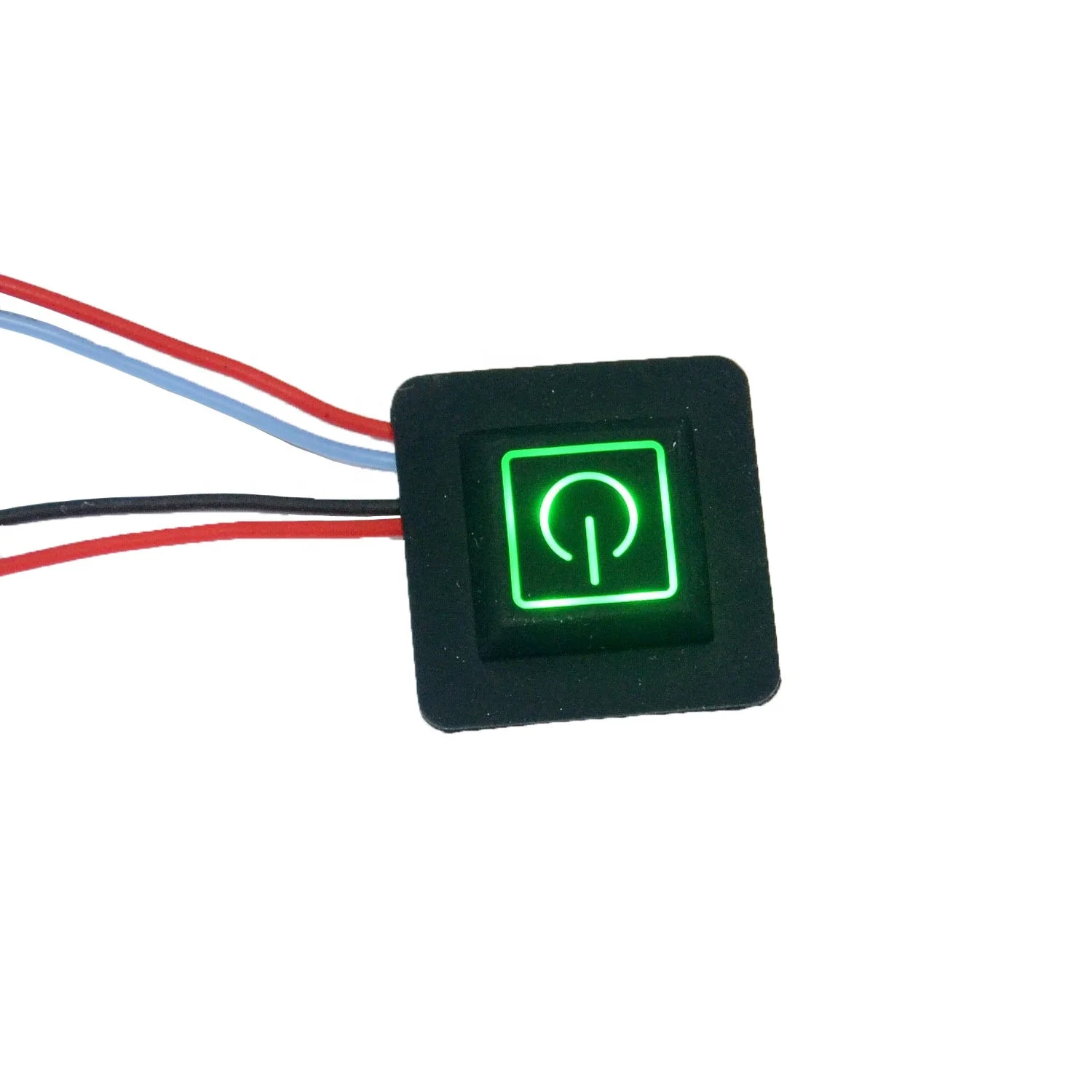

Green - 50% output
Output Power | GREEN LED | BLUE LED | RED LED |
98% | ° | ° | • |
75% | ° | • | ° |
50% | • | ° | ° |
3. Press & hold the button for 2 seconds to switch power off.

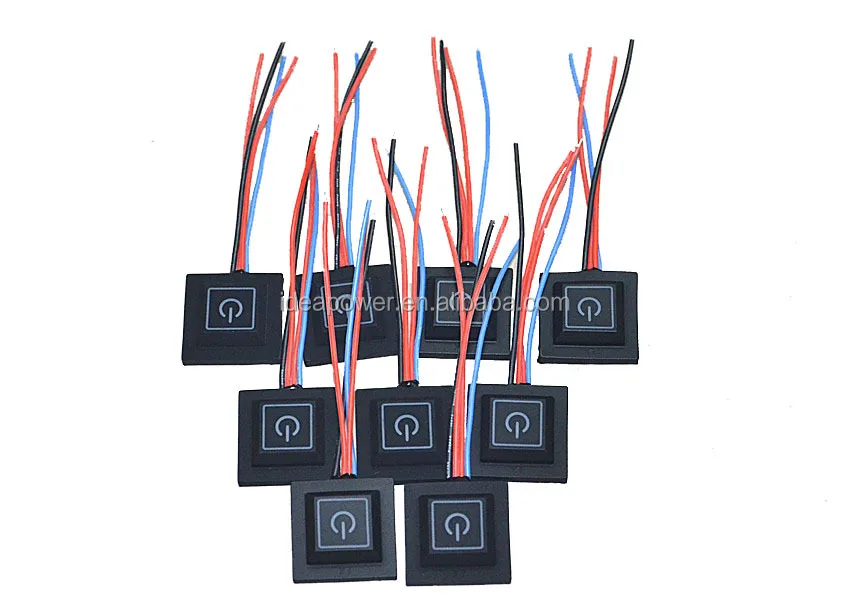

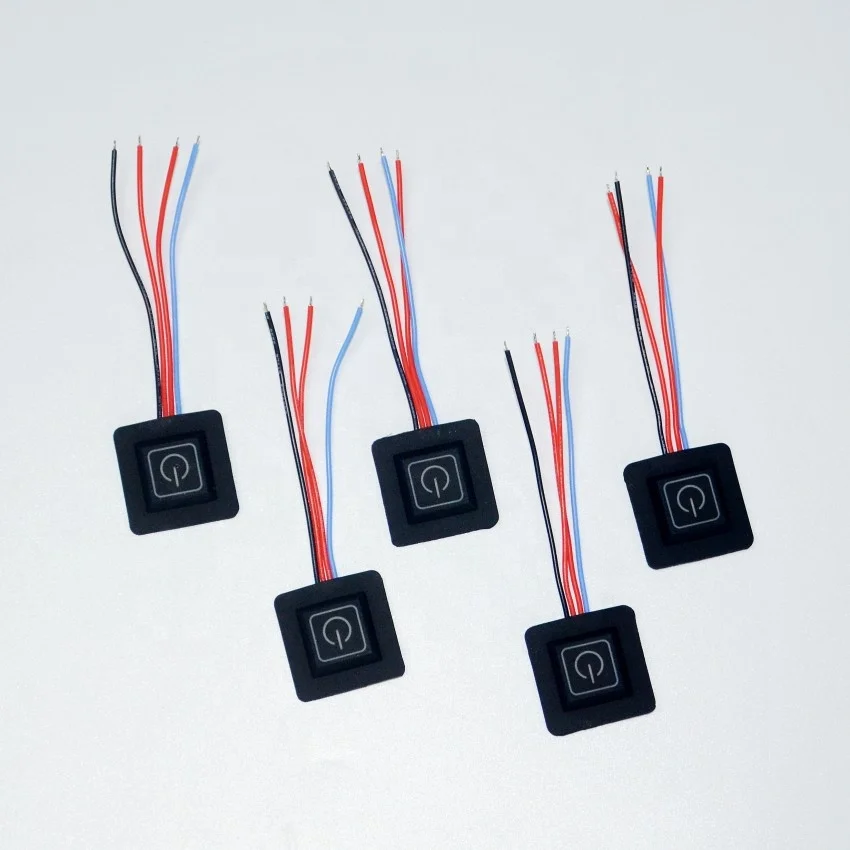

Product Photo
Product Photo

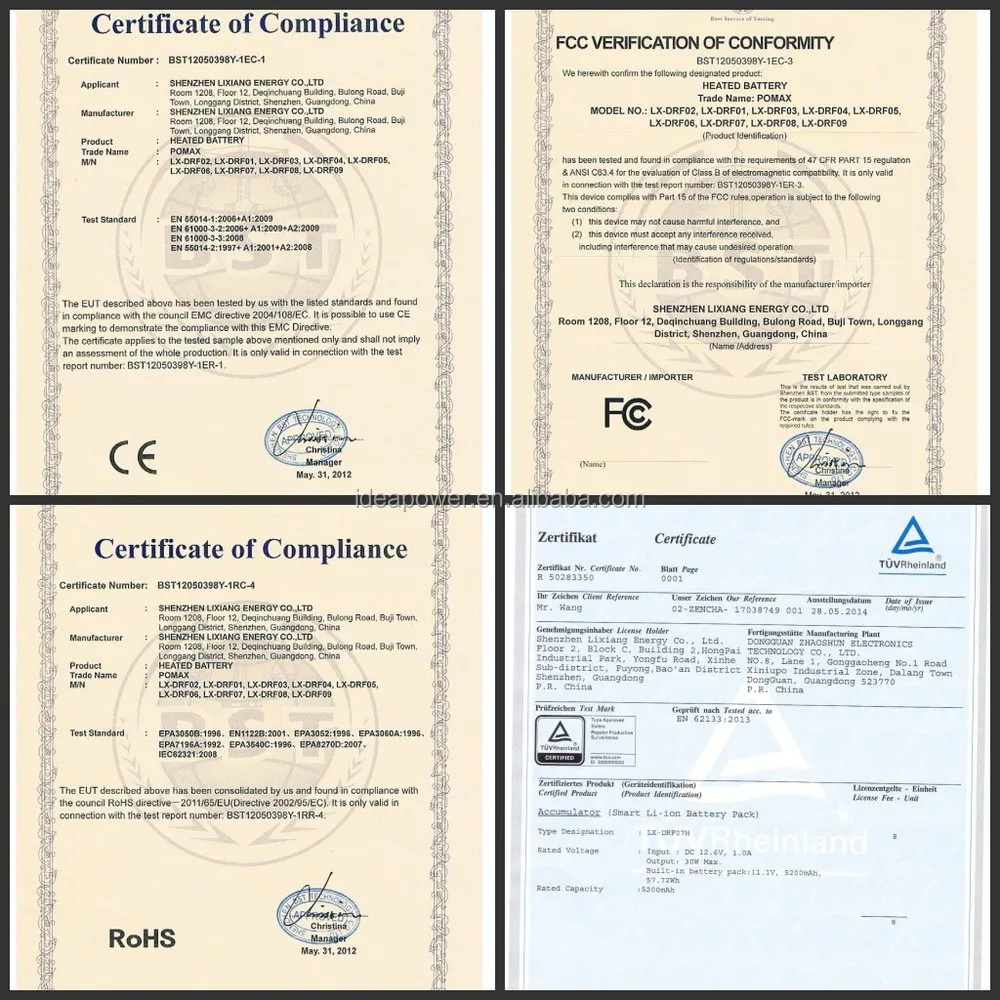

Certifications
Certifications
Company Overviews
Company Overviews
Advantages
Advantages
1) As we are factory, we can guarantee our price is first-hand, very cheap and competitive with high quality.
2) To make sure provide customer with high quality product & good service, sample can be sent for approval fristly. Beforeshipment, our QC staff will check quality 1 pc by 1 pc.
3) If you receive defective items, please email us photo of the defectives.
4) Provide OEM service. Our factory can offer OEM service to customer. Please offer us your LOGO & all OEM design information, and we can do special OEM tooling & OEM service for you.
5) After-sale service: all prodcuts are with 1 year warranty.
Contact
Contact information
Name: Ms.June Qiu
Mobile / WhatsApp: +86-15018549165
Skype: junejune20097
QQ: 756590221
WeChat: +86-15018549165
