Continuous Process 20Tons Capacity Oil Lubricant Recycle Machine

Product Overview

Description

Main features of  waste Plastic Pyrolysis to oil Machinery

 Environmental friendly:

1. Well water dedusting system with high pressure nozzle and environmental damper inside can avoid black smoke.

2. The exhaust gas will be directly recycled for heating reactor, no gas pollution.

3. Every junction of the reactor is in good sealing situation with professional sealing material.



Safety:

1. Professional sealing technology for cover, oil outlet.

2. Heavy oil is separated which can avoid the problems of jam in later condensing.

3. Vacuum system will prevent exhaust gas from going back to reactor and causing accident.

4. Alarm, safety valves, thermometer, pressure gauge and safety valve.

5. It is dangerous to burning exhaust gas (C1 to C4). In our process, it is transferred first through the safety device and a safety burning air muzzle.



Energy saving:

1. Well sealing for heating system, no gas leak and saving fuel.

2. The exhaust gas will be recycled for reactor heating.



Machine size and capacity

Model	Reactor size	Weight	Volume	Space required	Capacity	Note
XD/05	2.0m*5.0m	27t	22m3	80m2-100m2	5T/Batch	3batch/2days
XD/06	2.2m*6.0m	30t	23m3	100m2-120m2	6T/Batch	3batch/2days
XD/08	2.2m*6.6m	32t	25m3	150m2	8T/Batch	1batch/1days
XD/10	2.6m*6.6m	38t	35m3	150m2-200m2	10T/Batch	1batch/1days
XD/12	2.8m*6.6m	40t	40m3	150m2-200m2	12T/Batch	1batch/1days

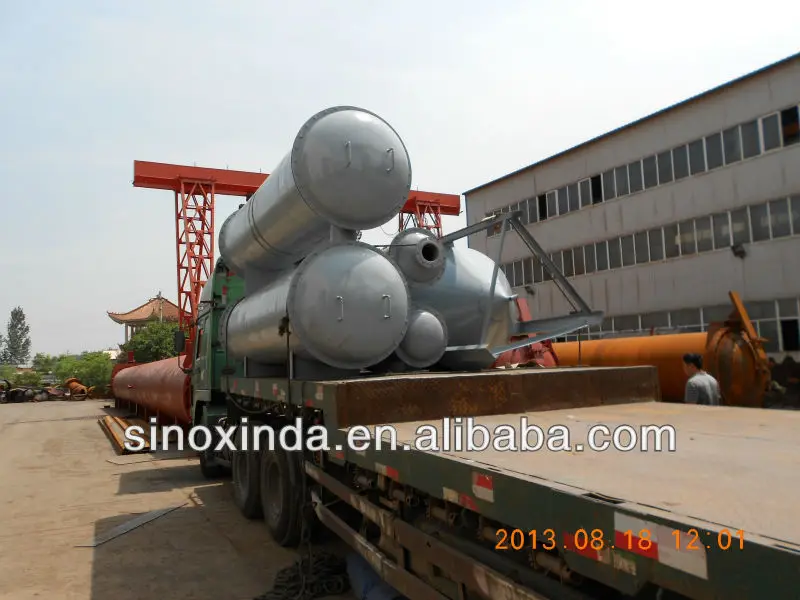

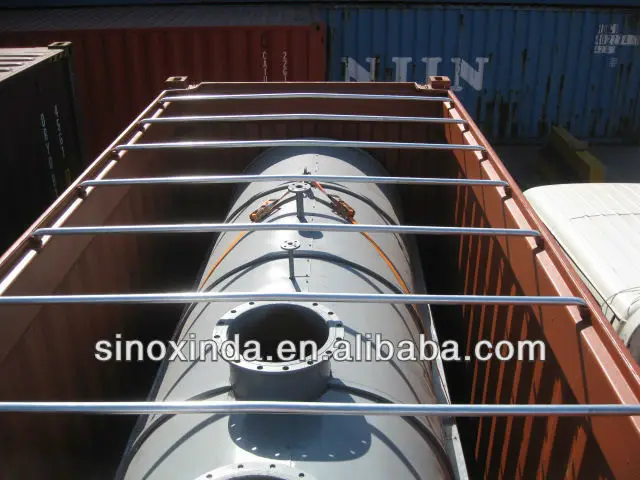

The shipment and the containers:

Model	40HQ containers	40FR open containers	note
2200*6000	2	/
2200*6600	2	/
2600*6000	1	1
2800*6000	1	1
2800*6600	1	1

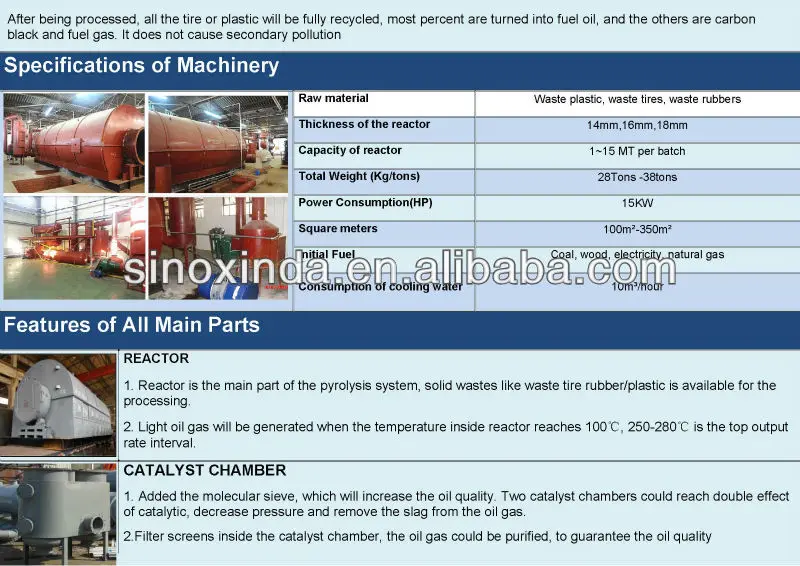

Technical Parameters for  waste Plastic Pyrolysis to oil Machinery

ITEM	CONTENt
equipment’s model	XD-06	XD-08	XD-10
Daily Handling capacity	6 tons	8 tons	10 tons
Door's model	Semi-open door	Semi-open door	Semi-open door
Structure Form	Horizontal type	Horizontal type	Horizontal type
Raw material	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic	Waste rubbers/tyres/plastic
Material of reactor	Q245R thickness 14mm	Q245R thickness 14mm	Q245R thickness 14mm
Main engine rotating speed	0.4R /min	0.4R /min	0.4R /min
Power	10-15KW	10-15KW	10-15KW
Cooling Mode	Water	Water	Water
Consumption of Cooling water	0.2	0.3	0.4
Heating Mode	Direct	Direct	Direct
Installation	Main engine integral installation	Main engine integral installation	Main engine integral installation
Noise dB (A)	<=85	<=85	<=85
Machine dimension(mm)	D2000*L6000	D2200*L6600	D2600*L6600
Working Mode	Intermittent	Intermittent	Intermittent

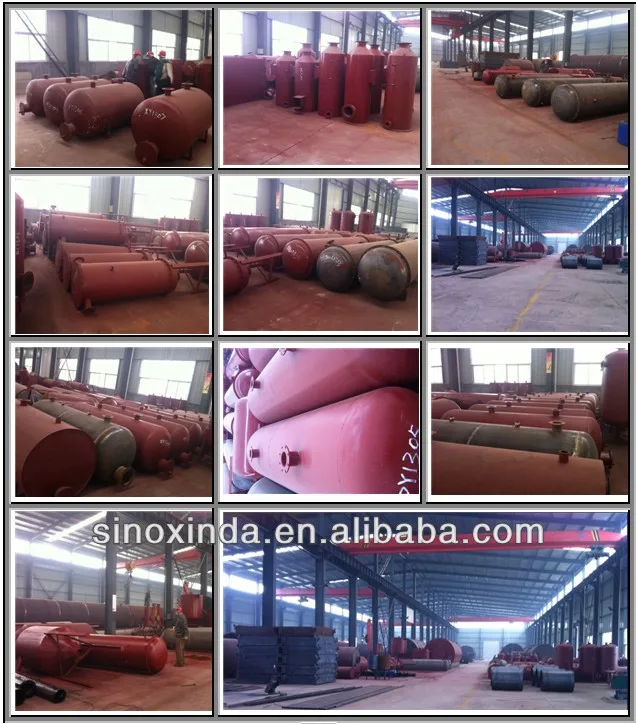

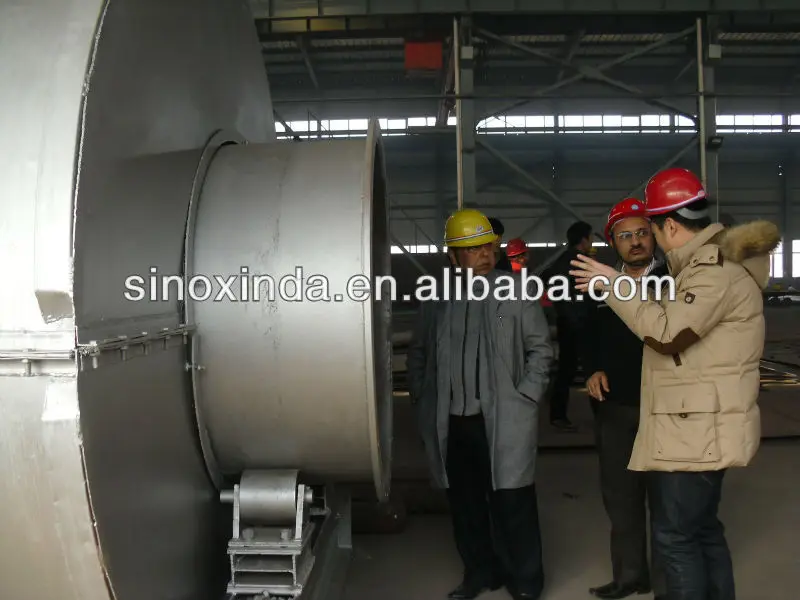

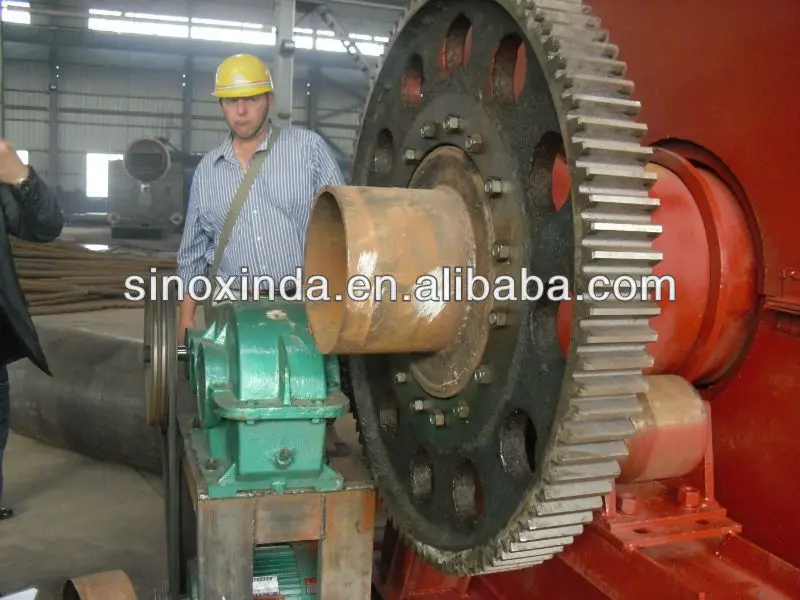

Real photo of machinery







3D drawing for  waste Plastic Pyrolysis to oil Machinery
