Mini Graphite Crucible Melting Furnace Lead Smelters
- Category: >>>
- Supplier: Zibo JC Eco-Tech Co. Ltd.
Share on (60280105624):
Product Overview
Description
Mini Graphite Crucible Melting Furnace Lead Smelters
1.Product Description
JC Mini Graphite Crucible Melting Furnace Lead Smelters are made for casting, reclaiming, alloying, and refining gold, silver and other metals with similar or lesser melting temperatures.Equipped with electronic temperature controls with digital displays, this melter can reach a maximum temperature of 2192F (1200C).
2.Mini Graphite Crucible Melting Furnace Lead Smelters Characteristic
1). Exquisite & Convenient:
Small size(170x220x370mm), light weight(N.W.:4.5KGS), independent operation.
2). Easy operation:
The parameters can be changed conveniently by pressing arrow buttons.
The setting temperature and surveyed temperature can be shown at the same time.
3). Accurate temperature control:
Microprocessor PID control, PID auto-tuning function ensure the accuracy of the temperature control in any state
4). High efficiency:
Fast heating, high efficiency, good insulation effect, low power
Model NO. | JC-K-220-1 | JC-K-220-2 | JC-K-110-1 | JC-K-110-2 |
Voltage | 220V | 220V | 110V | 110V |
Power | 1KW | 1.5KW | 1KW | 1.5KW |
Specifications | 170*220*370mm | 170*220*370mm | 170*220*370mm | 170*220*370mm |
Adjustable temperature | 0°--1200°C | 0°C--1200°C | 0°C--1200°C | 0°--1200°C |
Heating rate | 0C--1200C about 15-20mins | |||
Accuracy | ±1°C | ±1°C | ±1°C | ±1°C |
Display mode | Adopting AI PID control method; Measured values (PV), set data (SV) can be shown at the same time; Set data can be changed by arrow buttons | |||
Material of the furnace liner | silicon carbide material
| |||
Material of the furnace cover | Stainless Steel | |||
Note | With thermocouple input, relay output | |||
4.Certifications
Our furnace has obtained Chinese patent of Certificate of Utility Model Patent,Certificate of Design Patent and CE.Currently,we are cooperating with ICBC,domestic famous universities and national key laboratories.we open smoothly North America,EU, Australia and Southeast Asia,the furnace won high praise with more than 30 countries and region.
5.Our Services
1)Machines will enjoy one year guarrantee ,Other tools will enjoy 3 months
2) we will send you replacement parts for you after you receive broken parts ,or some machine parts are broken after you use and the machine are under guarrantee period .
3) If you have any query about the products , feel free to contact us .we will reply you in 24 hours
6.Packaging
Plastic inside,Polyfoam filled,Carton Outside.
We provide many types of plugs,please indicate what type in your use when place an order.
7.Company Information
ZIBO JC Eco-tech CO.,LTD is specialized in producing small melting furnace,ceramic fiber products & building glass. Who has been strived to the research and application of the small melting equipment and energy-saving material.
Up to now, most products have been exported to many oversea countries in Asia, North America, Europe, Africa, Middle East, etc.
We supply jewelry tools with suitable price and reliable quality. Also excellent after-ales technical support and warranty is provided. Replacement parts after the warranty period are also kept at affordable rates. Furthermore, we will spend more efforts and look for good and qualified local agents so that we can localize our after-service world widely in the future. It is our goal to achieve win-win cooperation and benefit our customers with products and services.

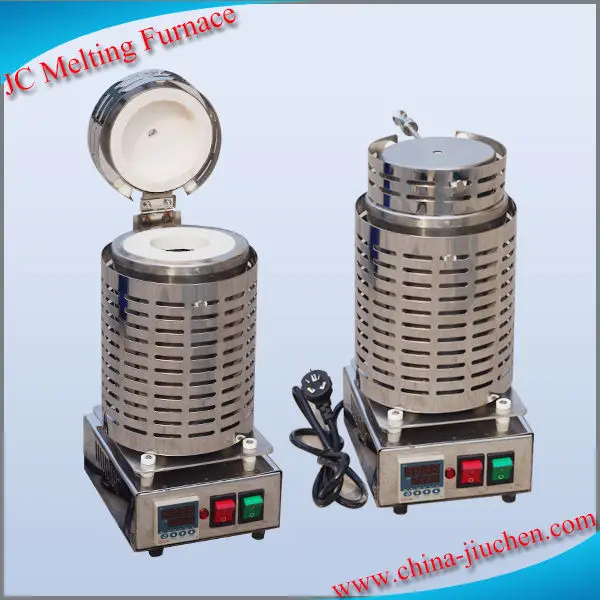

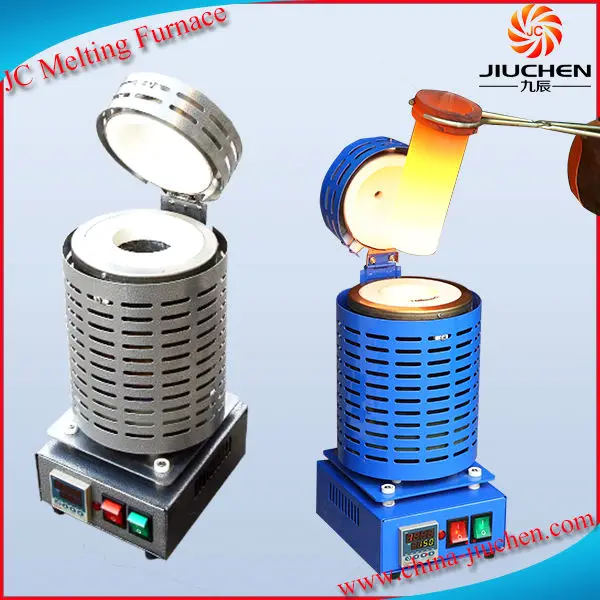

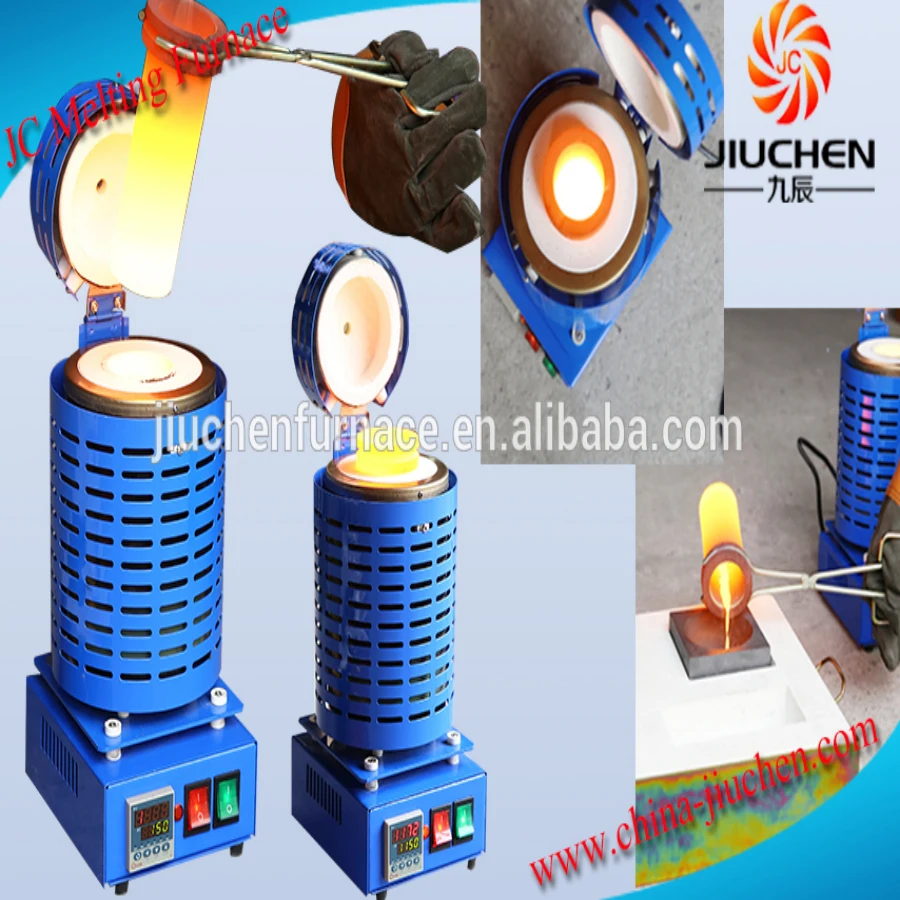

8.Mini Graphite Crucible Melting Furnace Lead Smelters Pictures
9.Other Information
1.What's the MOQ?---1 piece.
2.How about the delivery time?---3-15days if not stock.
3.What's the warranty?---one year free replacement spare parts.
4.How about our service?---longtime technology supporting.
5.What's the Skype address?---Aprilyan91.
6.Would you do me a call?---+86-18653335950.
