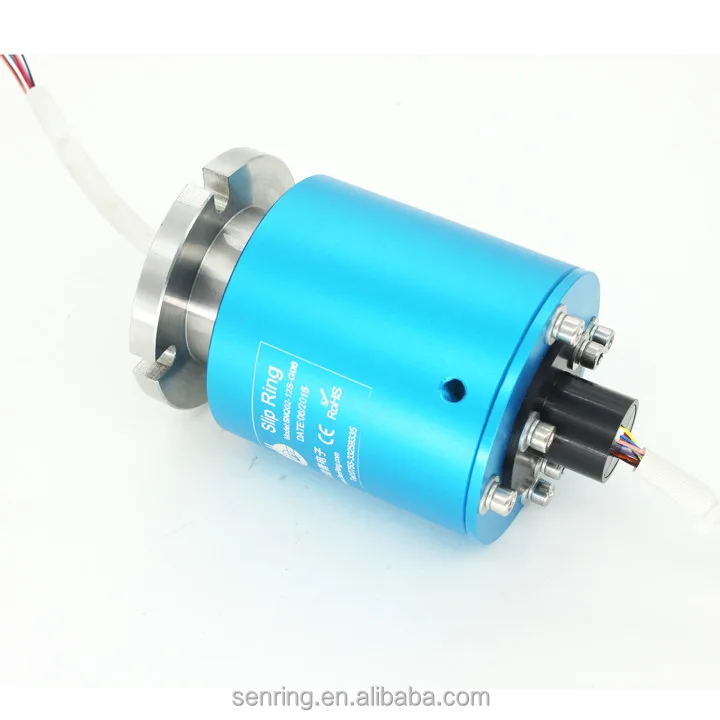

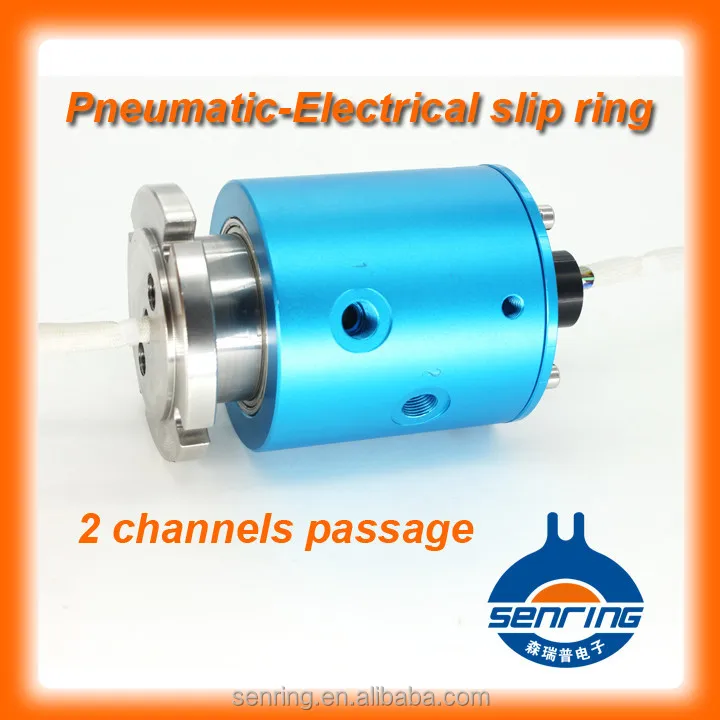

Pneumaticl Electrical slip Ring of 2 channels passage G1/8' with 12 wires 2A
- Category: >>>
- Supplier: Shenzhen Senring Electronics Co. Ltd.
Share on (60280156273):
Product Overview
Description
2 Channel pneumatic hybrid electric rotary joint with 12 circuits singal 2A
| specification data | |||
| channel | 2 channels | torque | <5 N.m |
| Medium type | cooling liquid,gas,hot oil,steam,water | pressure | 0~2500PSI |
| Max speed | 250RPM | work Temp | -17° C to 108° C |
| Tube size | 6mm | material | inner shaft: stainless steel, housing: AL alloy |
| Electric slip ring-technical data | |||
| Rated Voltage | 600 VDC/VAC | contact material | Precious metal |
| Dielectric Strength | 1000VDC@50Hz,10s | Lead wire Spec | awg17/22 |
| Insulation Resistance | 1000MΩ@600VDC | Lead wire length | 250mm |
| work Temp | -40°C to 80°C | IP grade | IP51 |
| Mechanical vibration | MIL-SID-810E | Humidity | 10% to 90% RH |
| Material | RoHS | CE certificate | YES |
