17' worm slew drive use for forktruck rotater
- Category: Forklifts >>>
- Supplier: Jiangyin Huafang New Energy Hi-Tech Equipment Co. Ltd.
Share on (60280172417):
Product Overview
Description
Product Description

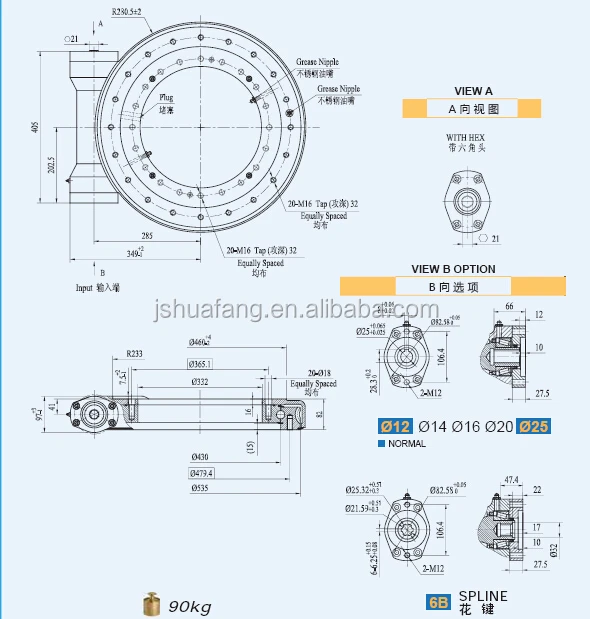

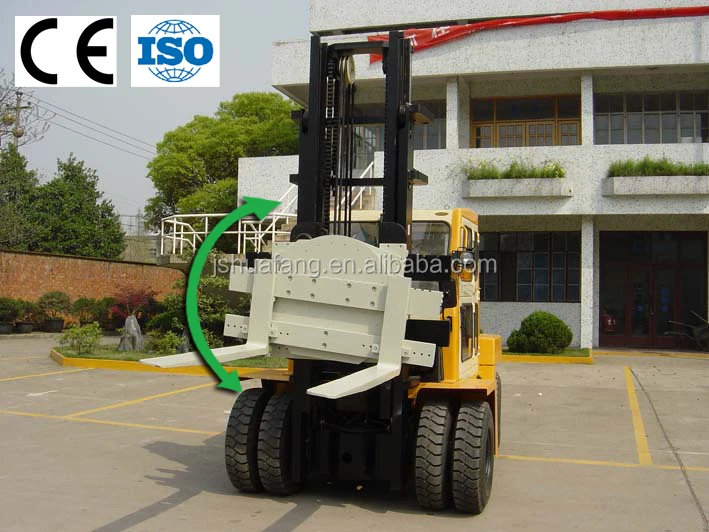

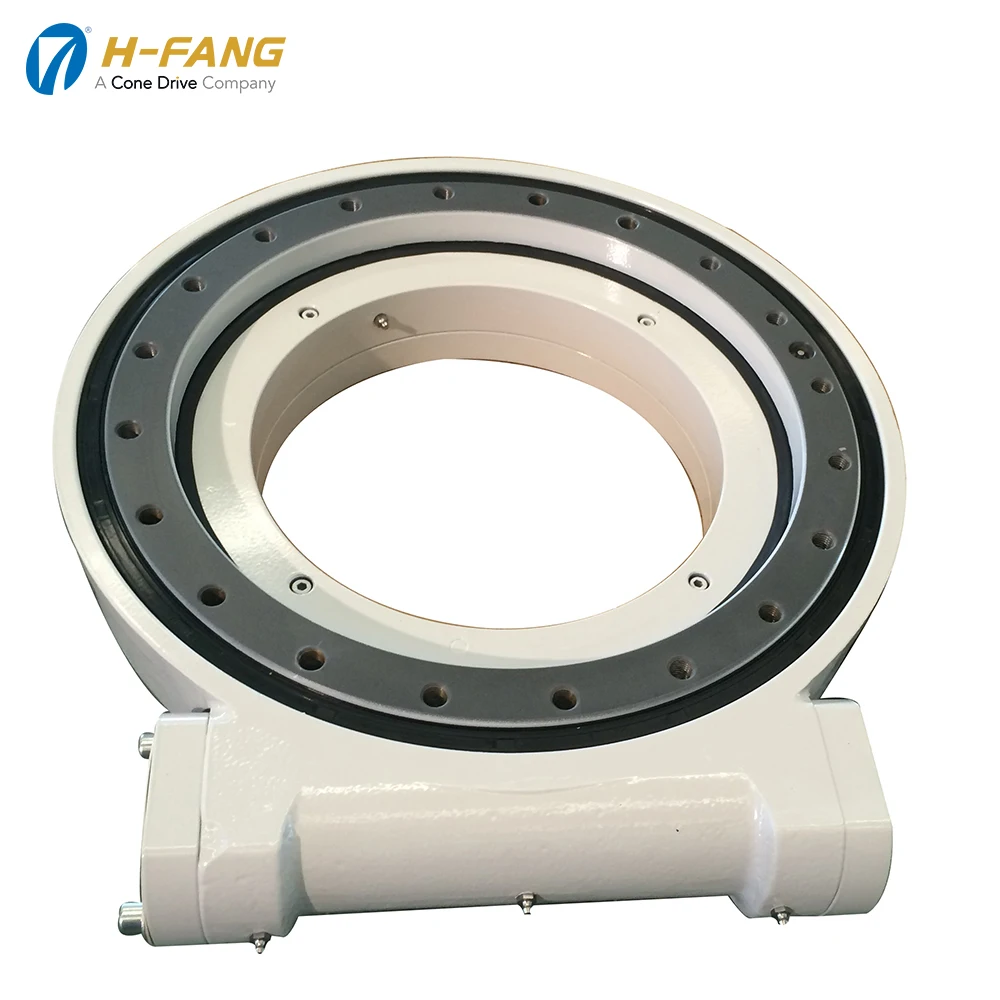

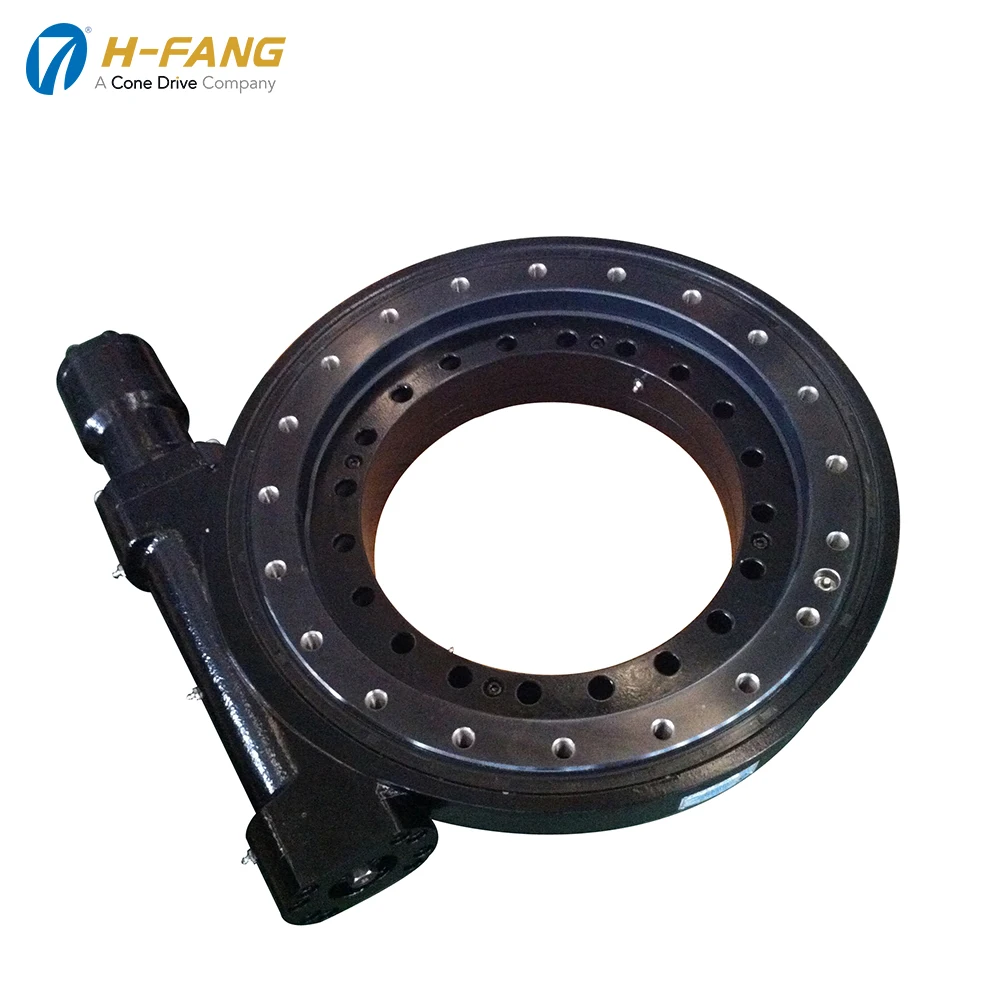

17'' worm slew drive use for forktruck rotater
H-Fang Slewing Drives and slewing bearing/ring can be used for construction equipment and automation robotics system, such as truck mounted cranes, offshore carnes, excavator.
Those products are designed for long life, working in hard environmental conditions.
Net Weight: 90 Kg
Delivery Time: Within 10 working days after order confirmed and payment received.
Hydraulic Motor for chose .
Optional Items: 200CC,250CC,315CC hydraulic motor , Encoder
Packaging & Shipping
Our Services

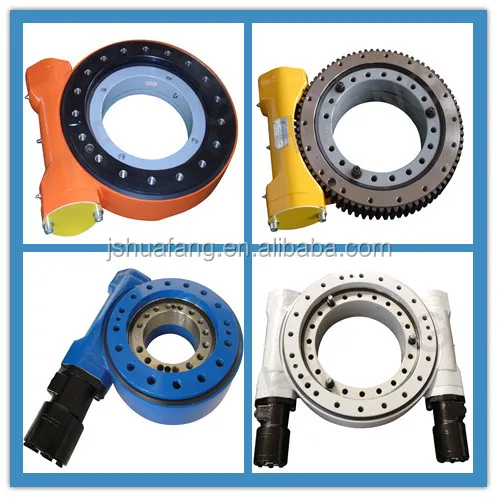

There are more than 10 different sizes, starting from 3' size to 25" inch size, among them are 5", 7", 9" 12", 14", 17" , 19" and 21". They are both widely used in solar tracking systems (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.
Attached the below model for your selection:
| Enclosed Housing Slewing Drive | SE3 | SE5 | SE7 | SE9 | SE12 | SE14 | SE17 | SE21 | SE25 |
| Precise Enclosed Housing Slewing Drive | PE3 | PE5 | PE7 | PE9 | PE12 | PE14 | PE17 | PE21 | PE25 |
| Worm Gear Slewing Drive | WEA5 | WEA7 | WEA9 | WEA12 | WEA14 | WEA17 | WEA19 | WEA21 | WEA25 |
| Dual Axis Slewing Drives | SDE3 | PDE3 | SDE7A.5 | PDE7A.5 | SDE9 | PDE9 | WDE17 | ||
| Vertical Enclosed Slewing Drive | VE3 | VE6 | VE7 | VE9A | VE17 | VE21 | WVE27 |
Company Information
We are the first manufacturer in China who registered the product standard, which will be accepted as National Standard for slewing drives very soon. Hourglass worm shaft is used in each sized slewing drive for better efficiency, more torque and smoother rotation by multiple tooth contact with the slewing rings.
