Cheap price 100mm/200mm/300mm Red Green two ball Stop and go Light/Parking LED traffic light

Product Overview

Description

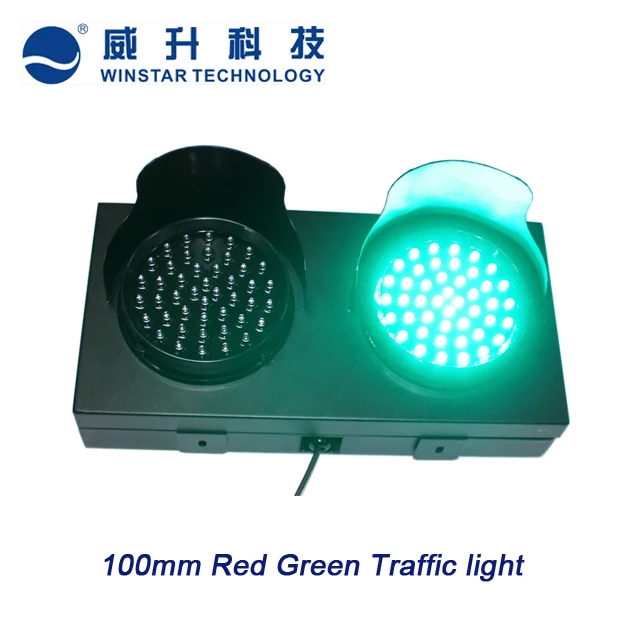

Cheap price 100mm/200mm/300mm Red Green two ball Stop and go Light/Parking LED traffic light



Product Description:

TL-RG100S is a high performance, good price traffic light, which had widely used for our car parking management system as traffic management equipment to indicate where vehicles can go or not. It has mini size and low cost but can suit for most parking lot projects.



Key feature:

1. All of our signals meet or exceed CE/FCC standards for traffic light.

2. We can configure it to match any specification, and prepare a wide range of accessories in stock.

3. LED traffic light reduces overall operating & maintains costs, energy saving 90% reduction in power consumptions vs. incandescent.

4. Reliability & traffic safety: improved visibility over life of the products reduces emergency lamps outs design minimizes sun phantom effects.



Technical Parameter:

1. 1.     Standard LED size: 100mm or 4inch
2. 2.     Color: Red and Green ( can expand or change)
3. 3.     LED QTY: 33pcs hexagon LED
4. 4.     LED brightness: more than 165cd
5. 5.     Working Voltage: 85V to 265VA, or DC12V/24V
6. 6.     Housing Material: Metal
7. 7.     Operating temperature range: -20°C to 60°C
8. 8.     Angle: Avg.≥ 30°  Down ≥30°
9. 9.     Insulation resistance: :≥2M
10. 10.  Life-span: 100,000hours



Packing Information:

Carton Size	QTY	Gross Weight	Net Weight	Wrapper	Volume (CBM)
52x36x22cm	2pcs/CTN	8.12kg	4.5kg	K=K Carton	0.04

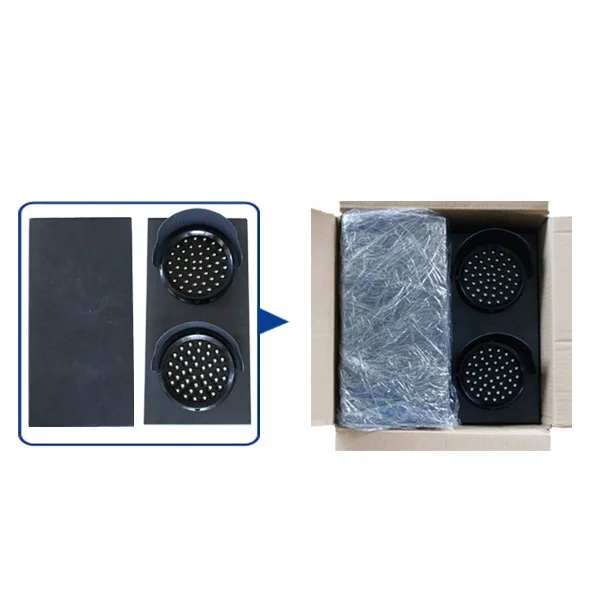

Standard packing in a carton box:

LED traffic light: 2pcs

PC Bracket: 4pcs

User manual: 1pc

Certification: 2pcs









Application:

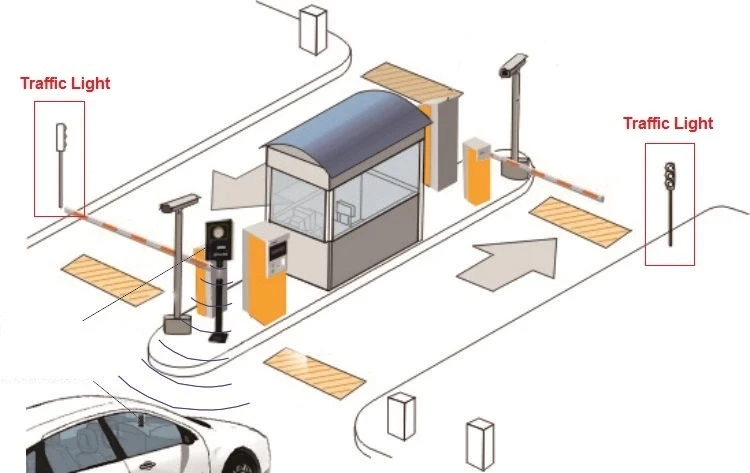

Traffic light use for parking system:





Traffic light use for stand road traffic control
