Fangyuan good reputation eps polystyrene structural insulated panels machine turkey
- Category: >>>
- Supplier: Hangzhou Fangyuan Plastics Machinery Co. Ltd.
Share on (60280328914):
Product Overview
Description
Certifications
Certification of eps machine turkey
SIMILAR PRODUCTS
Order Reviews from Customers
Product Overview

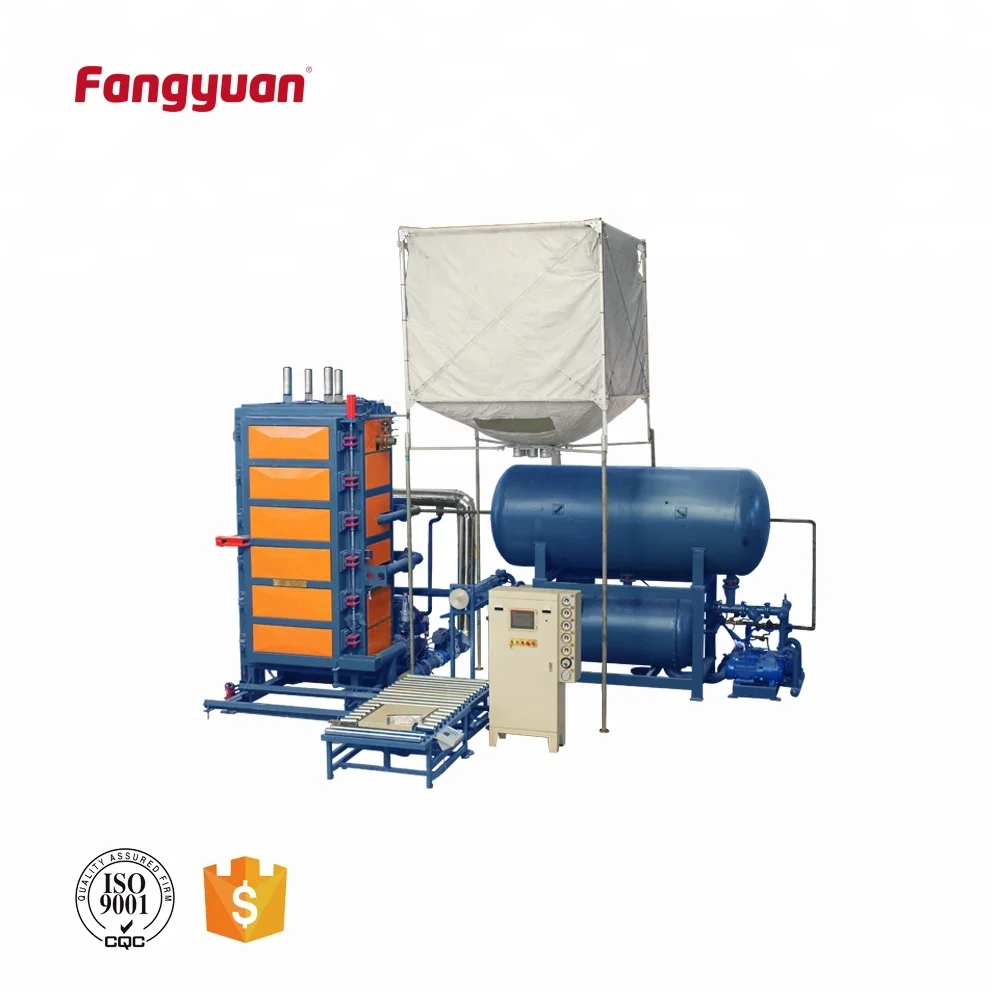

SPB200-600LF eps machine turkey
1.Machine structure:
- The machine mould are welded by strong rectangle tube and steel plate with high strength frame, keep more safety;
- All block mould frame are processed by heat-treatment, the welding pressure will be released, so the frame would not deform
easier, accurate machining process keep non-leakage;
- After heating treatment, all mould frame are processed by sand blasting treatment to get rust prevention, so under coat and
finishing coat are greatly improved anticorrosion performance and long life;
- Adopts three Germany gauges and safety valve for double protection, the machine will be water pressure and steam many testing,
ensure the machine more stable and safety.
2. Steam system:
- Adopts three ball valves to take place of one big steam valve (save steam 20%) with ISO-standard butterfly valves, greatly
improved stably and long life;
3. Control system:
- Adopts PLC(Japan Mitsubishi) and touch screen (French Schneider) with easily operation;
- Equipped with material level sensor for control the filling, the block cooling is controlled by foam pressure sensor, it is
realize the filling, heating, cooling and open block mould, the whole working procedure automatically.
4. Vertical frame type:
- less space occupied, with good drainage performance, reduced low moisture content of blocks .
Technical Parameters of eps machine turkey
Item | Unit | SPB200LF | SPB300LF | SPB400LF | SPB600LF |
Mould Cavity Size | mm | 2040×1240×630 | 3060×1240×630 | 4080×1240×630 | 6100×1240×630 |
Block Size | mm | 2000×1200×600 | 3000×1200×600 | 4000×1200×600 | 6000×1200×600 |
Throughput | 15kg/m³ | 12min/cycle | 15min/cycle | 18min/cycle | 18min/cycle |
Connected Load | kW | 9.5kW | 9.5kW | 13kW | 13kW |
Outside Dimensions | L×W×H | 2300×3800×3500 | 2300×3800×4500 | 2300×3800×5500 | 2300×3800×7500 |
Weight | t | 4.20 | 6.00 | 8.50 | 9.50 |
Room Height Required | mm | 6000 | 6000 | 6000 | 8000 |
Successful Project

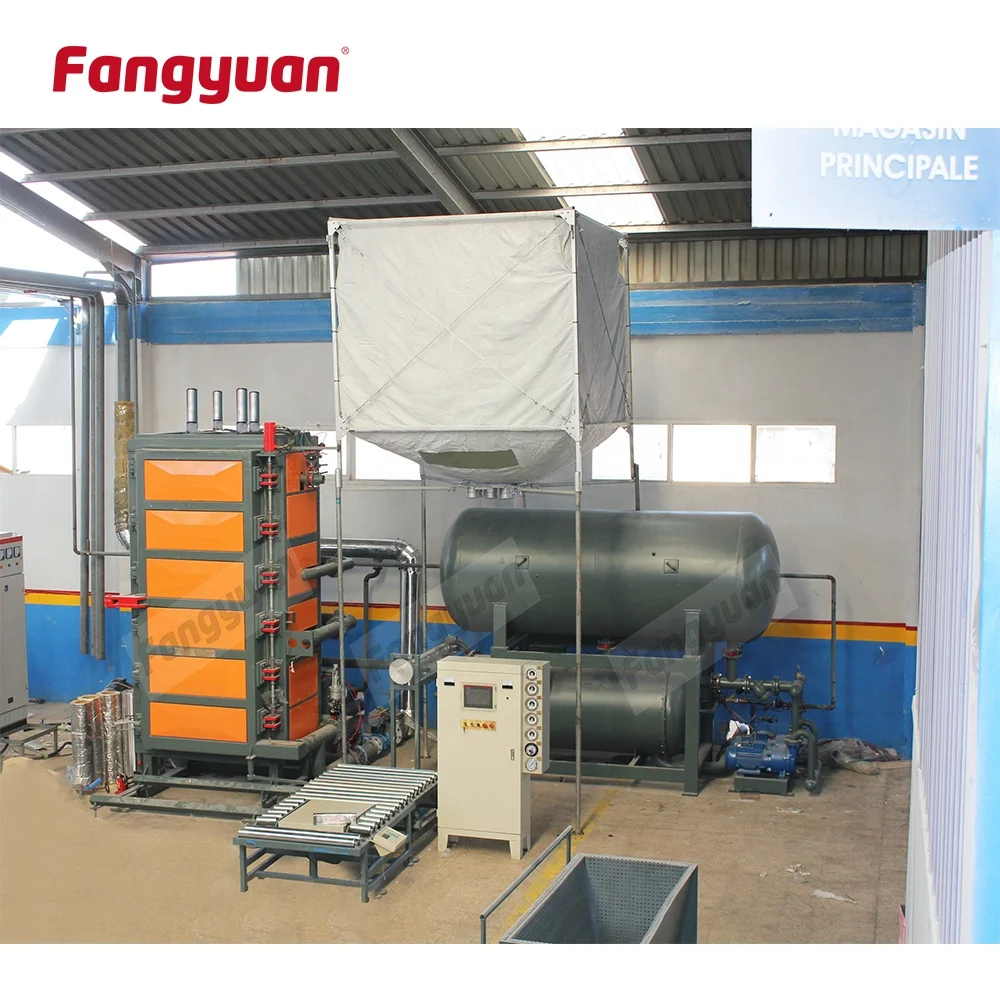

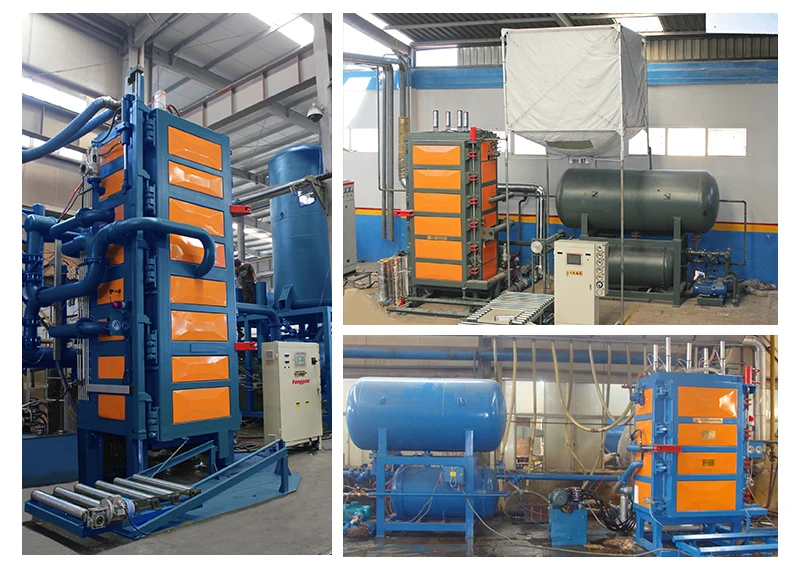

Successful Projects of eps machine turkey
Products

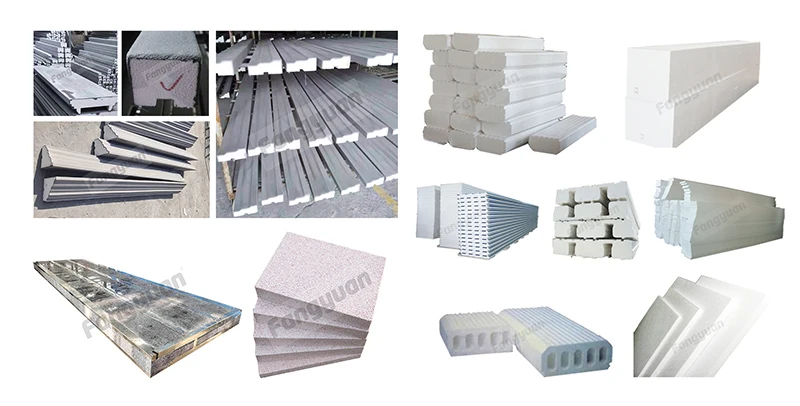

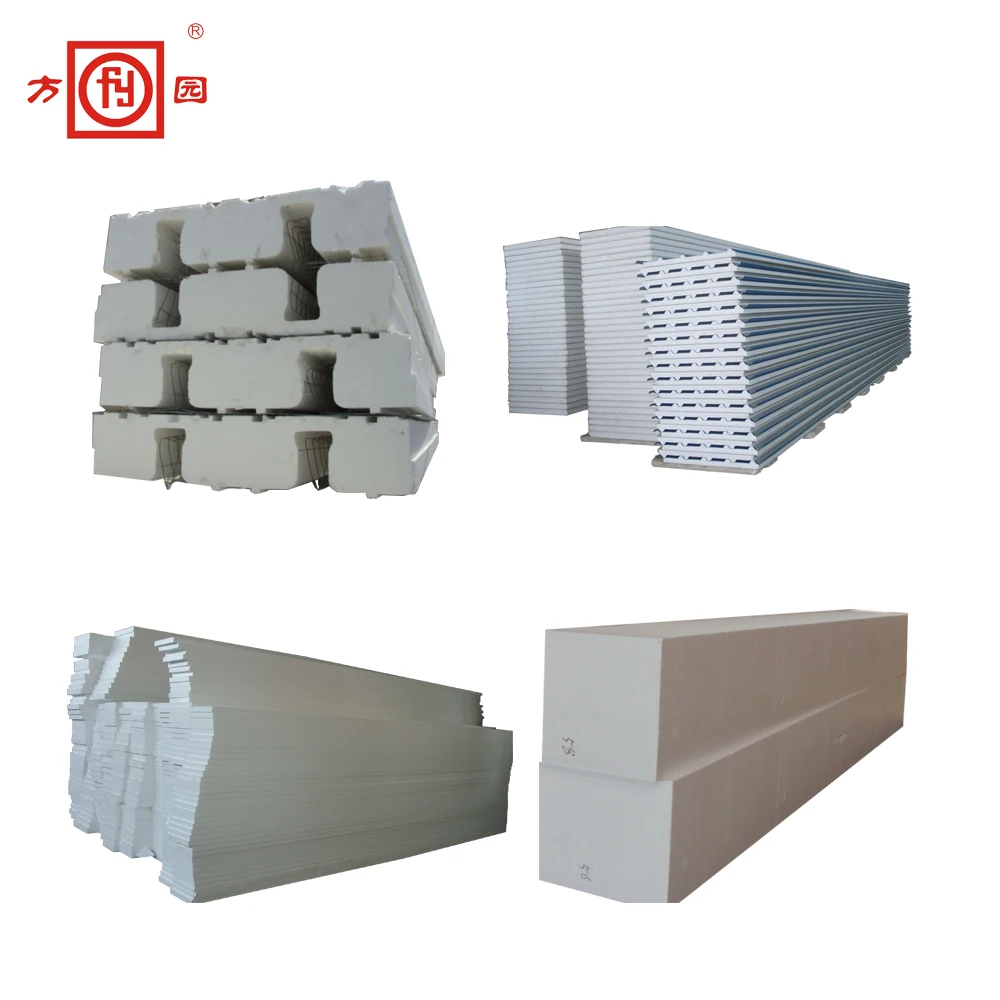

Products of eps machine turkey
Company Profile
Packing & Delivery
FAQ
Q: Are you a factory or trading company?
A: We are a factory with more than 30 years' experience.
Q: What is your payment term?
A: 30% down payment against order confirmation, 70% balance payment prior shipment.
Q:what is your delivery time?
A: usually in 30-60days, depends on your projects.
Q: Can you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.
A: We are a factory with more than 30 years' experience.
Q: What is your payment term?
A: 30% down payment against order confirmation, 70% balance payment prior shipment.
Q:what is your delivery time?
A: usually in 30-60days, depends on your projects.
Q: Can you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.
