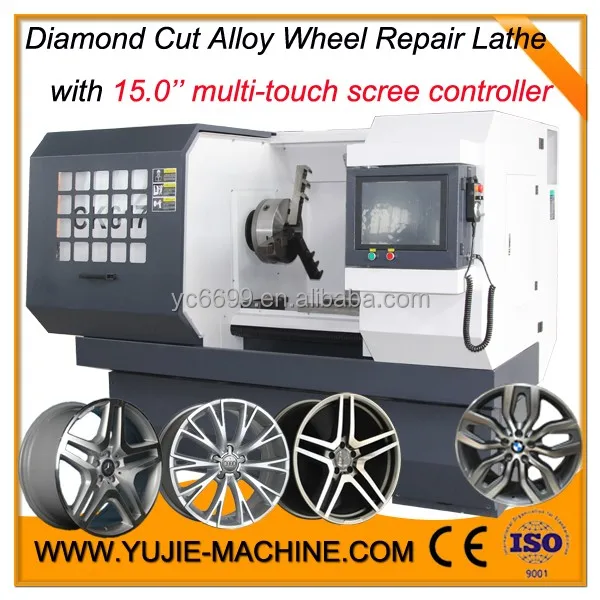

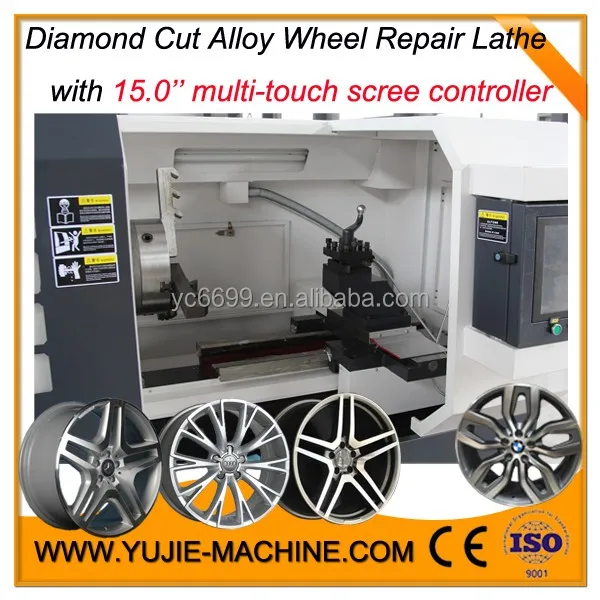

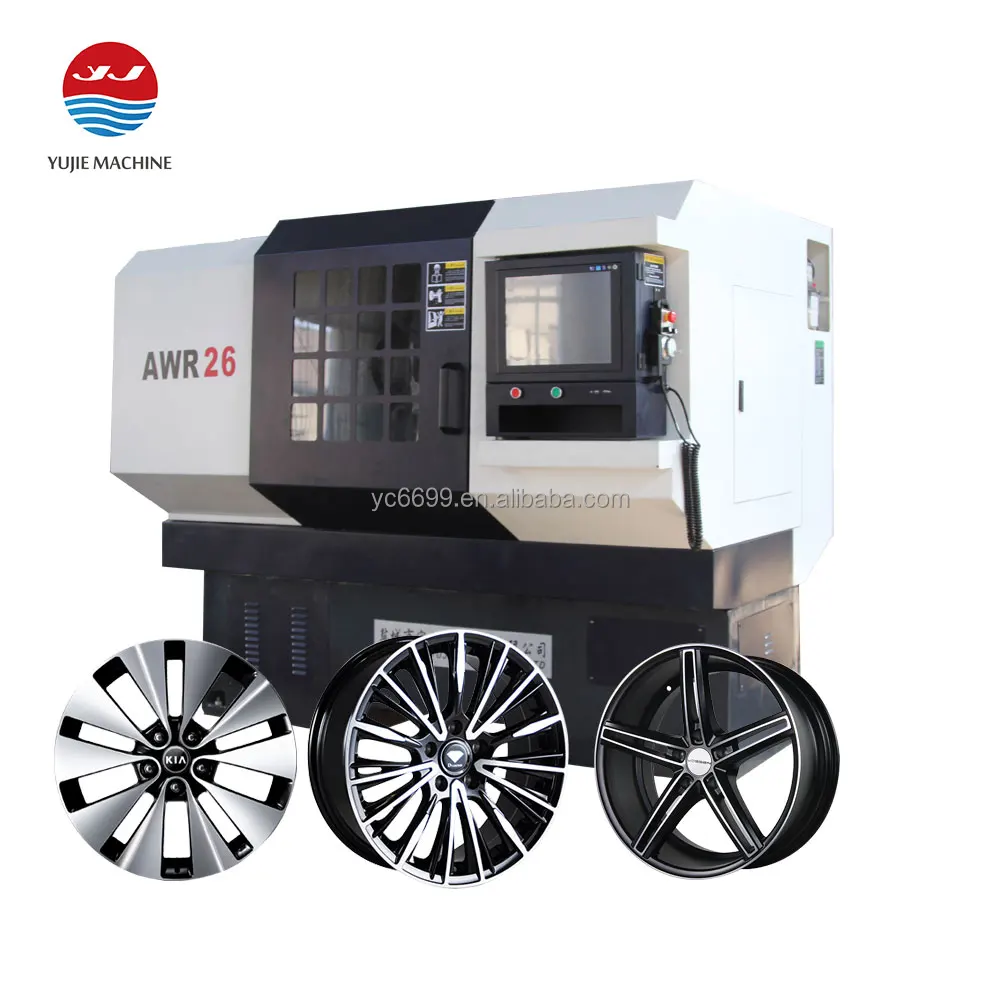

26inch AWR26 automatic probe wheel and rims repair lathe machine
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd.
Share on (60280348917):
Product Overview
Description
Product Description
15-32inch CK6260 automatic probe wheel lathe hot sale alloy wheel cnc lathe specification AWR machine
Product Features
Features As Below
- 15″ industry pc with touch screen
- 3 Jaws chuck ( with special soft jaws)

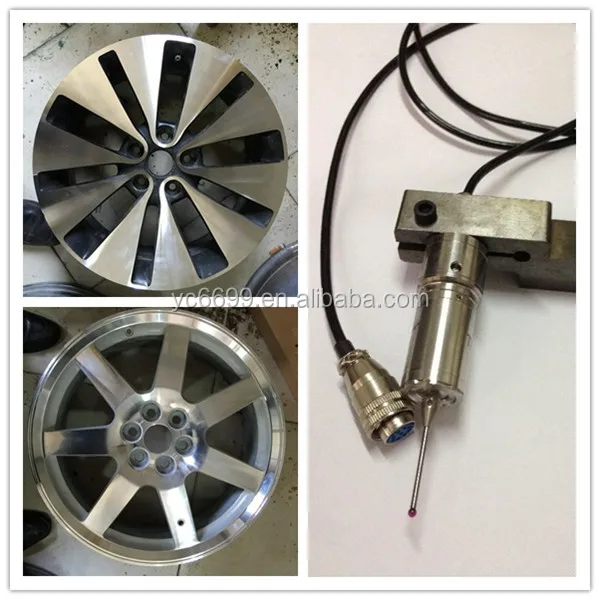

- Digitizing probing system
- Alloy Wheel repair Digital Optimization Software
- 4 position tool holder
- Diamond cutting tips( 3 sets) and CNC tool shank (2 pieces)
- Full enclose ( security guard door)
- 5KW converter motor
- X&Z axis servo motor
- Automatic oil
- Whole iron base
- Working Light
- Tool box and Training video and manual books
Specification
Parameters As Following
Specifications | |||||||
Item | Unit | AWR23 | AWR26 | AWR28 | AWR32 | ||
Capacities | Max. | mm | 600(23” ) | 660(26” ) | 720(28” ) | 820(32“) | |
Max. | mm | 700 | 760 | 820 | 960 | ||
Max. Size of alloy wheel | mm | 600 | 660 | 712(28” ) | 813(32“) | ||
Max | mm | 650 | 1000 | ||||
Width of the rail | mm | 360 | 400 | ||||
Travel | Axis | mm | X : 350; Z : 500 | X : 450; Z : 930 | |||
Spindle | Spindle | r/min | 40-1800 | 40-1800 | |||
Spindle | MT | 6# | 6# | ||||
Spindle | mm | 52 | 80 | ||||
Turret | Tool | PCS | 4 | 4 | |||
Tool shank | mm | 25×25 | 25×25 | ||||
Feeds | Rapid | mm/min | 3000 | 3000 | |||
Rapid | mm/min | 6000 | 6000 | ||||
Cutting | mm/r | 0.005-100 | 0.005-100 | ||||
Motor | Main | kw | 5.5 | 7.5 | |||
X and |
| Servo | Servo | ||||
Others | Overall | mm | 2100x1600x1850 | 2100x1700x1950 | 2450x1850x2200 | 2450x1900x2250 | |
Weight | kg | 1850 | 2300 | 3200 | 3500 | ||
Base | Separate | Whole | |||||
Company Information

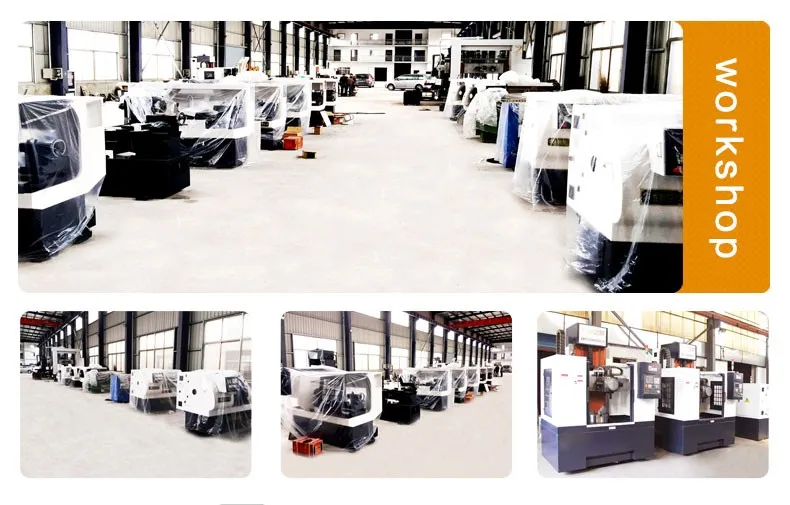

Yancheng Yujie Machine Co., Ltd is one of the leading CNC lathe machine manufacturers in china. We specialized in CNC lathe machine manufacturing for more than 19 years. We produce CNC lathe machine. Our machines are popular in the international market.

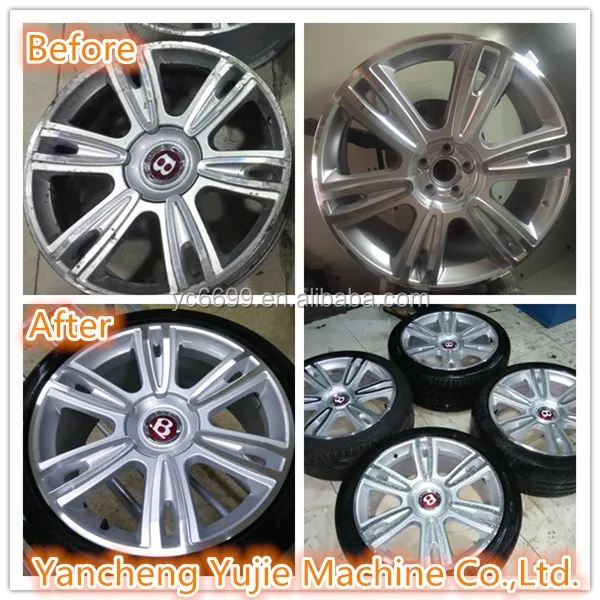

We exported about 200 CNC machines to more than 30 countries last year. The alloy wheel repair lathe machine is developed for diamond cut alloy wheel refurbishment business. We developed the first diamond cut alloy wheel refurbishment machine in China.
We began to produce and sell alloy rims repair lathe machine about 4 years ago. Now the alloy wheel repair lathe machine is our most popular product.
We are the first Chinese company that developed our own optimized software, which is easy to operate and study. The difference with the competitor is that we don’t need any other third-party software support. The software is free for our alloy wheel repair lathe machine customers. And there is no need to transfer data from PC anymore. Now our alloy wheel repair lathes have been exported to more than 30 countries and got good feedbacks.
Certifications

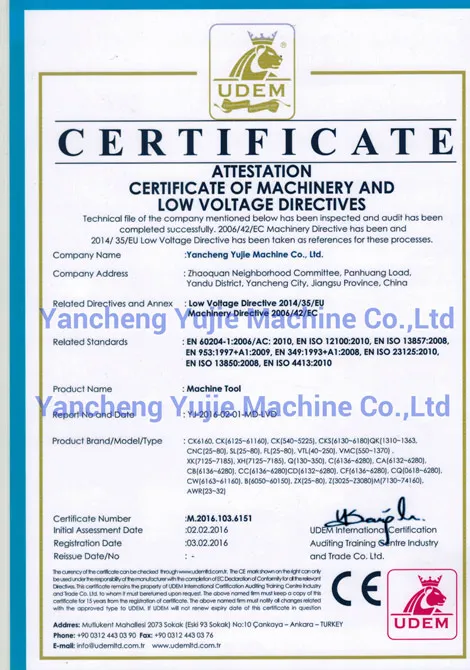

CE Certificate:
Packaging & Shipping
Standard wooden Case. Prevent damage produced in the process of collision.
Our Services
24 hours technical support by e-mail or mobile, free instruction and problem solving.
User manual ( English version) and detailed video.
On-the-spot training and installation can be met if required.
12 months warranty period, any quality problem, please contact us.
FAQ
Q:Warranty.
A:for 1-2 years guarantee.
Q:How to fix the machine when it is broke? How bout maintenance?
A:first, our machine would have no problem, cause we exported this machine for many years, always get good feedback form our customer.
But if unfortunately, if some problems happen, take photos and videos, send to us, we do inspection, then tell you what is wrong with the machine.
for small problem, then send you spare parts within 3-4 days.
for big problems, we would arrange engineer to be your company to do repairing.
Q:Where takes the training place and are there costs for the training
A:Training time only for 1-2 hours, guess you can learn it from our special video with every steps. Almost the customer learn it by themselves, or if you can not use it after watching video, then inform us, tell us when and which place you want to get training.
Q:What kind of assur-ance can you give me that everything goes as your company promised.
A:We are honest company who do exporting business for many years, we would do as contract, we can write all items on PI.
Q:Who does the installation?
A:Actually, the machine does not need installation, you just connect the power according to the menu,then you can start your machine.
Q:What are the costs of transport time of the machine?
A:Please give us your specific address, then calculate it asap for you.
