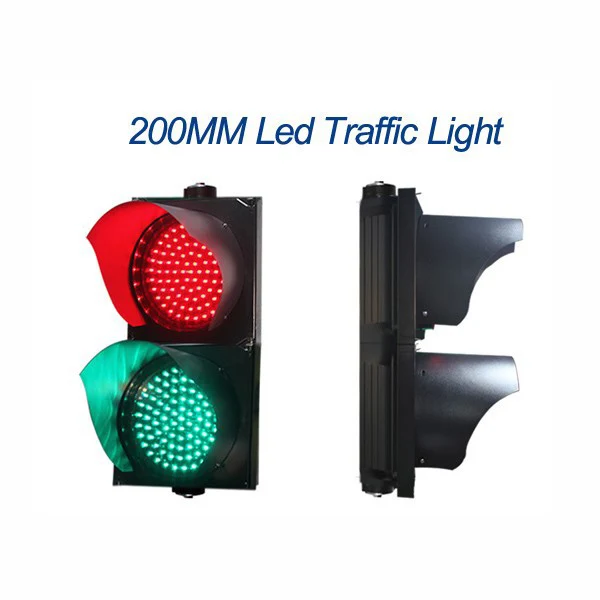

200mm PC housing vehicle traffic light/LED Traffic signal light for access control

Product Overview

Description

Product Description:

WS-TL200 is a high performance, good price traffic light, which had widely used for our car parking management system as traffic management equipment to indicate where vehicles can go or not. It has low cost can suit for most parking lot projects.



Key feature:

1. All of our signals meet or exceed CE/FCC standards for traffic light.

2. We can configure it to match any specification, and prepare a wide range of accessories in stock.

3. LED traffic light reduces overall operating & maintains costs, energy saving 90% reduction in power consumptions vs. incandescent.

4. Reliability & traffic safety: improved visibility over life of the products reduces emergency lamps outs design minimizes sun phantom effects.



Technical Parameter:



         Shape:200mm (8”)Clear cover

         High brightness LEDs with integrated optics

         Moisture and dust tight seal(IP65)

         Total Harmonic Distortion<20%(with PFC)

         OperatingTemperature:-30℃ to 60℃

         Angle:Avg. ≥60°  Down ≥60°

         Operating voltage Range:85-265VAC/12~24VDC

         Insulation Resistance:≥2M

         Life:100,000H



Features

           Energy saving

           Easy installation

          Low power consumption

          Long life time 100, 000hours

          Wide working voltage

          Waterproof IP 65

          CE&RoHS







Characteristics
Model Number	Size	Color	Voltage	LEDs	Wattage at 25℃	Luminance (cd/square meter)	Typical Dominant Wavelength(nm)
	(mm)
WS-TL200	200	Red	12~24VDC 85-265VAC	90s	<8	>400	625±5
	200	Green	12~24VDC 85-265VAC	90s	<8	>400	505±2

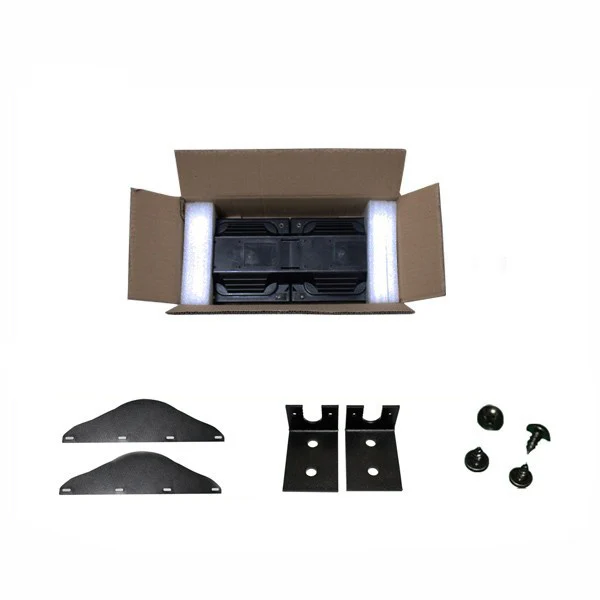

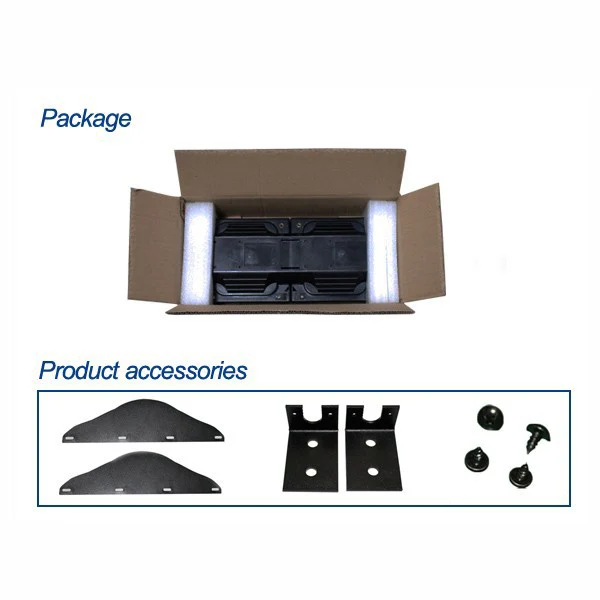

Packing:
Model	Material	Carton Size	Quantity/CTN	G.W/CTN	N.W/CTN	Packing
WS-TL200	PC	630x330x220mm	1set	5.76kgs	5.0kgs	Carton

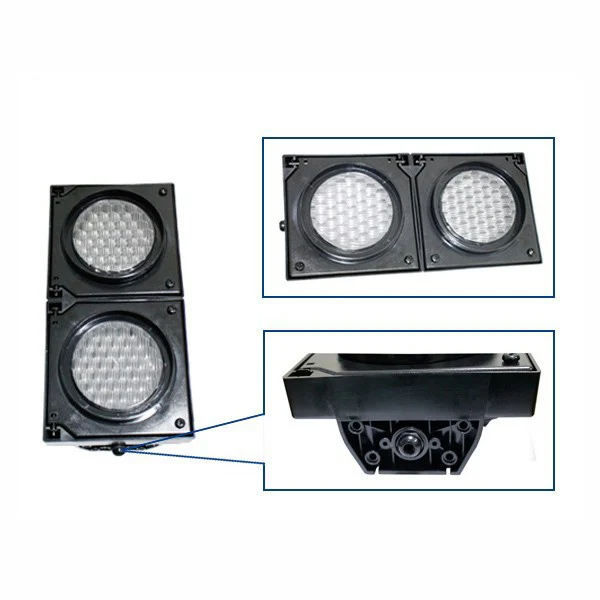

Appearance:
