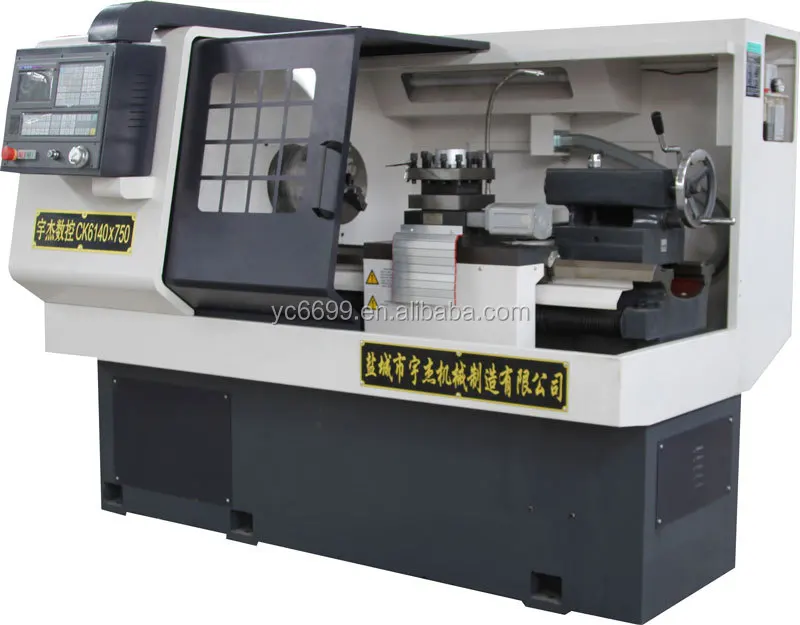

Horizontal china SIEMENS multifunctional cnc lathe machine price CK6140
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd. [Jiangsu China]Yancheng
Share on (60280842107):
Product Overview
Description
Product Description
Horizontal china SIEMENS multifunctional cnc lathe machine price CK6140
Specification
Parameters As Following
Specifications of CNC Lathe CK6140 | |||
Items | Unit | CK6140 | |
Capacity | Max.swing over bed | mm | 400 |
Max.swing over carriage | mm | 218 | |
Max turning length | mm | 750 | |
Bed width | mm | 360 | |
Travel | X axis | mm | 210 |
Z axis | mm | 680 | |
Spindle | Spindle speed range | mm | 40-1800(2steps) |
spindle nose | mm | C6 | |
spindle taper | mm | MT6# | |
Spindle bore diameter | mm | 52 | |
Turret | Tool number | No. | 4 |
Tool shank size | mm | 25×25 | |
Change tool times | sec | 2.0 | |
Feeds | X -axis rapid traverse | mm/min | 4000 |
Z -axis rapid traverse | mm/min | 6000 | |
Cutting feed(Xand Z axis) | mm/r | 0.005-100 | |
Tailstock | Taper of tailstock sleeve | MT | 5# |
Diameter of tail stock sleeve | mm | 75 | |
Travel of tail stock sleeve | mm | 150 | |
Motor | Main motor power | kw | 5.5 |
X and Z axis torque | N.M | 4&6 | |
Overall dimension(L*W*H)and Weight of CNC Lathe CK6140 | |||
Center Distance | 750mm | 2150*1300*1700mm/1600kg | |
CNC Lathe CK6140 Accessories | |
Standard Accessories | Optional Accessories |

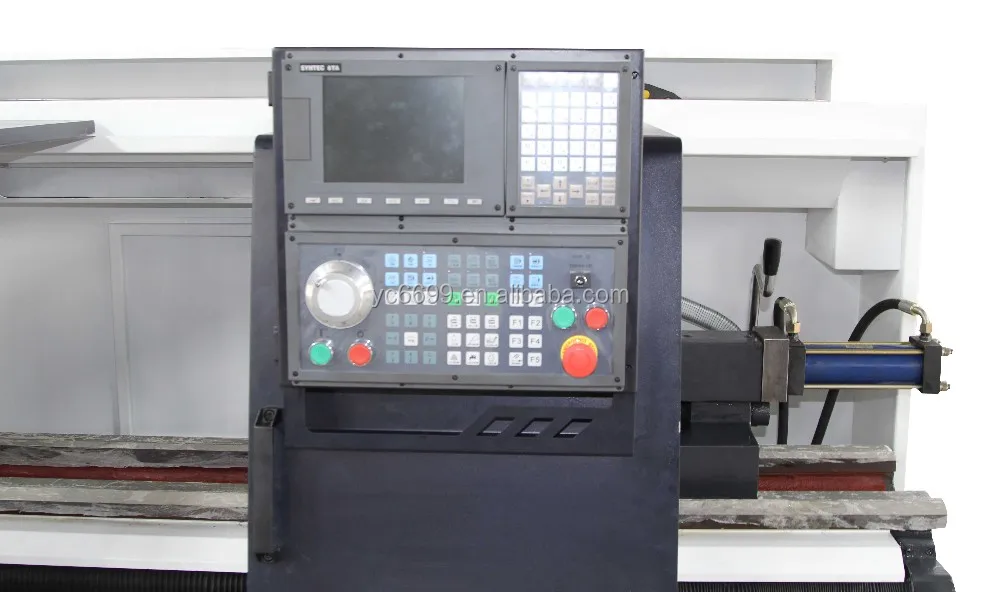

GSK980TB2 controller | GSK928TD-L/ GSK980TDc controller |
Φ250mmManual 3 jaws chuck | Φ250mm Hydraulic/Pneumatic /Collect chuck |

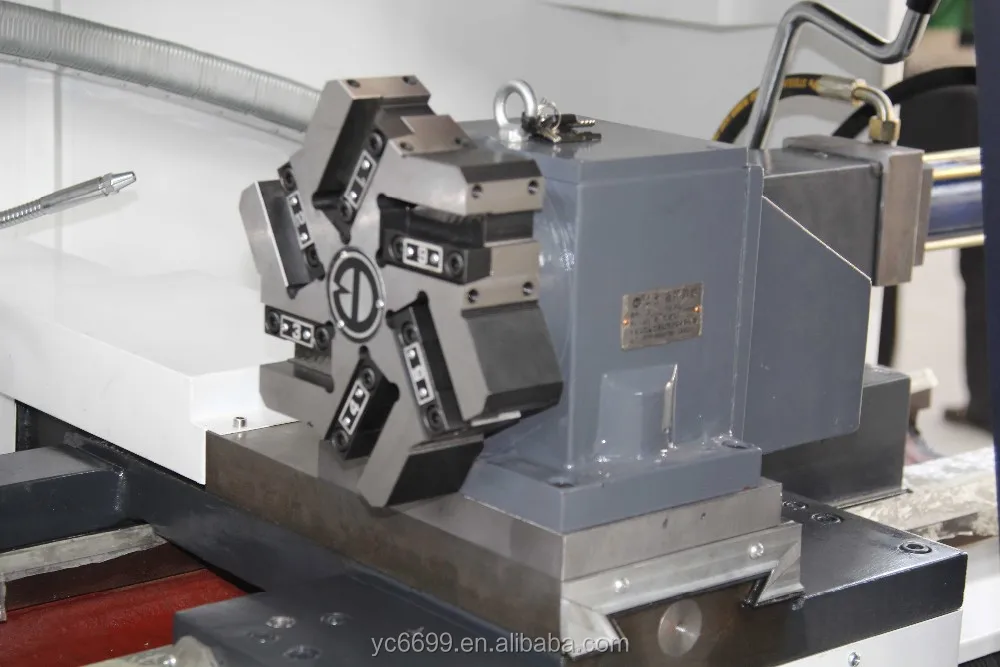

4 position tool turret | 6 position tool turret/Hydraulic turret |

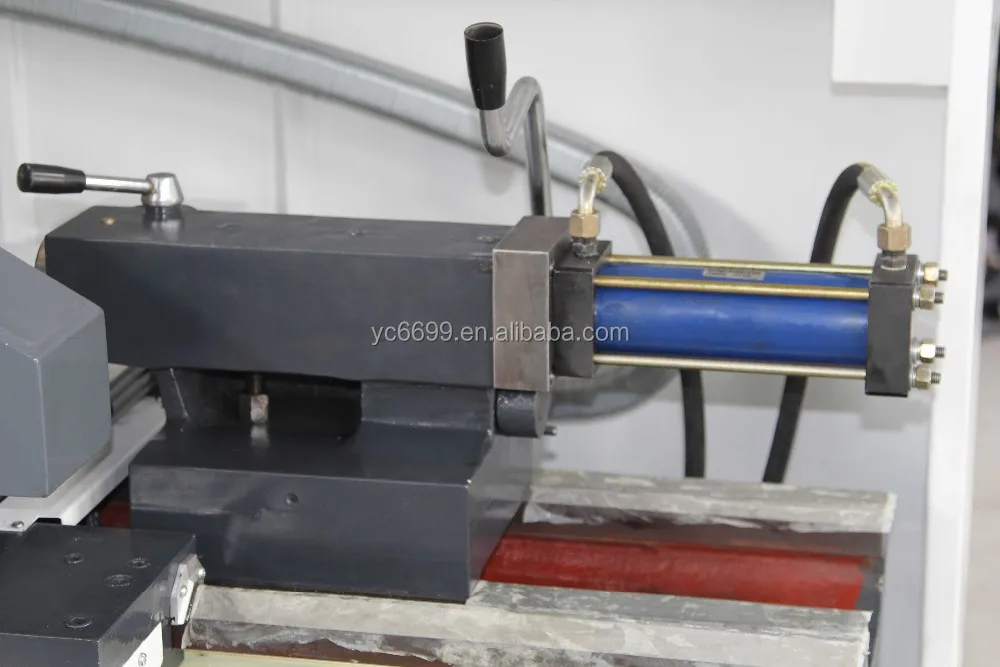

Manual Tailstock | Hydraulic/Pneumatic Tailstock |
X&Z axis AC servo motor | X&Z axis stepping motor |
Pump & working lamp | Hydraulic station |
Automatic lubricant pump | Automatic bar feeder |
Product Features
Features As Below
1.Spindle adopts HRB high precision double ball bearing, low noise, high precision, good stability.
2.The ultrasonic frequency quenched guide ways have a good wear-resistance.

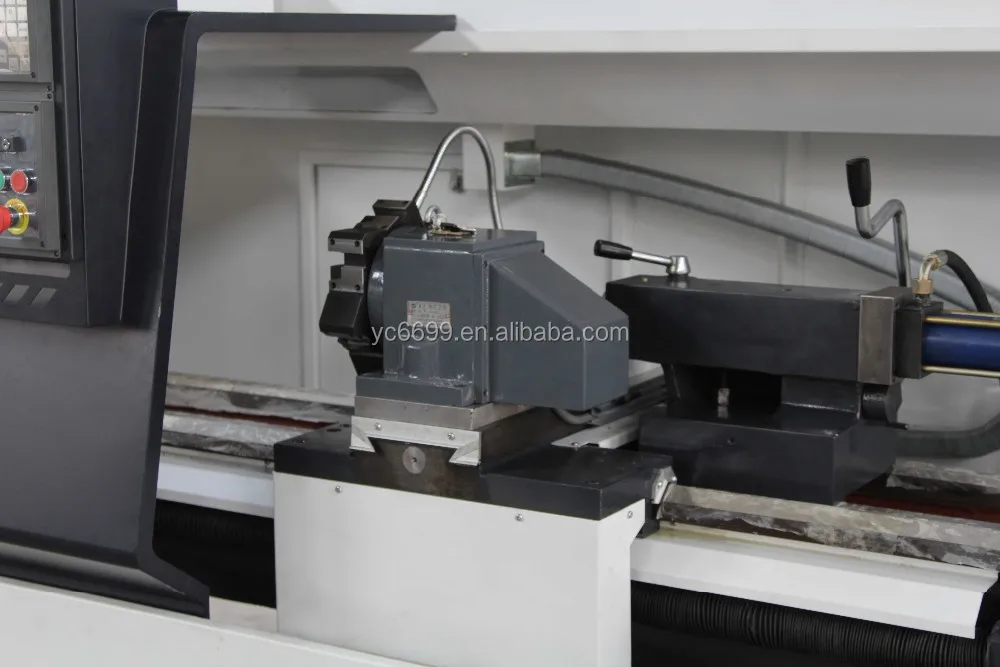

3.Electric four position turret adopts precision gear position, high repetitive positioning accuracy.
4.The tail frame has the advantages of fast cam clamping device, high work efficiency.
5.Can choose the hybrid stepping motor or AC servo motor drive.
Company Information
Yancheng Yujie Machine Co., Ltd. is a CNC lathe manufacturer based in china, was established in 2009, with original factory started from 1998. It is located in Panhuang Town, Yandu District Yancheng City Jiangsu Province. We are specialized in various kinds of machine tools for decades of years. We are doing business from researching, designing, manufacturing, testing and selling to after-sales servicing by the specification of ISO9000. we aim to provide the best service to our customers.
Our company owns ordinary lathe, CNC horizontal lathe, CNC vertical lathe, CNC slant bed lathe with high precision, CNC wheel repair lathe and other special purpose machines. Our products have obvious advantages and wide usages. It is superior to the same kind of machine tools for the large diameter of the spindle and attractive appearance with the application for different kinds of turning operations.
Yujie Machine aims to provide service to Europe, America, Russia, Middle East and Southeast of Asia with honesty, creative development, and excellent service . We are appreciated to establish a relationship with all friends and customers to share the updated technology.
Certifications
CE Certificate:
Packaging & Shipping
Standard wooden Case. Prevent damage produced in the process of collision.
Our Services
24 hours technical support by e-mail or mobile, free instruction and problem solving.
User manual ( English version) and detailed video.
On-the-spot training and installation can be met if required.
12 months warranty period, any quality problem, please contact us.
FAQ
Q: Is your company a factory or trading company?
A: Our company is a factory, doing international business for decades of years.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City, Jiangsu Province, China with convenient transportation by flight, train, and bus.
All our customers, are warmly welcome to visit our company.
Q: How does your factory do on quality control?
A: Quality is our culture.
We pay much attention to quality controlling from the environmental-friendly raw material,skilled workers to advanced testing equipment.
