CHINA SUPPLIER VERTICAL DRILLING MACHINE PRICE, DRILLING MACHINERY
- Category: >>>
- Supplier: Tengzhou Hising Machine Tools Co. Ltd.
Share on (60280857611):
Product Overview
Description
Features of Z5050A CHINA SUPPLIER VERTICAL DRILLING MACHINES PRICE, DRILLING MACHINERY:
New-designed, compact construction
Auto feed and tapping controlled by electromagnetic clutch, realize auto feed and tapping by putting any button on the feed handle
Belt driven system, spindle speed stepless
Digital display of spindle speed and cutting depth
Both motor-driven and manual-operated lifting system of worktable. Worktable can be rotated ± 180° And tited ± 45°
Equipped with coolant system, shortcut and overload protection
Ideal choice for single piee, small batch and mass production for drilling, counter boring, reaming, tapping, spot facing, etc.
MAIN SPECIFICATIONS OF CHINA SUPPLIER VERTICAL DRILLING MACHINES PRICE, DRILLING MACHINERY Z5150A:
Model | Z5040A | Z5050A | |
Max. Drilling dia.(steel) and tapping dia.(mm) | Φ40/M24 | Φ50/M24 | |
Max.Travel of spindle(mm) | 180 | 180 | |
Max.Distance from spindle to generating line of column(mm) | 360 | 360 | |
Max.Distance from spindle nose to surface of worktable.(mm) | 600 | 600 | |
Max.Distance from spindle nose to surface of base worktable(mm) | 1215 | 1205 | |
Max Travel of worktable and bracket(mm) | 560 | 525(410) | |
Swivel angle of worktable | ±45° | ±45° | |
Spindle taper bore(MT) | MT4 | MT4 | |
Spindle speed steps | 12 | 12 | |
Spindle speed range(r/min) | 42-2050 | 42-1865 | |
Spindle feed steps | 4 | 4 | |
Spindle feed range(mm/r) | 0.07;0.15;0.26;0.4 | 0.07;0.15;0.26;0.4 | |
Dimension of worktable(mm) | 580×450 | 580×450 | |
Effective working area of worktable(mm) | 820×550 | 820×550 | |
Effective of T-slot of table and base piate(mm) | 2-14 2-16 | 2-14 2-16 | |
Diameter of column(mm) | φ160 | φ170 | |
3-phase two speed Ac montor | Power(Kw) | 2.2/2.8 | 2.2/2.8 |
Voltage(V) | 220.380.420.440 | 220.380.420.440 | |
Speed(r/min) | 960/1450 | 960/1450 | |
3-phase pummotor | Power(w) | 400 | 400 |
Voltage(V) | 220.380.420.440 | 220.380.420.440 | |
Flow rate(L/min) | 6 | 6 | |
Machine dimension(mm) | 700×2150×2150 | 700×1150×2150 | |
Net weight and gross weight(Kg) | 740/800 | 800/860 | |
Sets/20' Container | 16 | 16 | |

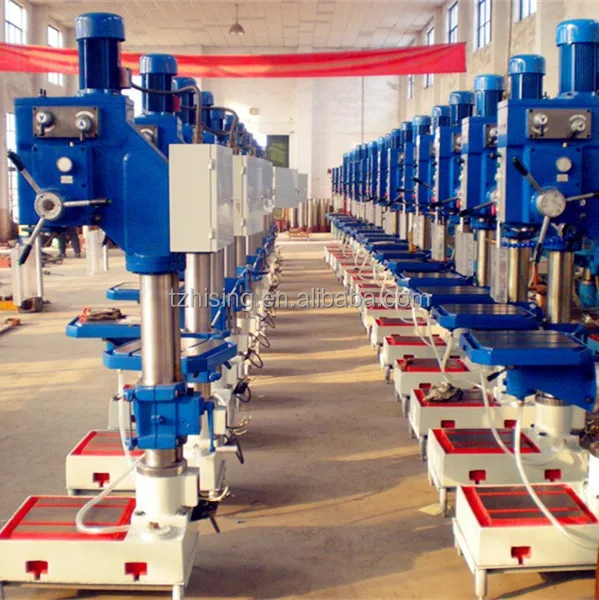

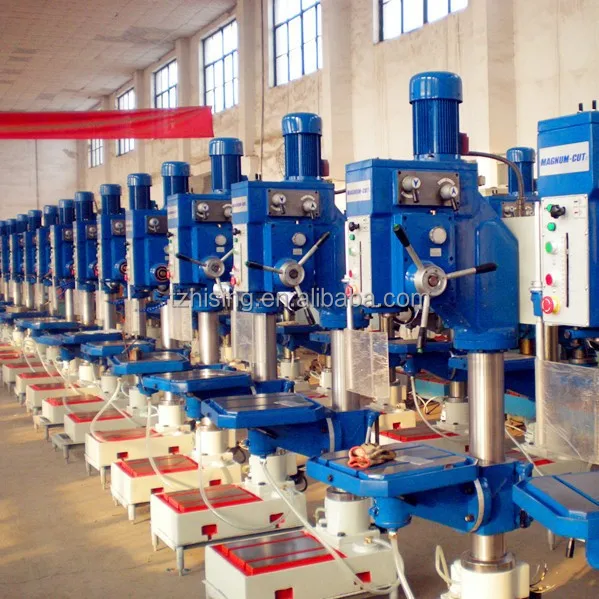

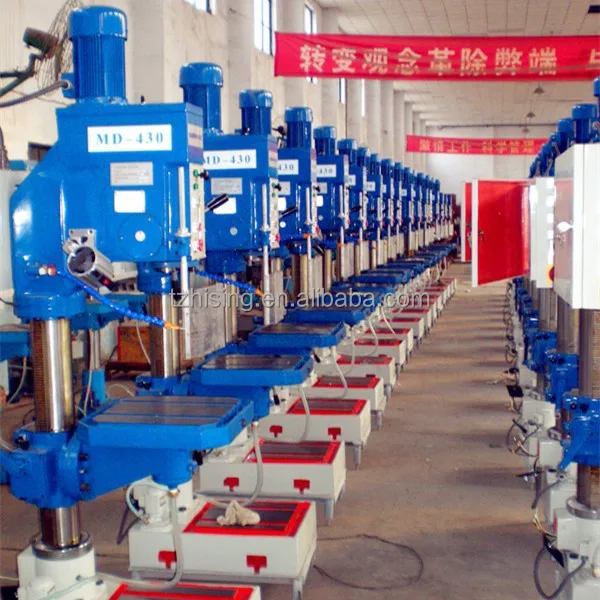

PHOTOS OF CHINA SUPPLIER VERTICAL DRILLING MACHINES PRICE, DRILLING MACHINERY Z5150A:
