Product Overview

Description

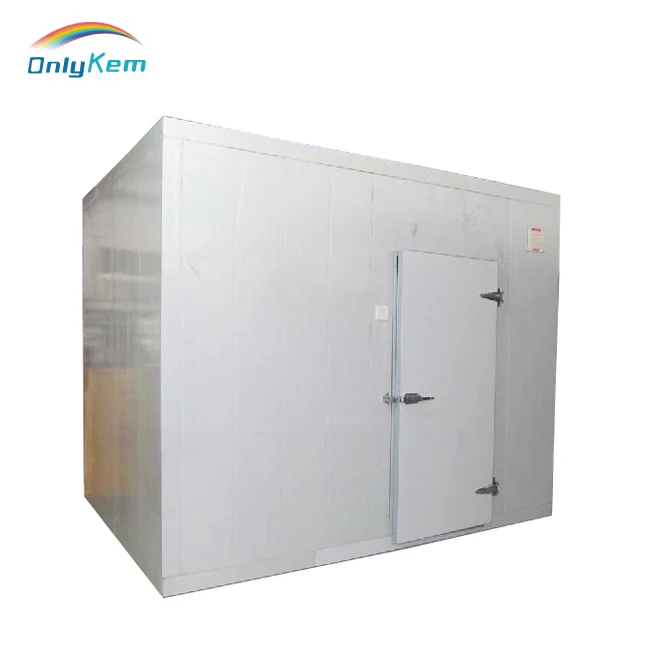

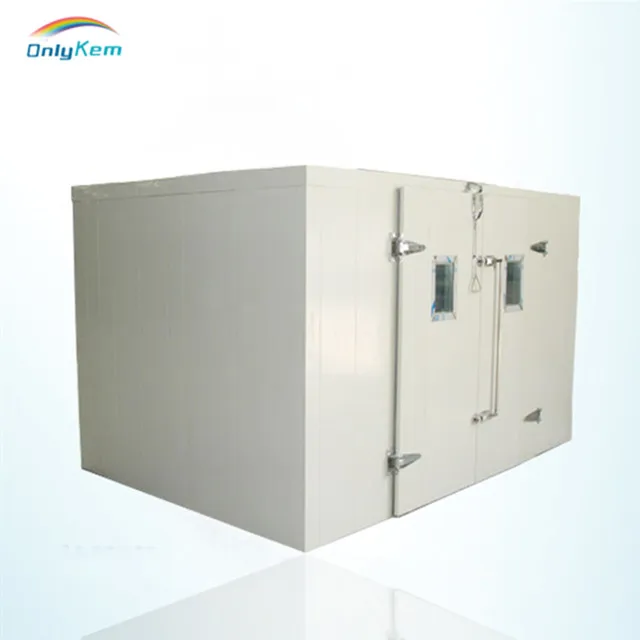

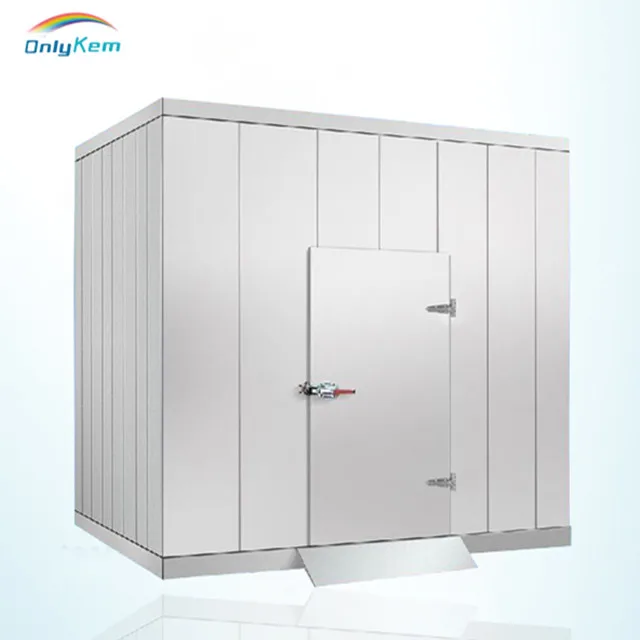

 Meat/Fish Cold Storage with PU Panel

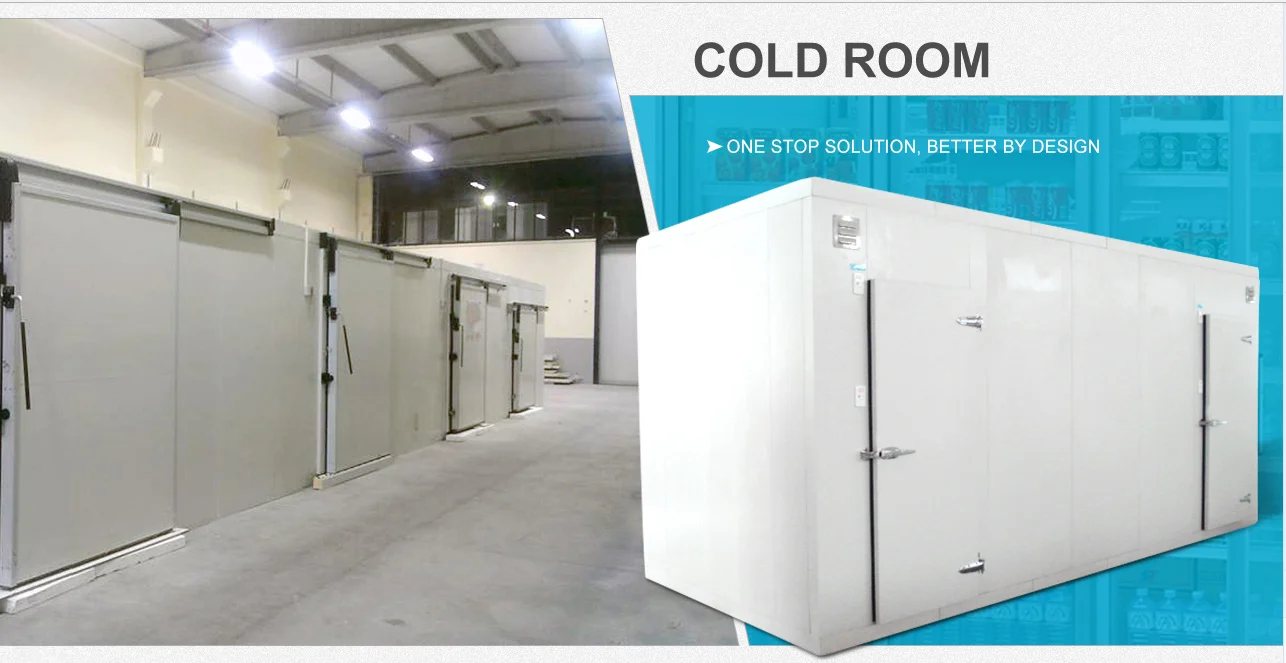

 Fish Cold Storage

Description

To Build One Fish Cold Storage



In order to supply you one suitable solution ,we will have a deep communication with you for the actual using before our engineer make it . Such as the kind of the fish, input temperature, volume in one time, inlet or outlet frequency,storage period etc.Then work out one fish cold storage solution .



For example :Different types of fish affect the setting of fish cold storage, also determines the fish cold storage design of different equipment selection. Ordinary shrimp, crab, fish in the -18 ~ -23 ℃ under the temperature will be able to keep fresh, extend the storage period. But for the tuna need -55 ℃ or less to maintain freshness and storage period. In the case of other factors such as storage volume, access frequency and so on.



Also the match machine is different if the input fish state is different . One situation, after fishing from the sea or lake, then put into operation room for cleaning, sorting and packaged; another is in the frozen state . The former need to be based on a one-time storage volume configuration -30 ~ -40 ℃ to quick freeze it that reach the frozen state, which the latter according to the amount of one-time storage capacity of -18 ~ -23 ℃ fish cold storage to achieve long-term Storage .



Products Show
Fish Cold Storage12HP Condensing unit air cooling units-100

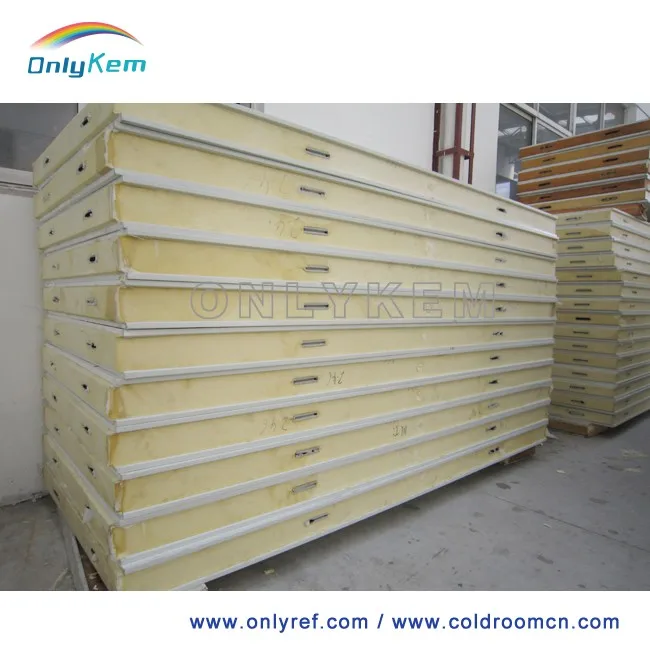

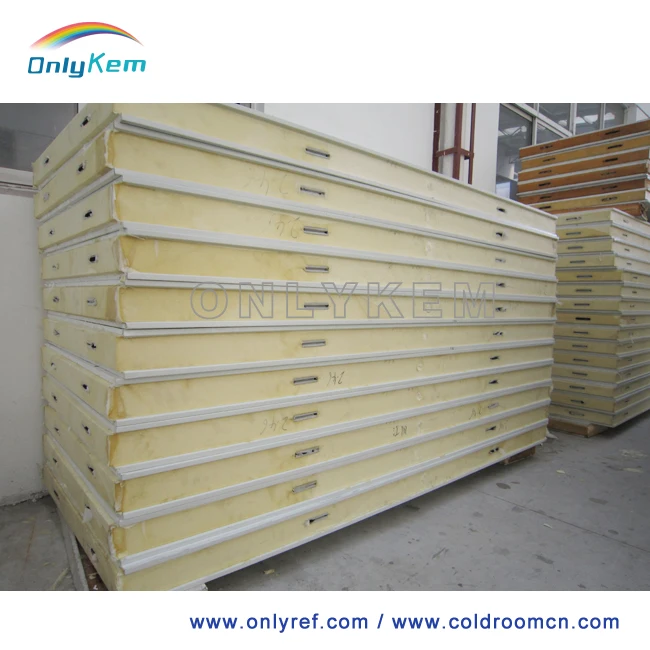

PU/PUR/PUF Panel For Fish Cold Storage

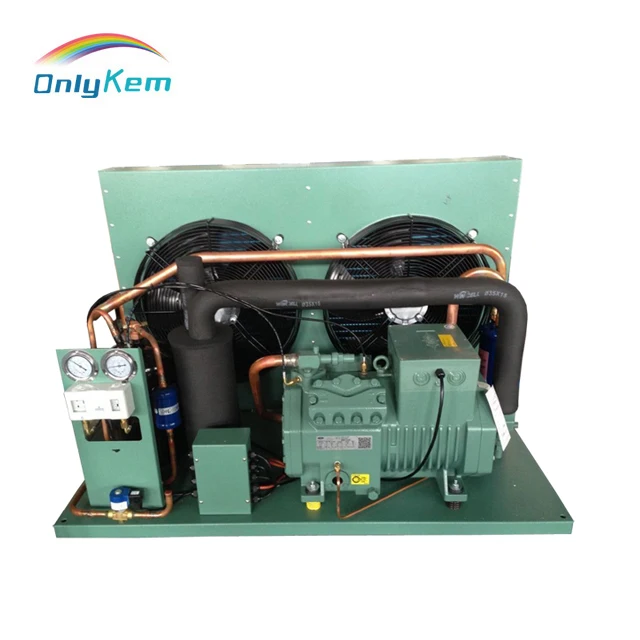

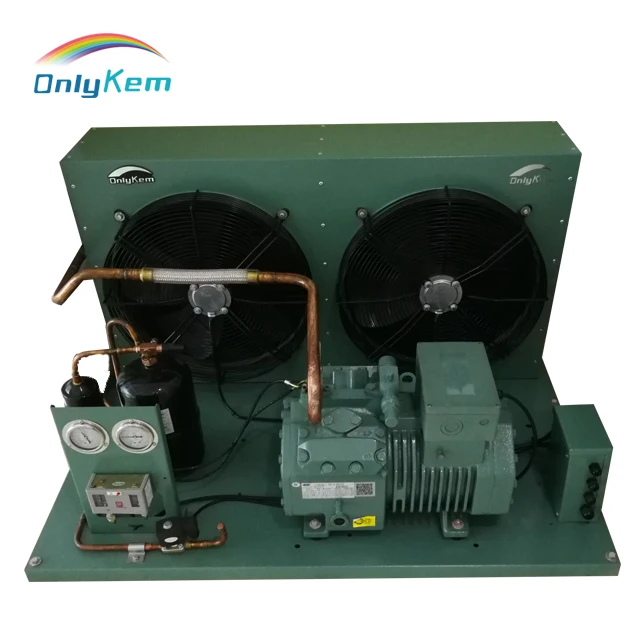

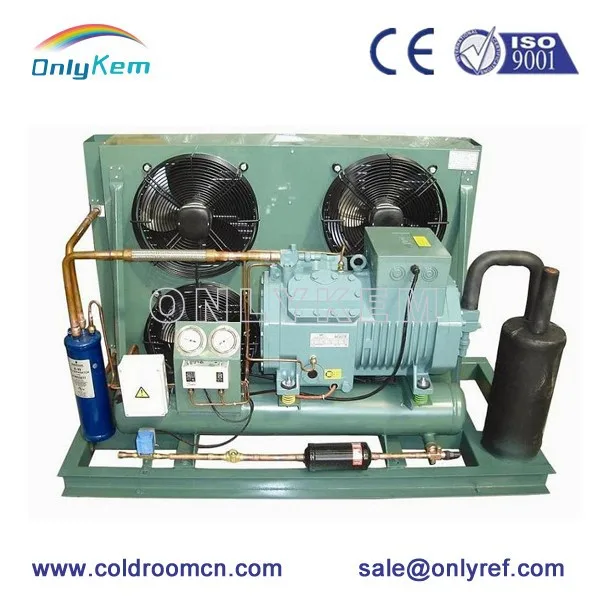

Refrigeration Unit / Condensing Unit For Fish Cold Storage

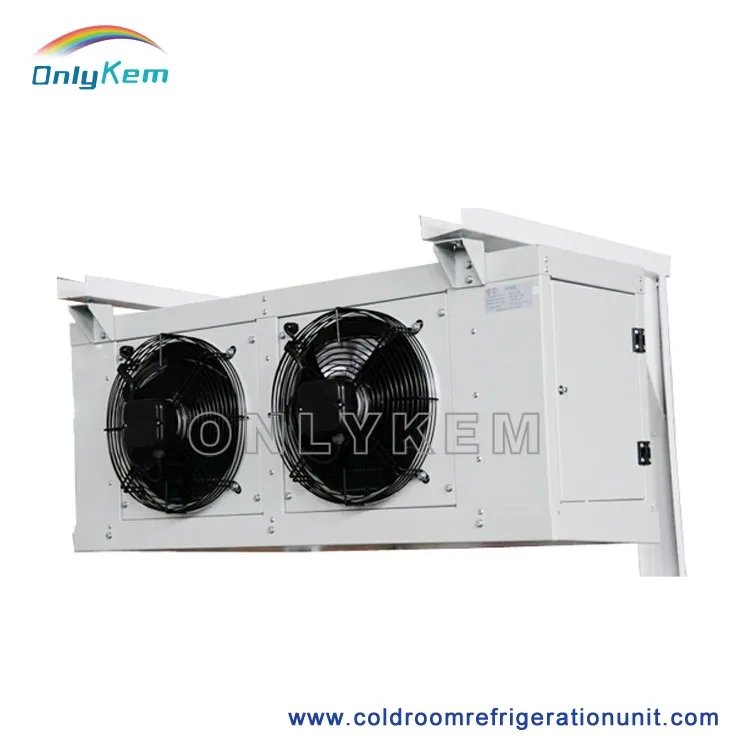

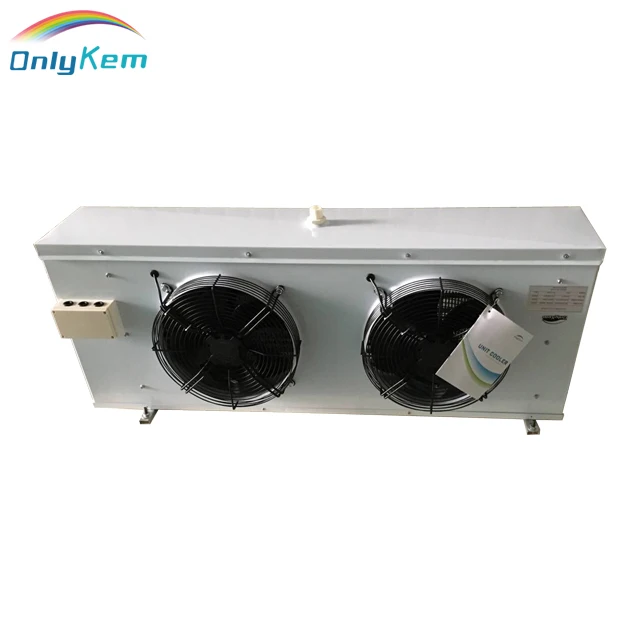

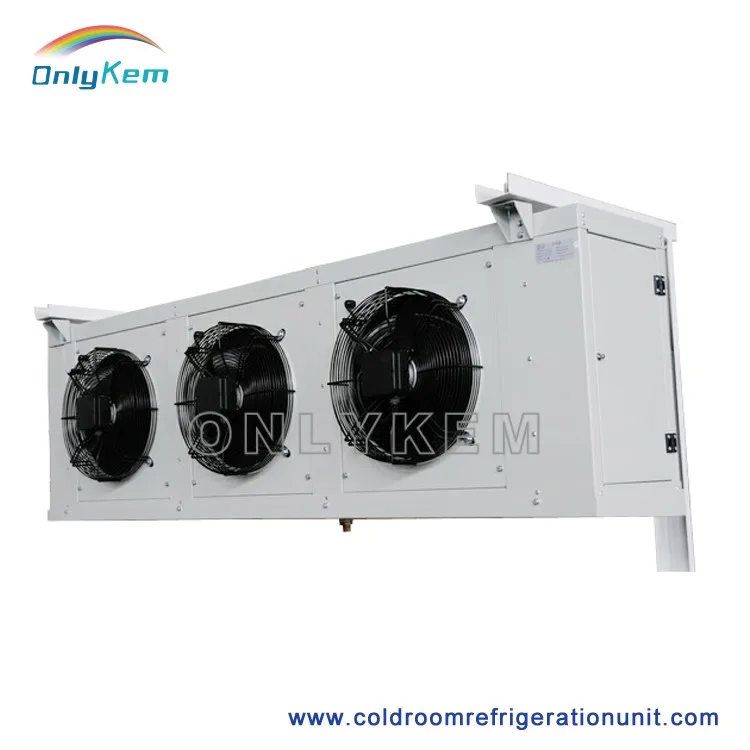

Air Cooler / Evaporator With CE

1.PUF Panel Usage : Removable, expansion, re-use;
2.Fire grade : B1-B2 fireproof grade;
3.Waterproof : rate <4%,44kg/m 3 density;
4.Surface steel:can be color steel or 304/316 stainless steel
5.New Material: cyclopentane (CFC free ),more environmentally friendly.
1.Compressor brand: Germany Brand Original Bitzer;
2.Axial fan: IP54 grade protection grade brand;
3.Blue fin/Hydrophilic aluminum foil :good anti-corrosion performance;
4.Including parts:Compressor,Solenoid valve ,HP/LP pressure controller, High pressure gauge, Condenser, Liquid receiver, Dry filter, Oil separator ,suction Accumulater ,all valves,etc;

1.Blue fin/Hydrophilic aluminum foil :good anti-corrosion performance; more suitable for fish cold storage using .

2.Diameter :Φ15.88mm of copper pipe;
3.Thickness of copper pipe wall :0.4mm of copper pipe wall;
4.Electric heating pipe : Italy brand,stainless steel material .

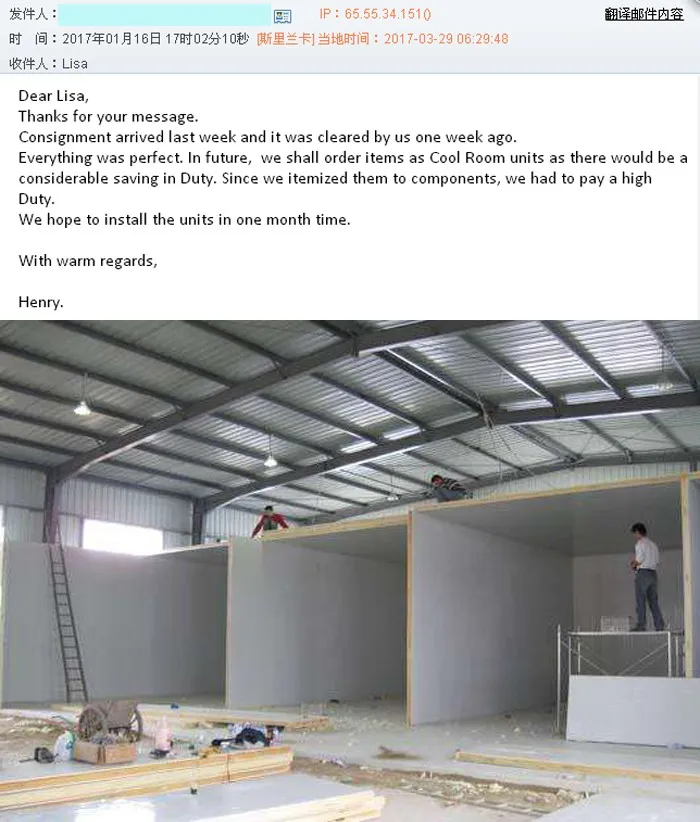

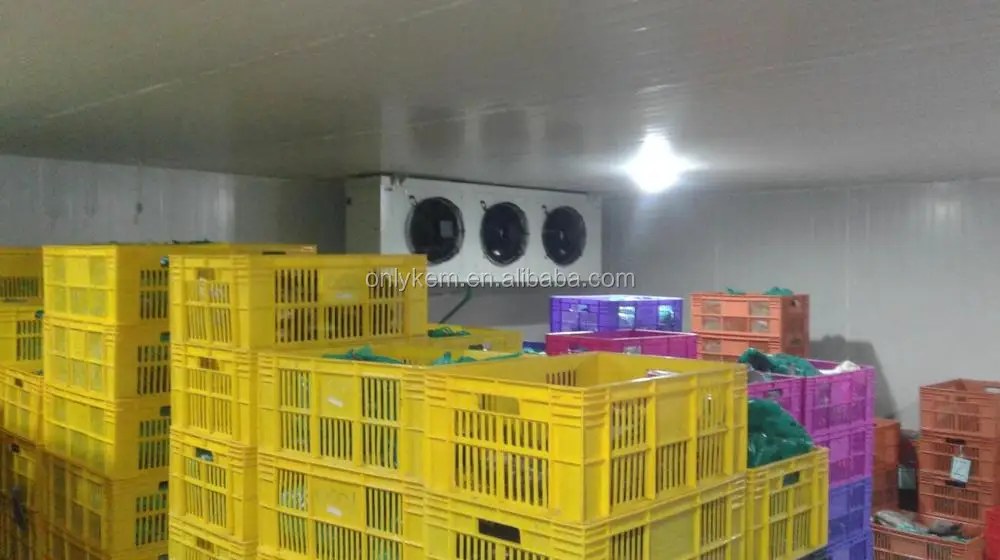

Customer Feedback
Fish Cold Storage
 Cold Storage

 Cold Storage



Package Details



 Cold Storage Cold Storage

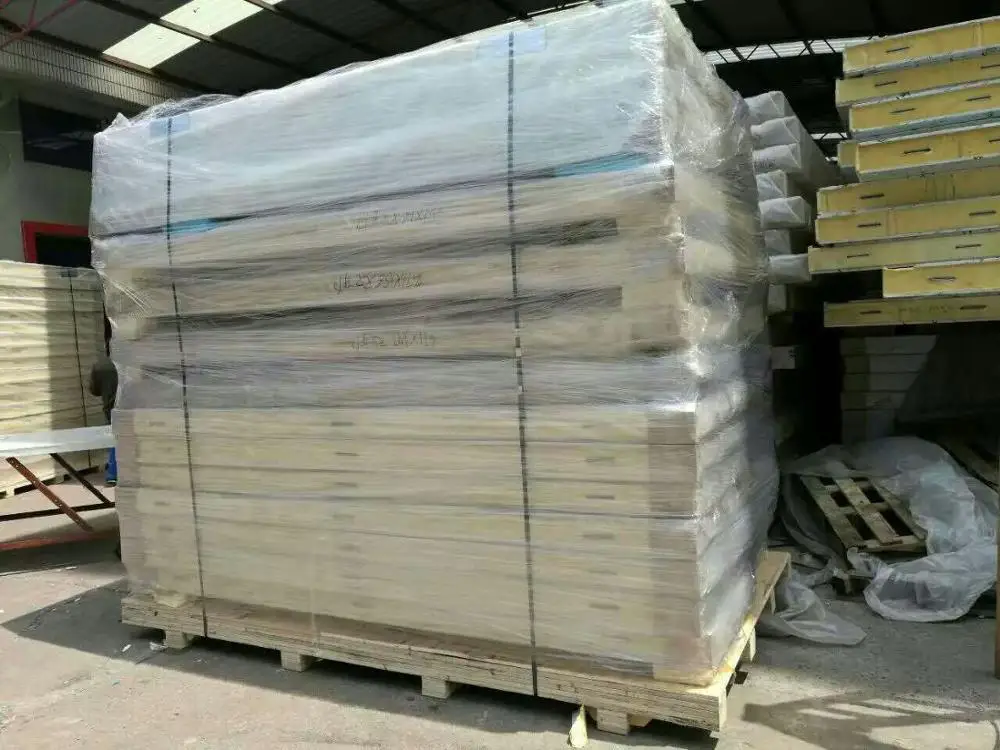

Package For PUF Panel  Door For Cold Storage

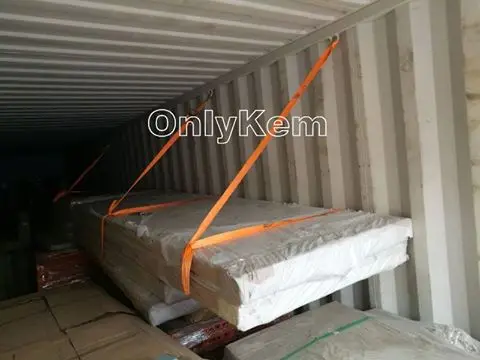

Use Packing belt to fix the panel in the container for shipping .

Package For PUF Panel  Door For Cold Storage



Each PUF panel is well wrapped with plastic film respectively,each corner use hard kraft paper wrapped well. Also will do some special packages in LCL shipping.

 Cold Storage Cold Storage

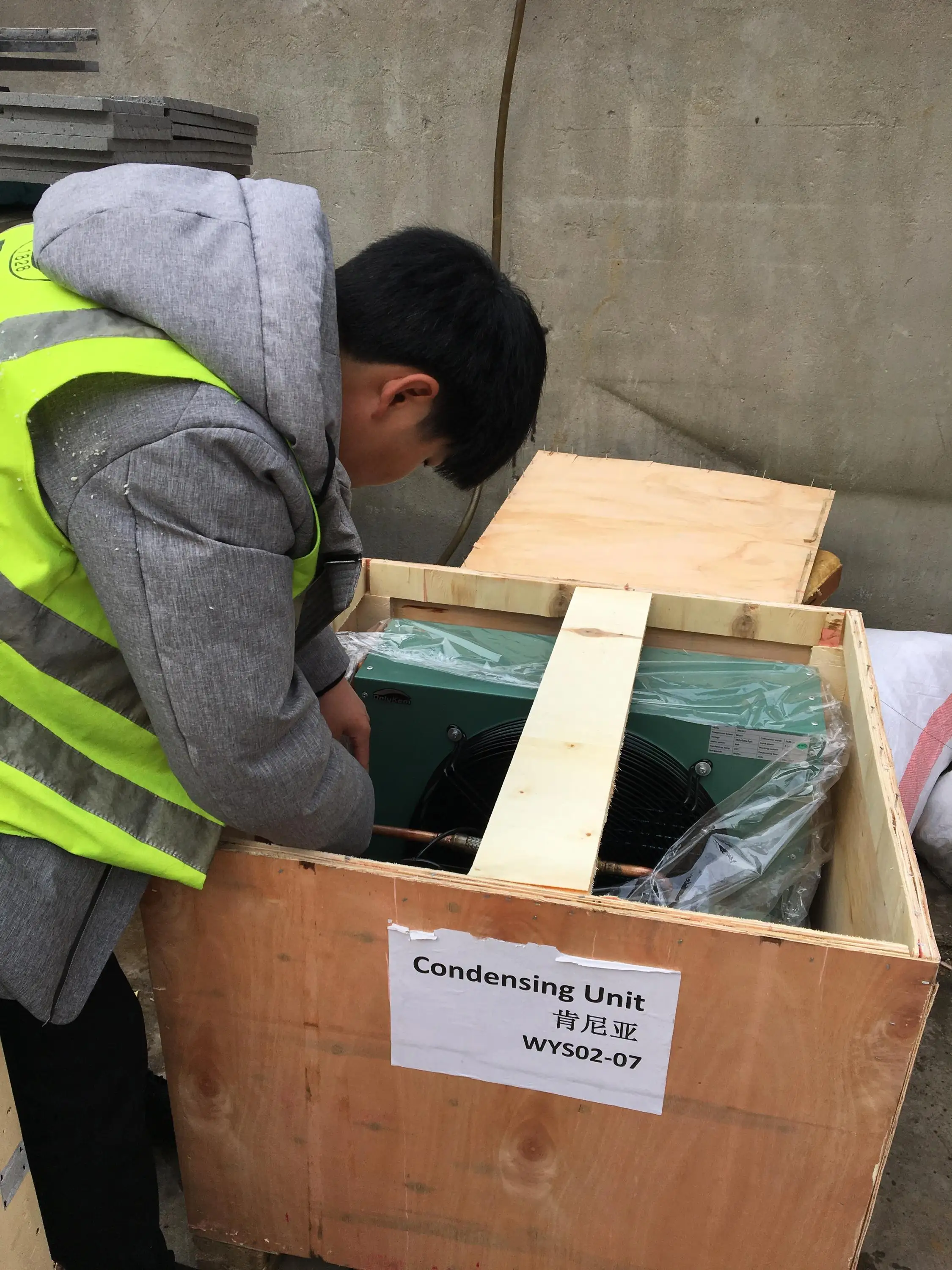

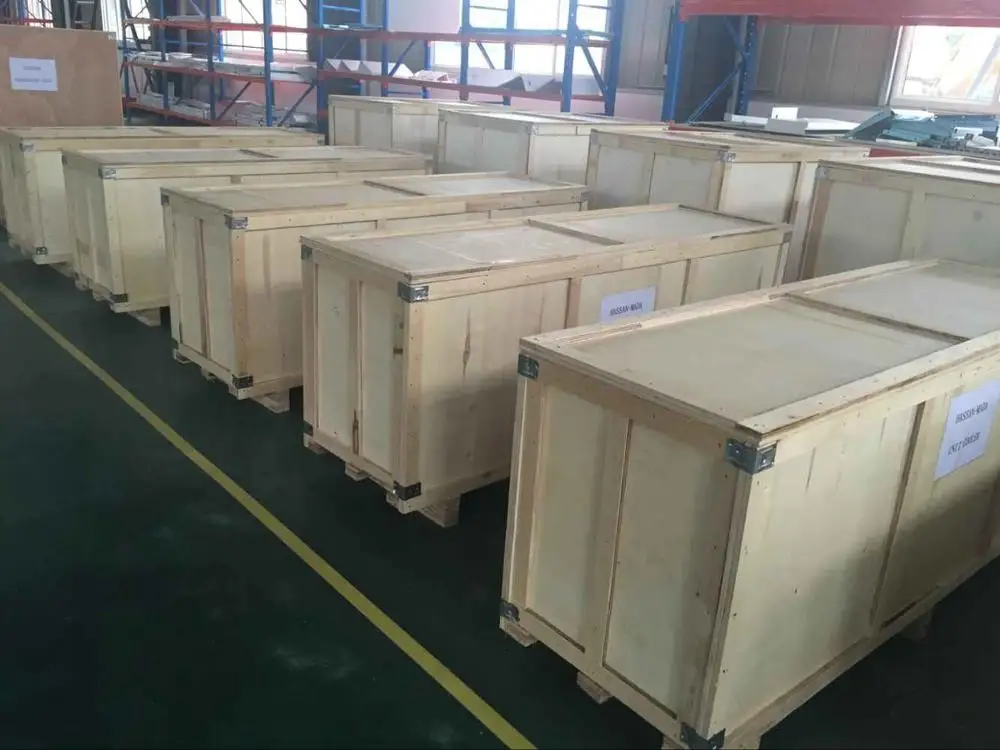

 Machines Package For Fish Cold Storage



Both the LCL and FCL shipping , we all use plywood box with wood pallet on the bottom,sturdy packaging to protect the machine.



FAQ

Some Normally Questions With Fish Cold Storage .( Meat and Fish Cold Storage with PU Panel )

1. Is there oversea service for fish cold storage installation ? Can you send engineer to our country ?
Yes.
2. Does your cold storage can store fruit ,vegetable,meat and fish together ?

OnlyKem advice is to store them in two cold storage, or use two different cooling systems. Cause the fruit,vegetables and fish,meat will need different temperature to store. For foods, separate storage can avoid string taste ;for machines,each compressor have its best using condition and temperature range, otherwise it is not good for the refrigeration machine long time using.
3. I am not sure the cold storage storage size ,maybe will store about 10 tons fish.

It is ok, for 10 tons meat cold storage, 5x4x3m will be ok. You also can send me your drawing or land size,then will give you more advice.
4.Do you have your own factory ? I need the best price.

Yes,that is why we can supply the best price and short delivery time. Welcome you to visit our factory.
