 China tablet filling series Effervescent Tablet Tube Filler suible for Various tablet packaging and Vitamins c with good service


Detailed Product Description

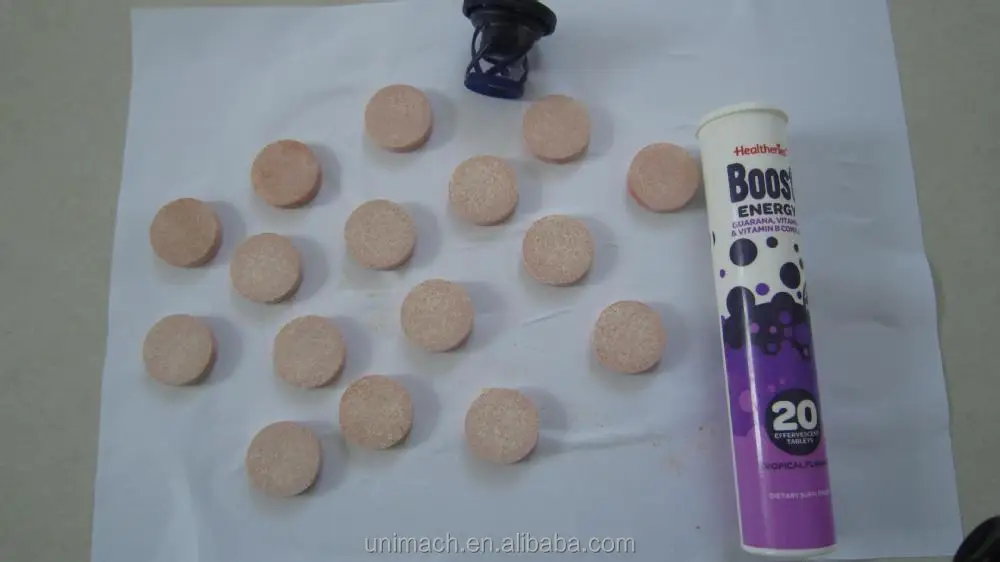

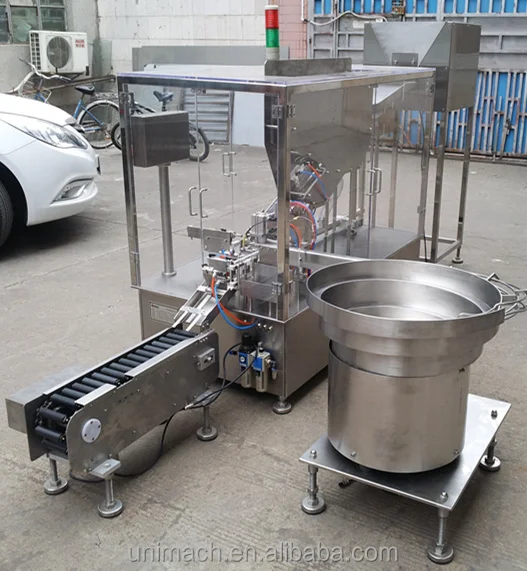

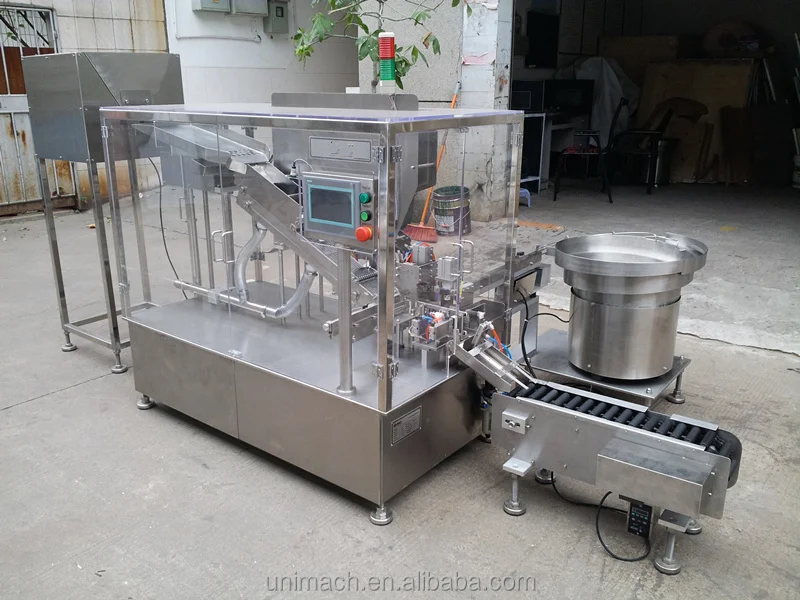

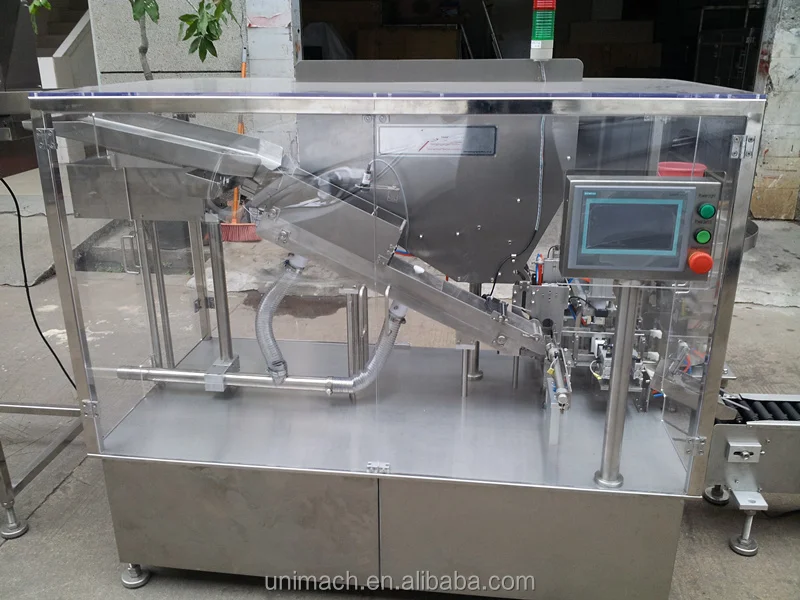

Tube Filling Machine For Tablet is applicable to the packing bigger and thinner tablets which are orderly fed into bobbin bottles in single row in an overlapping way.
This unit is safe, efficient, accurate and clean.It sells well with its high quality and performance.

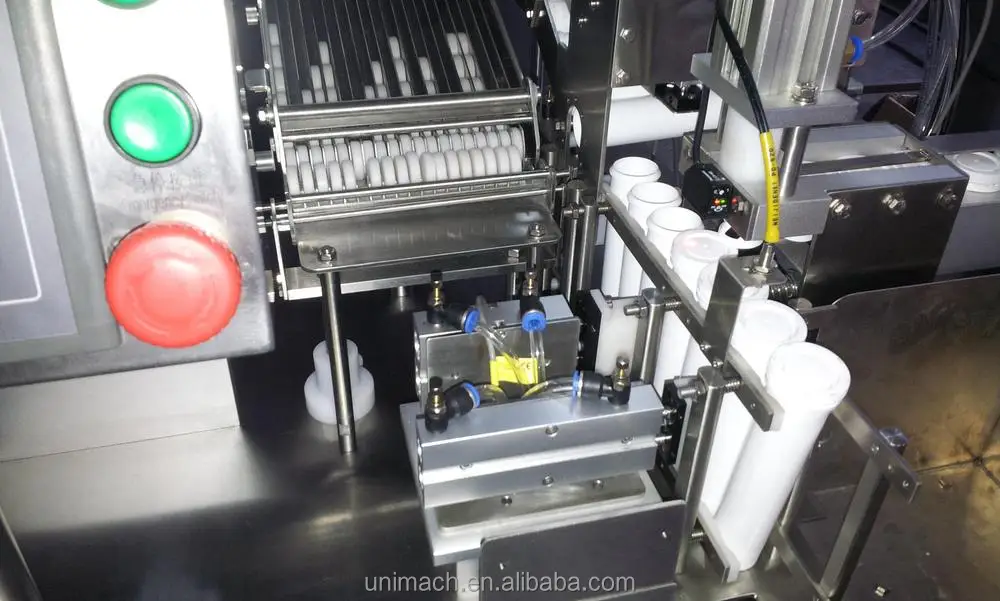

This unit was designed for layered filling of tablets into a tube and then placing a plastic stopper in the top.

Feature of automatic tube feeder.
Automatic tablet channel Counting.100% accurate.
No tube, no filling; No tablets, no capping.
Automatic vibratory bowl for stopper (cap feeding).
Automatic cap press sealing.
Detection and rejection if less filling
PLC+HMI control system





Technical specifications:














































Model



TP-40



Filling range



10-30tablets/tube as per customer's requirement



Diameter of tablet



12-30mm



Thickness of Tablet



3-8mm



Length of Tube



80-180mm



Max.Capacity



40Tubes/min depending on the product and tube size



Power supply



0.8kw



Compressive air



0.5~0.7MPa,0.28m3/min



Overall size



2000mm*1600mm*1680mm



Weight



600Kgs
