water conductivity resistivity meter RM 220S

Product Overview

Description

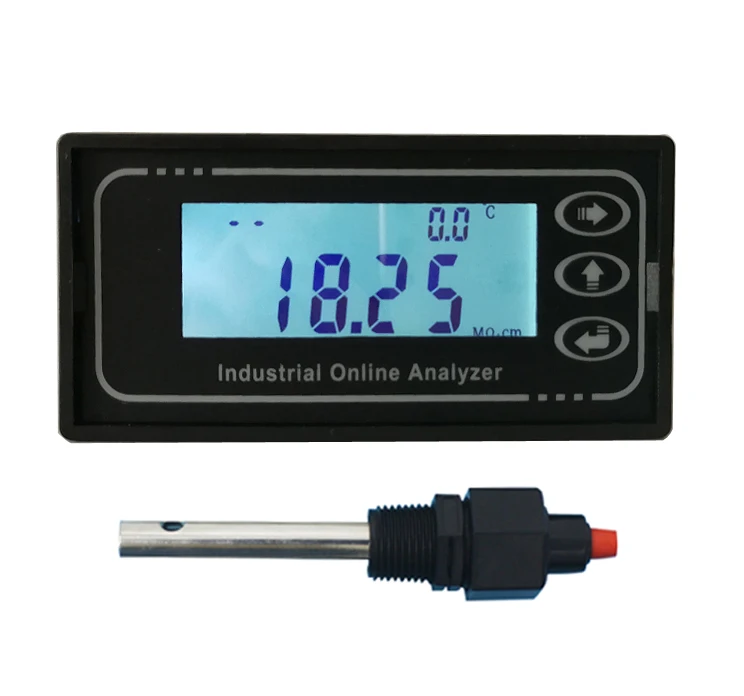

         Water conductivity resistivity meter RM-220S



Water conductivity resistivity meter RM-220S  is industrial online Resistivity Monitor,widely ued for Pharmaceutical

electronic, chemical and other industries for high pure water, ultra pure water online measurement and control.



1. Code: RM-220S

2. Measuring Range:  Resistivity: 0-8.25MΩ.cm

3.Sensor constant: 0.05cm^-1

4. Displaying Mode:  3 1/2 LCD backlight

5. Accuracy: 2.0%(F.S),

6. Current Output Signal: 4-20mA (load ≤500Ω)

7. Control output: Minimum (constantly open and constantly close) contact point output

8. Working eniroment: Temp: 0-50℃;Humidity: ≤85%RH

9. Overall Dimension:  48x96x100mm

10. Power supply:   AC 220V±10%, AC 1110 V±10%, 50/60Hz, DC 24V























Function                                             Model	RM-220S   conductivity resistivity meter
Range	Resistivity:0~18.2MΩ·cm, Conductivity:0.055~1μS/cm
Accuracy	2.0%(FS)
Temp. Comp.	The 25℃ basis, automatic temperature compensation
Operation Temp.	0~50℃

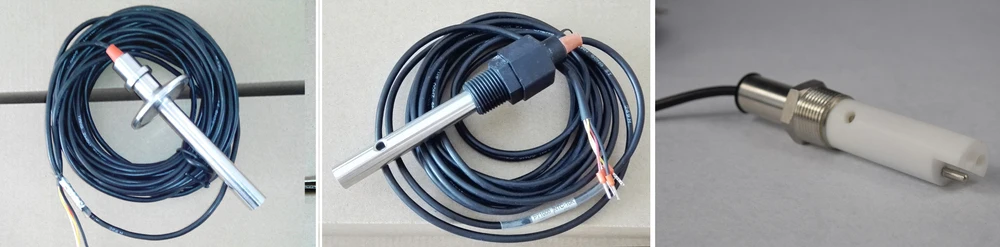

Sensor	0.05cm-1
Display	3½ Bit LCD
Current output	— — —
Control output	— — —
Power	AC 110/220V±10% 50/60Hz
Working environment	Ambient Temp. 0~50℃, Relative Humidity ≤85%

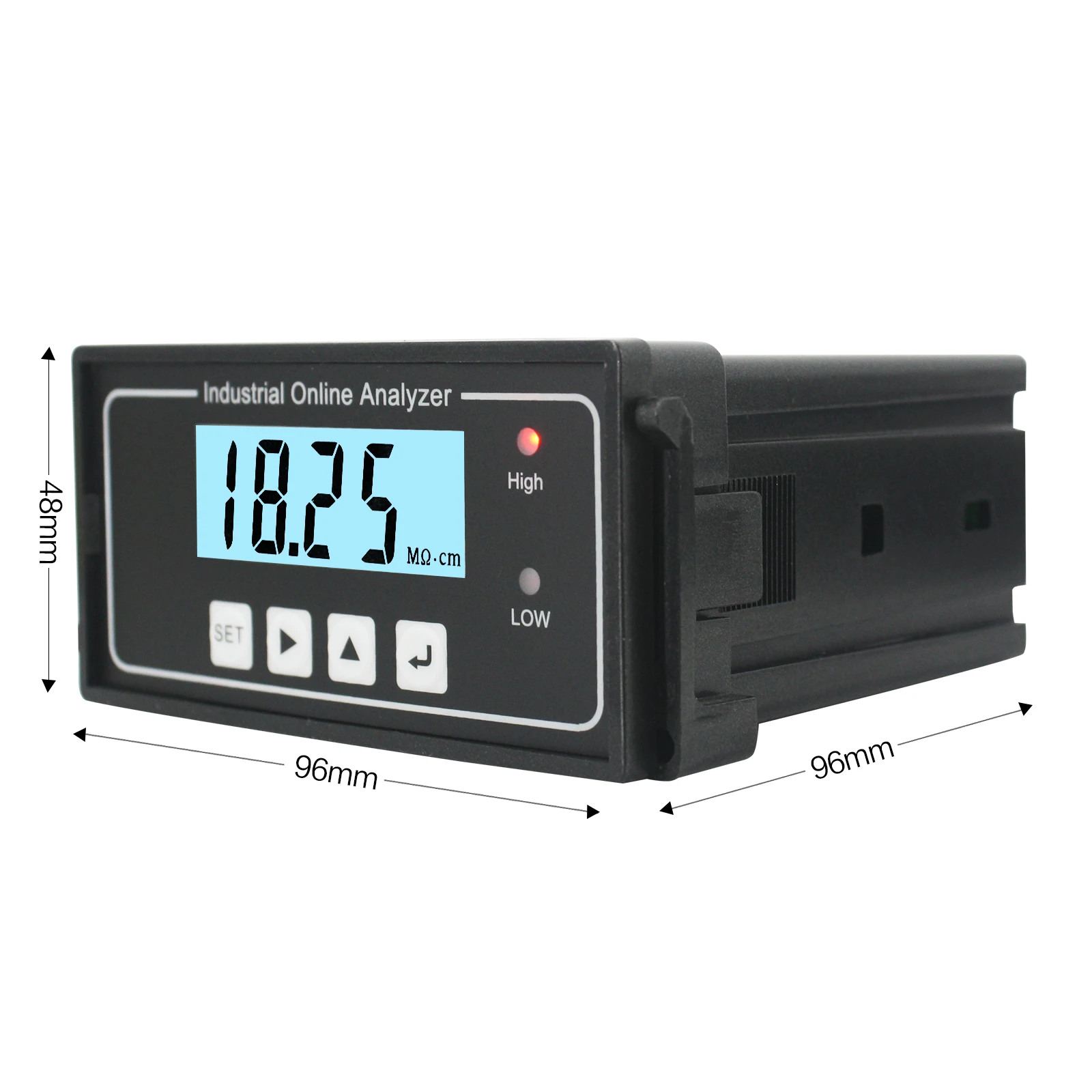

Dimensions	48×96×100mm (H X W X D)
Hole size	45×92mm (H X W)
Installation Mode	Panel Mounted (Embeded)







 Conductivity resistivity meter are packed into strong carton which is suitable for long distance transport, color label is

 available as per request on the carton.







     1.  Conductivity resistivity meter will be transported by Express DHL, TNT, etc as per request, which will take 3-5days.

     2.  By air transport for the bulky order, it will  it will take 5-7days for different area,

     3.  By sea transport for the not urgent bulky order.









1.  Business term: FOB, C&F, CIF, DDU,DDP are acceptable.


2. We accept Western Union, T/T, L/C,Paypal etc term of payment.

    If you want to know more detailed info. about our products and us ,



    pls see our website: www.watequipment.com



    or E-mail me: info at watequipment.com.



    or add me on skype: sunnylee301



    or QQ: 544432716
