weili hot sale manual glass cutting table

Product Overview

Description

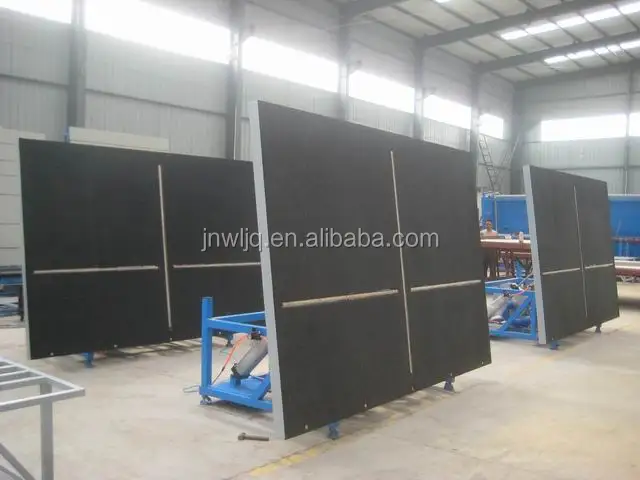

                       glass processing machine---FZT03 Glass Tilting and Breaking Table



Main feature and function:

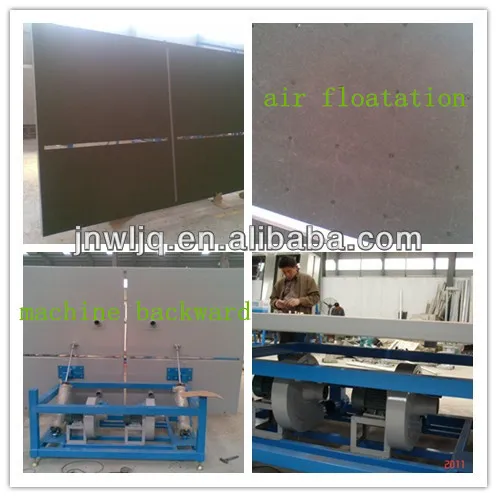

1. Adopts the air-cushion type work table. It has pneumatic tilting function for unloading glass. The air-cushion makes it easily to move glass on the table.



2. The table has overturn function, so it can tilt glboth tiltass from vertical to horizontal, can it controlled by foot switch, very simple and convenient to operate.



3. There is bars to guarantee the glass do not fall down and break.



4. The good carpet coated on the table, so it can not scratch the surface of glass.



5. The size is changeable according to customers’ request.



Main Features:



Power supply	380V,50 Hz, 3 phase
Input power	1.5 Kw
Air pressure	0.4-0.6Mpa
Dimension	3700x2200x2200 mm
Total weight	400Kg
