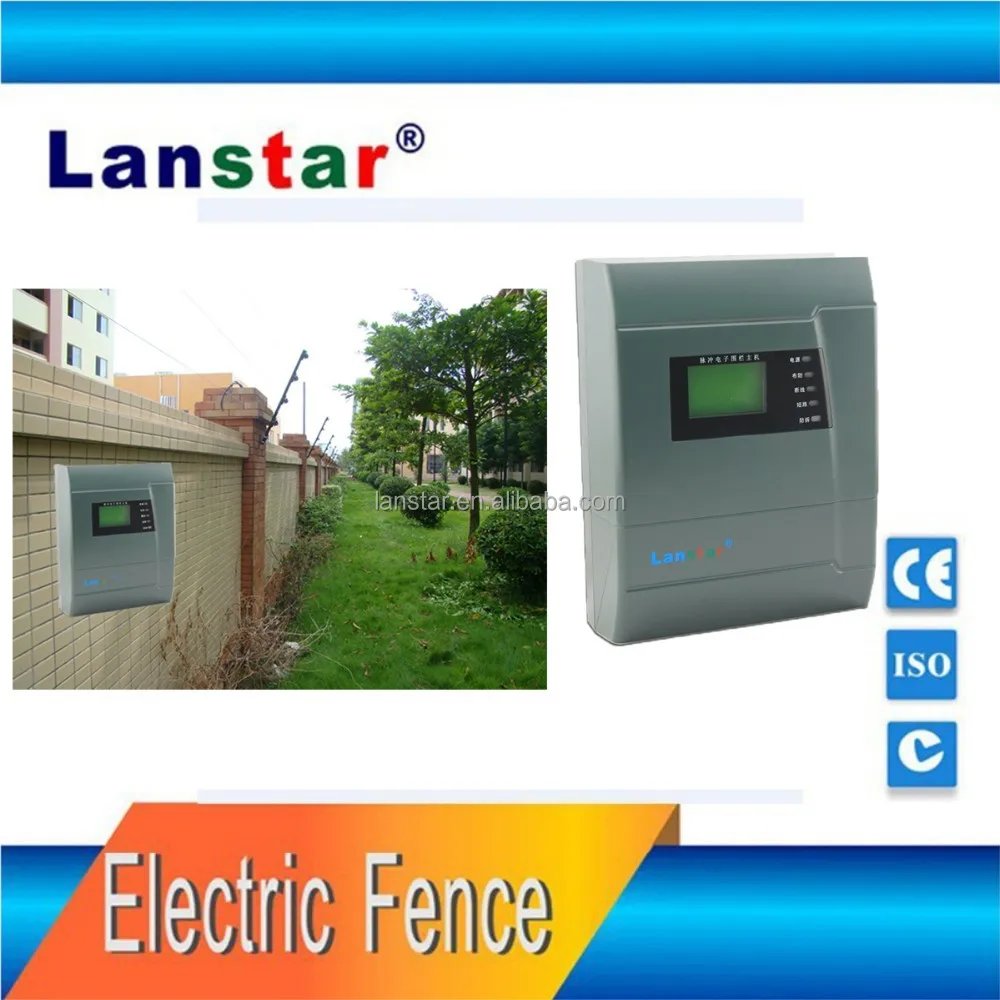

New patent anti touching and anti cut alarm fence energizer,wireless remote keypad control
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen,Lanstar,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Discreption
An electric fence system consists of electric wires carrying high voltage electric pulse that provide a non-lethal repulse shock to the intrudor. It is generally used some places such as community, villa, warehouse, industrial ,park, prison, power station, communication base, zoom etc., which can deter and delay intruders to climb over fence
or keep animals inside the fence.
1. Technique Specification:
1.Power supply | AC85V-265V 50Hz |
2.System power consumption | 10Watt |
3.Operating environment | Temperature:-25 to +55°C |
4.Relative humidity | ≤95% |
5.Output peak voltage | 4KV~6.5KV |
6.Output low voltage | 700~1000V |
7.Peak current of pulse | <10A |
8.Pulse duration | ≤0.1s |
9.pulse interval time | 1-1.5s |
10.Max quantity of electricity of pulse | 2.5mC |
11.Max energy of pulse | ≤5.0J |
2. Packing details:
Demension | 460×350×250 (mm) |
Net Weight | 4.6kg (Without battery) |
Color | Gray |
Packaging Details | Carton package |
3.Features:
1.Touching fence alarm function(New utility-type patent)
2.Flyback pulse testing anti-cut alarm technology( New utility-type patent)
3.Reverse polarity differential voltage output technology, every wire has voltage.
4.Big size LCD display, indicating the working state and the voltage of on every wire of fence .
5..No level adustment for output pulse, long-distance equipment auto switch function.
6.Short circuit, break and tamper alarm, Self-inspection System for equipment fault.
7.Standard configuration 12.6V/440mAh lithium battery, can work about 8 hours after power failure.
8.RS 485 bus control, keypad, computer, network and multiple long distance management solution.
9.CAN bus communication interface is reserved(optional).
10.Wireless data transmission interface is reserved(optional).
11.TCP/IP/POE communication interface is reserved(optional).
12.IP55 outdoor protection appearance disign patent.
4.Interface specifications:
5.Installation instruction:
6.Accessaries:
7. Application Fields:
8.Certifications:
Warranty period: 3 years(Excepting artificial damage and vis major)
