Product Overview
Description
Product Description
Features:
- Ø The horizontal and tandem construction, driven by two motors, fast die change design;
- Ø Driven by high precise helical gears ; high efficiency; low noise;
- Ø Drawing capstans are in combined structure;
- Ø Drawing capstans immersed lubrication and cooling can ensure high quality of wires;
- Ø DC/AC annealing control, speed tracks to drawing speed automatically; it can ensure uniform
- and stable elongation of copper wires;
- Ø Double spoolers or coiler offered for option. The line is an equipment of high automaticity and
- high efficiency.
Technical Specification:
Machine speed | HT-450-13D | HT-450-11D | HT-450-9D | HT-450-7D |
Material | Cu, Cu alloy | |||
Machine speed | Max.1500m/min | Max.1000m/min | ||
No. of wires | 1/2wires | 1wire | ||
Inlet dia. | 8mm | |||
Finished dia. | 1.20-3.50mm | 1.60-3.50mm | 2.20-3.50mm | 2.60-3.50mm |
No. of dies | Max.13 | Max.11 | Max.9 | Max.7 |
Drawing capstan dia. | 450mm | |||
Finished capstan dia. | 450mm | |||
Die change system | Fast die change design | |||
Control method | DC/AC | |||
Drive method | Two motors | One motor | ||
Production speed:
Wire dia.(mm) | Speed (m/min) | Enlongation | |
TY/Hard wire | TR/Soft wire | ||
1.20 | 1200 | 1200 | ≥30% |
1.78 | 1200 | 1200 | ≥30% |
2.50 | 900 | 900 | ≥30% |
3.00 | 600 | 500 | ≥30% |
Continuous Annealer:
Machine type | HT-5000 | HT-6000 | HT-8000 | HTA-4000 |
Material | Cu, Cu alloy | Al, Al alloy | ||
Machine speed | Max.1500m/min | |||
No. of wires | 1 | 1 | 2 | 1 |
Wire range | 1.20-3.50mm | 1.20-4.00mm | 1.20-3.50mm | 1.60-4.50mm |
Control pulley dia. | 355mm | 450mm | ||
Annealing current | Max.5000 | Max.6000 | Max.8000 | Max.4000 |
Annealing voltage | Max.60v | |||
Control method | DC | AC | AC | DC |
--------------------------------------------------------
Finished Products

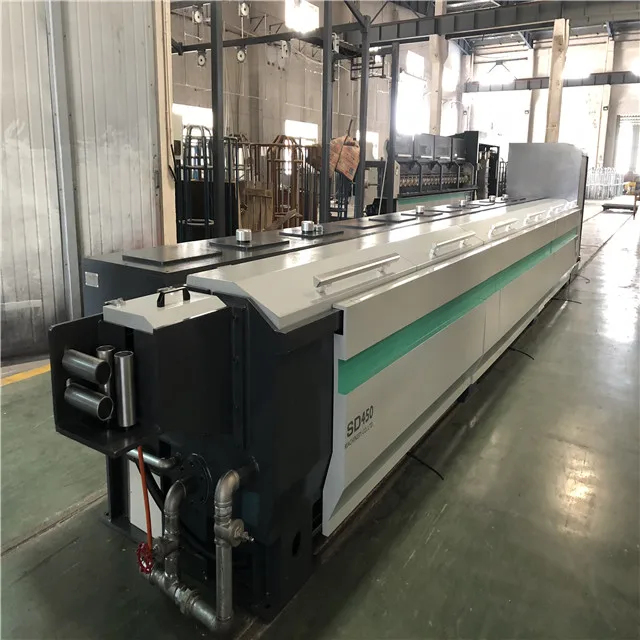

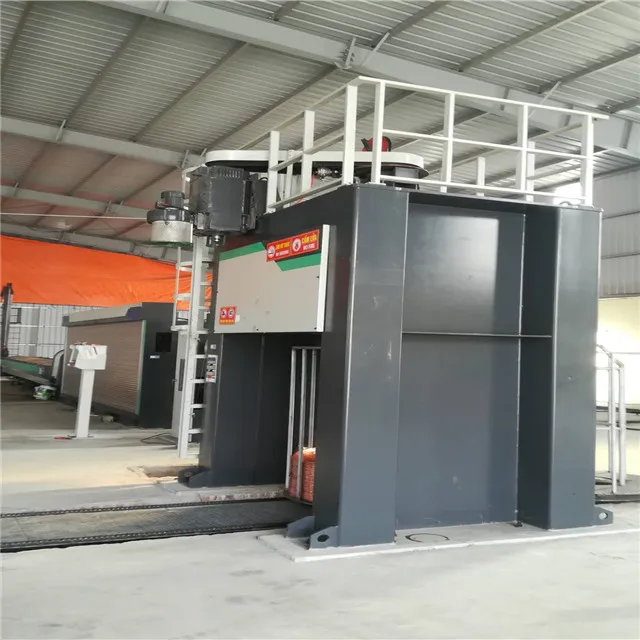

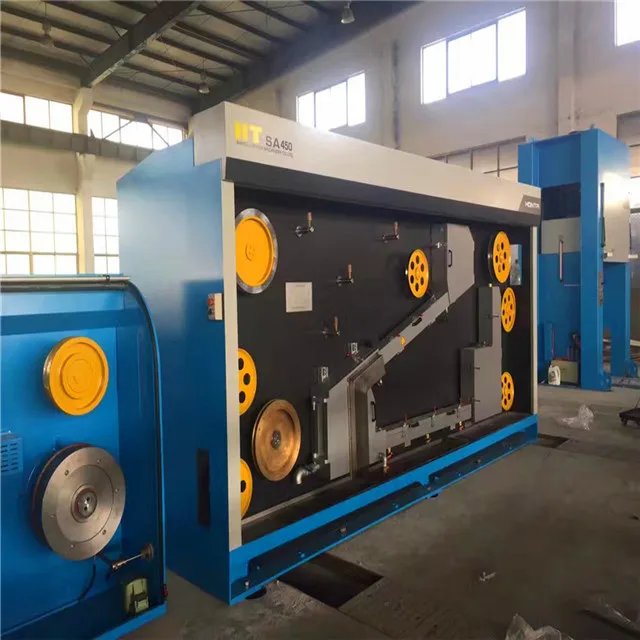

8mm copper wire drawing machine with annealer:
Company Information
Our factory show:
Certifications
CE for multi wire drawing machine:
Trade show
Exhibition is shanghai city:
Commissioning

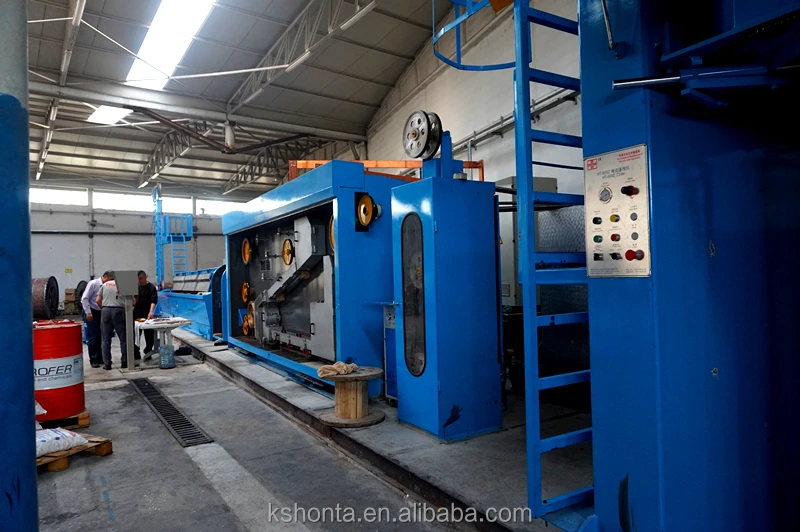

Commissioning wire drawing machine in Turkey :
Customer show
Our customers come from different countries around the world.
