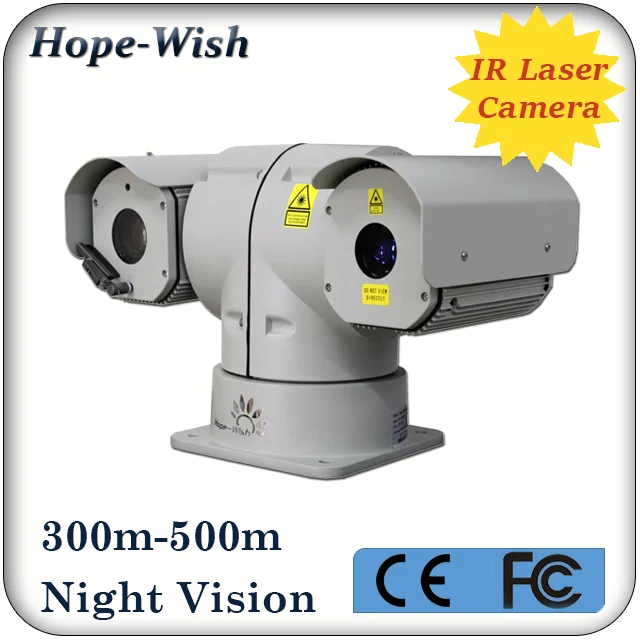

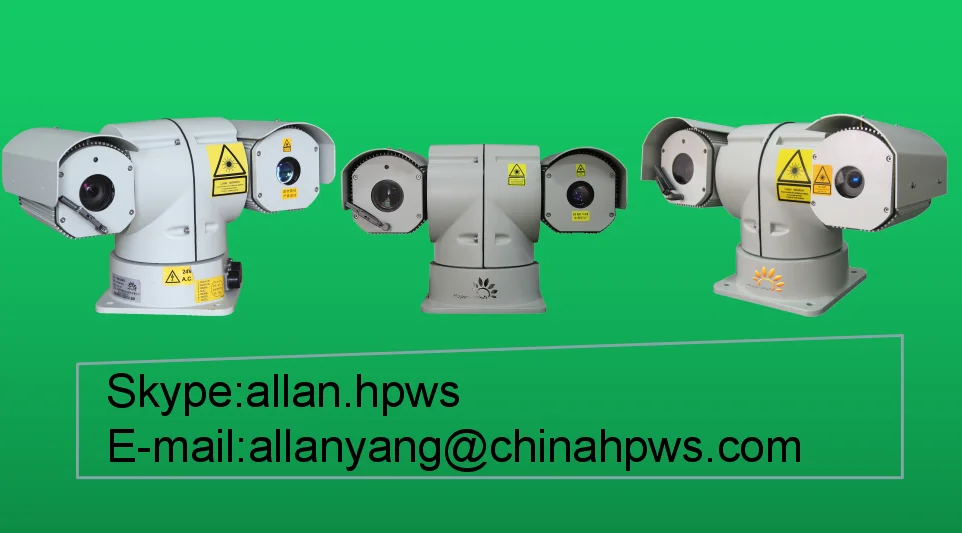

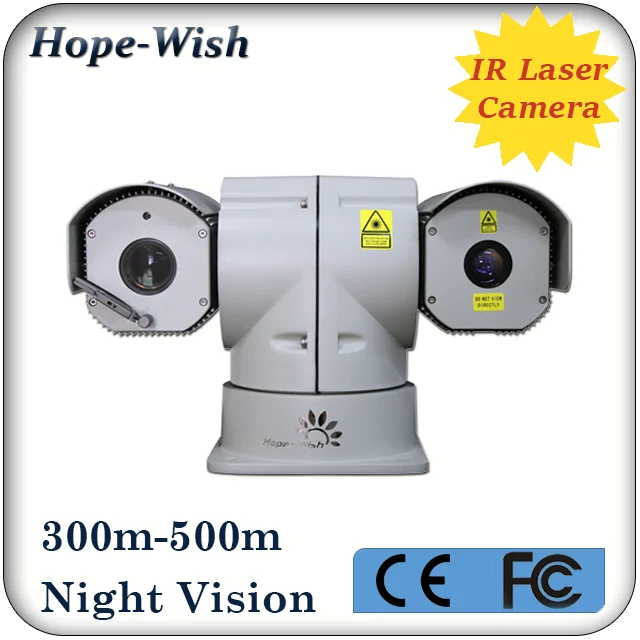

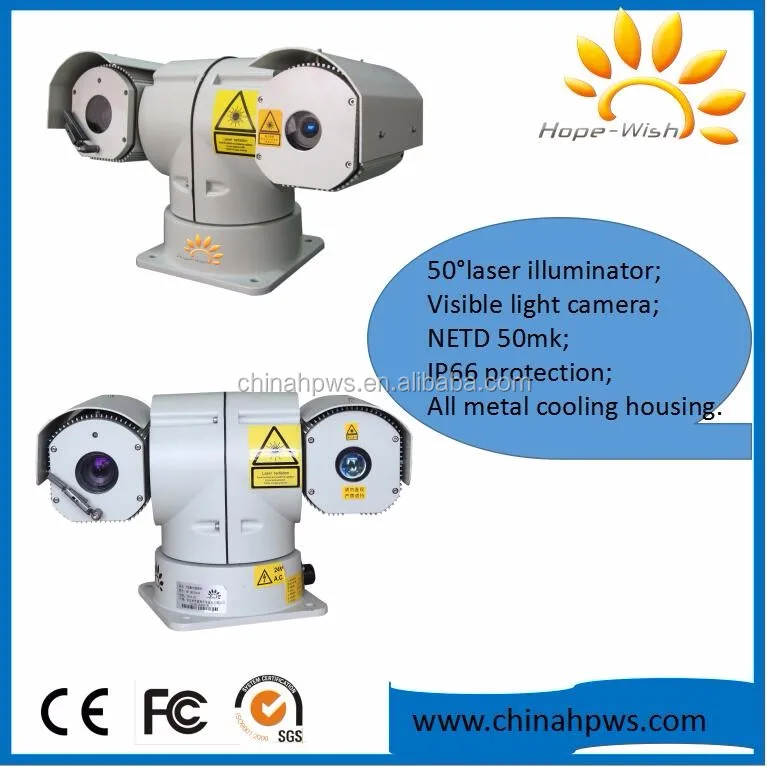

T Shape PTZ IR Laser CCTV Camera

Model

BRC0418

BRC0427

BRC0426

BRC0436

BRC0436X

Detection

Day: 400m; Night:300m

Day: 500m;

Night: 300m

Day: 500m;

Night: 300m

Day: 600m;

Night: 300m

Day: 600m;

Night: 450m

CCD

1/4'' color to B/W CCD, 440000 pixel, automatic ICR switch

Focal length

4.1~73.8mm, 18 optical zoom, 12 digital zoom

3.5~95mm,27 optical zoom,16 digital zoom

3.5~91mm, 26 optical zoom, 12 digital zoom

3.4~122.4mm, 36 optical zoom, 12 digital zoom

FOV

48°~2.8°

54.2°~2.1°

54.2°~2.2°

57.8°~1.7°

Min. illumination

0.7lux /0.01lux

1.0lux /0.07lux

1.0lux /0.01lux

1.4lux /0.01lux

Consumption

5W, 808nm ,NIR

Laser lens

30mm F1.0 Fast lens, GHT homogenizing

30mmF1.4 telephoto lens, GHT homogenizing

Laser angle

2.3°~50°

1°~40°

Angle control

DSS digital illumination control, min 0.1^o illumination zooming, manual/automatic switch

Optical axis aiming

0.01°SLM automatic axis automatic aiming and locking

Pan rotation

0°~360° continuously

Tilt rotation

-90°~+90°

Rotation speed

Pan: 0°~100°/s, tilt: 0°~80°/s

Preset

128

Line scan

3 path(User could set up the starting point, destination and scanning speed)

Patrol

6 path(each path have 16 staying point, staying time at such points are adjustable)

Pattern

3(2min/pattern)

Privacy Zone

Yes, hiding covers are different depending on model.

Menu

OSD menu, Chinese and English menu setting, password setting

Auto homing

Waiting time 1~99min, homing path preset position/line scan/patrol/pattern are available

Pan home

User could set the north direction manually, then the other direction will be set automatically

Protocol

Integrate 16 kinds of main control protocol, like PELCO-D/P

Baud rate

2400/4800/9600/19200bps

Heat/demisting/ wiper

Yes

Laser switch

Auto/manual

Waterproof

IP66,TVS1500V anti-lighting, anti-wave

Operational tempe.

-35~55℃

Power supply

AC24V/2.5A, DC12V/3.5A

Weight

7kg
