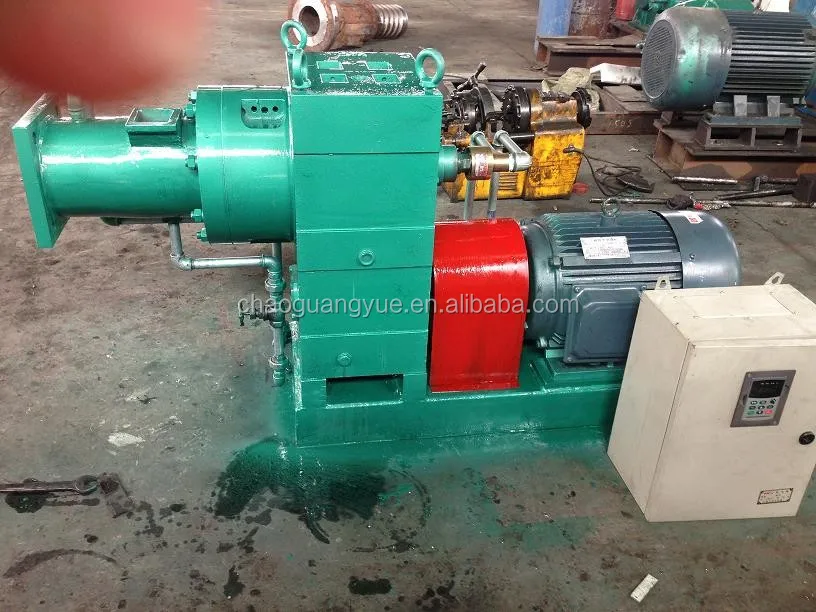

Cold Feeding Silicon Rubber Mixer and Extruder

Product Overview

Description

Cold Feeding Silicon Rubber Mixer and Extruder



Rubber  Extruder

USE:  Use for rubber & plastic extruding and molding.



Features :



1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )



2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )



3. Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush.



4.Screw made of special steel is with nitrogen treatment,durable.



5.Jacketed type barrel can be cooled for cooling the rubbers effectively.



6.Double head strainer to be quickly and easily exchanged.



7.Smoothly running and high output.



8.Equipped with die-head auto opening system when electric power is cut off.



Parameter of guangyue rubber extruder machine

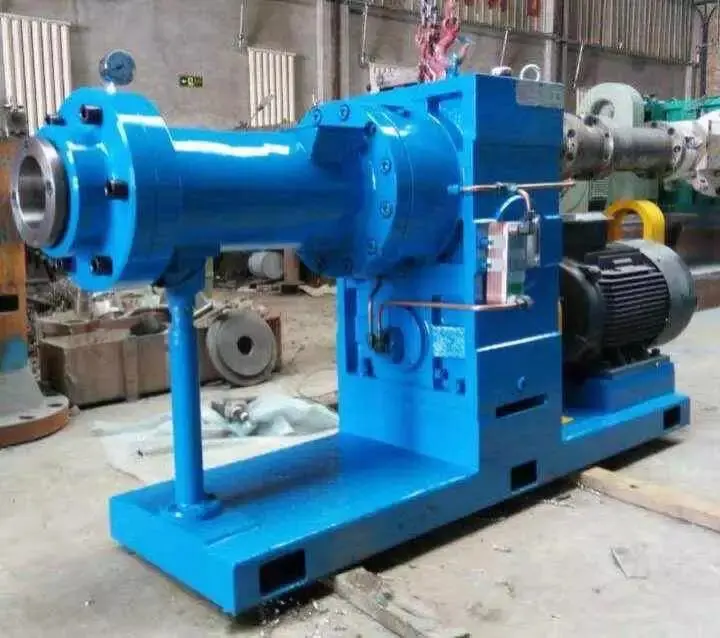

Hot Feed Rubber Extruder



Type	XJ-65	XJ-120	XJ-150	XJ-200	XJ-250
Screw diameter(mm)	65	120	150	200	250
Length-diameter  ratioof screw(L/D	4	4.6	4.43	4.35	4.5
Compression ratio			1.34
Rotary speed of  screw(r/min)	5.2-52	5.6-55.6	20-26	22.4-67.2	19.7-59.1
Motor power(kw)	Electromagnetic  speed 7.5kw	Electromagnetic  speed 22kw	Frequency control  55kw/motor  commutator18.3-55kw	motor commutator  25-75kw	motor commutator  33.3-100kw
Production capacity (kg	50-80	100-450	700-1200	1500-2200	2000-3200
Steam pressure	0.2-0.3	0.2-0.4	0.6	0.6-0.8	0.6-0.8
Weight(kg	1000	3000

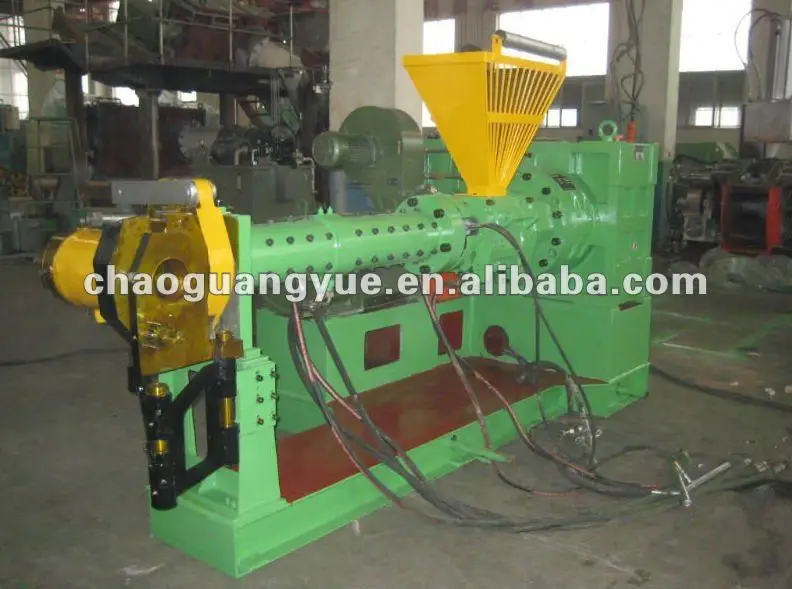

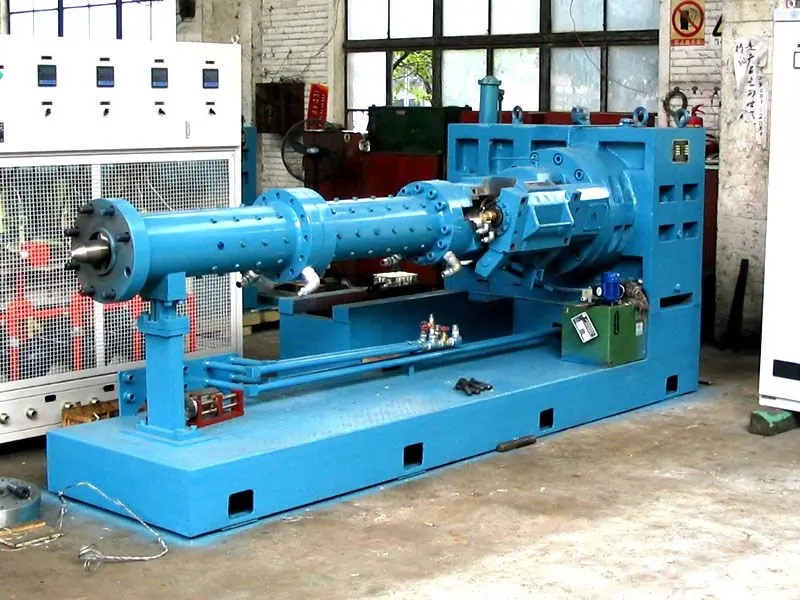

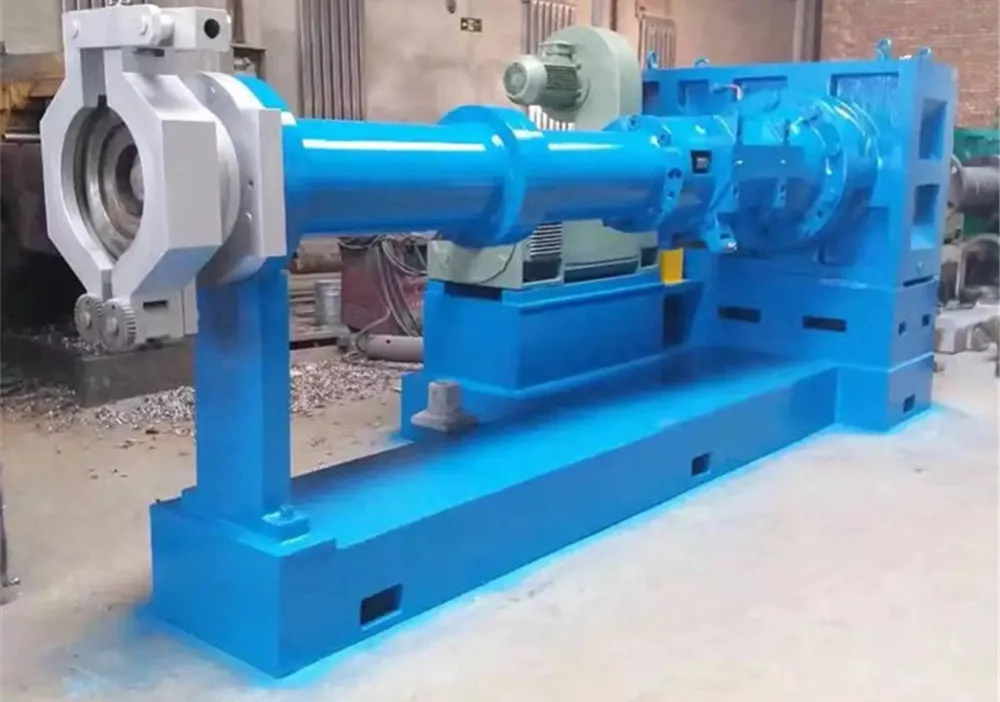

Pin Barrel Cold Feed Rubber Extruder



model	screw				motor (kw)		temp.control unit		Max.capacity
	diameter (mm)	L/D	Max.speed(r/m)	length (mm)			zones	power	(kg/h)
XJD-65X12D	65	12	80	780	Z4	22	3	2.2*3	160
XJD-90X12D	90	12	60	1080	Z4	45	4	6*4	320
XJD-120X12D	120	12	50	1440	Z4	75	4	6*4	650
XJD-150X12D	150	12	45	1800	Z4	160	4	10*4	1500
XJD-200X12D	200	12	30	2400	Z4	220	5	12*4	2200
XJD-250X12D	250	12	25	3000	Z4	450	4	16*4	3800
