Name: seed cleaner with sieves and gravity table
SKU: 60282630679
Availability: InStock

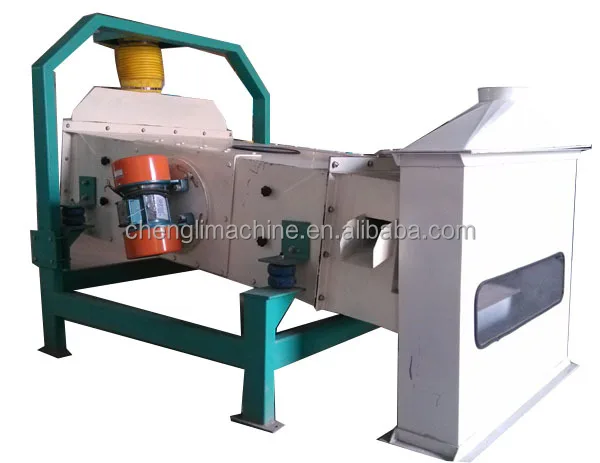

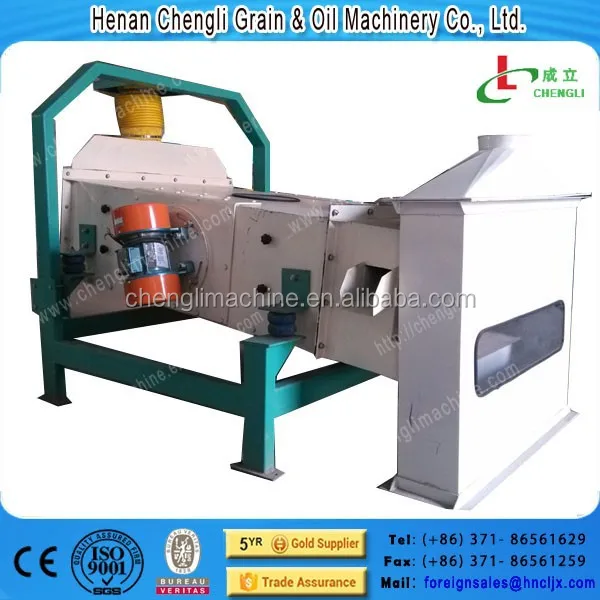

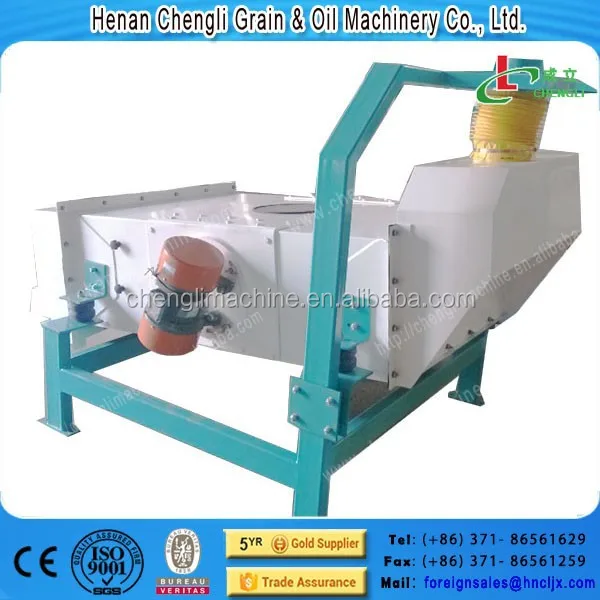

seed cleaner with sieves and gravity table

Product Description

SCOPE OF USE

Chengli’s TQLZ seeding cleaning machine is used primarily for grain cleaning in flour mills and grain storage facilities (silos). It removes coarse and fine impurities from the grain by sieving. It also grades various products according to size.

1. mills processing common wheat, durum wheat, corn (maize), rye, soybeans, oats, buckwheat, spelt, millet and rice.

2. It is also used successfully in feed mills,

3.seed cleaning plants,

4. Oil-seed cleaning installations

5.cocoa bean grading.

.jpg

Efficient grain cleaning at high throughput capacities.

· With the help of a separation system comprised of sieves,
· the separator classifier TQLZ frees grain of coarse foreign substances such as large kernels, strings, straw, wood, stones or clods of soil as well as fine impurities like sand and broken grains
· Excellent separating efficiency and high throughput capacities of up to 24 t/h during cleaning and 100 t/h in storage facilities (silos) ensure the highest level of efficiency in grain cleaning.
· The optional use of an aspiration channel or air-recycling aspirator enables the removal of low-density particles such as dust, hull fragments or husks, thus optimizing the cleaning effect.

Minimal maintenance requirements.

Fast and easy sieve changes, easily exchangeable wear parts and absence of lubrication points minimizes the maintenance requirement of the classifier TQLZ

The parameter of seed cleaner

Model	Capacity(t/h)	Power(kw)	Weight(kg)	Size(mm)
TQLZ80X100	2-3	0.25*2	400	2000x1300x1500
TQLZ100X150	4-5	0.25*2	500	2000x1500x1750
TQLZ150X200	8-10	0.55*2	1000	2300x2000x2000
TQLZ200X200	15-20	0.75*2	1500	2800x2500x200

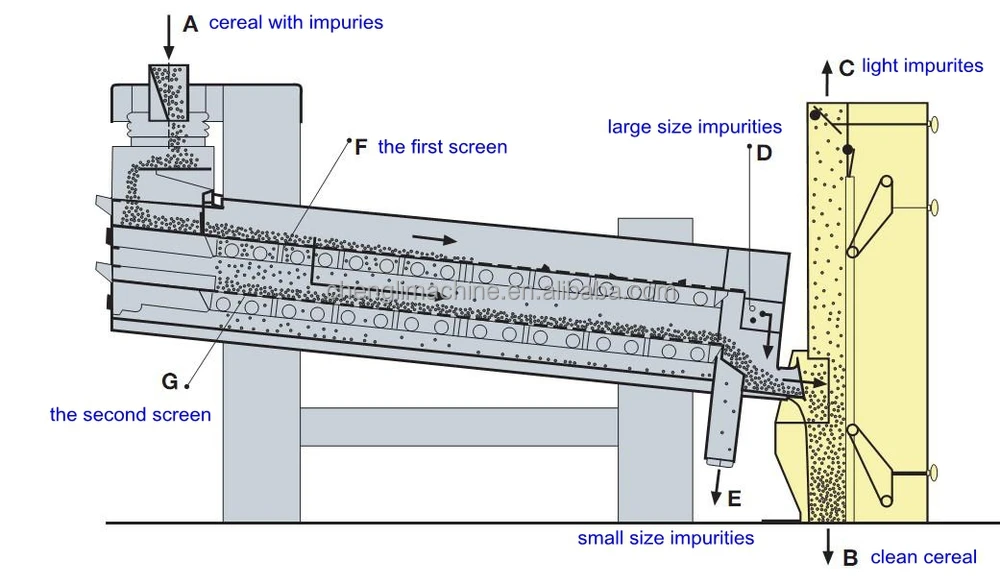

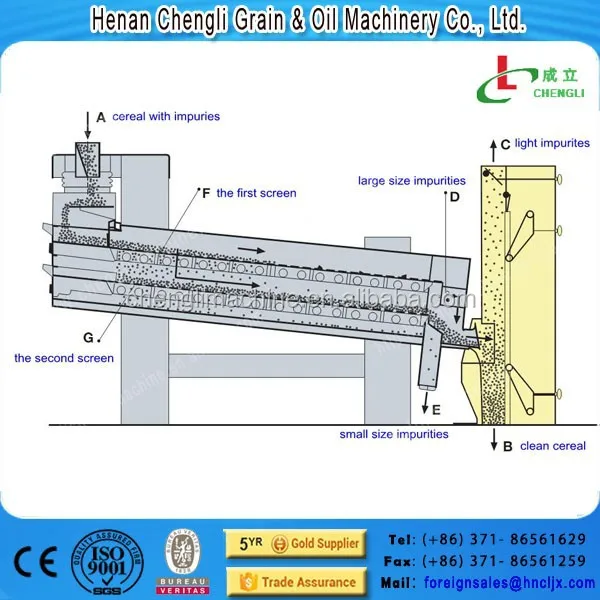

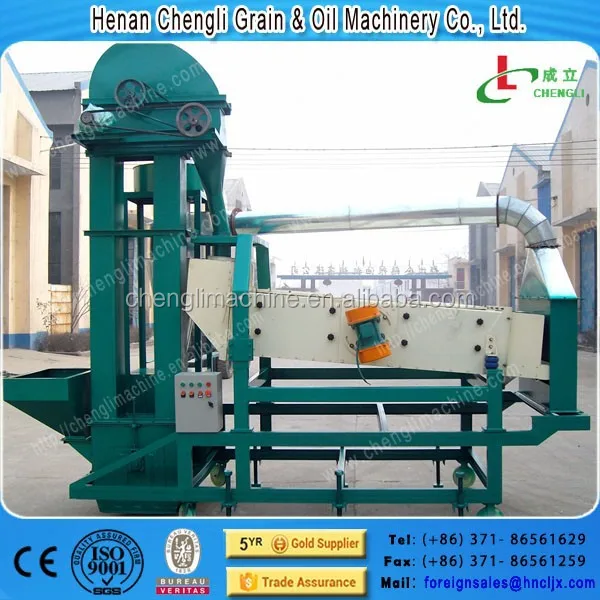

the working principle of seed cleaner

.jpg

Based on differences of fineness, specific gravity, and surface roughness between grains and impurities , this machine allows grains go through the sieve mesh to achieve the separation from impurities . Also vertical air absorbing pipe can be employed in this section to get rid of the

light impurities and dust more efficiency .

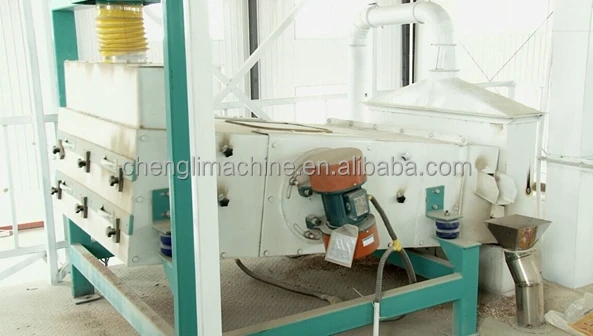

The working seed cleaner

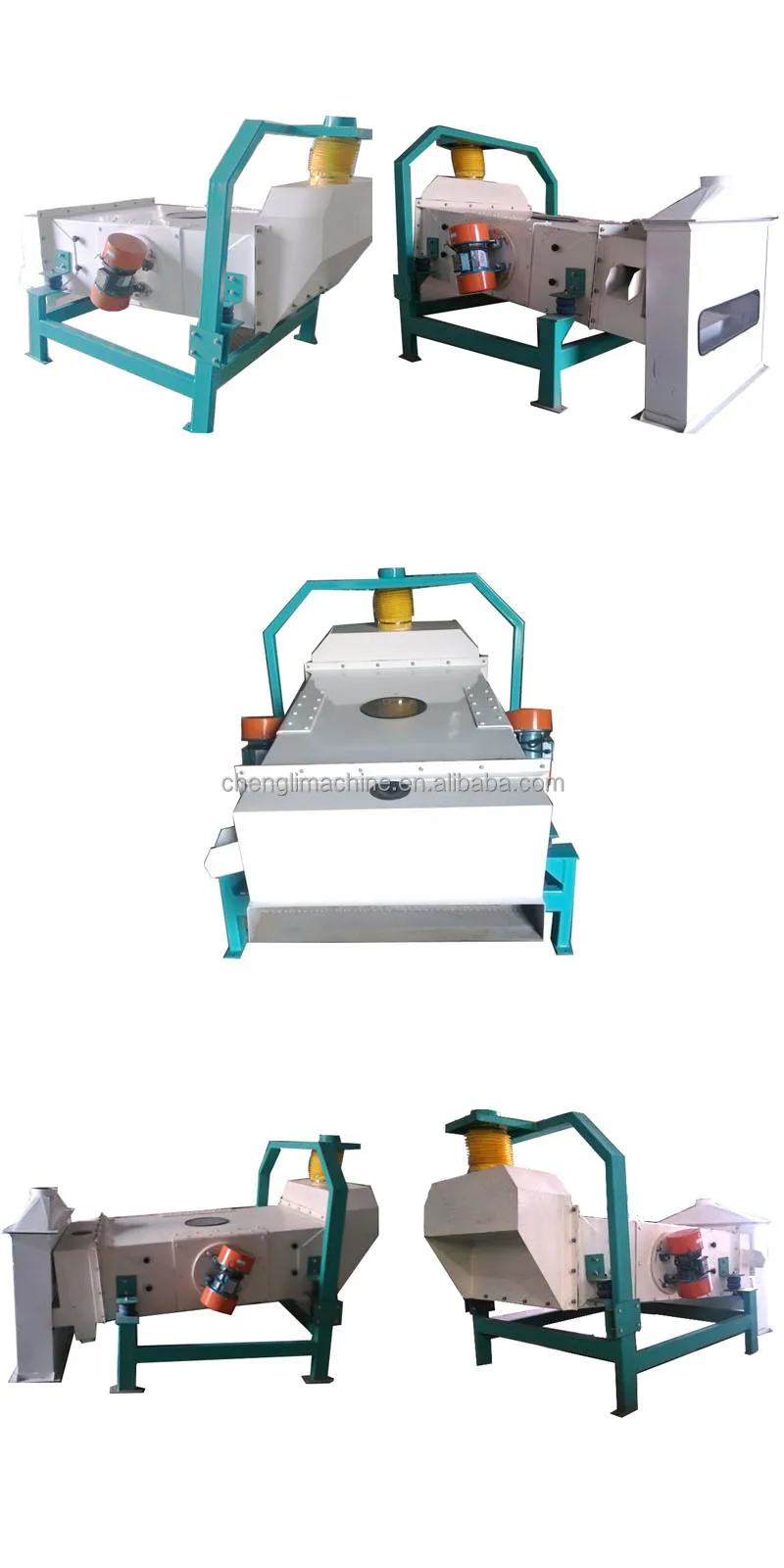

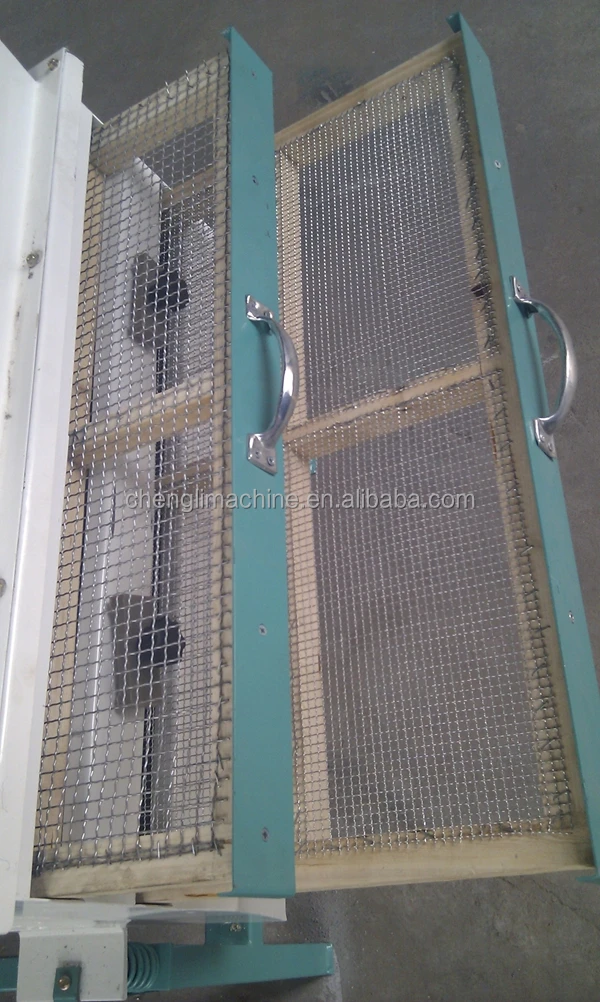

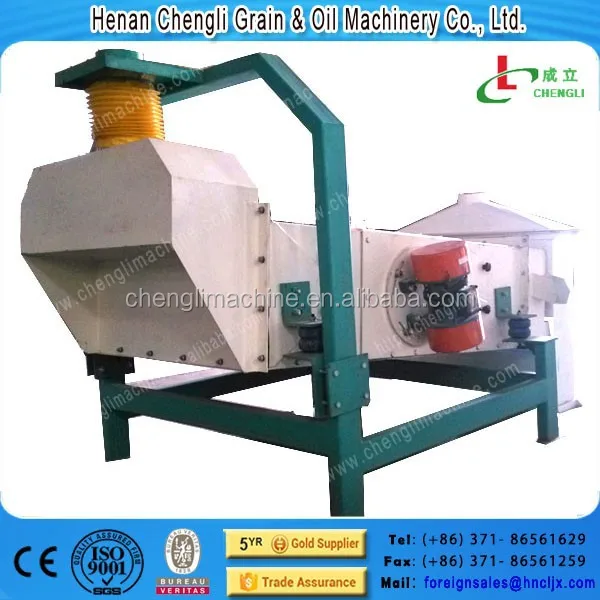

The details of seed cleaner

.jpg

The effect of seed cleaner
