Roller glass coating machine
US $10000-$13000
Вакуумный подъемник Olift, Электрический вакуумный подъемник стекла, листового металла, стекла, камня, вакуумное подъемное оборудование
- Category: Glass Processing Machinery >>>
- Supplier: Qingdao Olift Equipment Co. Ltd.
Share on (60282697391):
Product Overview
Description
Vacuum Lifter Olift Electric Vacuum Glass Lifter Sheet Metal Glass Stone Vacuum Lifting Equipment
Electric Vacuum lifter-GL600 for handling and fitting glass sheets etc inside/outside buildings.
Vacuum Glass Carrier Metal Stone Super Triangle Suction Lifter Glass Suction Tool for vacuum lifter.
Product Description
Electric Vacuum Lifter GL600
The vacuum lifter is designed with automatic pressure control and dual safety circuits to avoid system failure.
Ideal for loading & unloading transporting, rotating and installation, and with small width to access into doors.
Easy for operation, with the following functions:
Ideal for loading & unloading transporting, rotating and installation, and with small width to access into doors.
Easy for operation, with the following functions:
1. Self-propelled drive vacuum lifter.
2. Electric hydraulic lift and extensions to Lift Height 3700 mm Forward Extension 610 mm.
3. Electric hydraulic tilting forwards & backwards from vertical to horizontal thru 180 deg.
4. Manual rotating 360 deg.
2. Electric hydraulic lift and extensions to Lift Height 3700 mm Forward Extension 610 mm.
3. Electric hydraulic tilting forwards & backwards from vertical to horizontal thru 180 deg.
4. Manual rotating 360 deg.
Advantages for Vacuum Lifter
1.Self-propelled drive.
2.Big power battery, stable use.
3.Different suction cups option to this vacuum lift machine for handling and fitting various plates inside/outside buildings.
4.The vacuum suction is designed with automatic pressure control and dual safety circuits to avoid system failure.
5.Ideal for loading & unloading transporting, rotating and installation.
2.Big power battery, stable use.
3.Different suction cups option to this vacuum lift machine for handling and fitting various plates inside/outside buildings.
4.The vacuum suction is designed with automatic pressure control and dual safety circuits to avoid system failure.
5.Ideal for loading & unloading transporting, rotating and installation.
Vacuum Lifter Model: | GL600 |
Capacity: | 600kg(retracted)&300kg(extended) |
Lifting height: | 3700mm |
Height Forward Extension: | 610mm |
Electric hydraulic tilting forwards & backwards from vertical to horizontal thru: | 180deg |
Manual rotating: | 360deg |
Suction cups standard qty: | 6 pieces |
Suction cups size: | φ300mm*6 pieces |
Battery: | 2*12V/100Ah |
Charger: | 24V/15A |
Drive motor: | 24V/900W |
Lift motor: | 24V/2000W |
Drive speed(with or without load): | 3.5km/4.5km/h |
Lift speed(with or without load): | 13mm/18mm/s |
Down speed(with load): | 19mm/s |
Down speed(without load): | adjustable based on customer’s requirements. |
Gradeability(without load): | 10% |
Overall Length: | 2420mm |
Overall Width: | 850mm |
Overall Height: | 1620mm |
Net Weight: | 1000kg |
Packing size: | 2700*950*2000mm |
Gross Weight: | 1250kg |

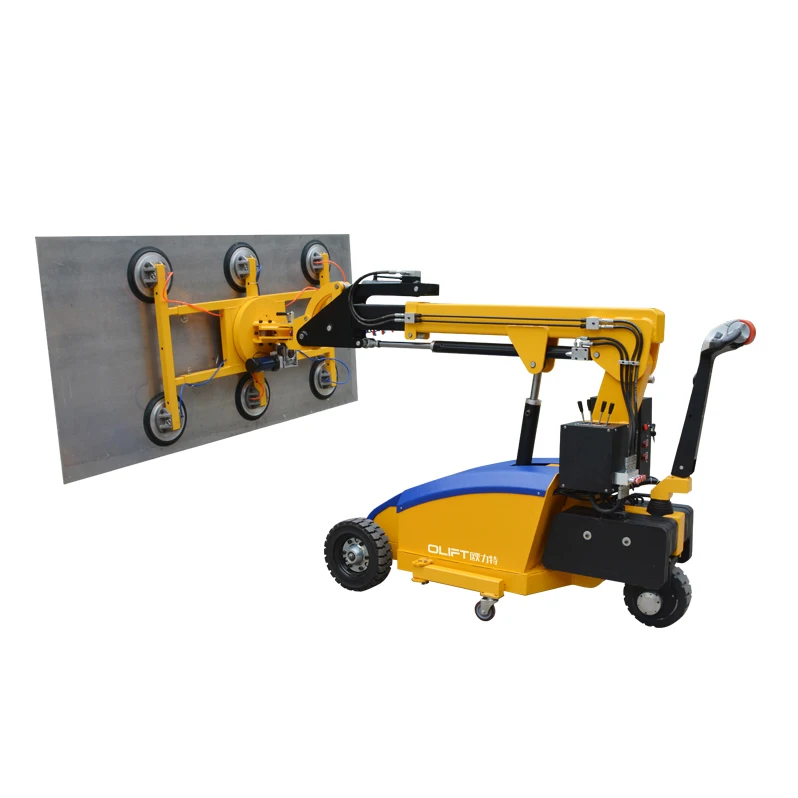

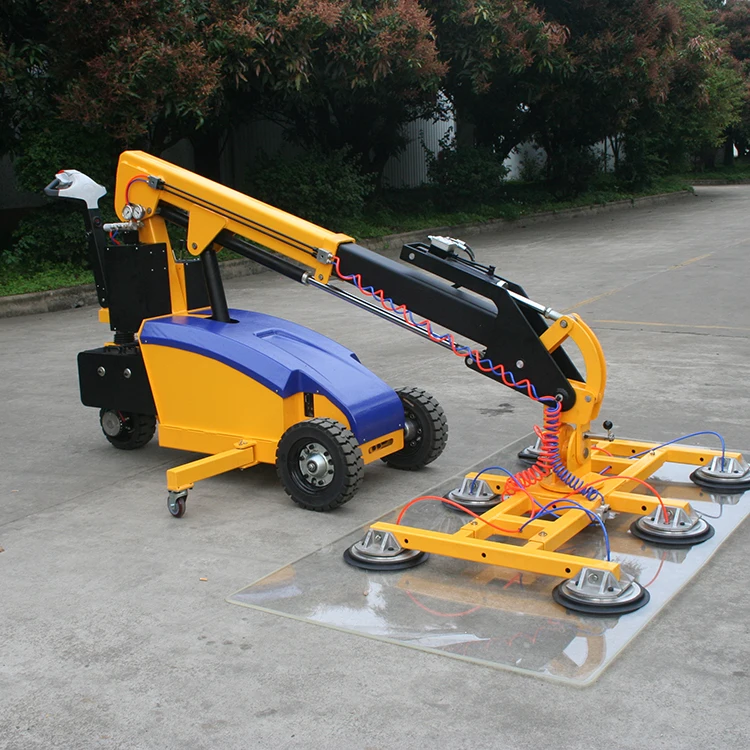

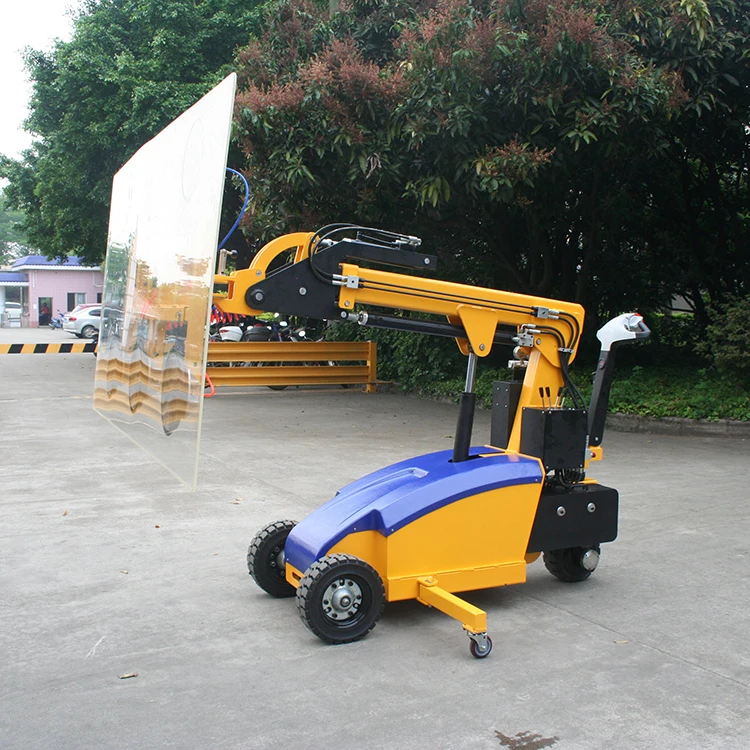

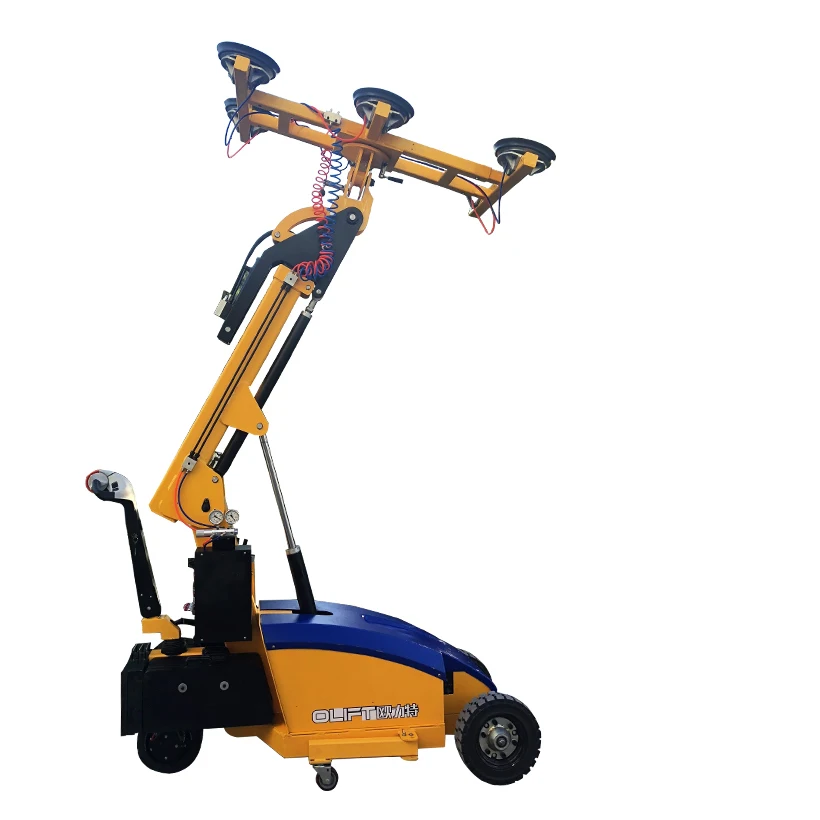

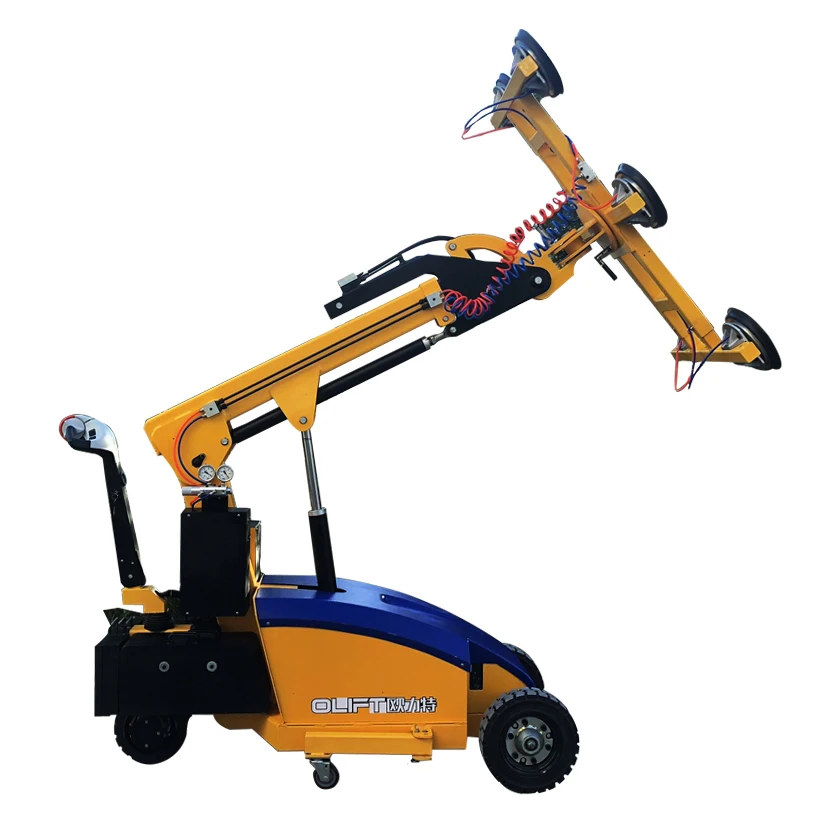

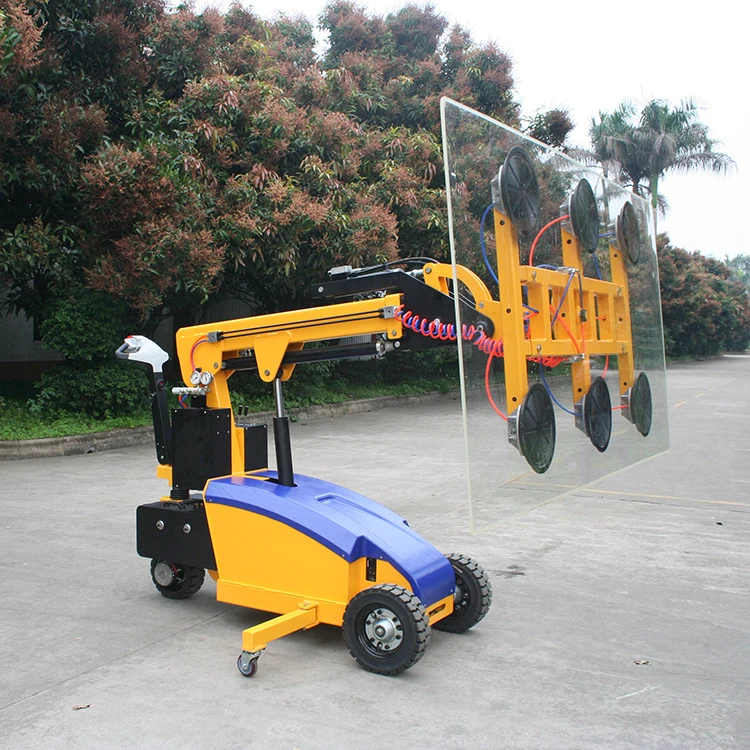

Detailed Images
Vacuum Lifter Olift Electric Vacuum Glass Lifter Sheet Metal Glass Stone Vacuum Lifting Equipment
Related Products
Packing&Shipping
Packaging Detail: | Vacuum Lifter Olift Electric Vacuum Glass Lifter Sheet Metal Glass Stone Vacuum Lifting Equipment will be packed by Flexible Package, Seaworthy Package | ||||||
Delivery Detail: | 15-30 days for Olift vacuum lifter for sheet, glass, stone and metal vacuum lifting equipment Glass Lifter. | ||||||
Certifications
Vacuum Lifter Olift Electric Vacuum Glass Lifter Sheet Metal Glass Stone Vacuum Lifting Equipment has passed the CE certificates
Company Introduction
Qingdao Olift Equipment Co.,Ltd. provides wide selection of products such as forklift truck, pallet truck and electric stacker, semi-electric stacker, scissor lift, moving tool, car mover, platform lifting, wheelchair lift platform, vacuum lifter and more. We have professional team members to design your hand pallet truck products and control the quality.
After Sales Service
Service for Glass Vacuum Lifter
1.We can design the customerized Glass Vacuum lifter as per your requirement.
2.The most suitable Glass lifter will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the Glass lifter break down to help you repair.
6.Parts of Glass lifter can be sent to you by express within 7 days if needed.
2.The most suitable Glass lifter will be recommended to you once we got your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the Glass lifter break down to help you repair.
6.Parts of Glass lifter can be sent to you by express within 7 days if needed.
Qingdao Olift Equipment Co., Ltd. is professional Material Handling Expert.
1. After-sales service provided: Engineer available to service machinery overseas.
2. We offer technical supporting for the Vacuum Glass Lifter GL600 all year round.3. Choose OLIFT is to choose higher work efficiency, better quality and service.
4. If you want to get more details, please visit our website: www.olift.com for more details of the trucks.
5. The workforce engages in intense research to develop functional, easy-to-use products that can provide the clients total value for their investment.
6. The company emphasizes on total customer satisfaction, thus all equipment are manufactured to international standard and with impeccable quality.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
7. In addition, it has in-house technical capabilities to design and manufacture the equipment.
8. Strict quality management is applied throughout all stages of production process to ensure the precision and high performance of products.
Qingdao Olift Equipment Co., Ltd.
Address: No. 143, Zhuzhou Road, Laoshan District, Qingdao, China
Sales Dept.: Lily Liu
Sales Dept.: Lily Liu
Email: truck@olift.com
Mobile:+86 18561937711
Whatsapp:+8618561937711
Wechat: +8618561937711
Skype: oliftltd
Website: www.olift.com
Mobile:+86 18561937711
Whatsapp:+8618561937711
Wechat: +8618561937711
Skype: oliftltd
Website: www.olift.com
FAQ
1.How can customer buy parts once the Vacuum Glass lifter break down?
Thes Glass lifter adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Vacuum Glass lifter.
One of the great advantage of Glass lifter is with very very low failure rate.Even it breaks down,we can guide to repair it by
video and repair instruction.
3.What is the battery life span of the vacuum lifter?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the Glass lifter?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
Thes Glass lifter adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the Vacuum Glass lifter.
One of the great advantage of Glass lifter is with very very low failure rate.Even it breaks down,we can guide to repair it by
video and repair instruction.
3.What is the battery life span of the vacuum lifter?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.
4.How long is the quality guarantee of the Glass lifter?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
